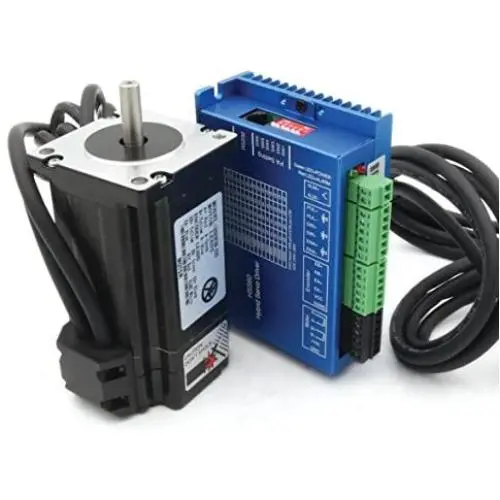

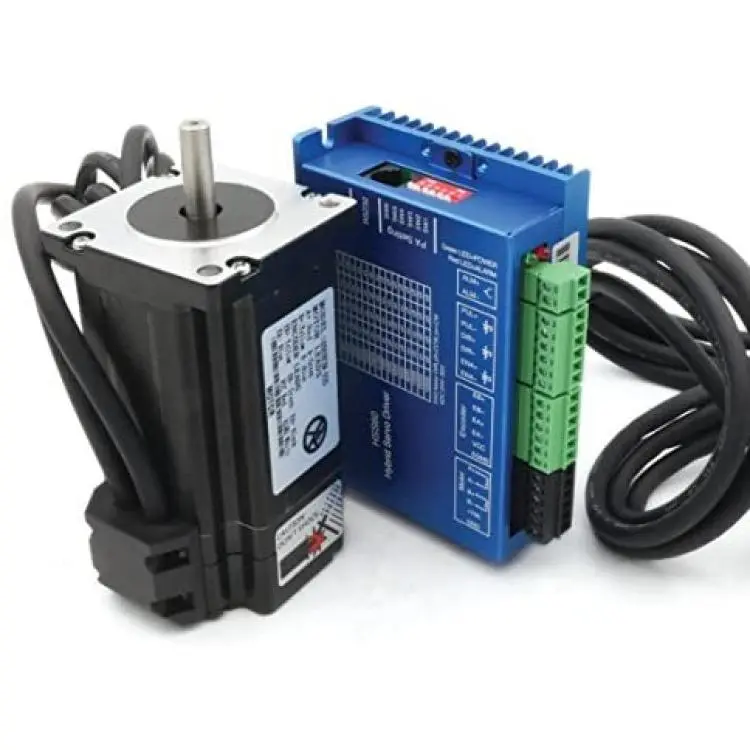

Nema24 3N.m Closed Loop Stepper Servo Motor 88mm 5A+HSS60 Hybrid Driver CNC Kit for CNC Router Engrvaving Milling Machine

Package include:

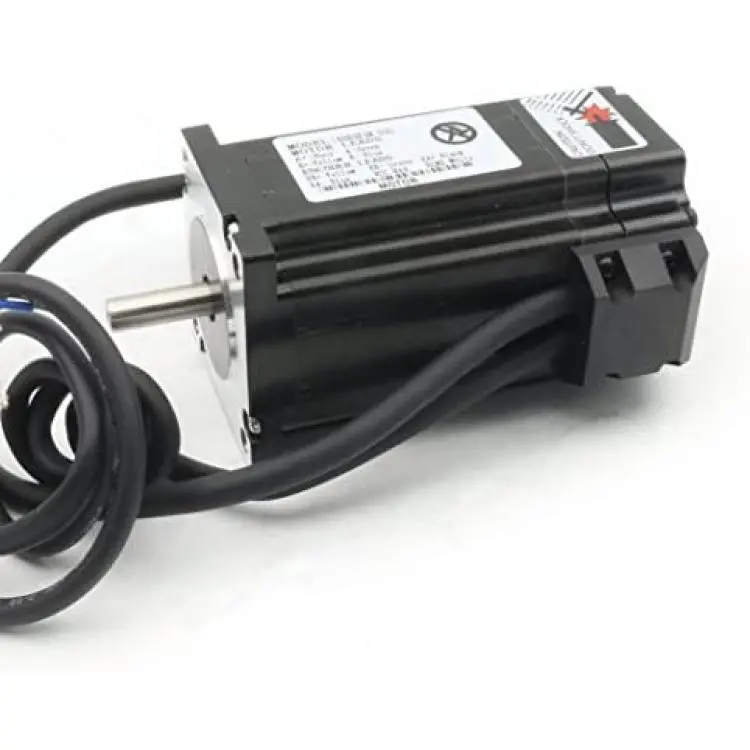

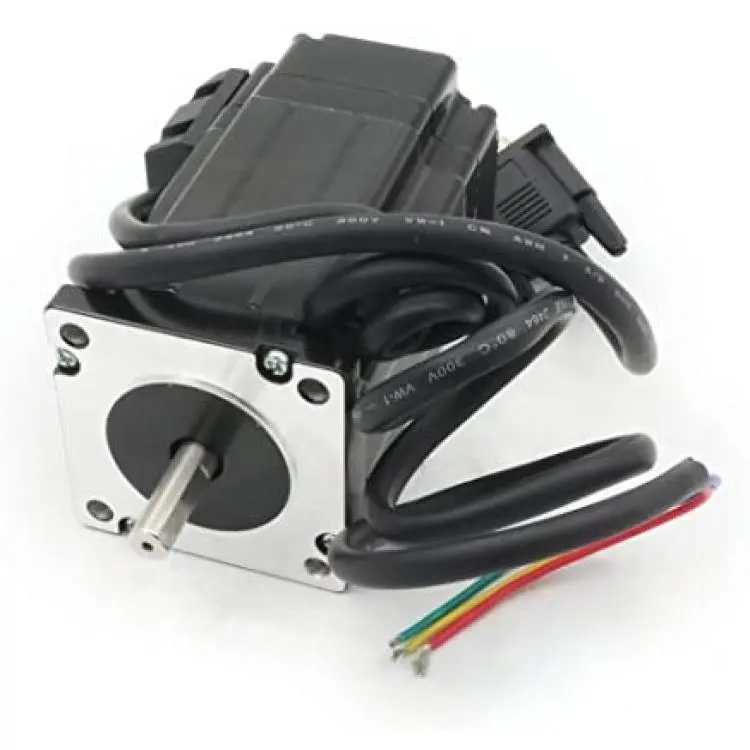

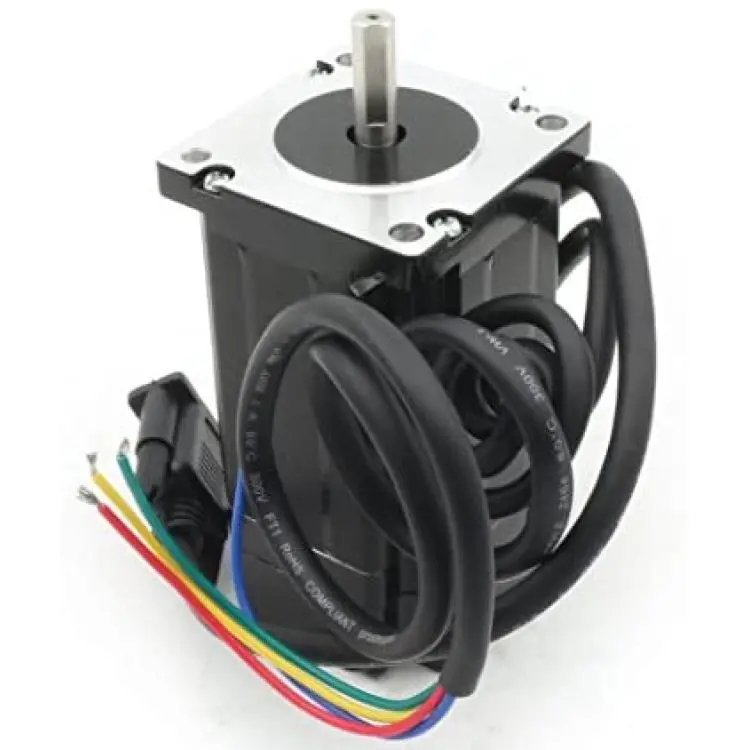

1 x 24HSE3N-D25 Nema24 3N.m Closed Loop Servo motor ( 88mm Length, 5A)

1 x HSS60 Servo Driver

1 x 2M Extension Wire

English manual will send to your amazon email,if you don't receive the user manual,please contact us by amazon message,thanks!

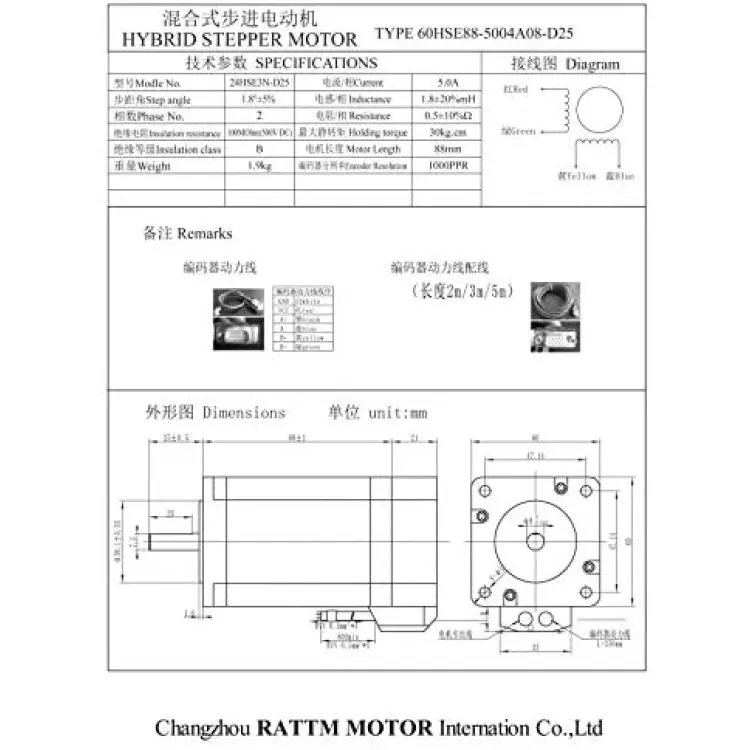

Features:

Type:Hybrid

Phase:2

Current / Phase:5A

Step Angle(degrees):1.8

Holding Torque:3N.m

Size:60x60x88mm

Lead wire:4pcs

Insulation class:B

Insulation resistance:100MOhm(500V)

Frequency:0~200KHz

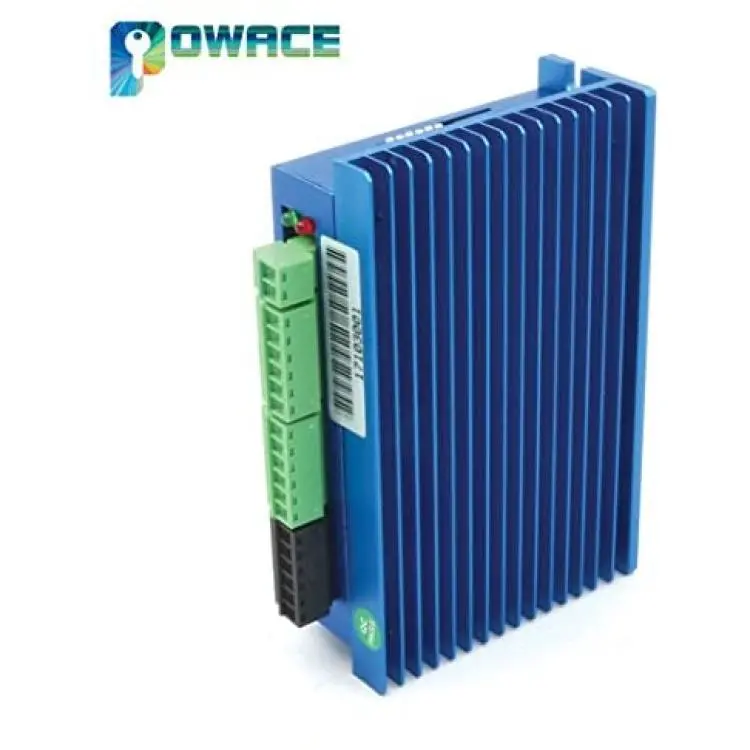

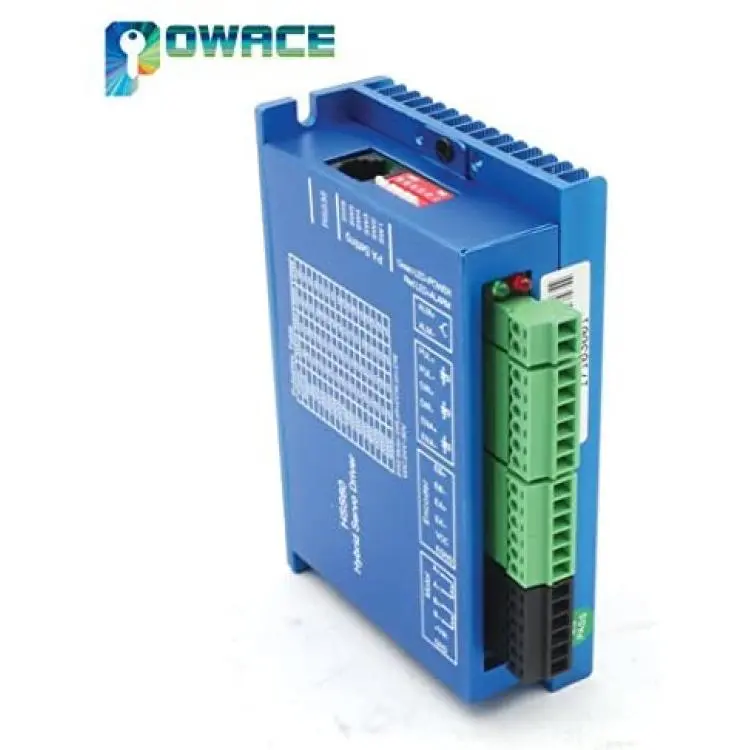

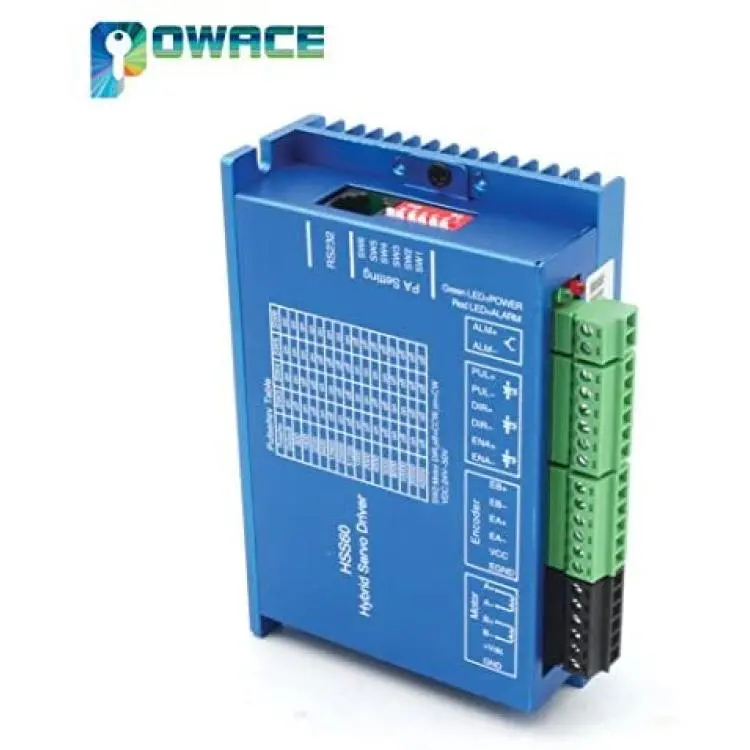

2. HSS60 2-Phase Hybrid Stepper Servo Driver

2.2) Features

2.2.1  Stepper motor closed loop system, never lose step.

2.2.2  Improve motor output torque and working speed.

2.2.3  Automatic current adjustment based on load, lower temperature rising.

2.2.4  Suitable for all mechanical load conditions (include low rigidity belt pulley and wheel), no need to adjust gain parameter.

2.2.5  Motor work smoothly and low vibration, high dynamic performance at acceleration and deceleration.

2.2.6  No vibration from high speed to zero speed.

2.2.7  Drive nema 24 series 3N.m closed loop stepper motor.

2.3 ) Electrical Parameter

Voltage rangeDC24~50V

Peak currentPeak 6.0A (current change according to load)

Logic input current7~20mA

Frequency0~200KHz

Suitable motor60HSE3N

Encoder lines1000

Insulation resistance>=500M?

2.4) Applications

Closed loop stepper system can be applied to all kinds small automatic equipment and instrument. Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, laser phototypesetting, graph plotter, cnc machine, automatic assembly equipment and so on.
