CW8060 Nema23 Nema34 Stepper Motor Driver 24-80VDC/6A/256 Microstep for CNC Router Milling Engraving Machine

Package include:

1 x CW8060 Stepper Motor Driver

use manual will by mailbox.CW8060  driver Characteristics:

1. DC power input type: 24V~80V;

2. Output current: 2~6A;

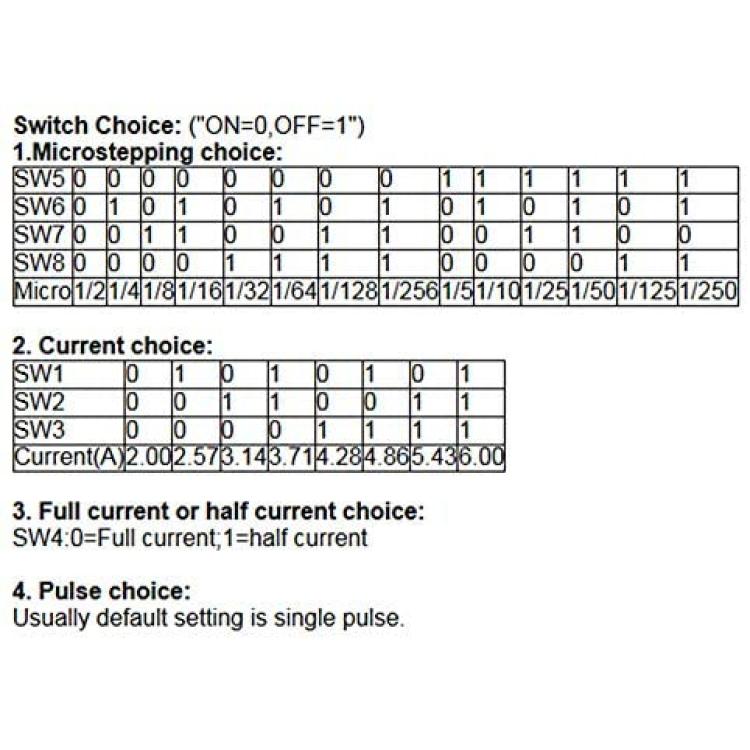

3. Mircostepping: 1(1.8deg),1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256; 1/5,1/10,1/25,1/50,1/125,1/250;

4. Protect form: Overheated protect, lock automatic half current, error connect protect;

5. The maximum pulse rate is 100KHZ;

6. Dimensions: 147mmx97mmx30mm;

7. Weight:<500g;

8. Working environment: Temperature-15~40deg Humidity<90%;

9. It is fit for NEMA17-34 two and four phase stepper motors whose current is small than 6A.

I/O Ports:

1. VCC+: DC power positive pole;

Note: Must guard against exceeding 80V,so as not to damage the module.



2. GND: DC power cathode;

3. A+, A-: Stepping motor one winding;

4. B+, B-: Stepping motor other winding;

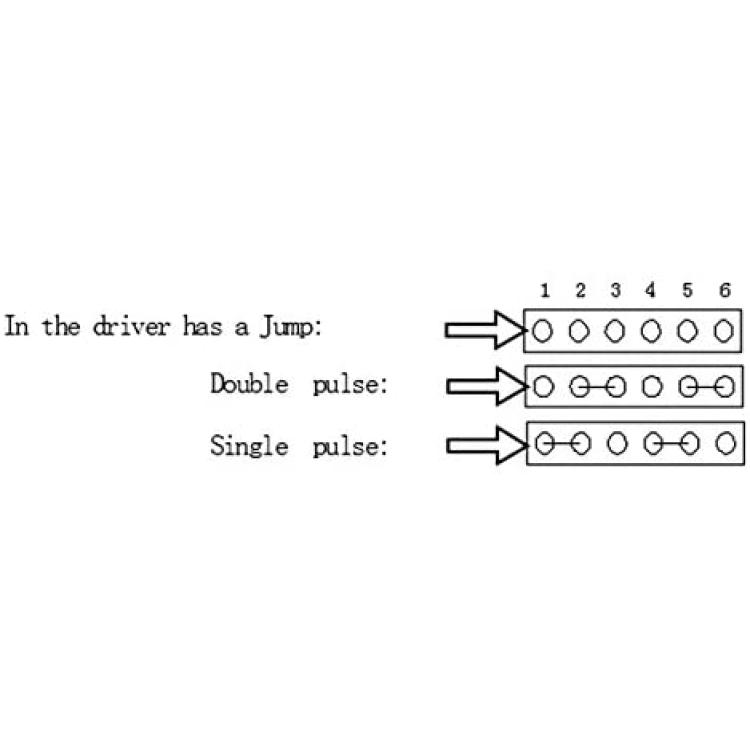

5. CP+, CP-: Stepping pulse input+5V (Rising edge effective, rising edge duration >10uS);

6. CW+, CW-: Stepping motor direction input, voltage level touched off,high towards, low reverse;

7.REST+, REST-: motor free.

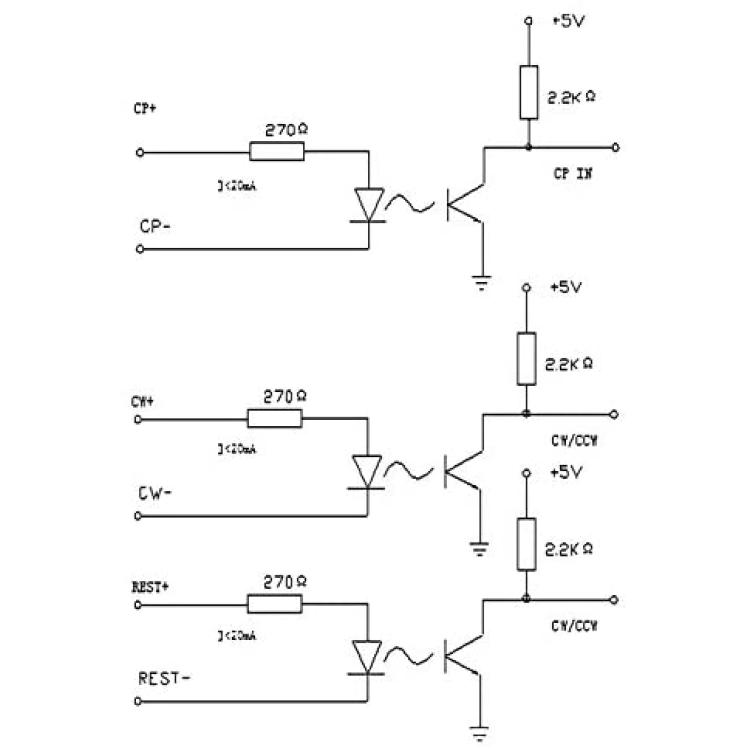

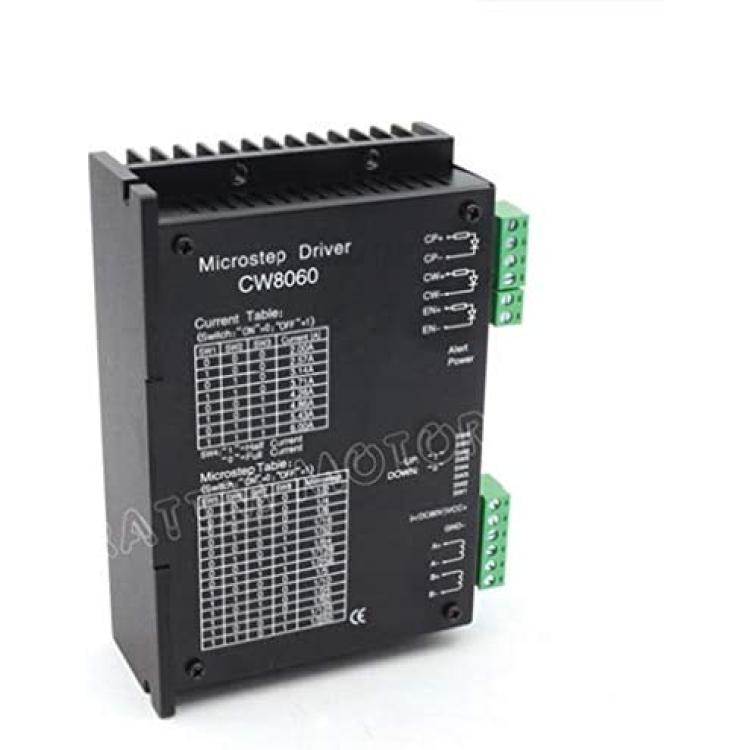

The interface see; the right picture
