4 Axis Stepper Motor Nema 23 Dual Shaft 425oz-in 112mm+CW5045 Driver 4.5A 256 Microstep+5 Axis Breakut Board+400W 36V Power Supply CNC Controller Kit For CNC Router Engraver Milling Machine

4 Axis CNC Kit for medium size Router Mill Plasma or Laser

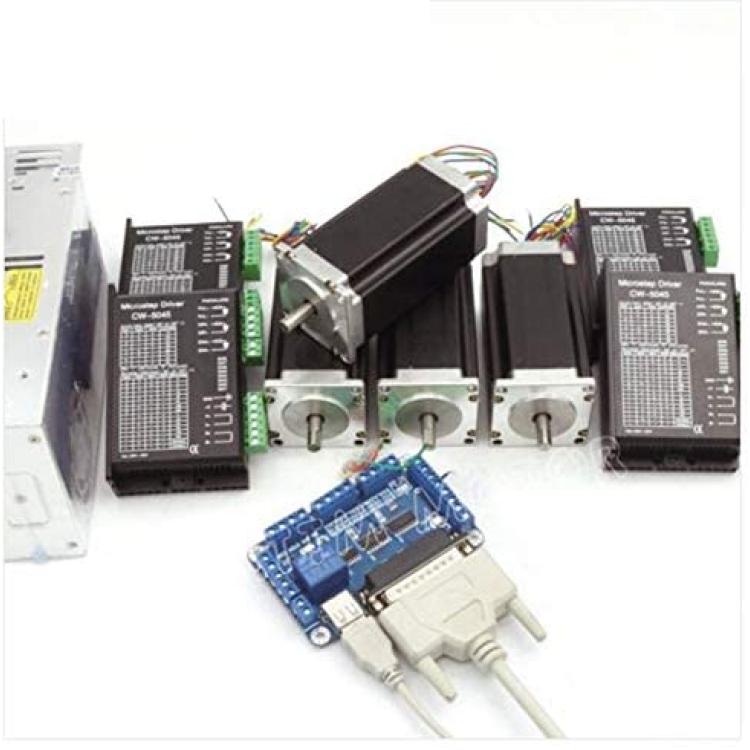

Package include:

4 x 23HS2430B Nema23 stepper motor (Dual Shaft) 112mm,425oz-in,3A

4 x CW5045 stepper motor driver 50V,4.5A,256 high microstep

1 x 400W 36V/11A switching power supply

1 x 5 Axis breakout board V5 type

1 x DB25 parallel cable

1 x USB cable

English user manual will send by email.

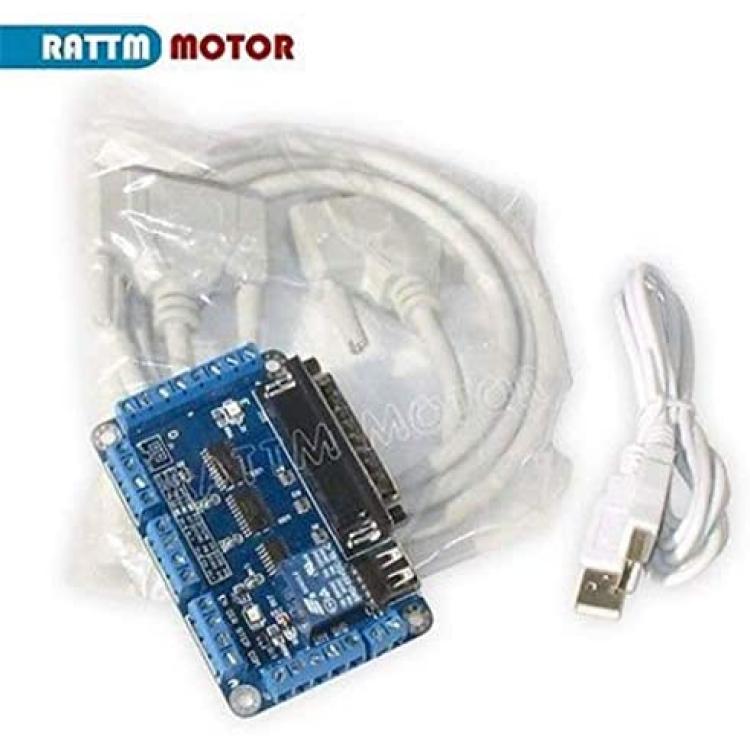

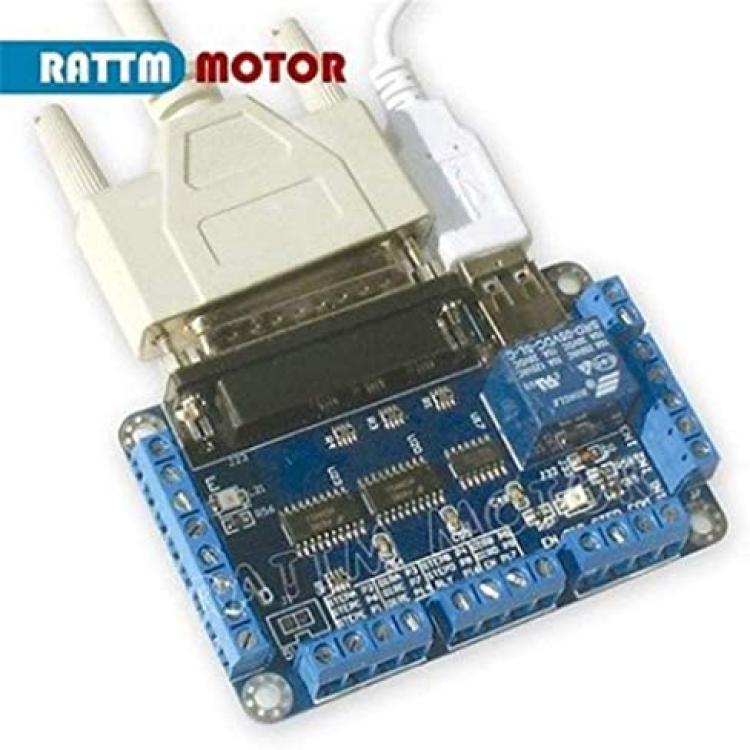

I.  5 axis breakout board

It can most connection 5pcs driver and control 5pcs motor in the same time

It is with 4-wire limit switch to insure our safty movement

It is with relay port to contro the cnc spindle

Working voltage is 5VDC and support with MACH3,EMC2,KCAM4 software.

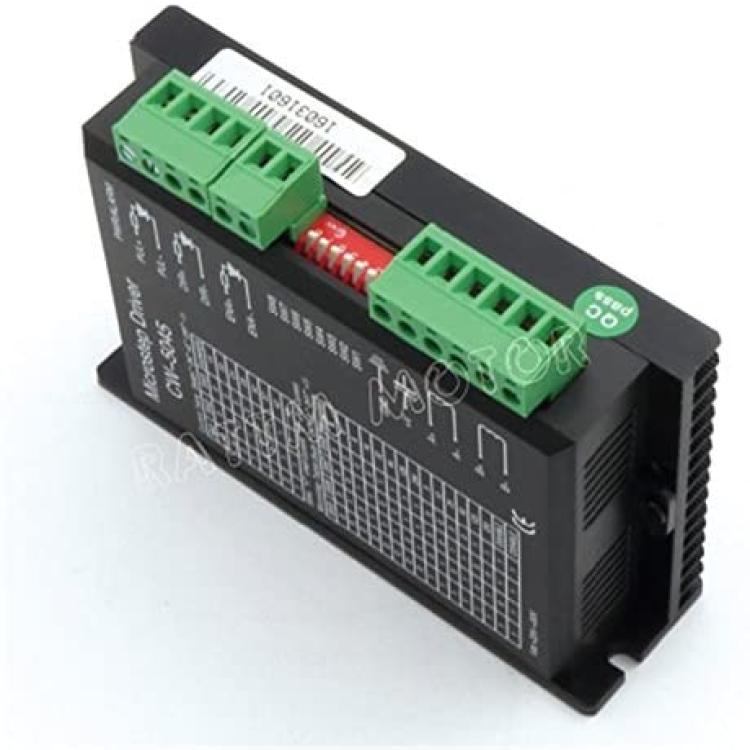

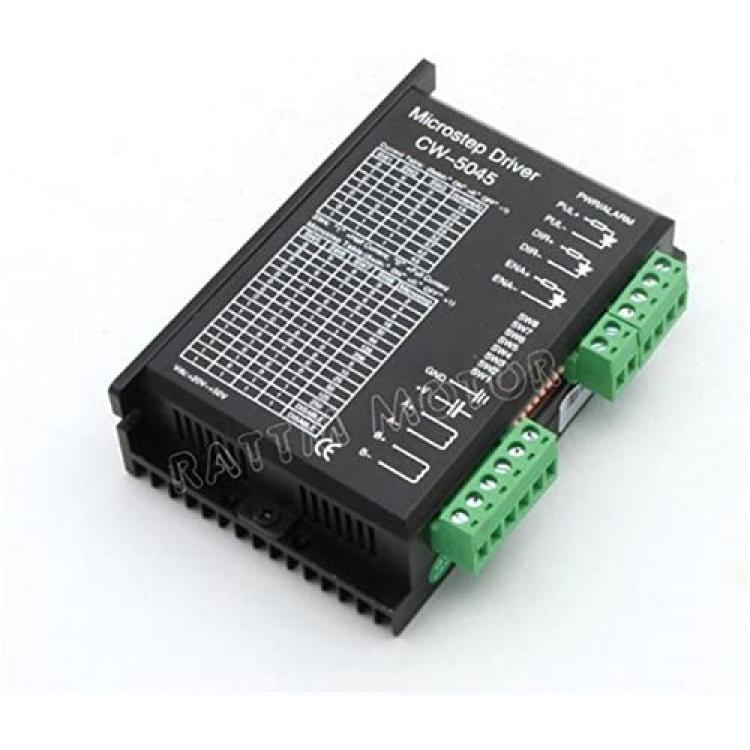

II.CW5045 motor driver

DC power input type:24V~50VDC ;

Output current:1.3A-4.5A ;

Mircostepping:1(1.8º) 1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256; 1/5,1/10,1/25,1/50,1/125,1/250  ;

Working environment:Temperature-15-40deg  Humidity<90% ;

It is fit for NEMA17-23 2 & 4 phase stepper motors which current is small than 4.5A,also can fit for small length NEMA34 2 & 4 phase stepper motors.

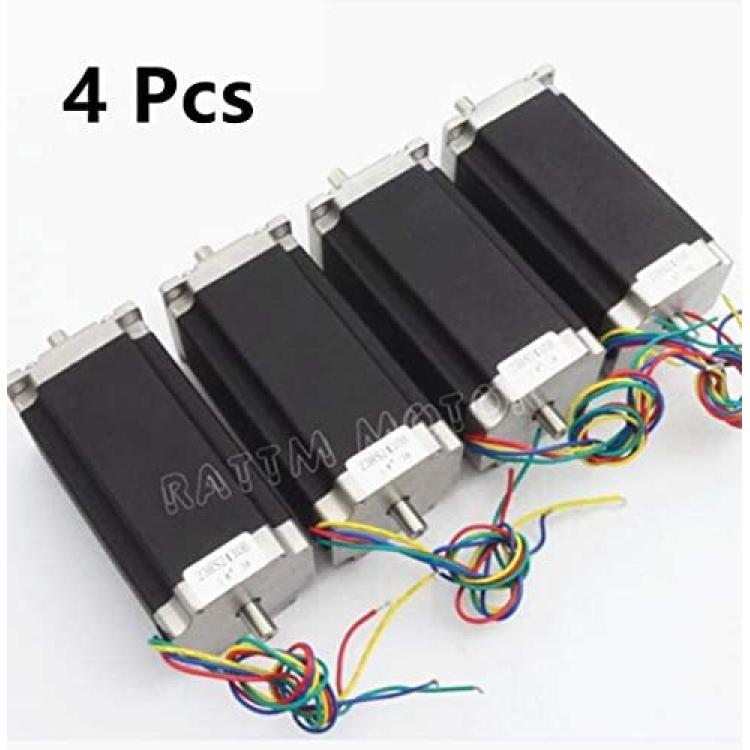

III. Stepper Motor (4 Lead Wire)

Step angle accuracy:+ -  5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy:+ - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg  ----  +50deg

Insulation resistance:100ohm  Min,500VDC

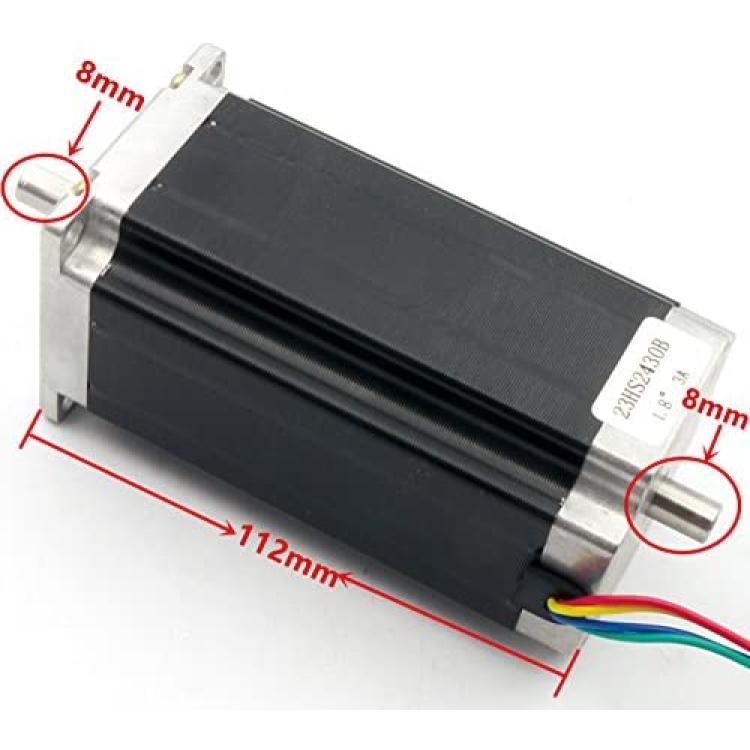

(Front shaft 8mm dia and 21mm length;back shaft 8mm dia and 11mm length,425 oz-in or 28kg.cm holding torque)

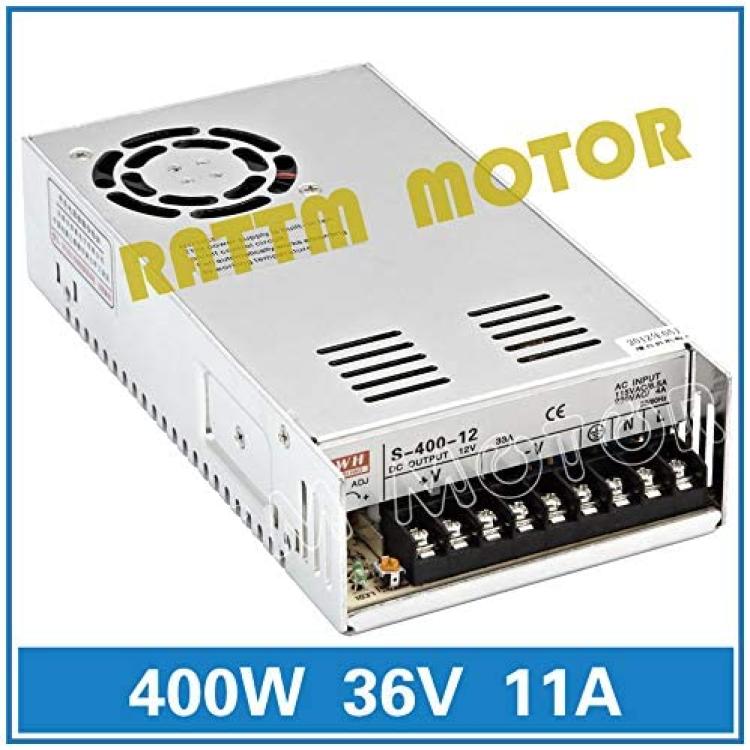

IV.Switching power supply

400W,Input:100-120VAC or 200-240VAC,50/60Hz,Output:36v/9.7 A,single output switching power supply.
