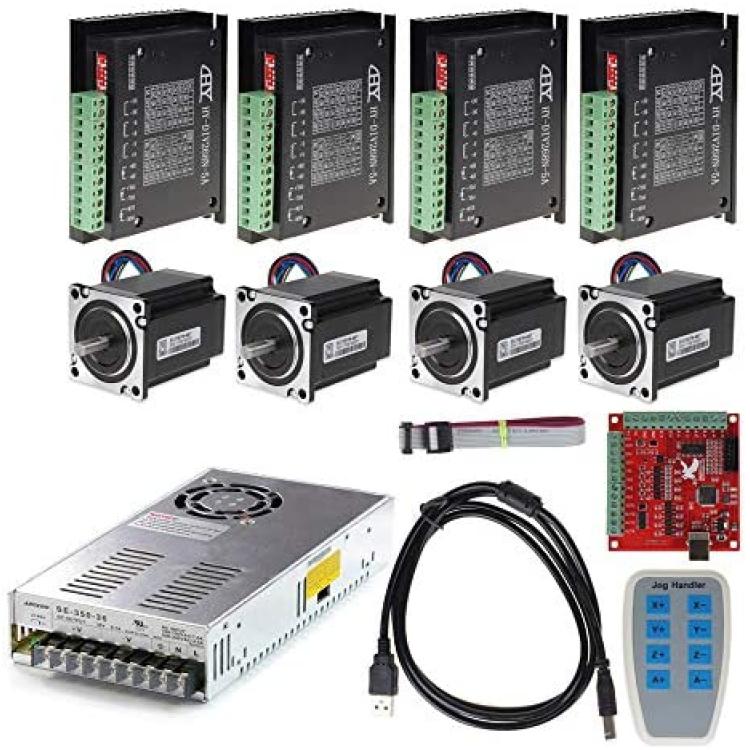

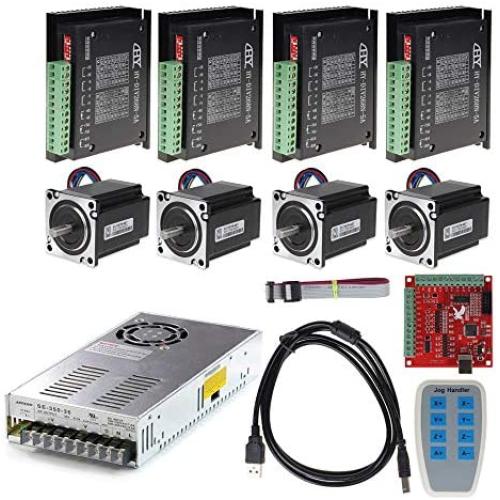

USB Mach3 CNC Router 4 Axis 2Nm Stepper Motor Driver Kit with 360W 36V 10A Power Supply 100KHz 110V 220V (4 Axis)

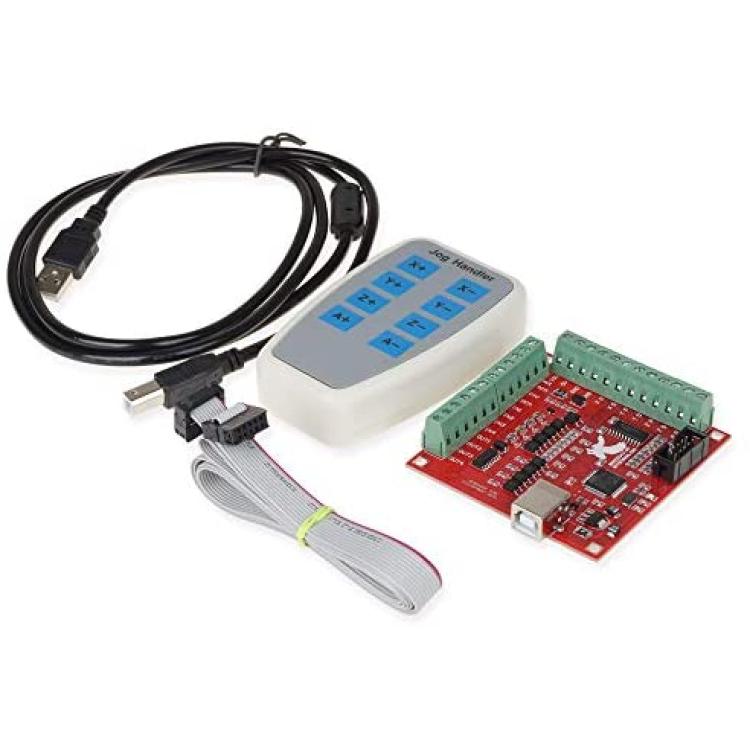

Mach3 USB Breakout Board:
Support for 4-axis linkage, you can connect 4 stepper motor drives or servo drives;
Maximum step-pulse frequency is 100 KHz, which is suitable for the servo or stepping motor;
Support automatic probe tool, Emergency input, limit switch, connecting electronic handwheel
Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.
Have 0-10V output port, you can use mach3 software to control the spindle motor speed.
4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device
4 general-purpose isolated relay drive output interface, can drive 4 relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device;
1 status LED, indicate connection status on the board.

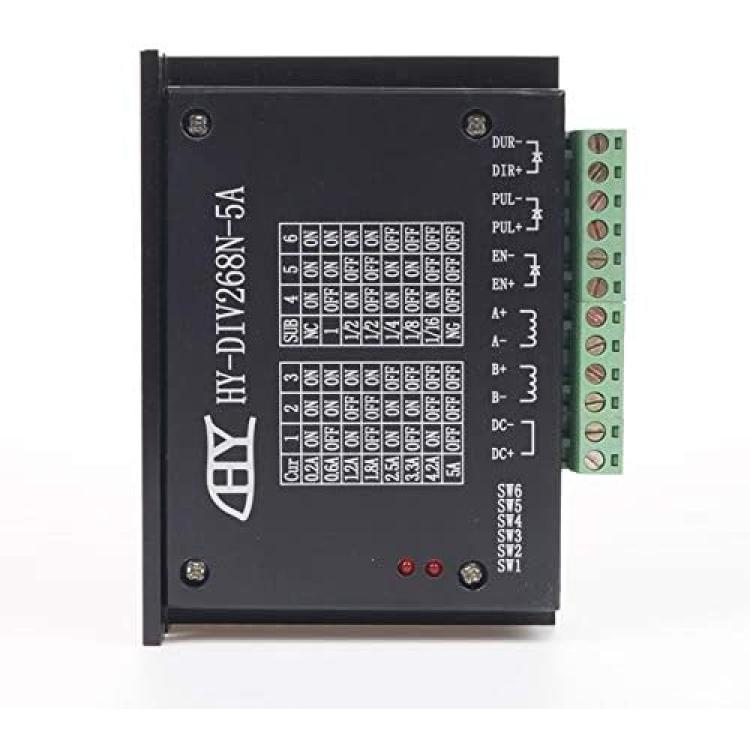

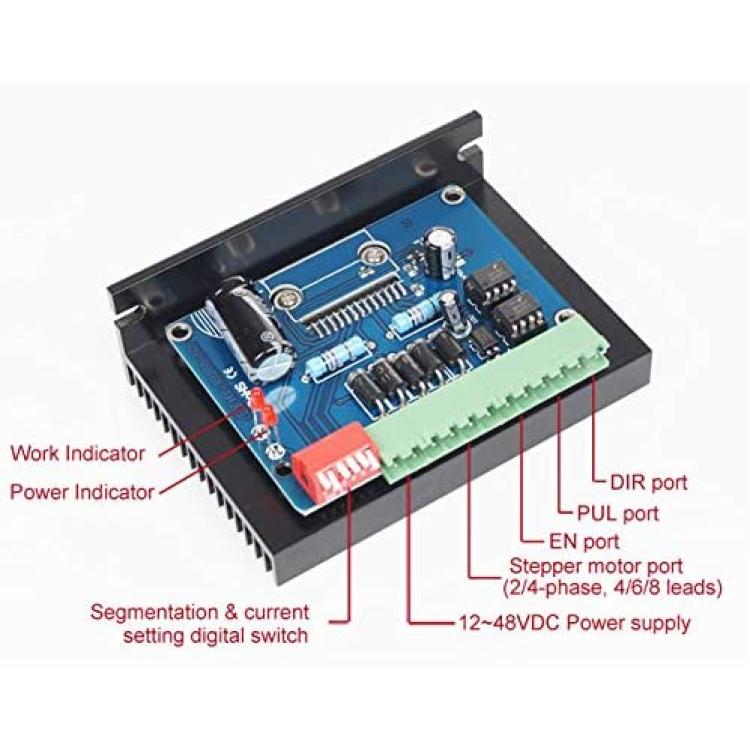

Stepper Driver:
Average current control, two-phase sinusoidal current drive output;
DC 12 ~ 48V power supply, the internal integration of 12V and 5V regulator;
Optically isolated signal input / output;
Overvoltage, undervoltage, overcurrent, and white short-circuit protection;
4 file segmentation and automatic half-streaming capabilities up to 16 segments;
File output phase current settings;

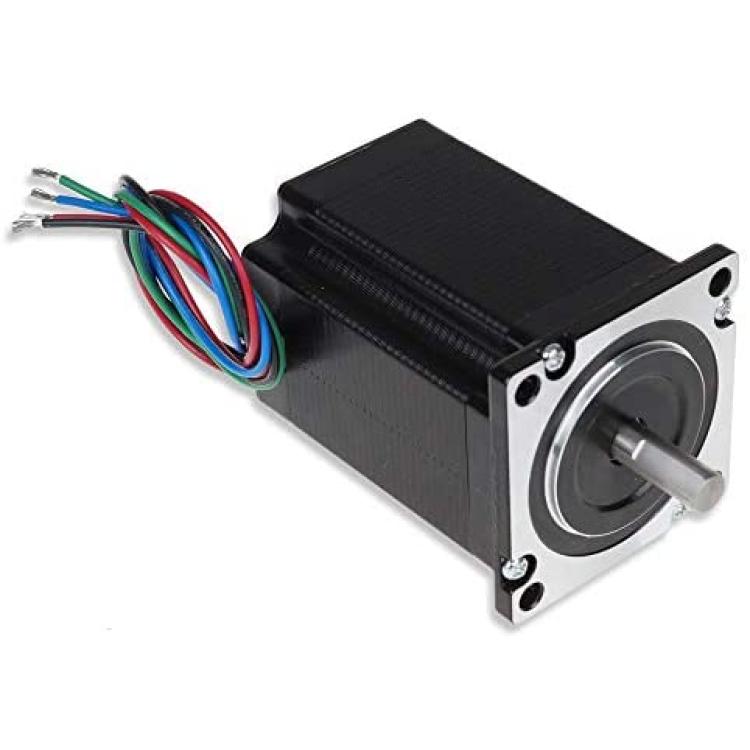

Nema 23 stepper motor:
2 phase hybrid type
Step Angle: 1.8°
Holding torque: 2Nm
Phase Current: 4.7A
Phase Resistance: 1.25 ohms
Phase Inductance: 4.0 MH
Detent Torque: 200 gcm
Rotor Inertia: 82 g-cm?2;
Insulation Class: B
Lead Wire Numbers: 4
Weight: 0.34kg
Length: 48mm
Shaft: 5mm
Low noise
Operate smoothly
High Torque
Good accelerate function

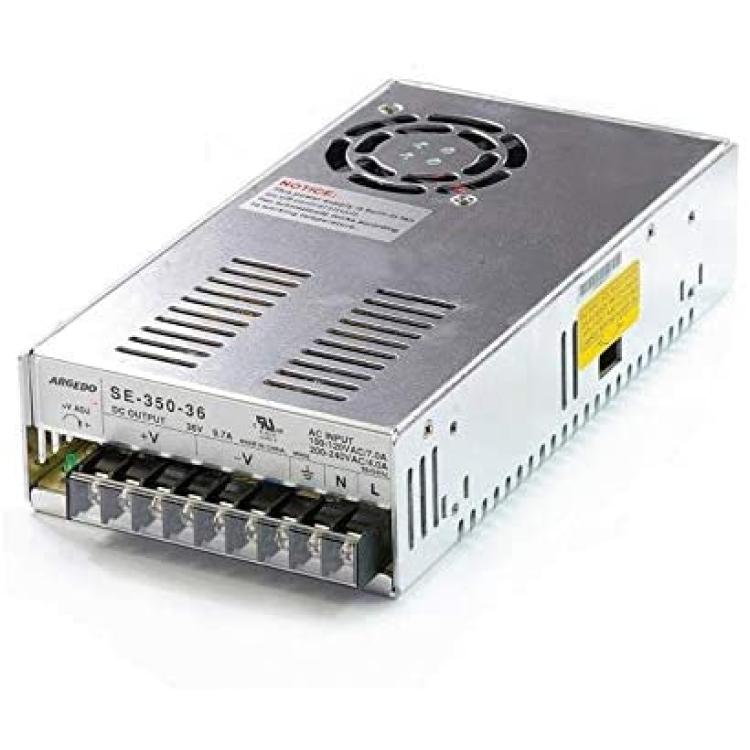

Power Supply: Input Voltage: AC110V/220V Switchable, Output DC 36V 0~10A
Dimension: 220*115*50mm
