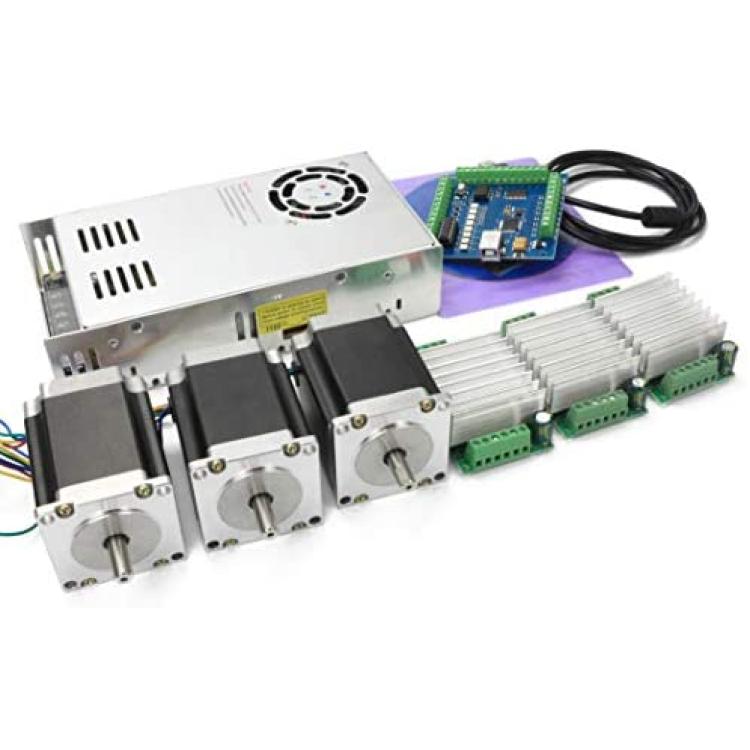

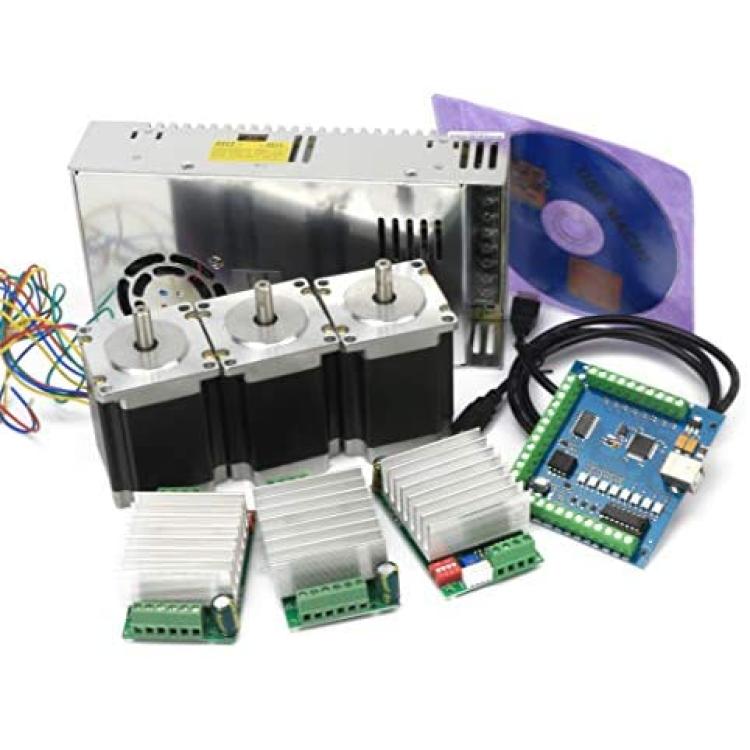

3 Axis USB Mach3 CNC Controller Kit, Nema23 Stepper Motor 76mm 270Oz-in 3A 1.8Nm + CNC Motion Control Board Signal Output 0-10V + TB6600 Driver 4.5A + 350W 24V DC Switch Power Supply

About this product

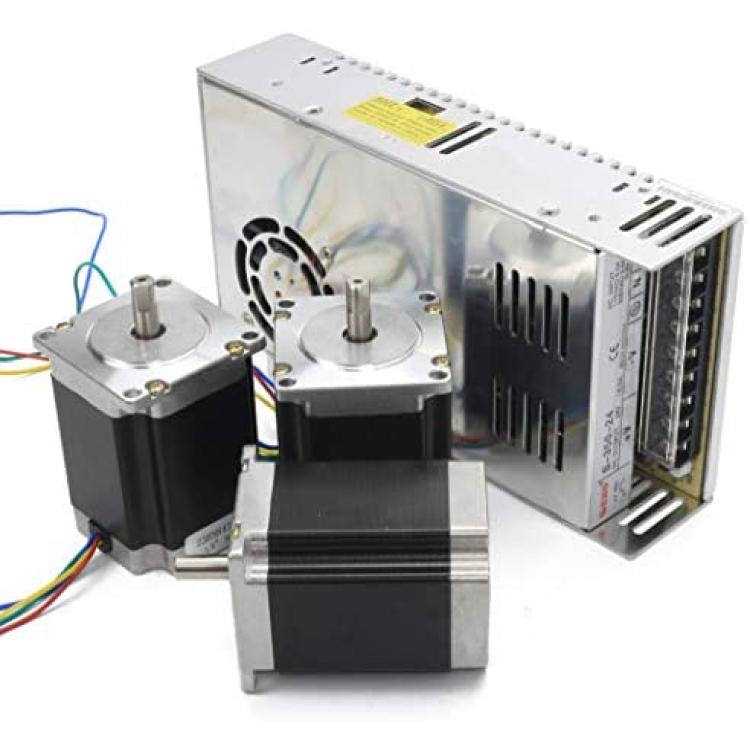

*【Nema23 Stepper Motor】Step Angle: 1.8°; Current: 3.0A; Holding torque: 180N.cm/18kg-cm 270 oz-in; Shaft : single shaft,8mm diameter

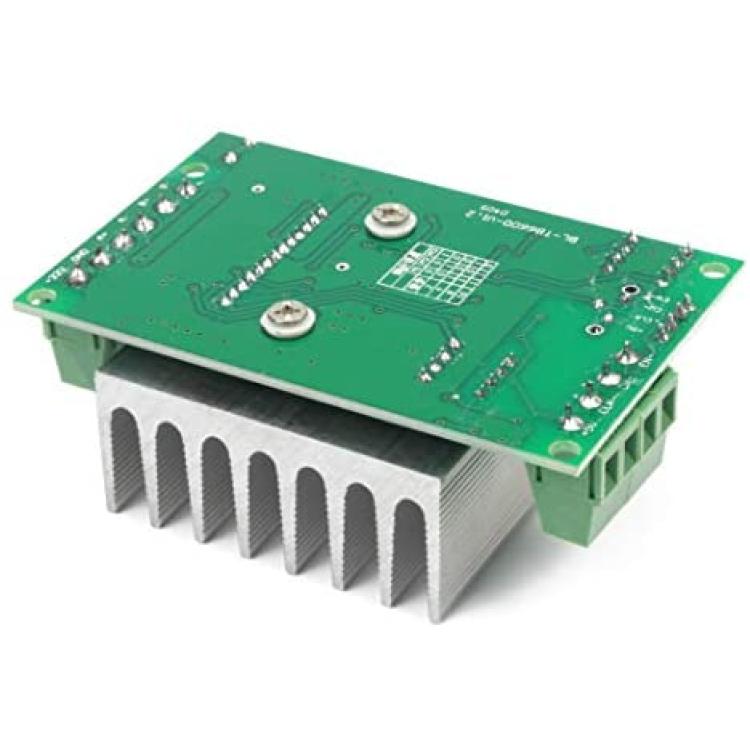

*【TB6600 Driver】(1) Voltage: DC 10V-45V; It is recommended that customers should not input more than 36VDC, otherwise the chip will burst easily；(2)There are two input terminals, both of which adopt the common anode input mode

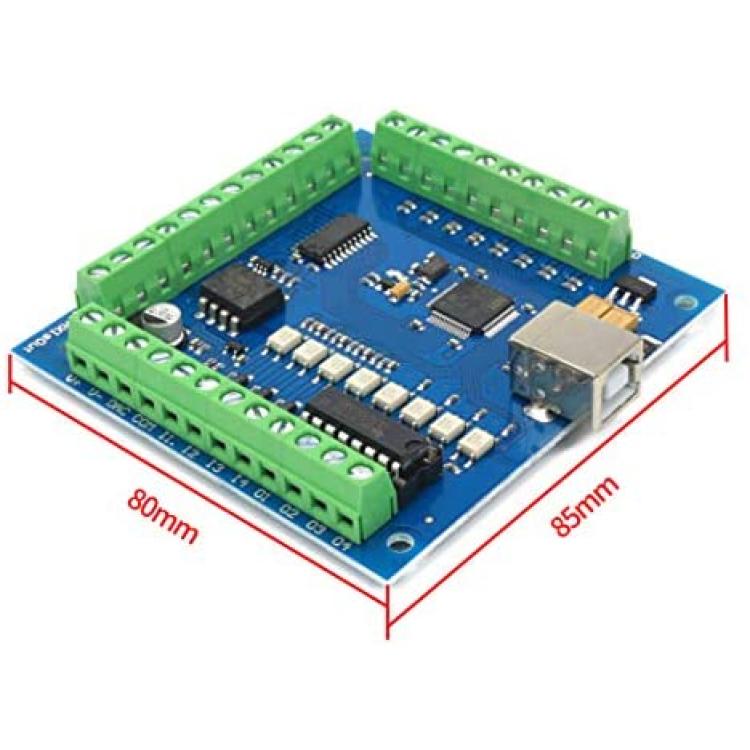

*【USB Mach3 Motion Control Card】 (1) This USB motion card does not need install any USB driver, Windows2000/XP/Windows7,can directly identify; (2)4-axis linkage, Maximum step-pulse frequency: 100KHz, support connect four stepper motor drives or servo drives; (3) Signal Output:0-10V, it can control the spindle motor speed through using mach3 software

*【DC Switching Power Supply】---- 350W 24V; 0-14.5A; AC input voltage range: 115VAC/6.5A/50HZ--230VAC/3.4A/60HZ; Selected by switch
