UCONTRO CNC 200 KHz 4 Axis USB Mach3 Motion Control Card Breakout Interface Board Controller,12-32V DC Input

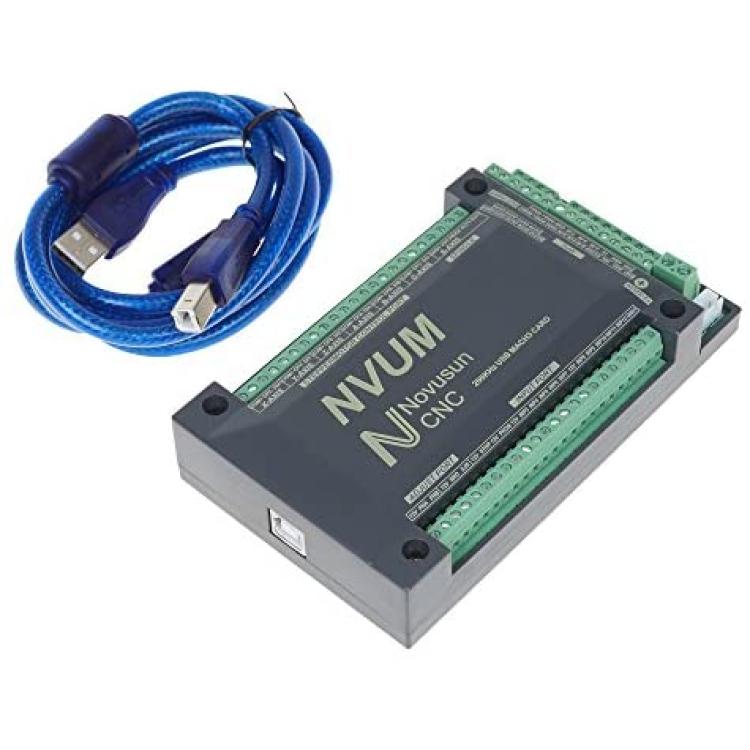

Package Contents:
1 x CNC 200KHZ USB MACH3 Breakout Board
1 x USB cable
1 x CD

Specification:
Support USB;
12 ports photoelectric isolated input interface for ordinary digital data;
10 ports photoelectric isolated output interface for ordinary digital data;
1 port 0-10V spindle speed analog output interface (can change to PWM output);
Can support 3 axis stepper systems, 200 KHz pulse output for every axis;
ARM motion control chip;
Main device is 12-32V DC power supply input; current should higher than 0.5A;
Compatible with MPG input, support the digital display MPG from our company.

Appearance and structure and size:

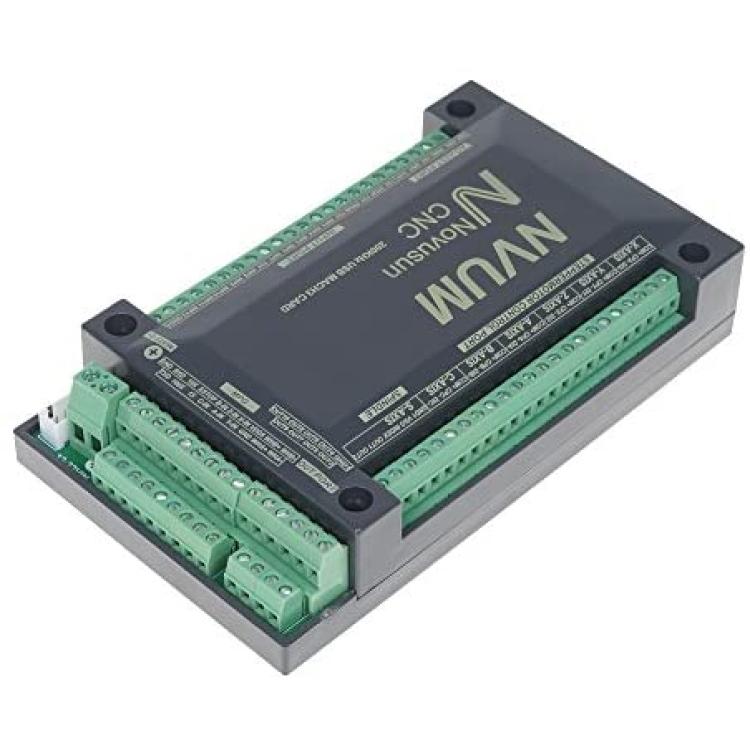

This motion control card is with a sealed shell structure. There are 4pcs setting holes at the bottom. We can fix 4pcs 4mm diameter holes at the cabinet and install the controller into the cabinet.
The products overall size is 163.1mm*80.8mm*27.8mm;
The bottom install size is 101.4mm*42.5mm

Connection define and method:

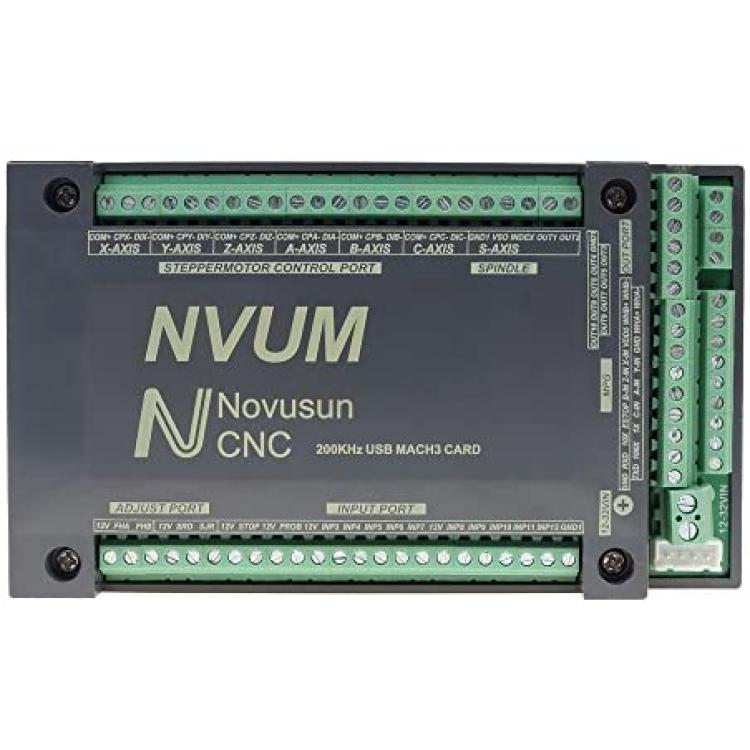

As the Figure showed above, the connection of the controller includes power supply interface, Ethernet connection interface, MPG interface, Stepper/Servo control output interface, spindle control output interface, Estop and limited switch and tool setting input interface and so on. Now we descript them in details as below.
