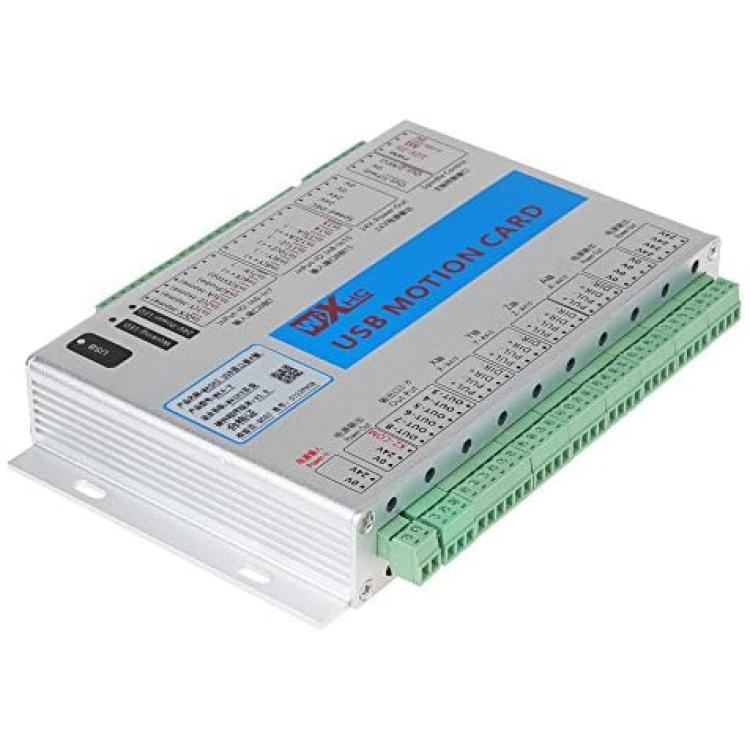

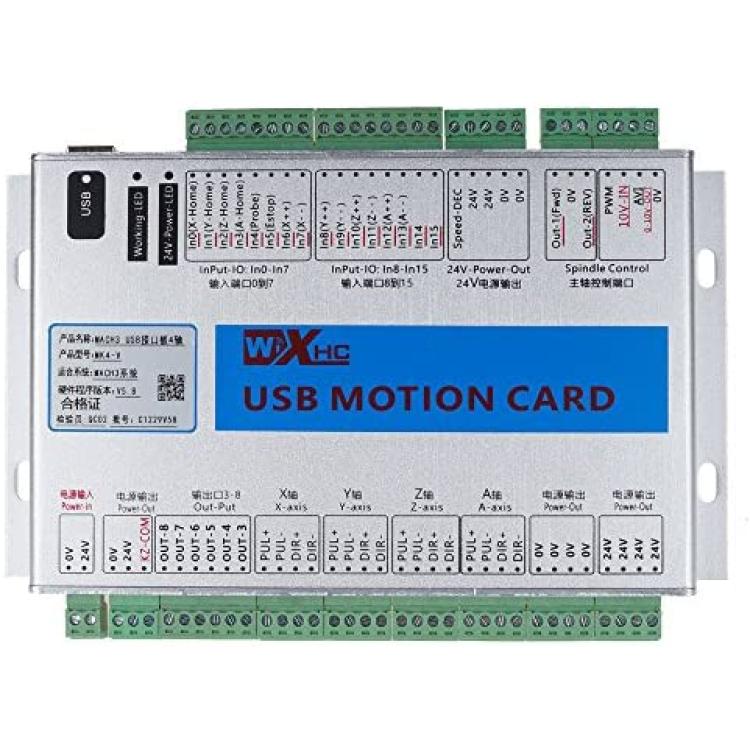

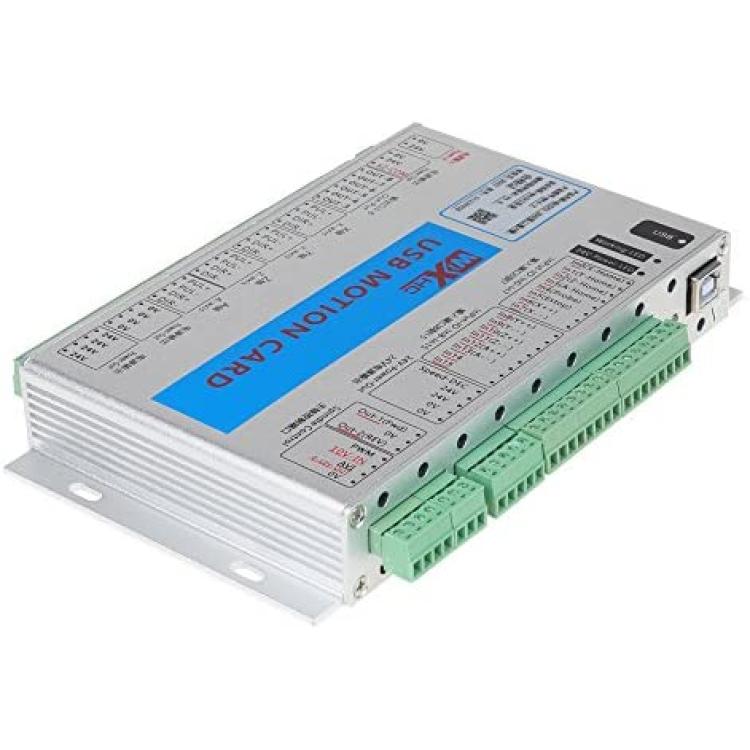

UCONTRO Mach3 USB 4 Axis CNC Motion Control Card Breakout Board 2000 KHz 2 MHz, Support Resume from Breakpoint and Spindle Speed Feedback, Work with Windows 7, 10 (4 Axis)

Package Contents:

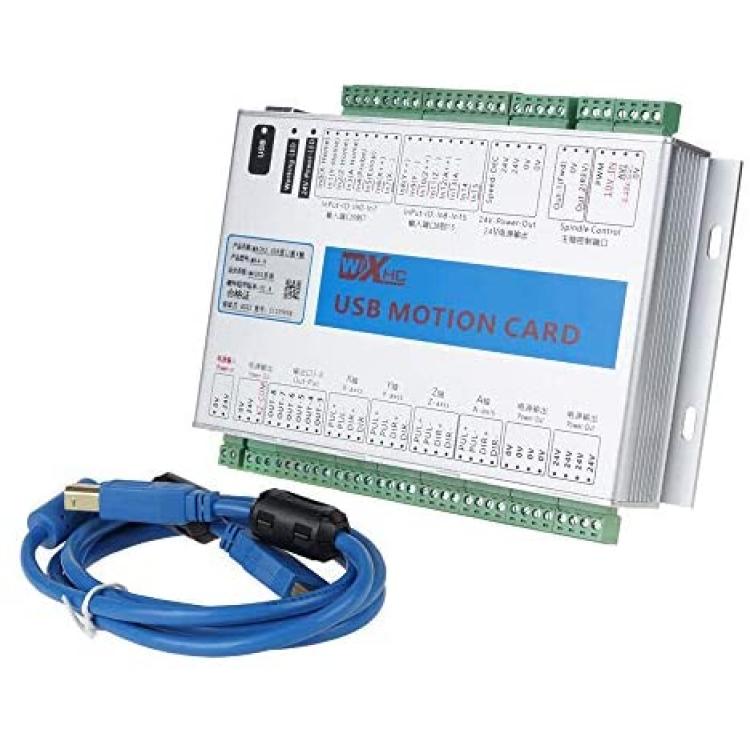

1 x CNC Mach3 USB 4 Axis Motion Control Card
1 x USB Cable
1 x English Manual
1 x CD

Overview:
This is the latest generation 4 axis motion control card. It comes with resume from breakpoint function and spindle speed feedback. Now new version is stronger, more stable and better performance.

Features:
Dual-Processors, ARM+FPGA, More processing power
Support all versions of Mach3.
Could resume from Breakpoint
Support spindle speed feedback.
USB jack does not need to install the driver, plug and play under all versions of Windows.
Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach3 working state, USB cable unplugs and then plugs in, the connection would be normal still.
Supports 4-axis linkage.
Maximum step-pulse frequency is 2000 KHz, can connect servo driver/stepper driver.
The indicator light indicates various working status, such as USB connection, Mach3 connection and so on.
16 input port, 8 output port. I/O ports can be expanded.
All IO port fully isolated, strong anti-interference, stable performance.
Onboard isolated power supply, not need external power supply.
Support spindle speed PWM output; support spindle pulse and direction output; support spindle speed output from 0 to 10V analog voltage.
Support XHC series of wireless electronic mach3 MPG, such as WHB04 MPG.
With an aluminum shell, effectively shielding interference, stable and reliable performance.
