3 Axis USB CNC Kit Nema23 Stepper Motor (Dual shaft) 3A 280Ncm 112mm 425oz-in + CW5045 50VDC4.5A Motor Driver + USB CNC breakout board

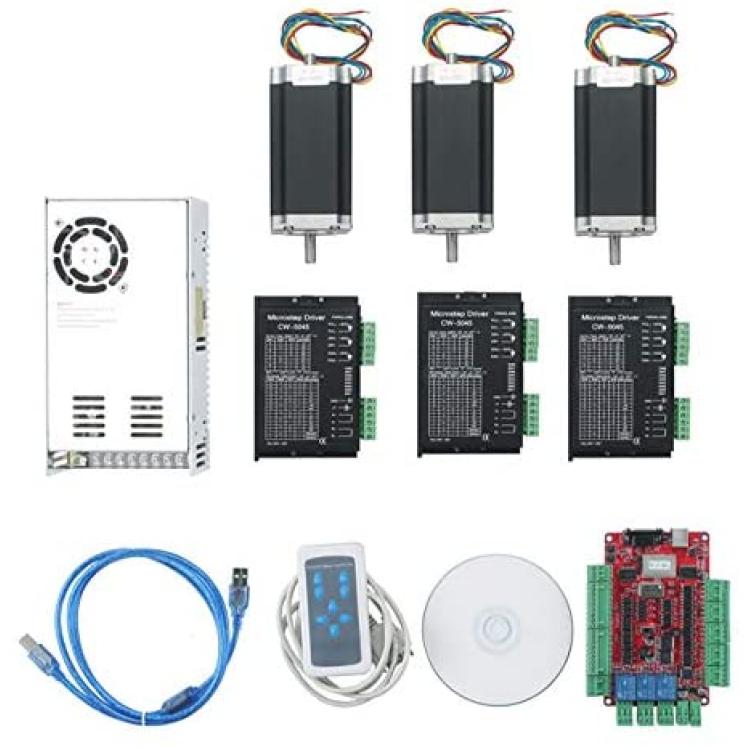

Package include:

3 x 23HS2430B Nema23 stepper motor 425oz-in 112mm 3A (Dual Shaft)

3 x CW5045 stepper motor driver

1 x 400W 36V/9.7A switching power supply

1 x 4 Axis USBCNC breakout board

1 x Hand controller

1 x USB Cable

CD include with English user manual and software and register code

This cnc kit only support USB CNC Software,not support Mach3 Softare,when install the software need the right register key to run pls contact for it!

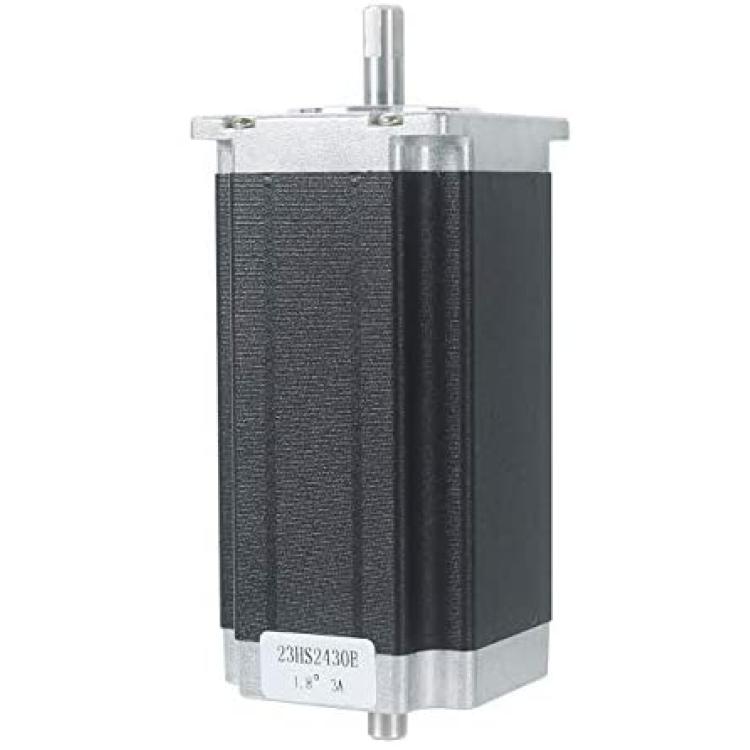

1. Nema23 Stepper Motor

General Specification:

Step angle accuracy:+ - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy:+ - 20%

Datasheet(23HS2430B,Front shaft 8mm dia and 21mm length;back shaft 8mm dia and 11mm length,425 oz-in or 28kg.cm holding torque)

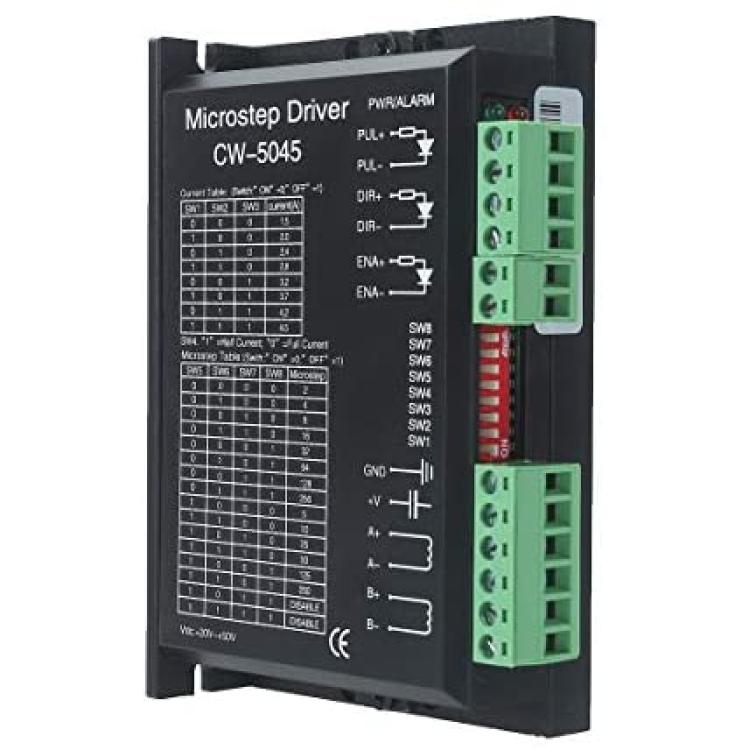

2. CW5045 stepper motor driver

Features:

DC power input type:24V-50VDC

Output current:1.3A-4.5A

Mircostepping:1(1.8º),1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256;1/5,1/10,1/25,1/50,1/125,1/250

Protect form : Overheated protect, lock half current ,error connect protect.

Working environment:Temperature-15^40deg Humidity<90%

It is fit for NEMA17-23 two and four phase stepper motors whose current is small than 4.5A,it also can fit for small length NEMA34 two and four phase stepper motors.

3.Switching power supply

400W,Input:100-120VAC or 200-240VAC,50/60Hz,Output:36v/9.7 A,single output switching power supply

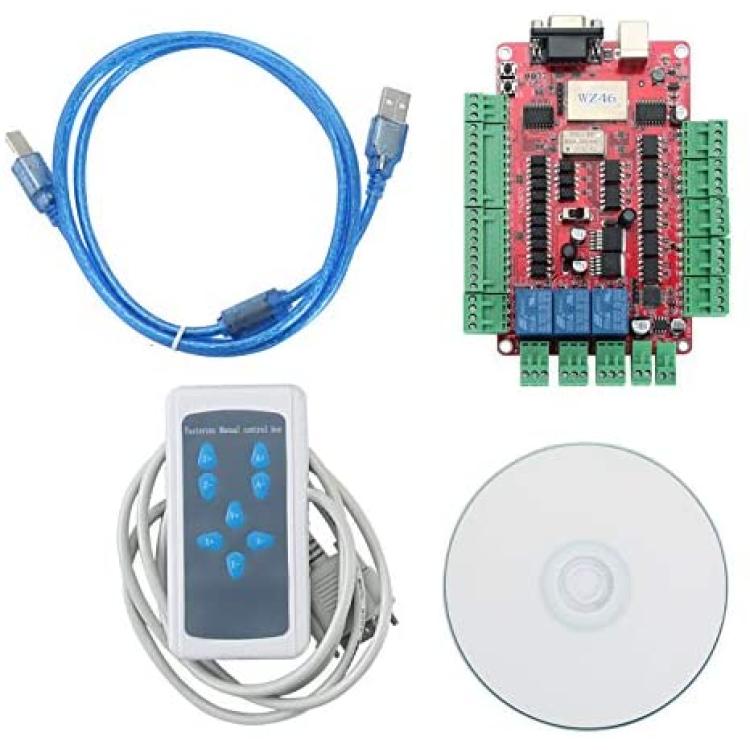

4. USBCNC breakout board

USBCNCV4.0 is a high performance motion controller which based on PC software USBCNC control

Computer system requirement

Minimum configuration:

1) CPU:1GHz

2) Memory: 512MB

3) 500MB free disk space
