4 Axis CNC Nema23 Stepper Motor Dual Shaft 425oz-in 3A+FMD2740C Driver 40V 4A+400W 36V Power Supply+USB CNC Breakut Board Controller Kit For CNC Router

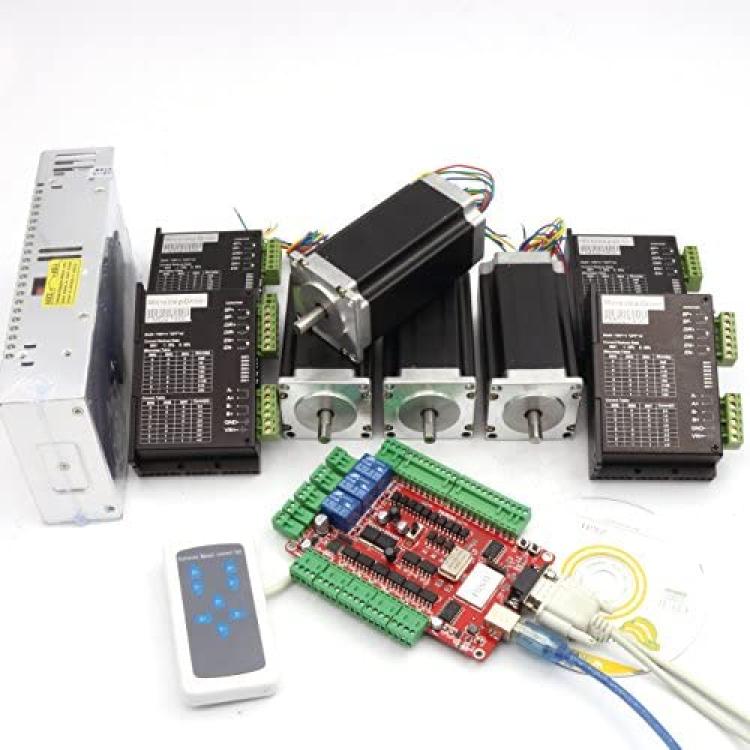

Package include:

4 x 23HS2430B Nema23 stepper motor 425oz-in 112mm 3A (Dual Shaft)

4 x FMD2740C stepper motor driver

1 x 400W 36V/9.7A switching power supply

1 x 4 Axis USBCNC breakout board

1 x Hand controller

1 x USB Cable

CD include with English user manual and software and register code

This cnc kit only support USB CNC Software,not support Mach3 Softare,when install the software need the right register key to run pls contact for it!

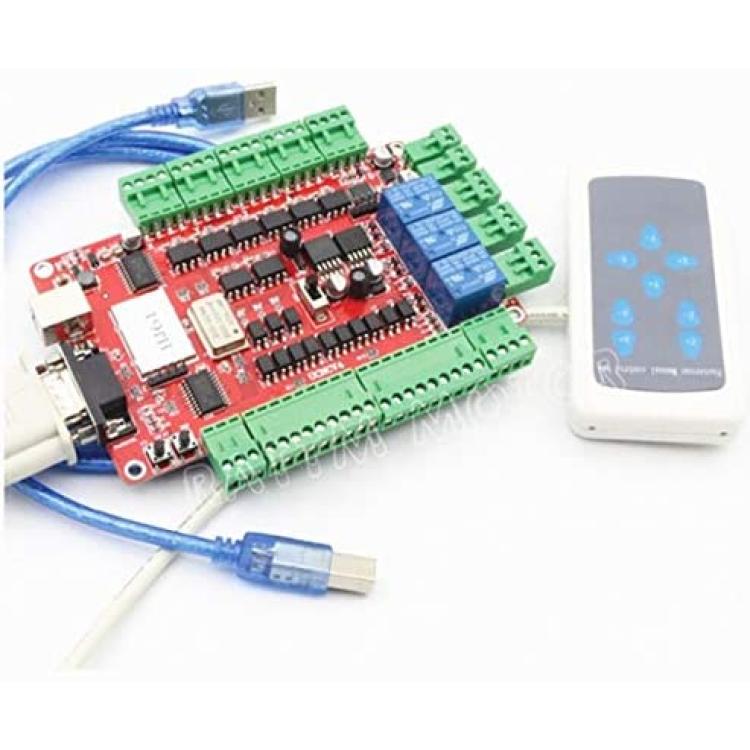

1.  USBCNC breakout board

USBCNCV4.0 is a high performance motion controller which based on PC software USBCNC control

Computer system requirement

Minimum configuration:

1) CPU:1GHz

2) Memory: 512MB

3) 500MB free disk space

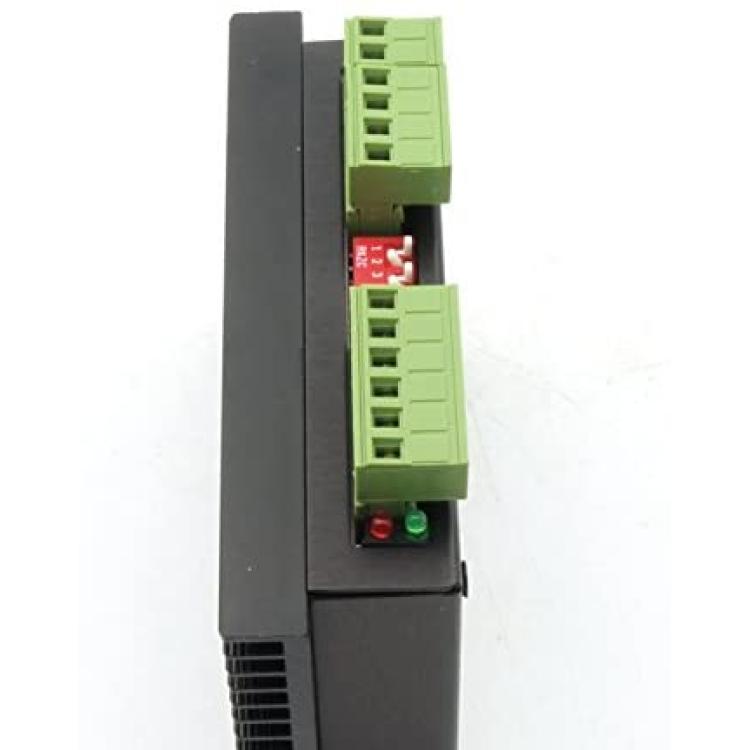

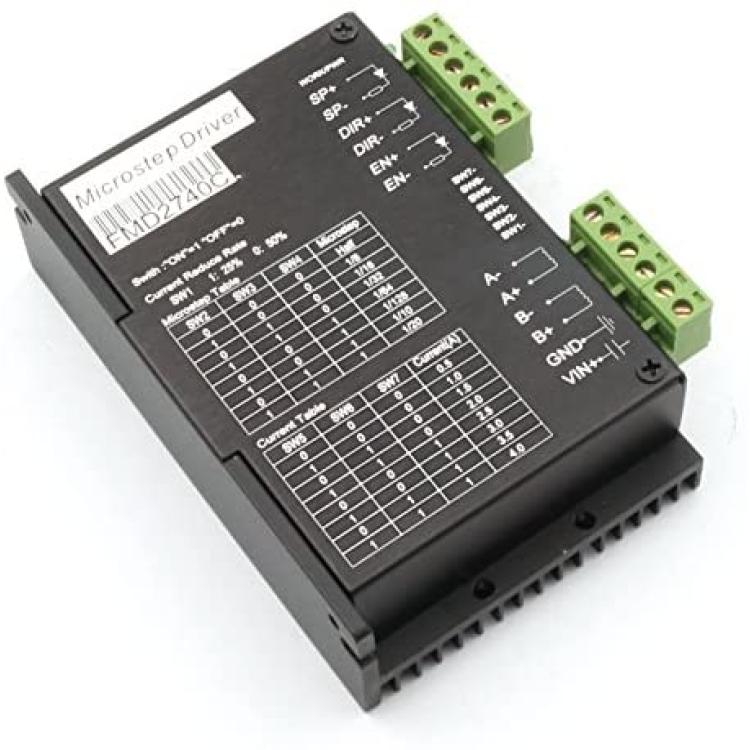

2. FMD2740C stepper motor driver

2,Features

1. Power supply voltage 12 to 40VDC

2. Subdivision precision 2\8\16\32\64\128\10\20 optional

3.Maximum drive current is 4A

4.Drive any 4A phase current of 2-phase or 4-phase hybrid stepping motor

Applications

Suitable for a variety of small and medium-sized automation equipment and instruments,for example: Small engraving machine, SMT machine, etc.

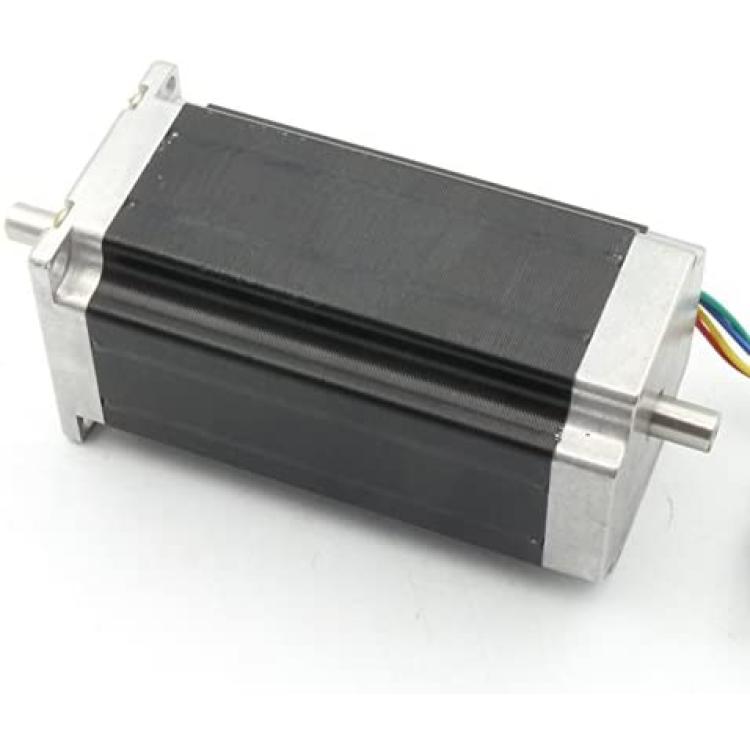

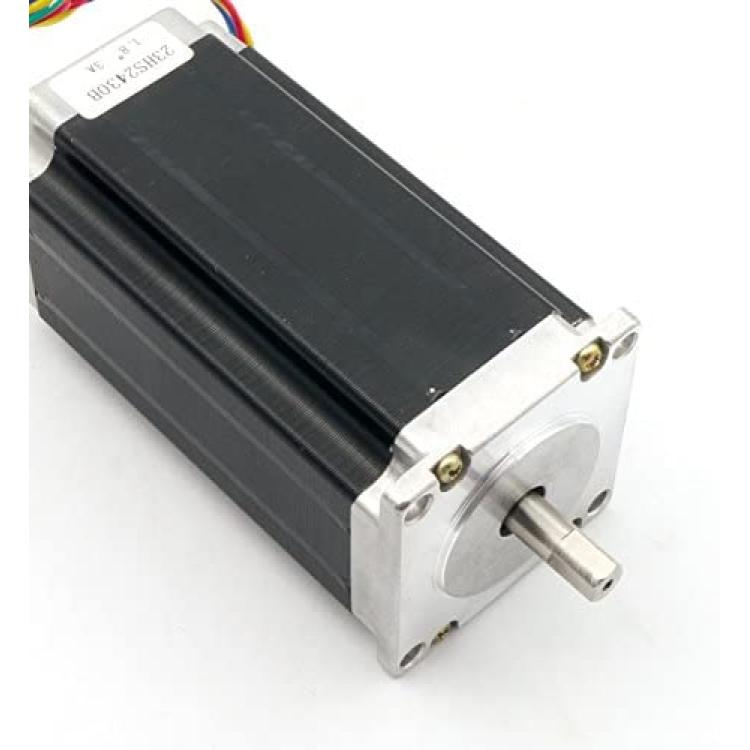

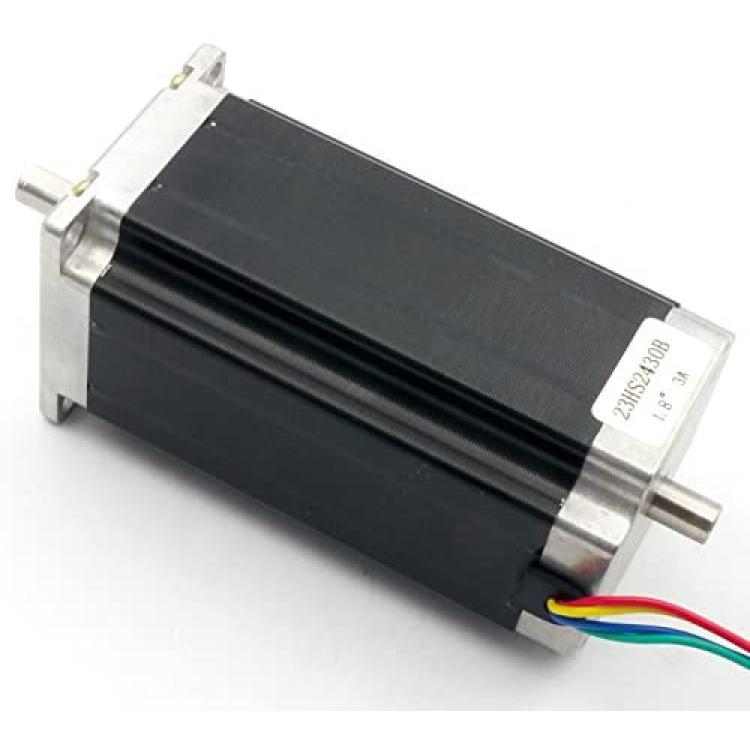

3. Nema23 Stepper Motor

General Specification:

Step angle accuracy:+ -  5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy:+ - 20%

Datasheet(23HS2430B,Front shaft 8mm dia and 21mm length;back shaft 8mm dia and 11mm length,425 oz-in or 28kg.cm holding torque)

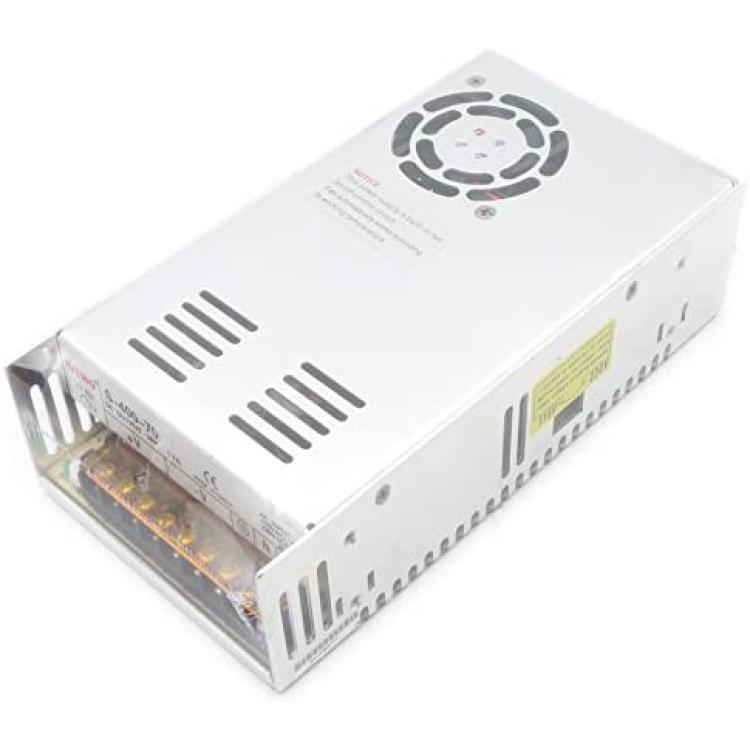

4.Switching power supply

400W,Input:100-120VAC or 200-240VAC,50/60Hz,Output:36v/9.7 A,single output switching power supply
