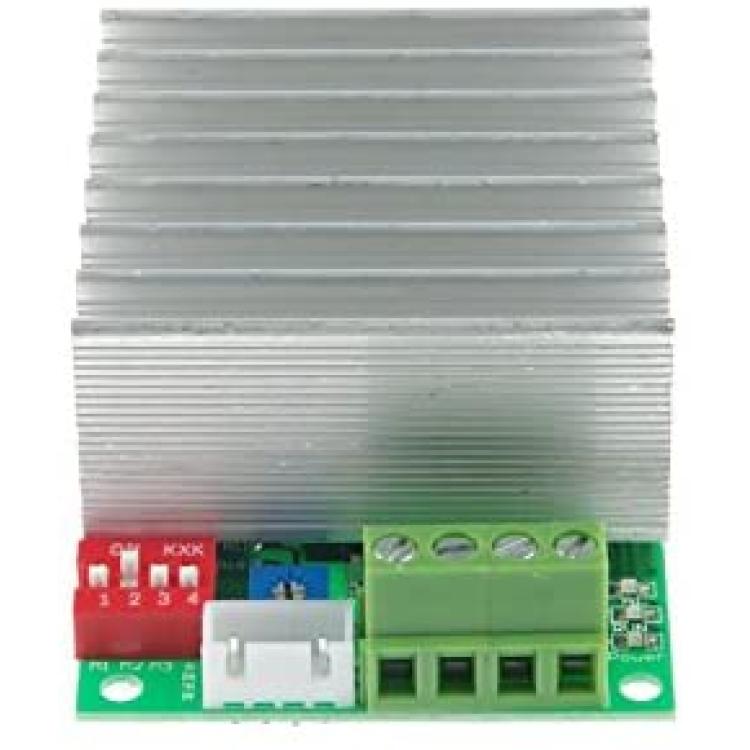

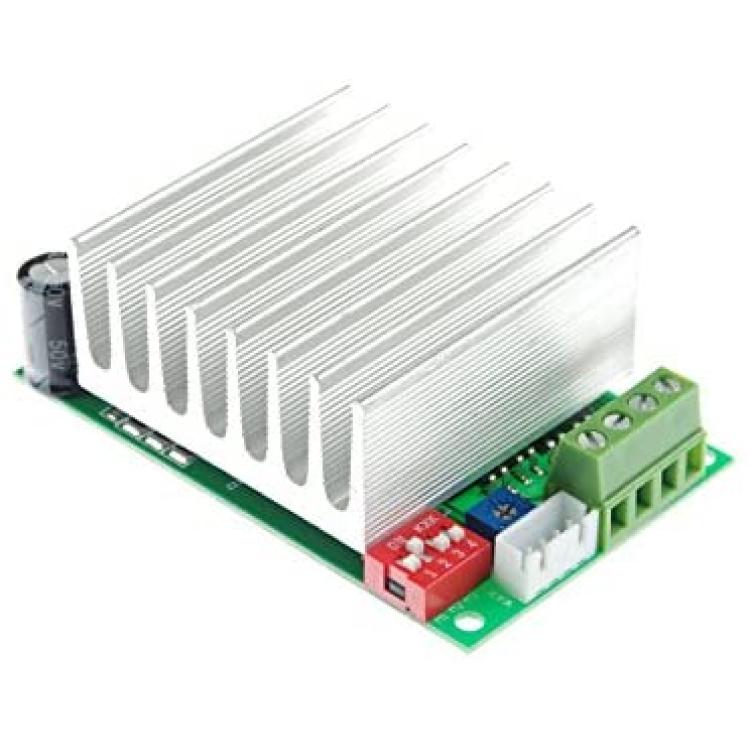

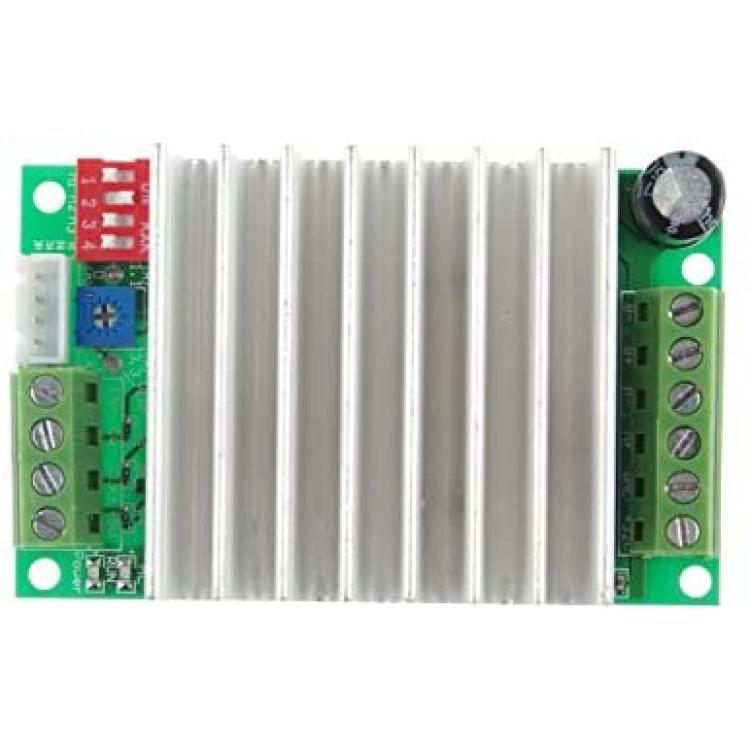

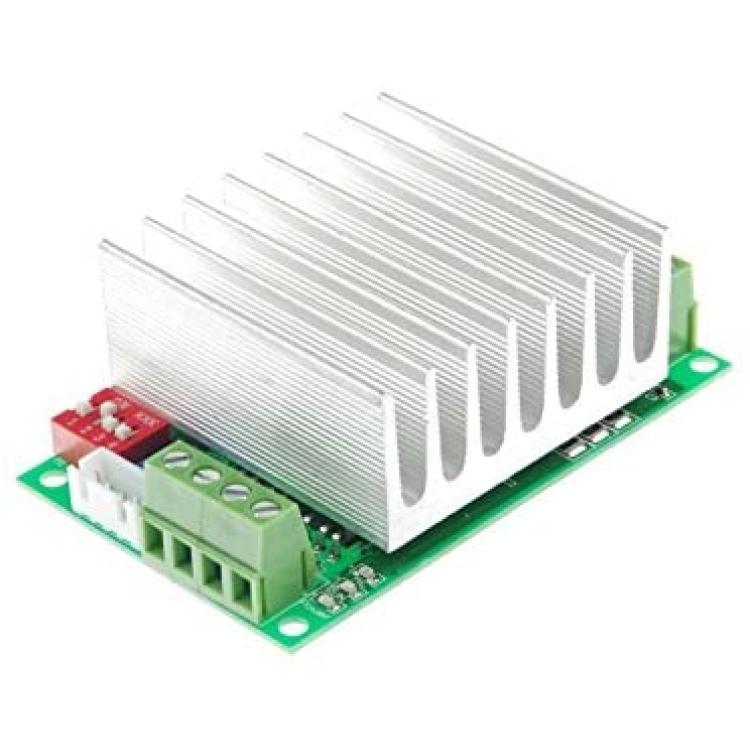

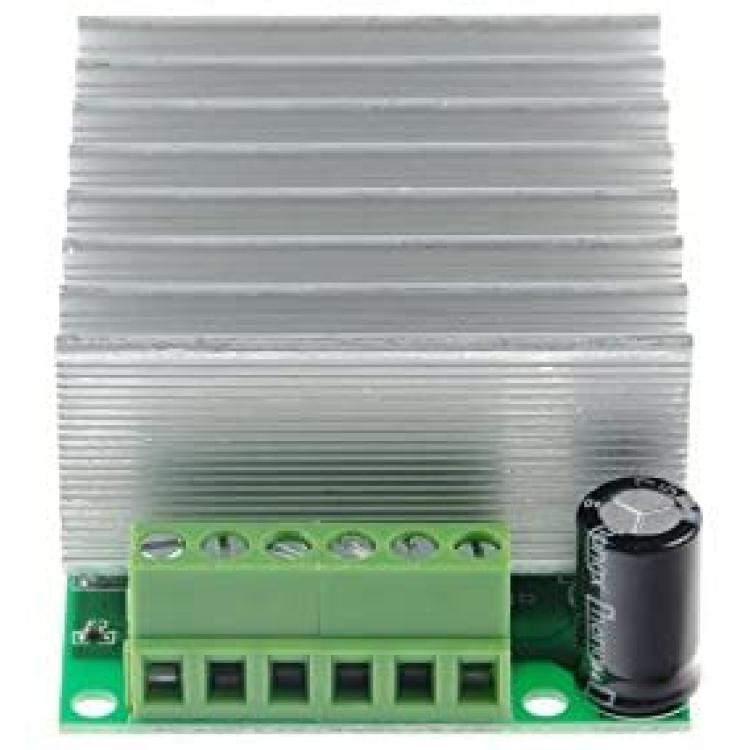

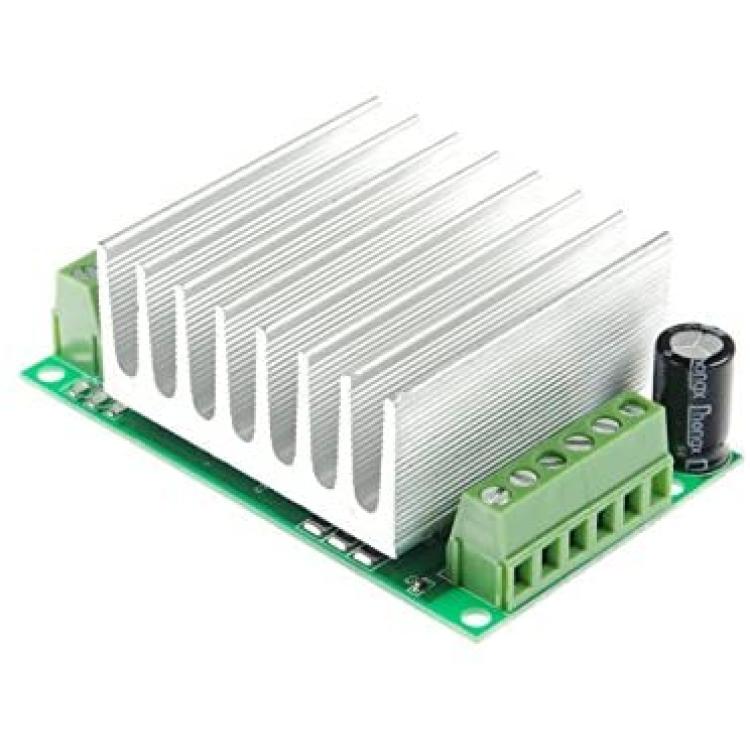

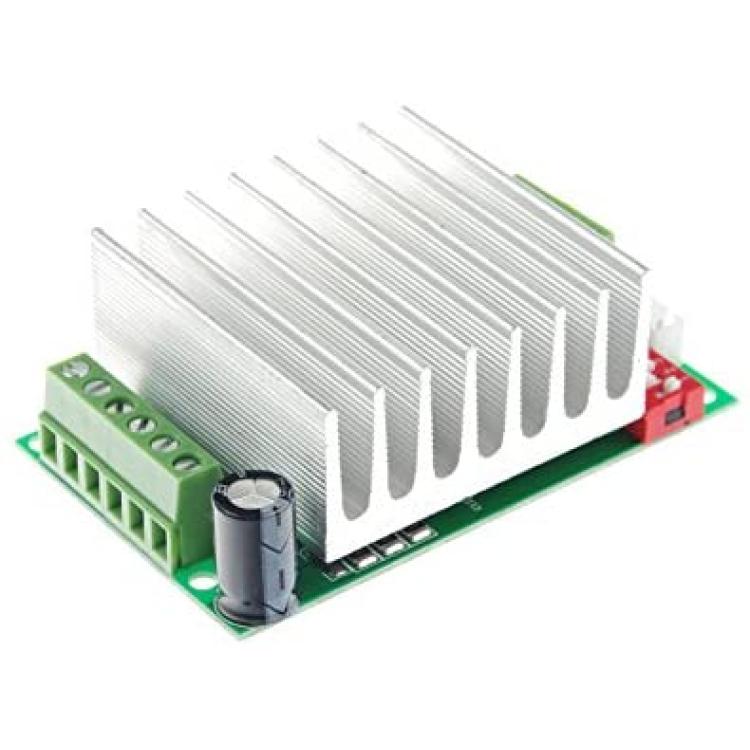

KNACRO TB6600 4.5A Stepper Motor Drives Driver Board Controller Single axis Controller DC 10-45V

KNACRO TB6600 4.5A Stepper Motor Drives Driver Board Controller Single axis Controller DC 10-45V

Brand: KNACRO
Product Code: HSM22245
Availability: In Stock

US$6.29

- +

For Bulk Order, Get Better Price.

About this product

*Tthe output current is infinitely adjustable to meet your various application requirements.

*Automatic half current function. And the semi-automatic flow switch is also available, easy to use.

*The use of high-speed optical coupling 6N137 ensure high-speed without losing step.

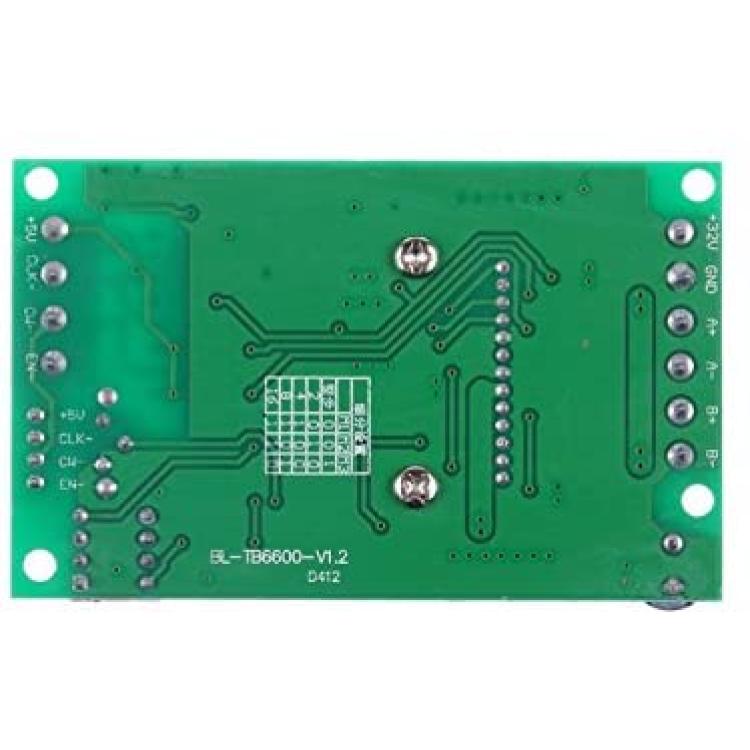

*printed on the back panel are subdivided setup instructions. Used to increase the heat sink, good heat dissipation.

*Output short-circuit protection, the use of mind. Using common anode input mode, there are two input terminals, wiring more convenient.

Description

Material: Meatal and plastic.
Size: 50*82*35 mm (W*L*H).
Color: green and white.
Operating voltage DC 10V-45V. DC32V switching power supply is recommended.
high-speed optical coupling 6N137, ensure high speed without losing step.
Toshiba's new high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560.
Rated maximum output reached: ± 4.5A.
For 4.2A 42,57,86 within the two-phase / four-phase / four-wire / six-wire stepper motor.
Automatic half current function.
Subdivision: full step, half step, 1/4-step, 1/8-step, 1/16-step, up to 16 segments.

Package included:
1 *TB6600 4.5A Stepper motor drives Driver Board Controller Single axis controller
