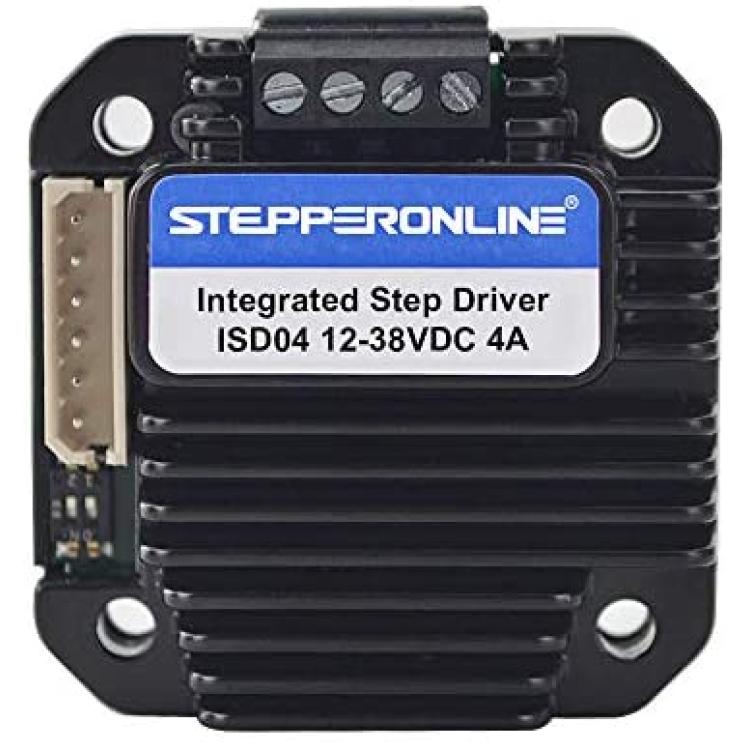

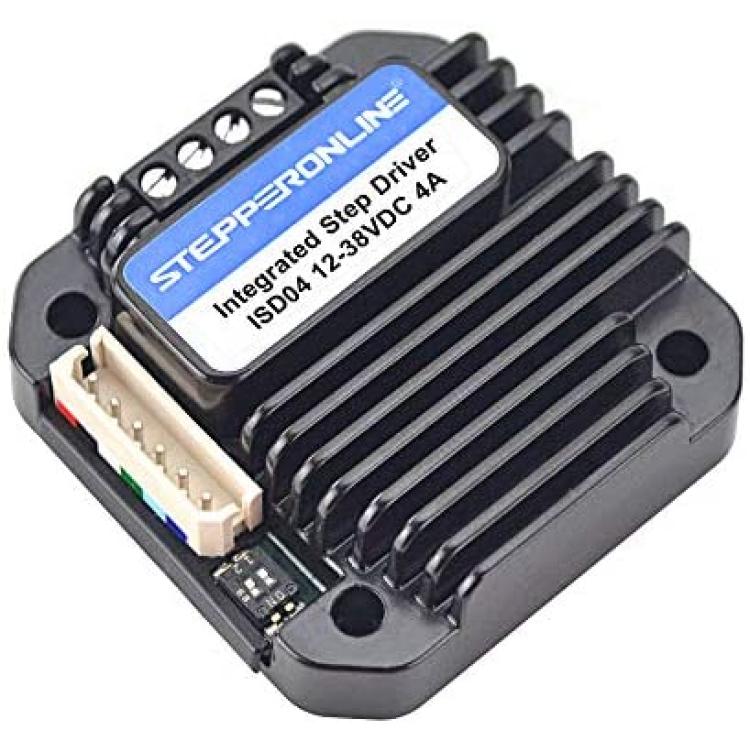

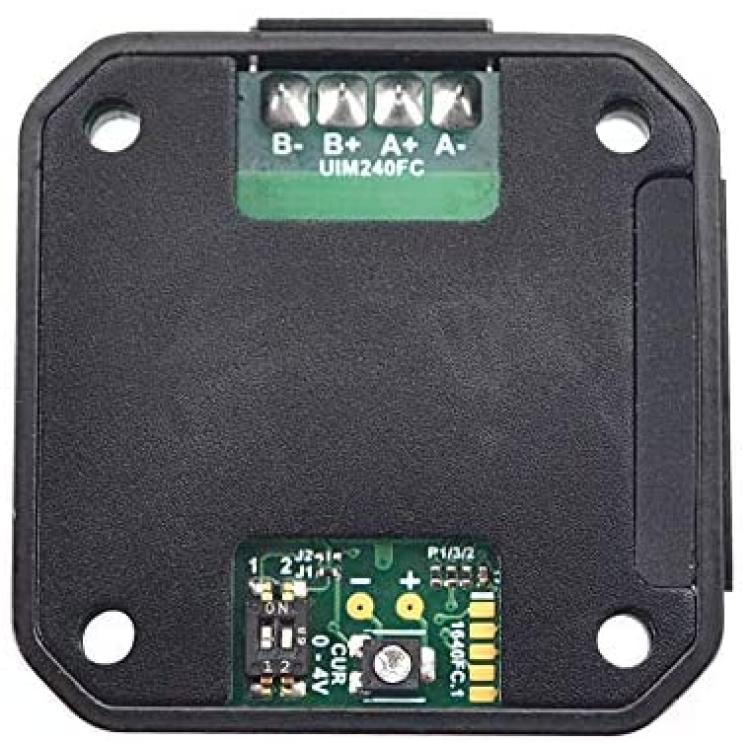

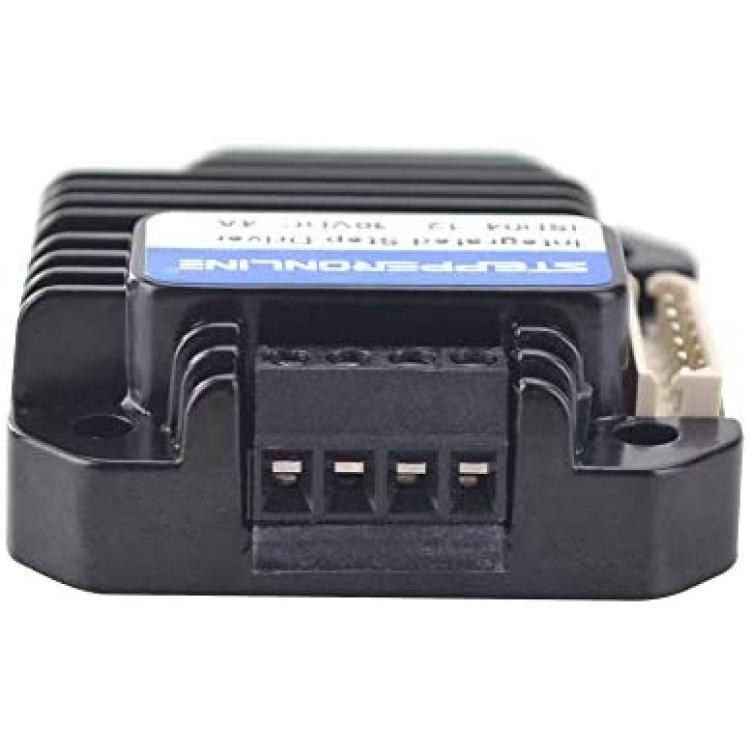

STEPPERONLINE Integrated Stepper Motor Driver 1.5-4A 12-40VDC for NEMA 17,23,24 Stepper Motor
Product Code: HSM22207
Availability: In Stock
Availability: In Stock
About this product
*Small size, Strong driving ability
*It can be directly mounted onto NEMA 17, 23, 24 series stepper motors.
*Miniature size 42.3 x 42.3 x 16.5 mm
*1.5 - 4 A adjustable output current
*5 selectable microstep resolutions including 100,200,400,800,1600
Description
The ISD04 is a parallel port control series of miniature high performance stepper motor drivers.Its biggest feature is its small size and strong driving ability.Its thickness is less than 14 mm.They can be directly mounted onto NEMA 17, 23, 24 series stepper motors with the corresponding flange.ISD04 can provide 1.5 - 4A adjustable peak current.Its high-speed current compensation function can compensate for the effects of back electromotive force when the motor rotates at high speed.
