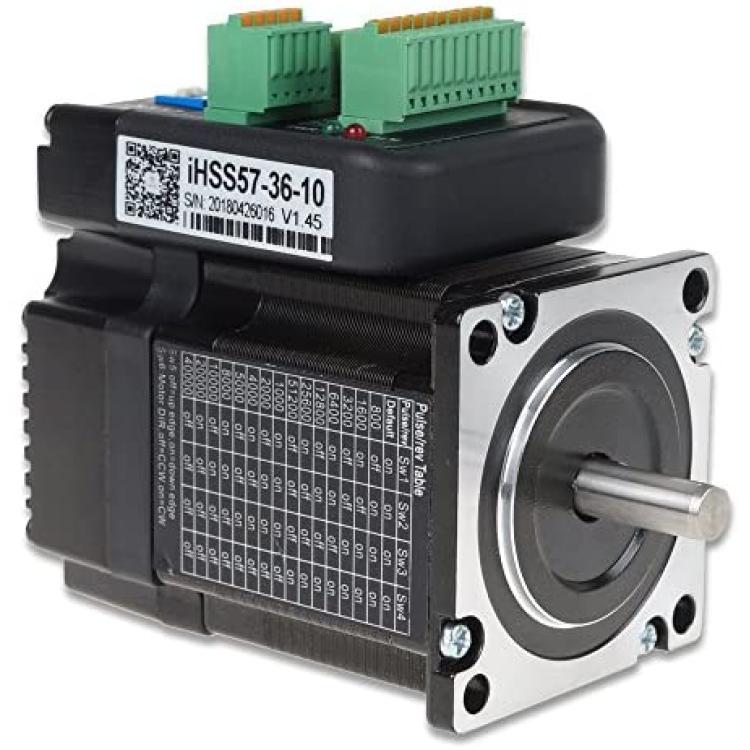

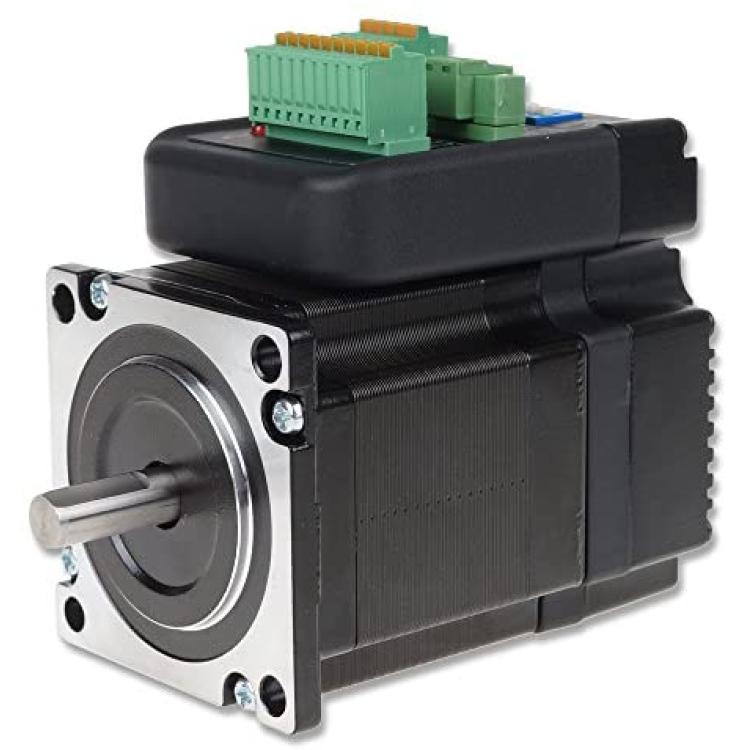

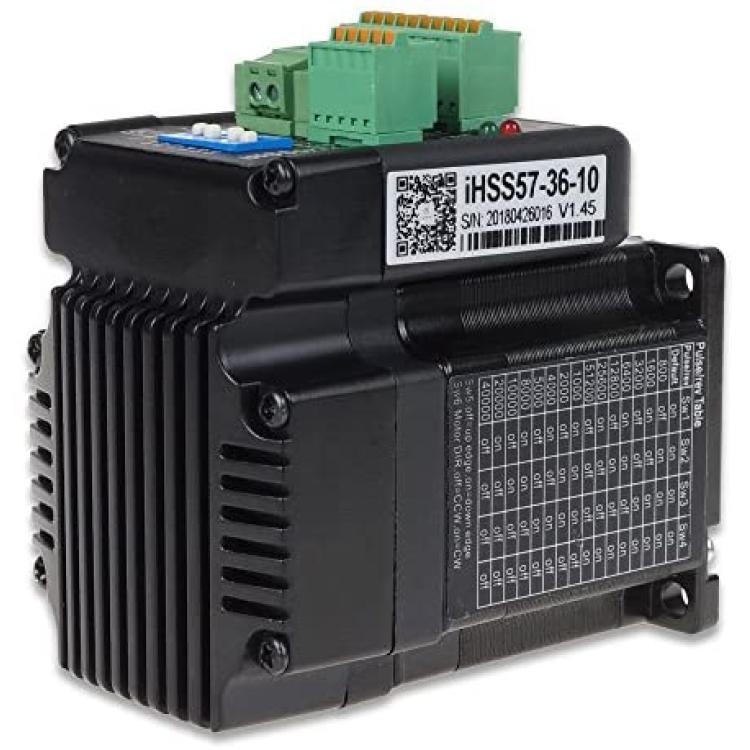

UCONTRO iHSS57-36-10 CNC Closed-Loop NEMA 23 Integrated Stepper Motor with Driver Step+direction 57mm 36VDC 2N.M (Length 85mm)

IHSS57 Integrated Closed Loop Stepper Motor is all-in-one closed loop stepper system which integrates closed loop stepper motor with digital driver. Servo control and digital stepper driving technology are perfectly merged into this smart system. Optical encoder with high speed position sampling feedback of 50?s built inside, can help system avoid losing-step, greatly improve low-speed instability and reduces noise. This Series products have the advantages of both stepper and servo, features in low heat, smooth motion, fast response, high speed and big torque output.

Input Voltage: 24~50VDC(36V Typical)
Output Current: 4.5A 20KHz PWM
Pulse Frequency max: 200K
Communication rate: 57.6Kbps
Protection:
- Over current peak value 8A±10%
- Over voltage value 80V
- The over position error range can be set through the HISU

Environment: Avoid dust, oil fog and corrosive gases
Operating Temperature: 70? MAX
Storage Temperature: -20?~+65?
Humidity: 40~90%RH
Cooling method: Natural cooling or forced air cooling

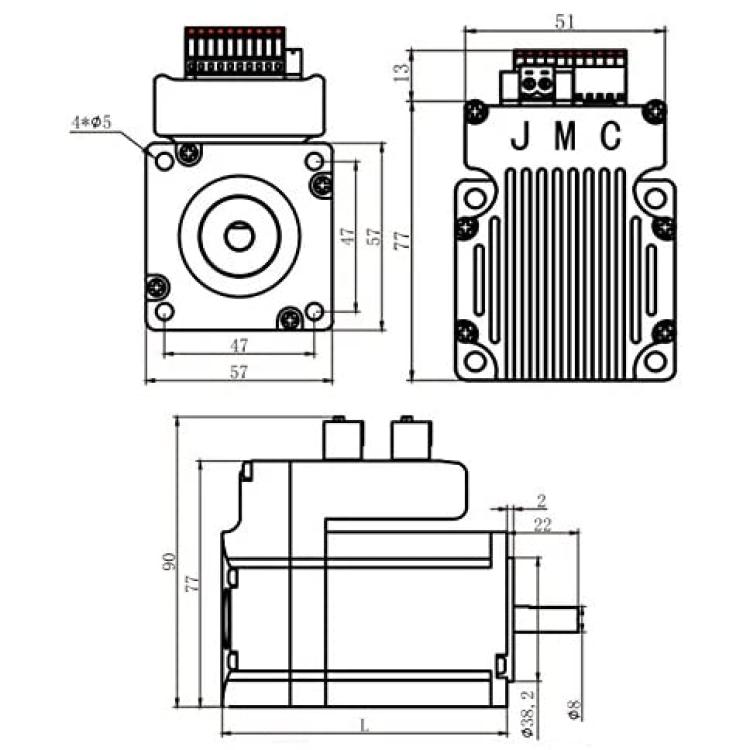

Motor Length: 85 mm
Shaft Diameter: 8 mm

Typical applications:
CNC, Printing, lazer, textile machine, etc.
