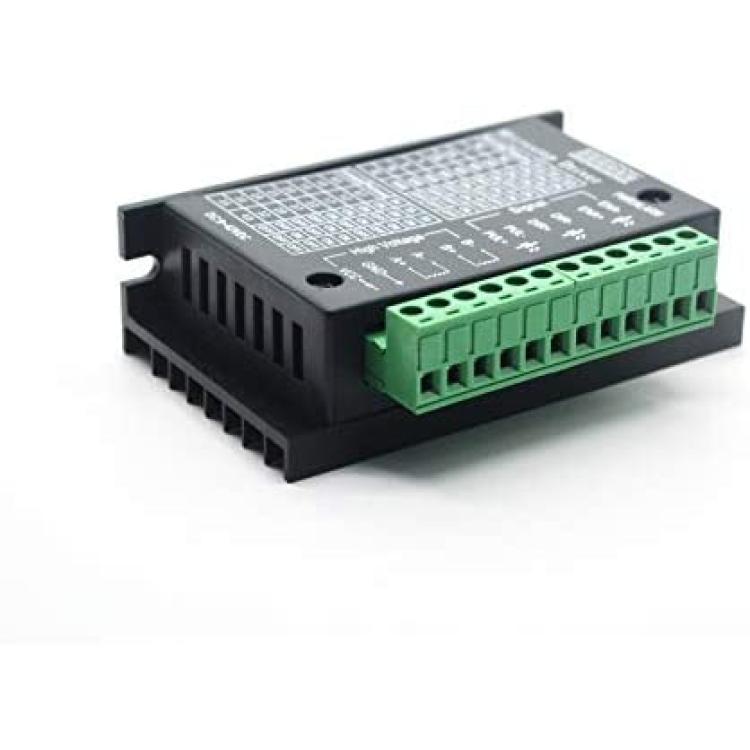

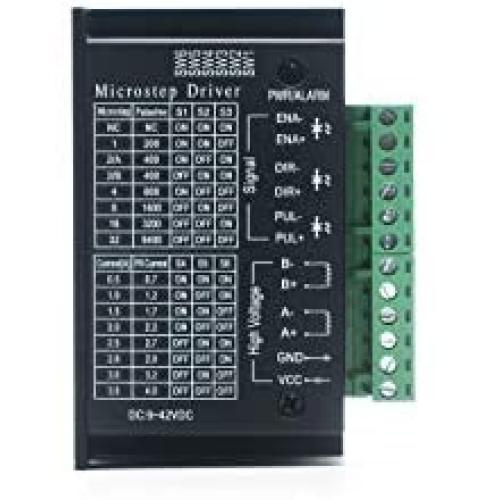

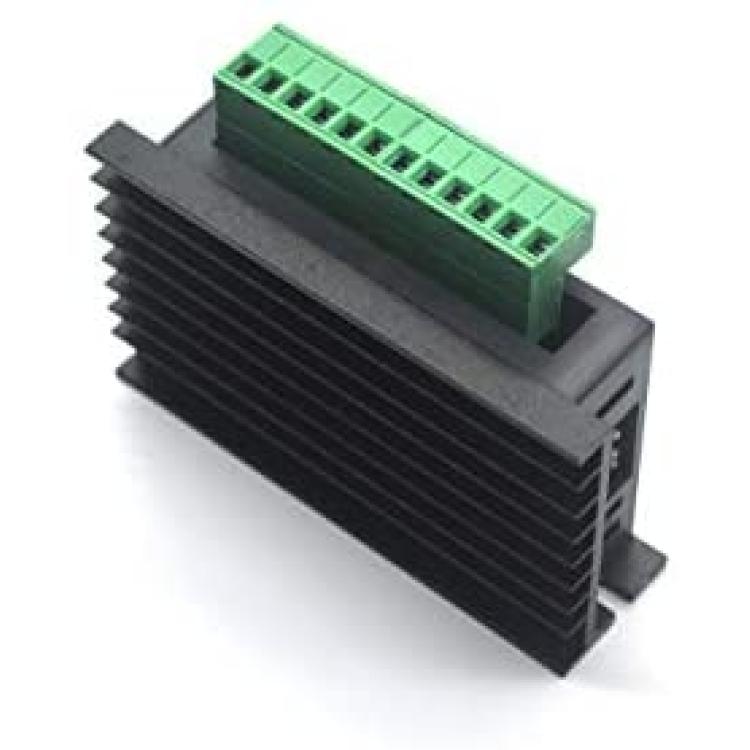

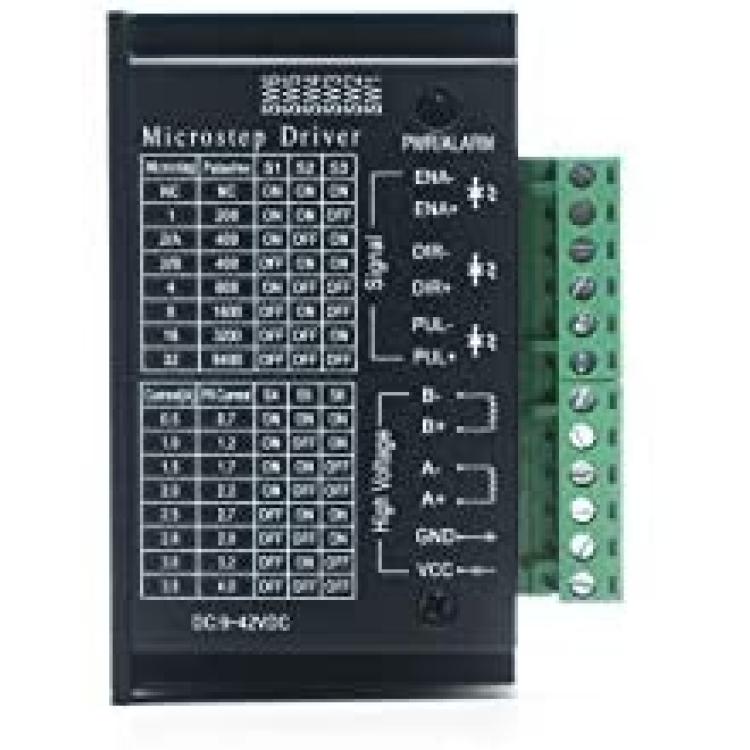

EASON Stepper Motor Driver TB6600 4A DC9-42V 32 Subdivision for Nema 17, 23 Series Stepper Motor CNC Controller single Axis Hybrid MicroStepping
Product Code: HSM24210
Availability: In Stock
Availability: In Stock
About this product
*This driver is an upgraded version of TB6600 and with plastic cover.

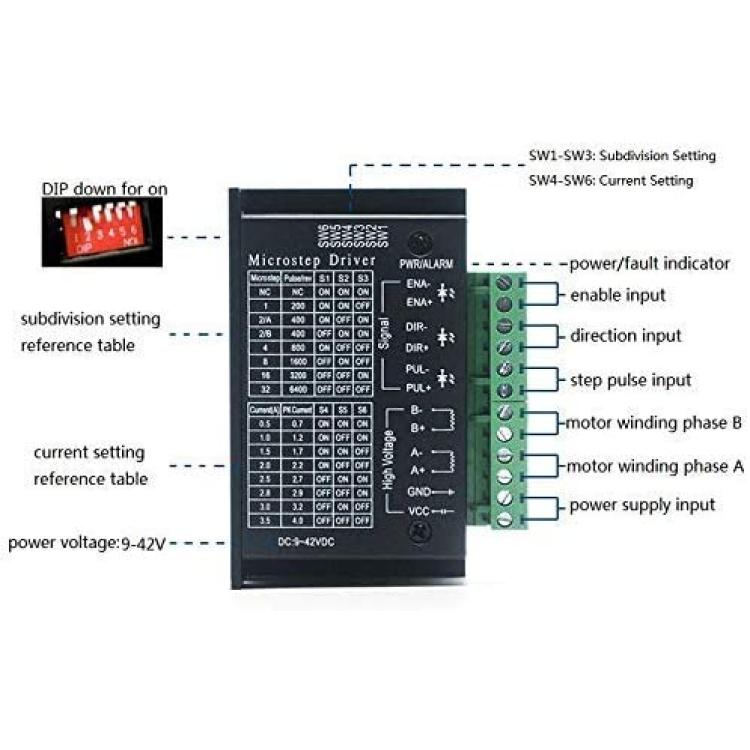

*The subdivision is increased to 32 subdivision, which is suitable for high subdivision.

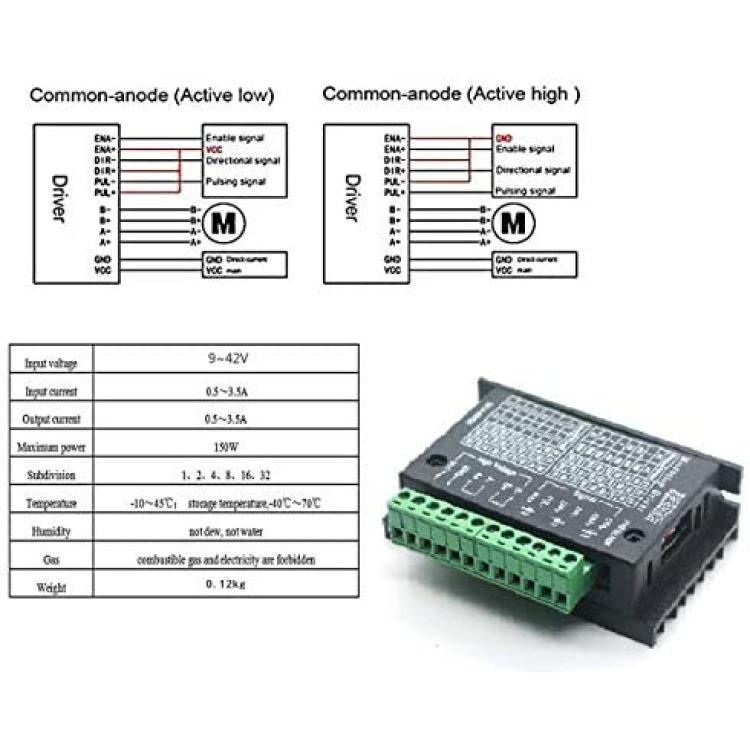

*Suitable for drive Two-phase stepping motor dynamic voltage 9V to 42V, the maximum drive current is less than 4A.
*Suitable for step motor:NEMA(17,23) 42, 57 type 2 phase 4 phase (4 / 6 / 8 wires)
*Suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y-Z tables, labeling machines, laser cutters, engraving machines, and pick-place devices.
Description
TB6600 4A 9-42V 32 Subdivision Stepper Motor Driver CNC:
