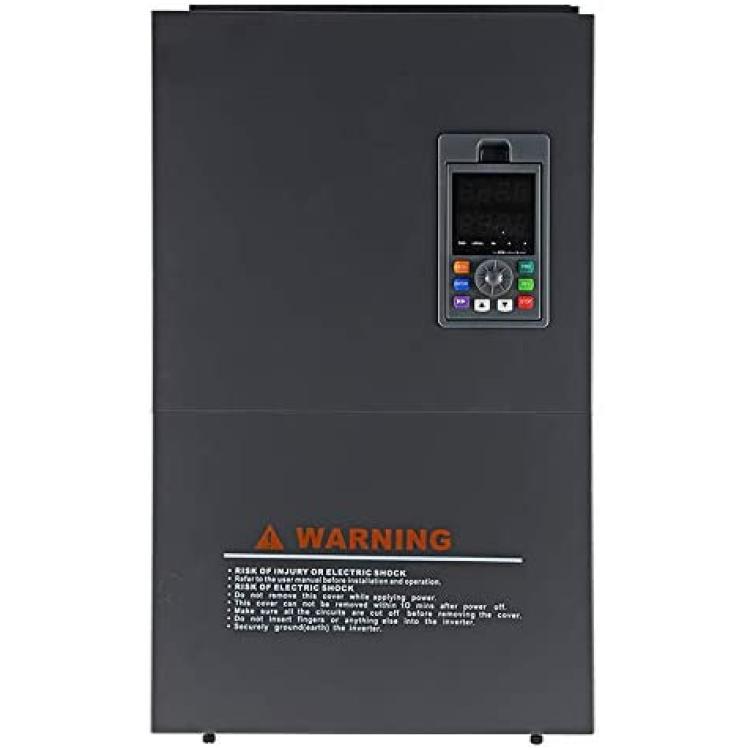

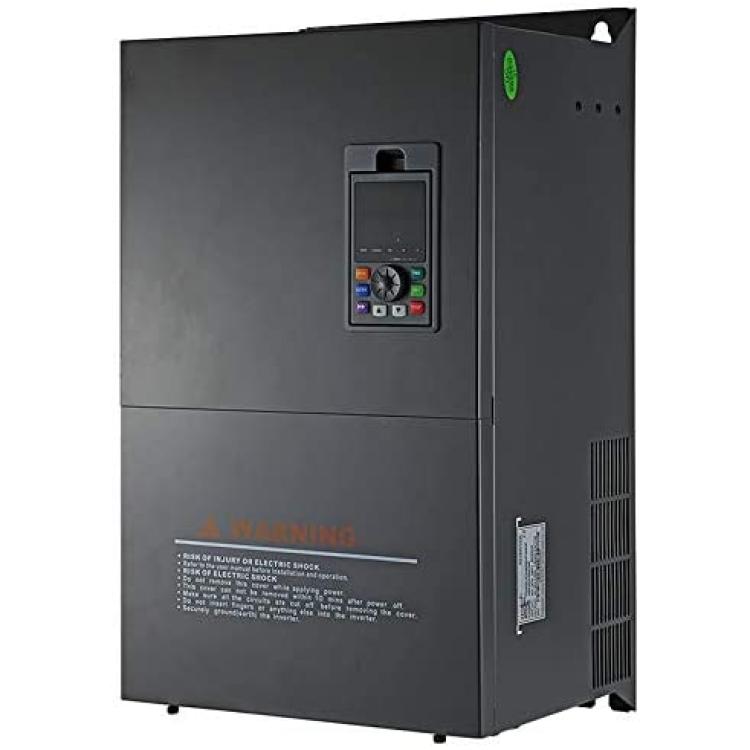

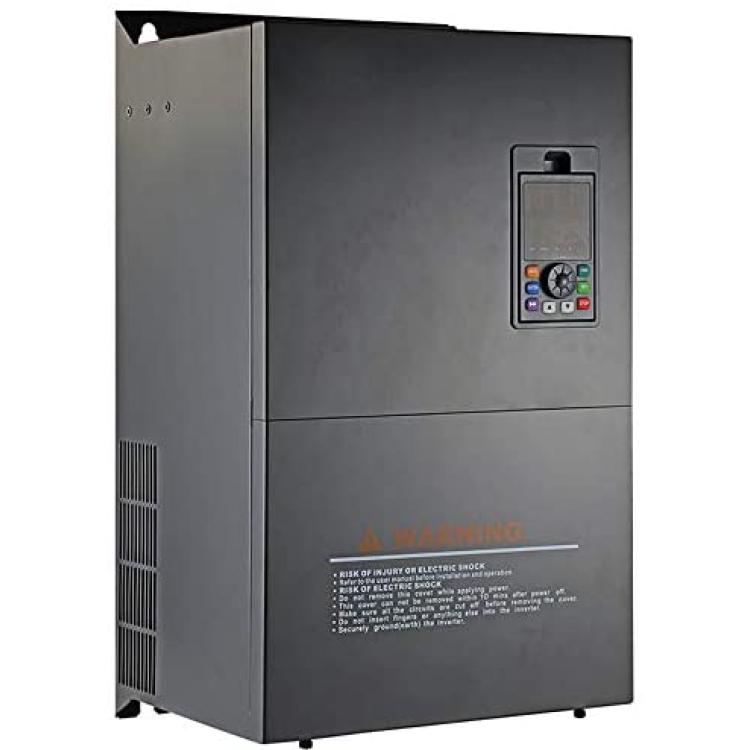

ATO 20 hp 15 kW VFD, Single Phase to Three Phase VFD Variable Frequency Drive CNC Motor Inverter Converter for Spindle Speed Control (20 hp 15 kW)
About this product
*20 hp 15 kW VFD, Single Phase to Three Phase VFD
*Interior PID controller & Automatic energy save running:Be convenient to make closed-loop system, Optimize V/F curve automatically based on the load to realize power save running
*AVR & Automatic current limiting: Can keep constant output voltage when power source voltage varies and limit running current automatically to avoid frequent over-current which will cause trip
*If you have no experience in driving a VFD, be sure to refer to the instructions before operating a VFD
*If you are not sure about the size or have any issue about the product or service, please dont hesitate to email us. We will answer you winth 12h
Description
ATO VFD GK3000-2S0150G: High quality customize 20 hp 1-phase VFD (VSD) with low price, single phase to three phase for AC motor speed control, manufacturer direct sale.20 hp (15 kW) variable frequency drive, single phase 220v/230v/240v input, three phase output, 66amps.
Specification:
Basics   Model   GK3000-2S0150G
Capacity   20 hp (15 kW)
Shipping weight   30 kg
Dimension   500*296*276 mm
I/O Feature   Rated current   66 A
Input voltage   1 phase 220~240V AC ±15%
Input frequency   50Hz/ 60Hz
Output voltage   3 phase AC 0~input voltage
Output frequency   0.00~400.00Hz
Over load capacity   150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature   Control mode   V/F control;
Sensorless vector control;
Communication   RS485
Speed regulation   1:100
Start torque   150% of rating torque at 1 Hz
Speed control accuracy   ?±0.5% of rating synchronous speed
Frequency precision   Digital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolution   Analog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boost   Automatic torque boost, manual torque boost 0.1%~30.0%
Environment   Enclosure rating   IP 20
Temperature   –10?~ +40?; VFD will be derated if ambient temperature exceed 40?; each rise 1?, the derate will be 5%
Humidity   5%-95%, without condensation
