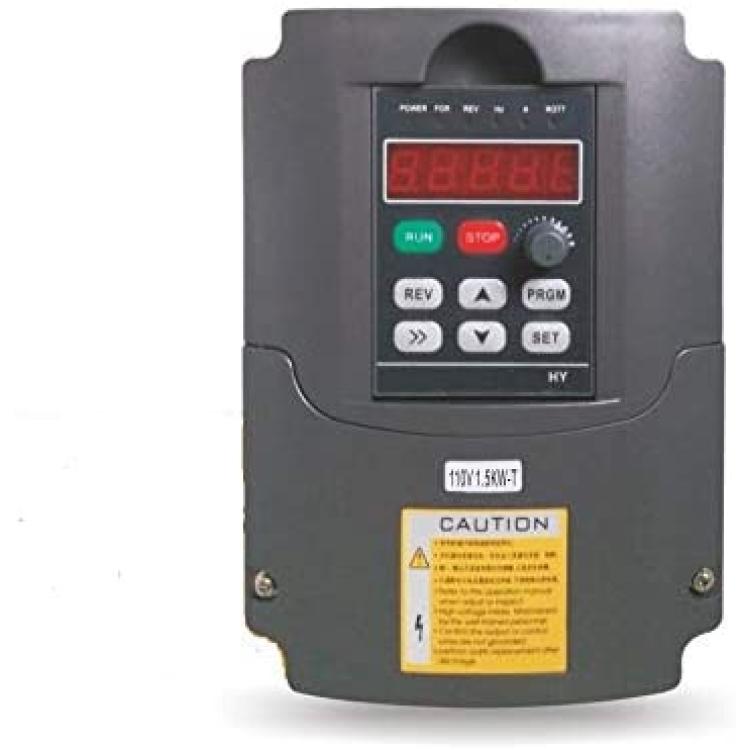

Huanyang VFD CNC Variable Frequency Drive Converter Controller 1 phase 110v input 220v 3 phase output 1.5kw 2hp Inverter for Motor Speed Control
Availability: Pre-Order, Inquiry Price
About this product
*IMPORTANT NOTE: this VFD is applicable to THREE phase motor and NOT support external resistor.Fan runs all the time even though the motor isnt (fan functions need to be customized).The vfd only supports light load motor
*Rising voltage series,110v single phase phase input, 220v three phase output
*The input is1 phase.This item use Sine wave PWN(SPWM) for the control system.
*This drive is very suitable for high-speed rotating motors,such as spindle motor, engraving machine CNC.And can be used as a motor speed control and a phase converter.Work well with the Mach 3 controller
*This VFD can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc).
Description
NOTE?the item is not fit for capacitance motor(single phase motor) ,motor loads are not allowed to be too heavy
specification?
Input Voltage : 110v single phase
Input Frequency: 47-63Hz
Output Voltage : 220V, three phase
Output Frequency: 0-50Hz / 0-400Hz
Suitable Motor: ?1.5KW
Feature?
?RS485 communication port, adopting standard international MODBUS main circuit control
?CWith extremely strong anti-jamming capability
?Low output ratting torque0.5HZ-150%, low speed running ability
?Carrier adjustable by 16KHZ, completely soundless working environment
?Broad voltage working area, normal running in 304V-456V
?Auto voltage regulation (AVR) technique, for ensuring the inverter load capability
?Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes
?With perfect error protection and short circuit starting protection capability
?PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability
?Easy PLC function can realize 16 legs of speed and inverter control function
