Nema34 8N.m Closed Loop Stepper Servo Motor 116mm 6A 2 Phase+HSS86 Hybrid Servo Motor Driver Controller 70V/AC 100V/DC CNC Kit for CNC Router Engraving Milling Machine
Availability: Pre-Order, Inquiry Price
About this product
*Holding Torque:8N.m;Current:6A;Phase:2;Peak current:8A

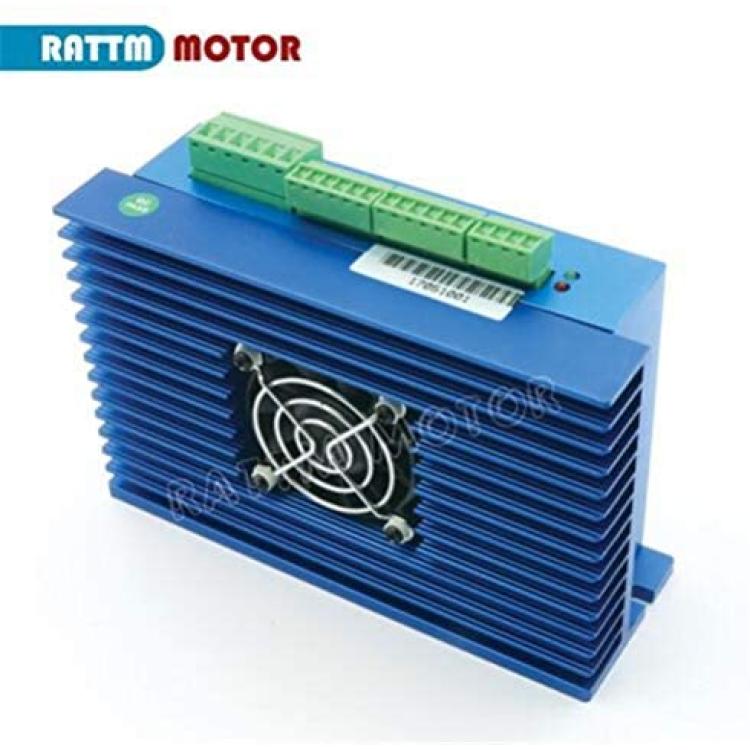

*HSS86 2-Phase Hybrid Stepper Servo Driver
*Size:86x86x116mm;Step Angle(degrees):1.8deg
*Voltage:AC24~70V or DC30~100V;Insulation resistance:100MOhm(500V)
Description

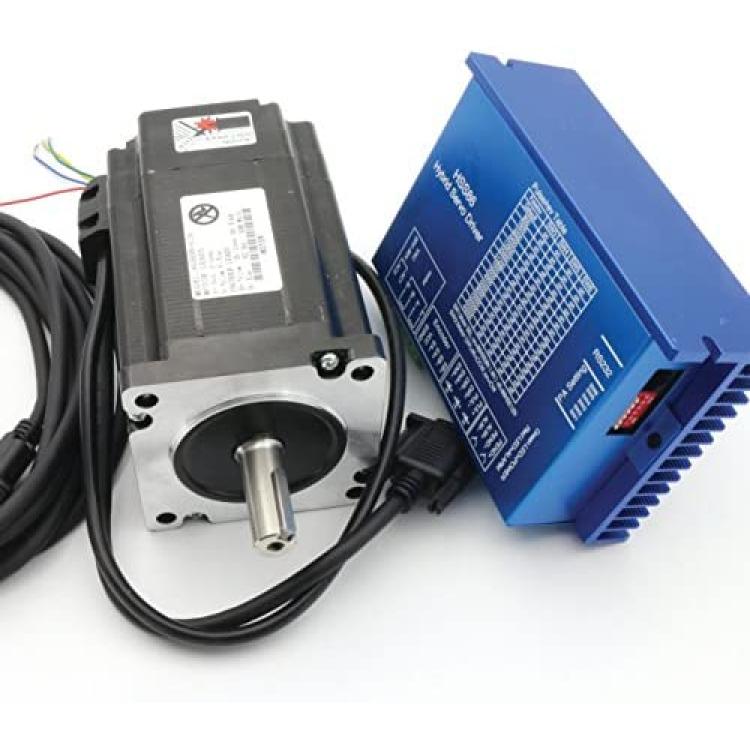

Package include:

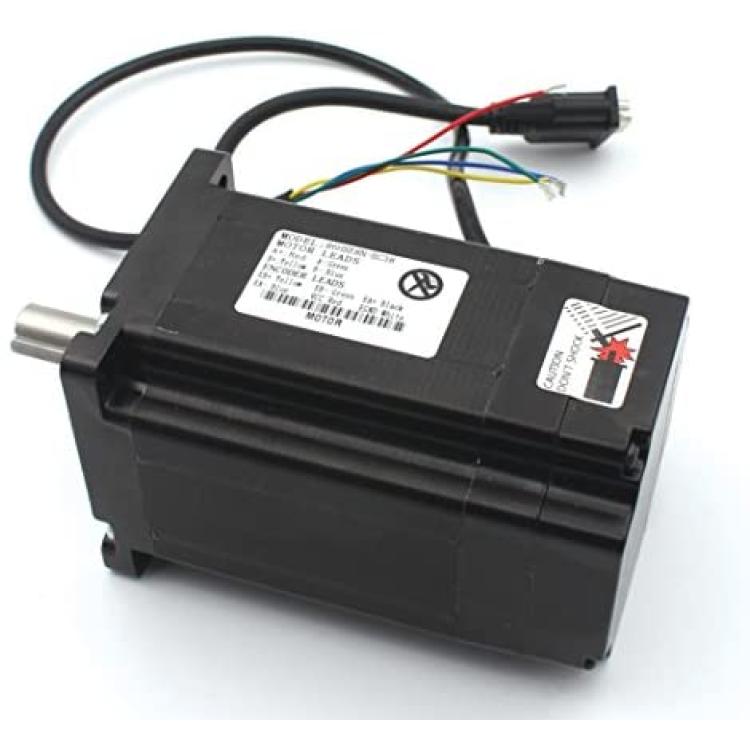

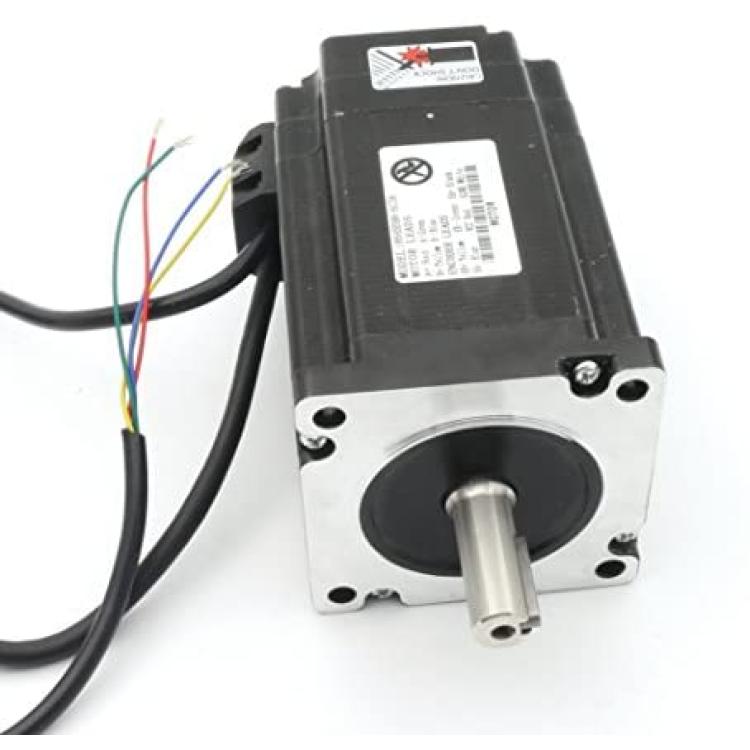

1 x 86HSE116 Closed-loop servo motorÂ

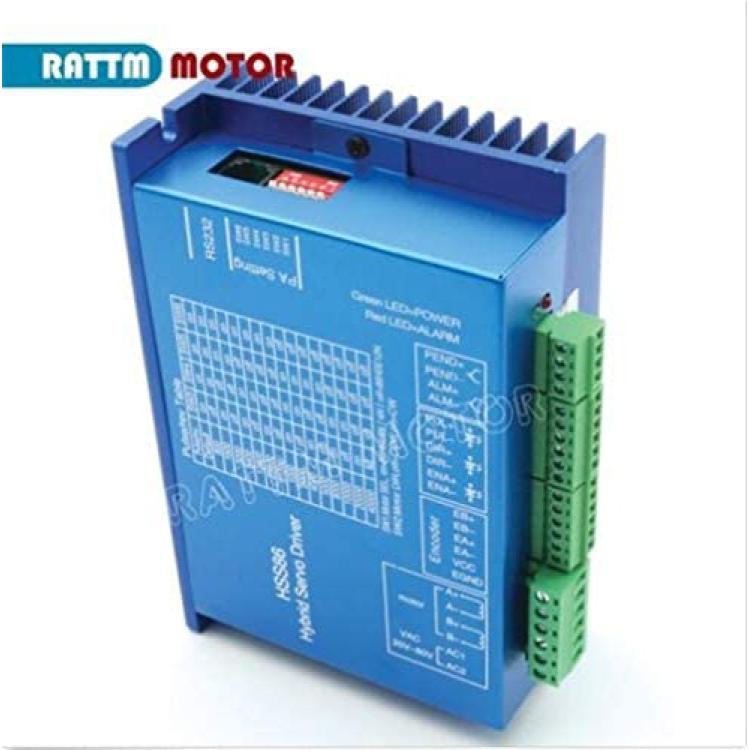

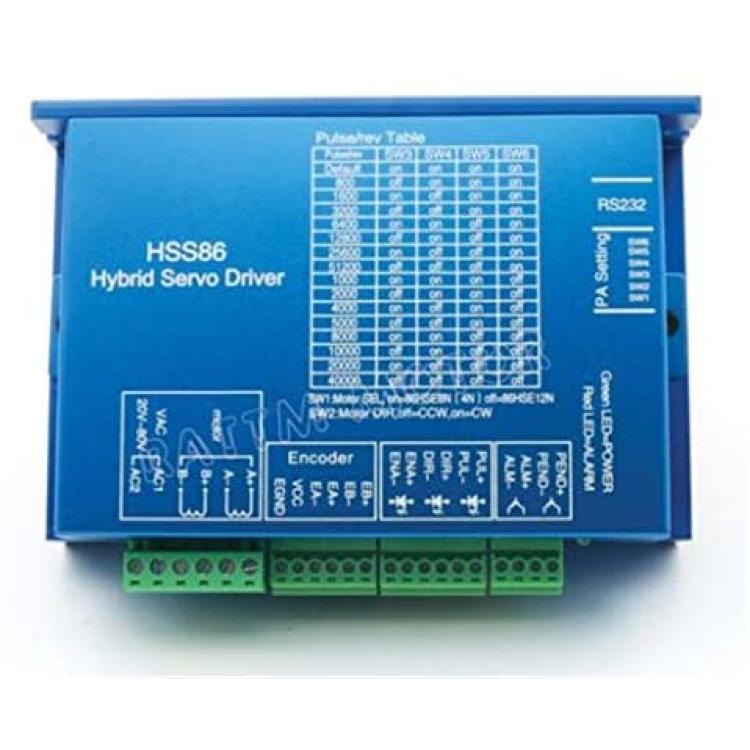

1 x HSS86 Servo driver

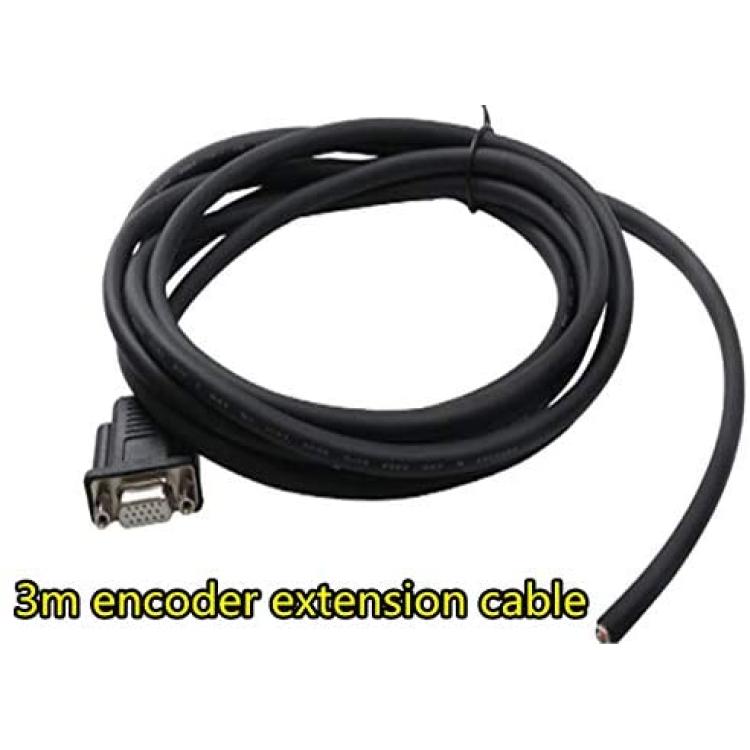

1 x ?3M Extension cord
Descriptions:
Wiring:
Red:Â Â Â Â A+
Green:Â A-
Yellow: B+
Blue:Â Â Â B-
2.2) Features
2.2.1 Â Stepper motor closed loop system, never lose step.
2.2.2 Â Improve motor output torque and working speed.
2.2.3 Â Automatic current adjustment based on load, lower temperature rising.
2.2.4 Â Suitable for all mechanical load conditions (include low rigidity belt pulley and wheel), no need to adjust gain parameter.
2.2.5 Â Motor work smoothly and low vibration, high dynamic performance at acceleration and deceleration.
2.2.6 Â No vibration from high speed to zero speed.
2.2.7 Â Drive nema 34 series closed loop stepper motor.
2.2.8 Â Pulses response frequency can reach 200KHZ.
2.2.9 Â 16 kinds microsteps choice, highest 51200microsteps/rev.
2.2.10 Â Voltage range: AC24~70V or DC30V~100V.
2.2.11 Â Over-current, over-voltage and position ultra difference protection function.

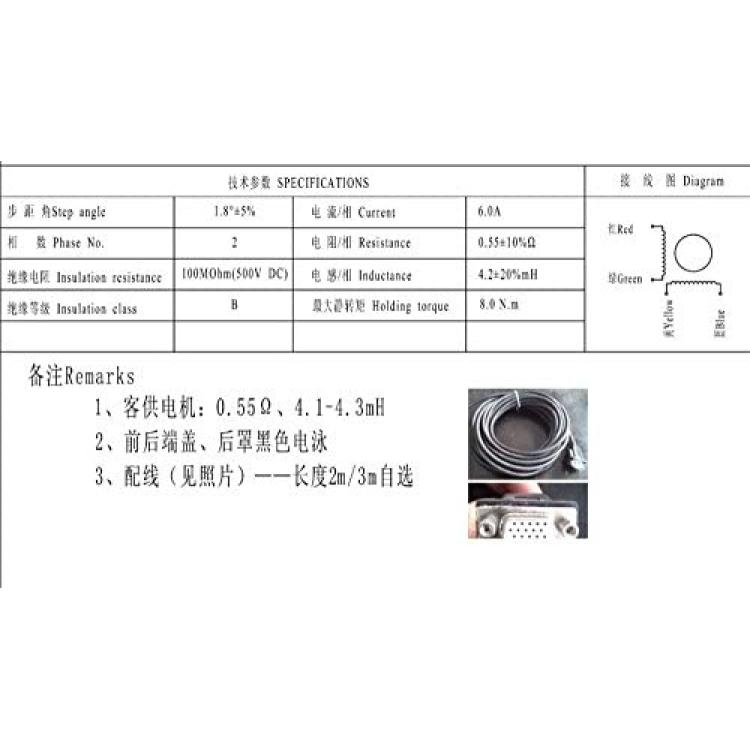

 Electrical Parameter
Voltage rangeAC24~70V or DC30~100V
Peak currentPeak 8.0A (current change according to load)
Logic input current7~20mA
Frequency0~200KHz
Suitable motor86HSE156,86HSE118, 86HSE82
Encoder lines1000
Insulation resistance>=500M?
