36VDC NEMA23 3Nm Hybrid Closed Loop Stepper Servo Motor Driver
Availability: Pre-Order, Inquiry Price
About this product

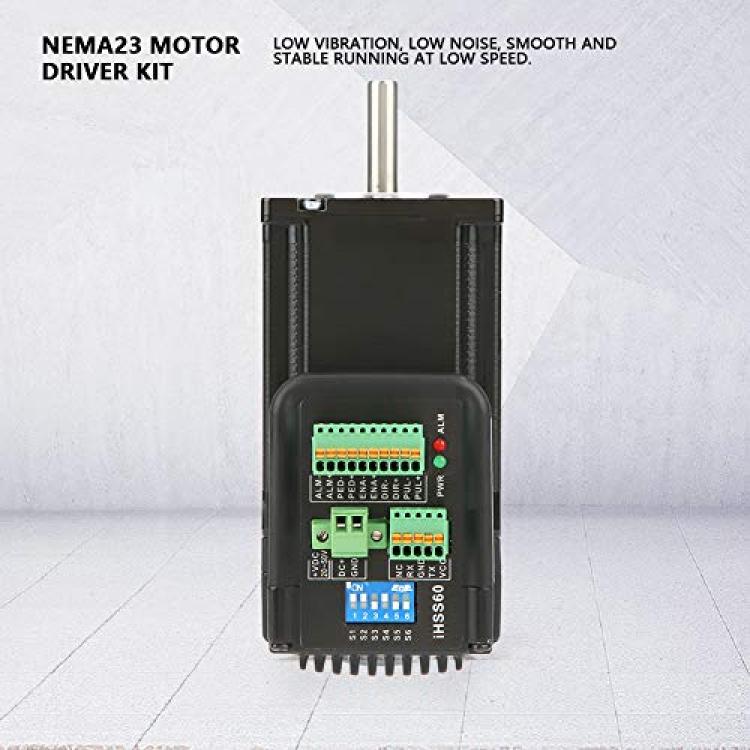

*♥ GOODE FEATURE: Low vibration, low noise, smooth and stable running at low speed.

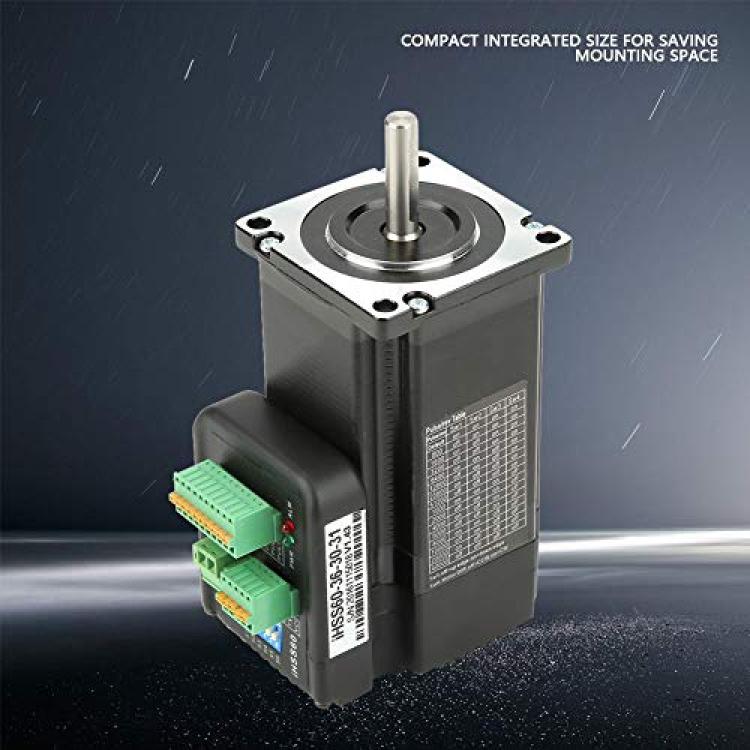

*♥ CONVENIENT: High accuracy positioning, no losing step. It has a compact integrated size, saving mounting space.
*♥ USAGE: Application for various automation equipment such as CNC, printing, textile machine, etc.
*♥ SAFETY: Over current, over voltage and over position protection functions.
*♥ SATISFACTION GUARANTEE: We care for every customer’s feeling.If this product does not meet or exceed your expectations,please send it back for a 100% refund no questions asked.
Description
Features:
1.100% rated output torque. Variable current drive technology, high current efficiency.
2. User defined micro steps.
Specification:
Model: IHSS60-36-30-31
Input voltage: 20-50VDC (36V typical value)

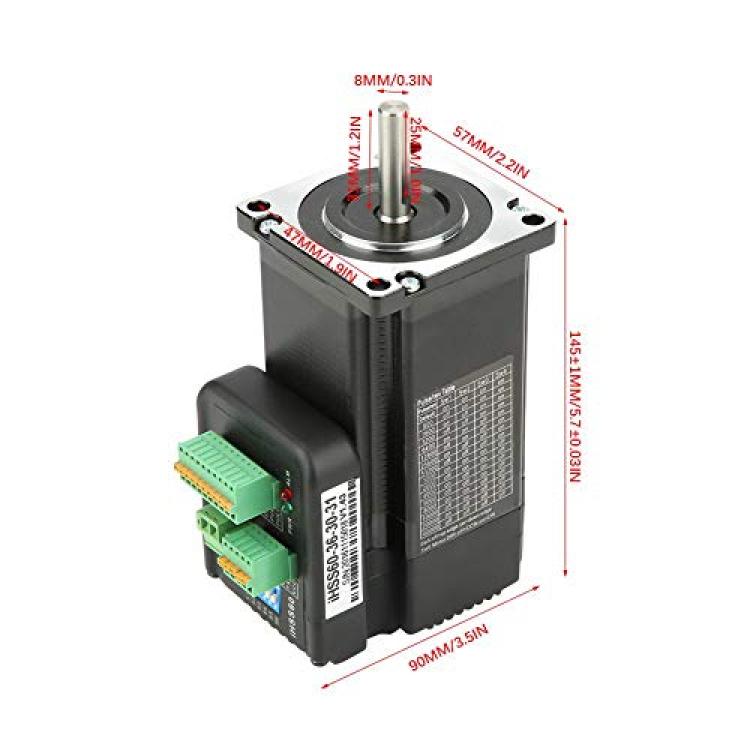

Output shaft diameter: 8mm
Torque: 3Nm
Maximum pulse frequency: 200K
Default communication rate: 57.6Kbps
Continuous current: 4A
Package weight: Approx. 1611g/56.8oz
Â
Package List:
1 * 57 Stepper Motor
1 * Stepper Motor Driver
