Nema 34 Stepper Motor Driver CNC Router Controller 6.6A 80-220V AC 3 phase DSP 32bit 200Hz digital driver control for Nema42 Nema52 stepper motor CNC Engraving Milling Machine 3DM2080

Package include:

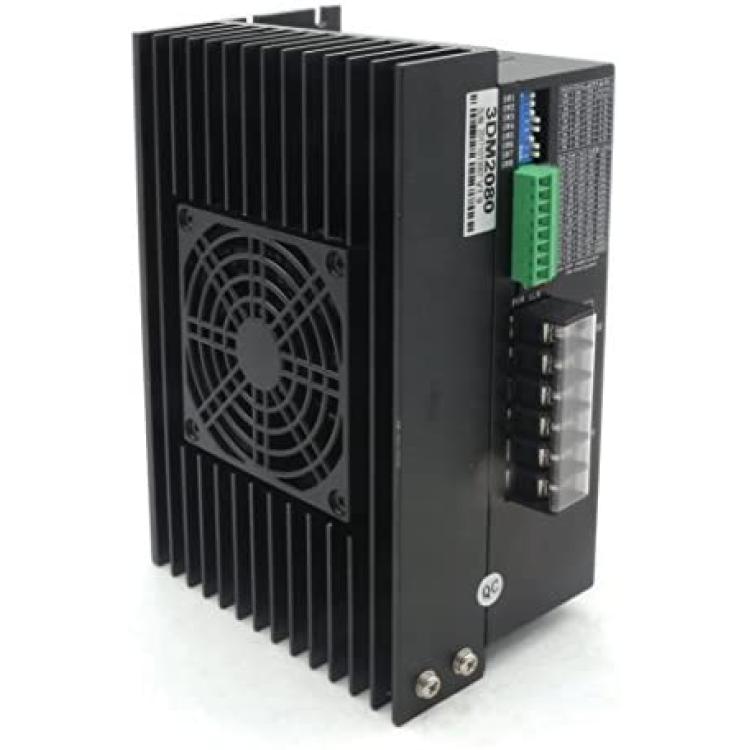

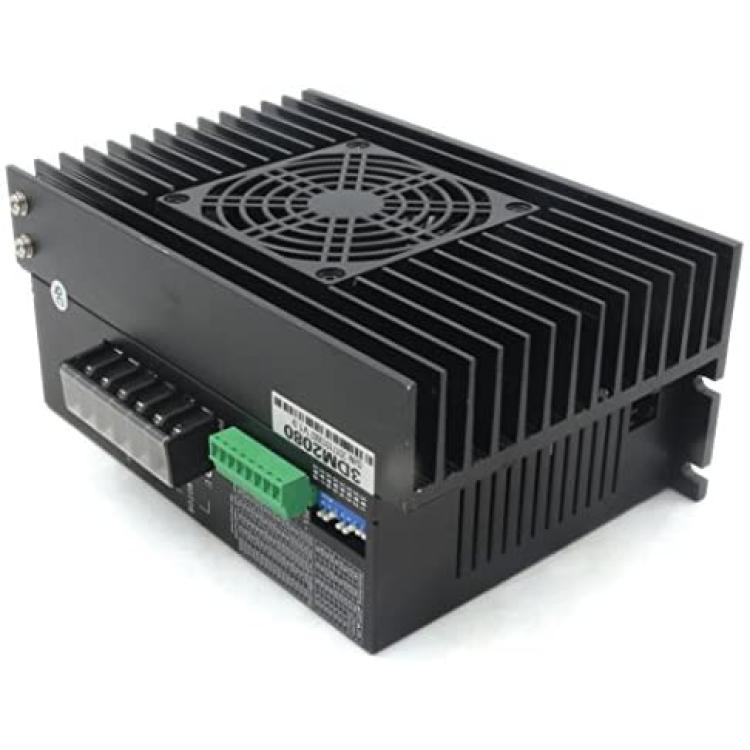

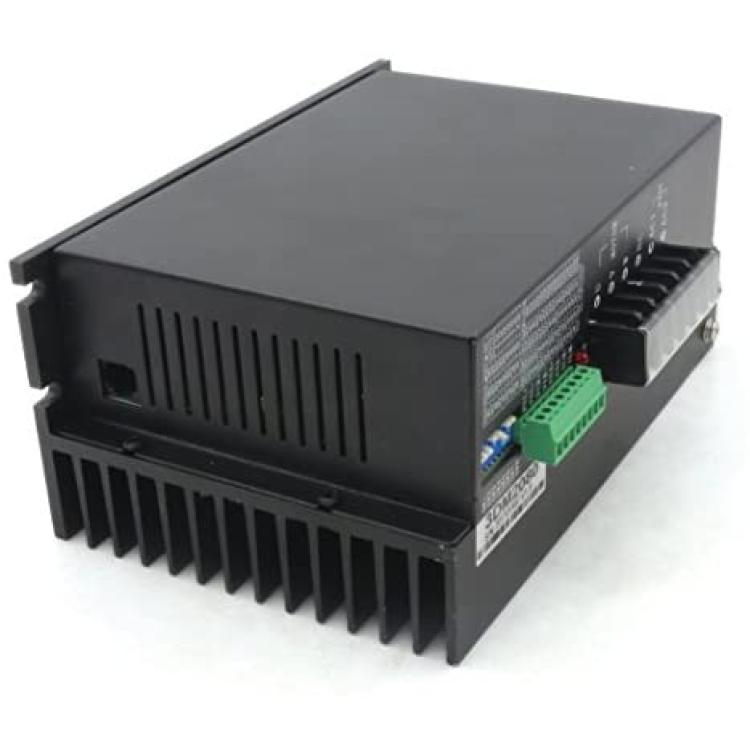

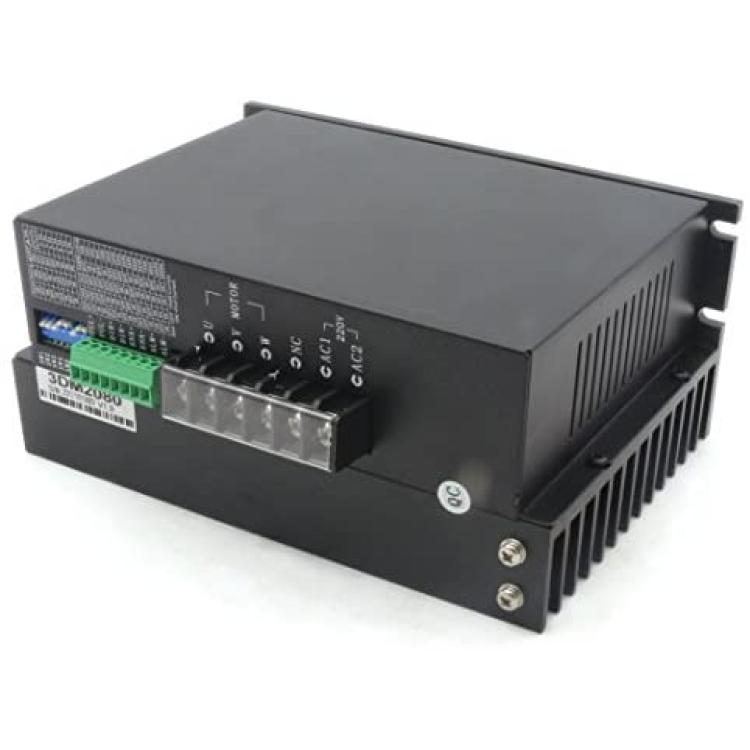

1 x  3DM2080 Stepper Motor Driver   ( 3 phase 1.7~6.6A 200Hz 80-240VAC 32bit  )

English user manual will send by mail.

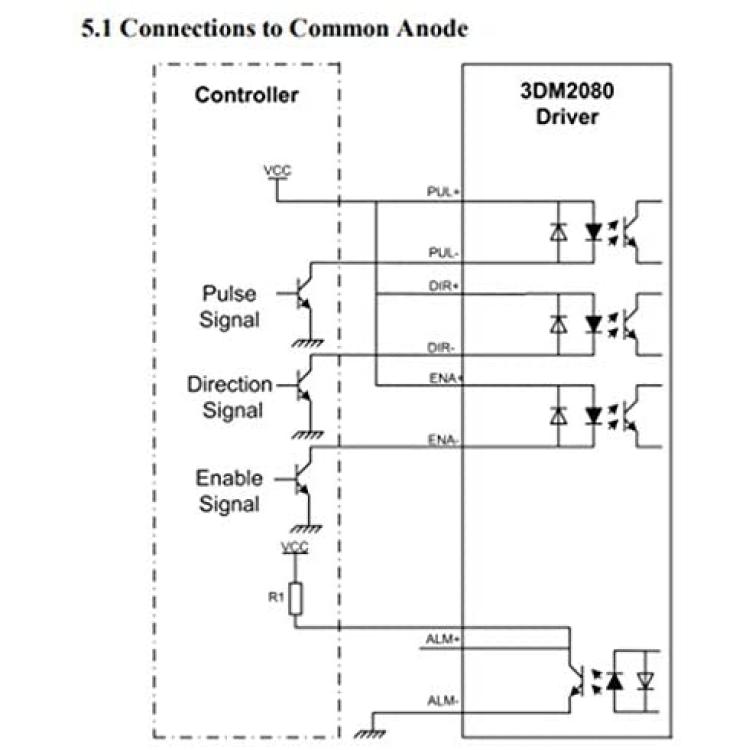

This drive only supports common anode connection, active low. Customers choose carefully!

Feature:

The average current control, three phase sinusoidal current drive output

Voltage supply: single phase 80~220VAC

H bridge bipolar constant current output

With overvoltage, undervoltage, over current, and short circuit protection function

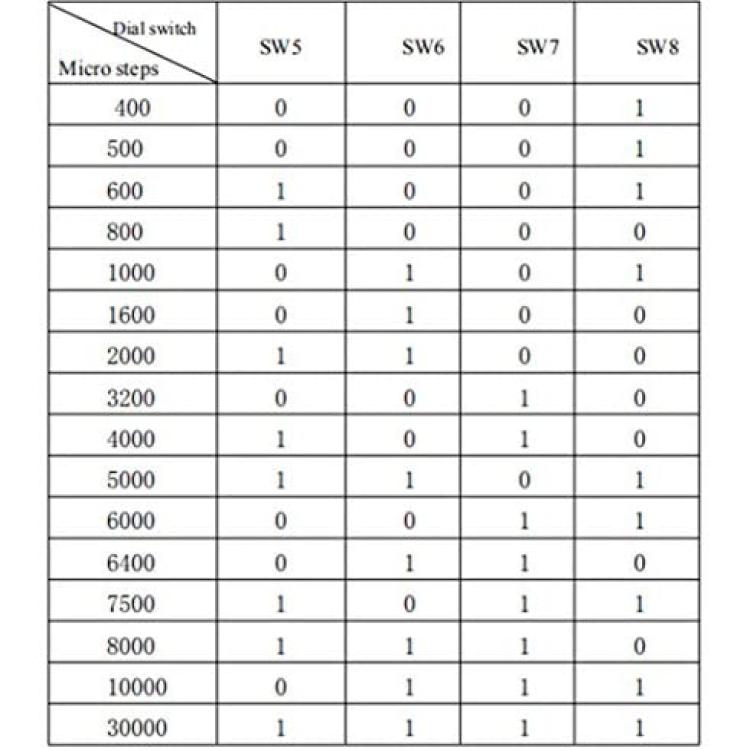

16 segment and half automatic flow function

Eight file output phase current Settings

With functions of phase memory (the motor and electric position unchanged)

With offline command input terminals

Motor torque is related to its speed, and has nothing to do with motor turn every steps

High starting speed

High torque

Application:

Typical applications for AC stepper motor drive is All kinds of automation equipment and motion control of the organization, such as electronic processing and detection, semiconductor packaging, laser cutting and welding, laser typesetting, packing machines, engraving machine, marking machine, cutting machine, apparel plotter, waiting in the nc machine tools, etc. Used in low noise, little vibration, high precision, high speed equipment of excellent results.

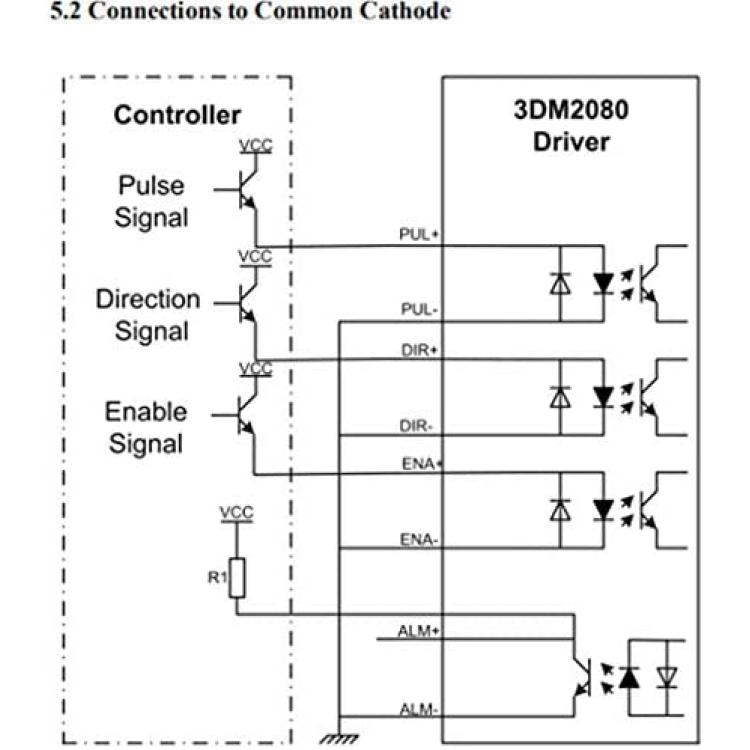

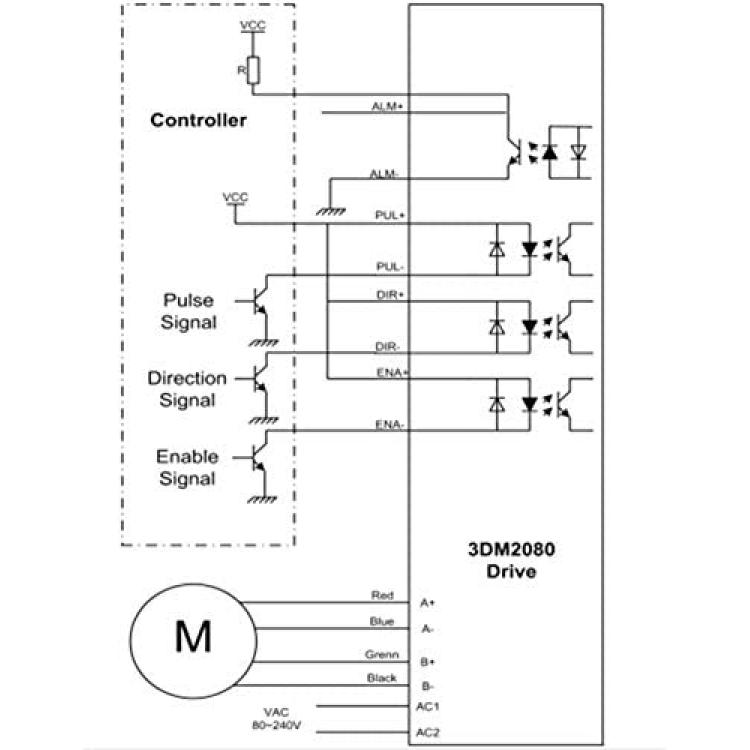

Wiring Description

Signal:Function

PUL:Pulse signal: rising edge, the pulse from low to high is to go a step angle motor

DIR:Direction signal: TTL-level driver to change the direction

OPTO:Optocoupler drive power

ENA:Enable signal: block or allow the drive to work, low-level ban

GND:DC power supply ground

+V:DC power supply positive (typical 24VDC)

A+:Motor Phase A

A-:Motor Phase A

B+:Motor Phase B

B-:Motor Phase B
