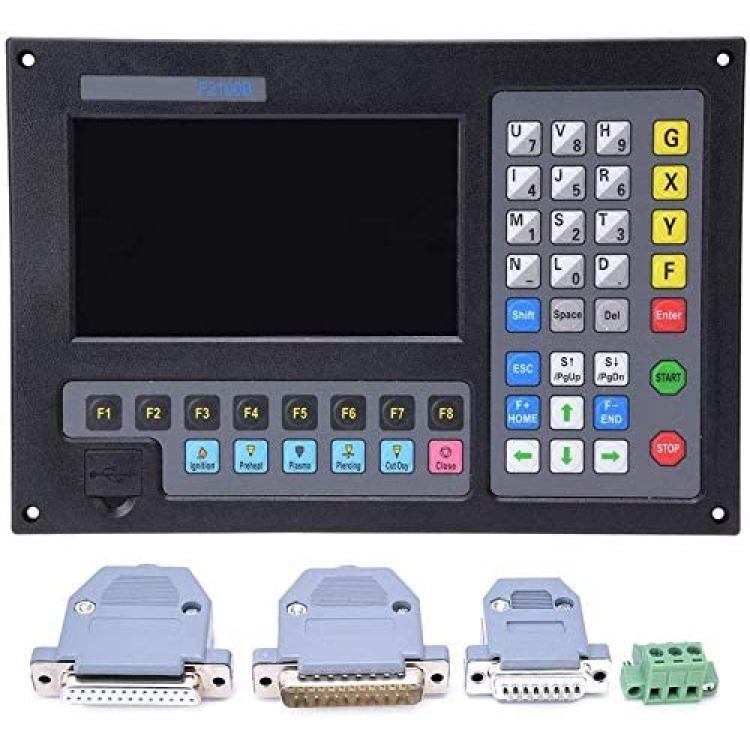

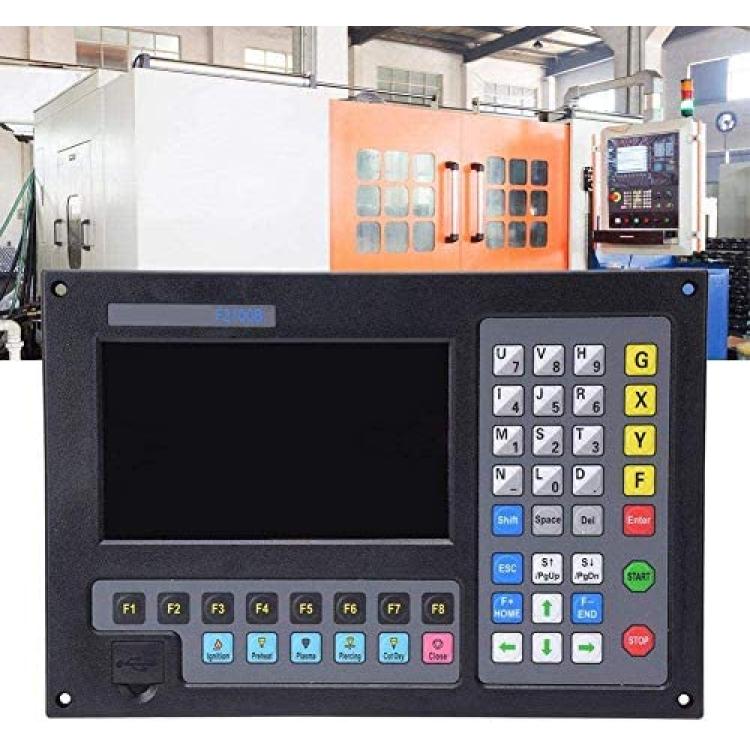

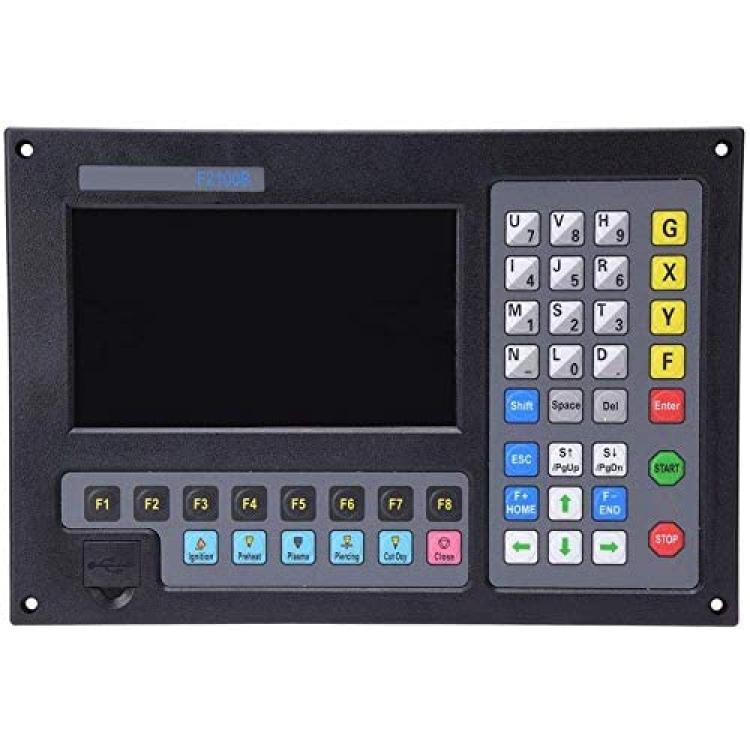

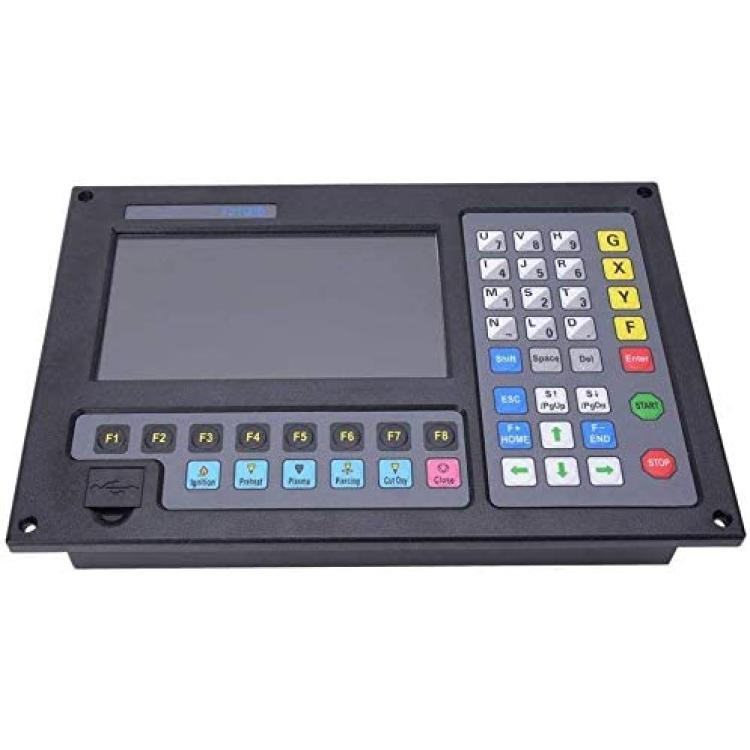

F2100b CNC Controller, Portable Two Axis Control System G Code for CNC Router Plasma Engraving Milling Cutting Machine Offline

F2100b CNC Controller, Portable Two Axis Control System G Code for CNC Router Plasma Engraving Milling Cutting Machine Offline

Product Code: HSM14406
Availability: In Stock

US$205.94

- +

For Bulk Order, Get Better Price.

About this product

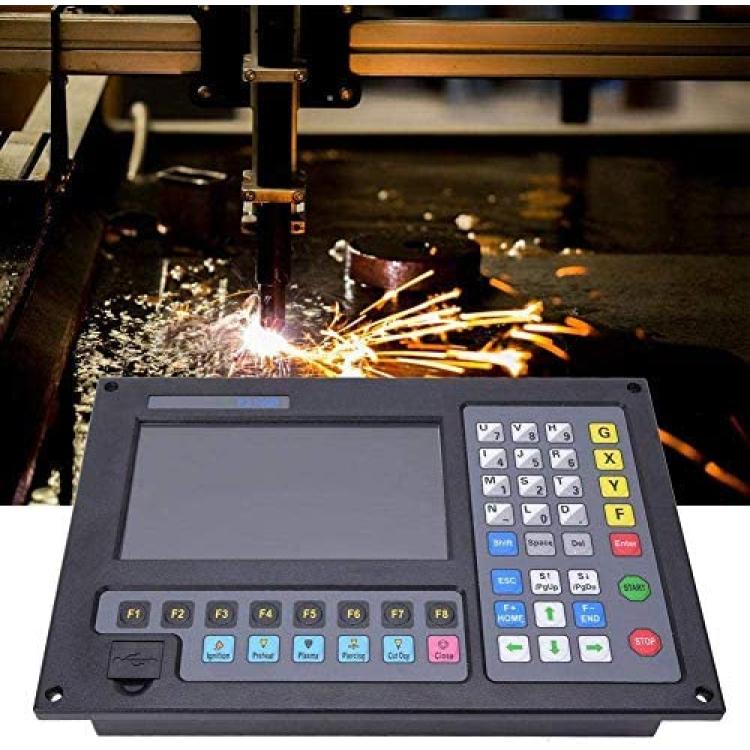

*【MULTI-FUNCTION PLASMA CUTTING MACHINE CONTROLLER】 Manually select the starting line or select the perforation point. Dynamic/static processing graphic display, graphic enlargement/reduction, dynamic tracking cutting point in zoomed state.

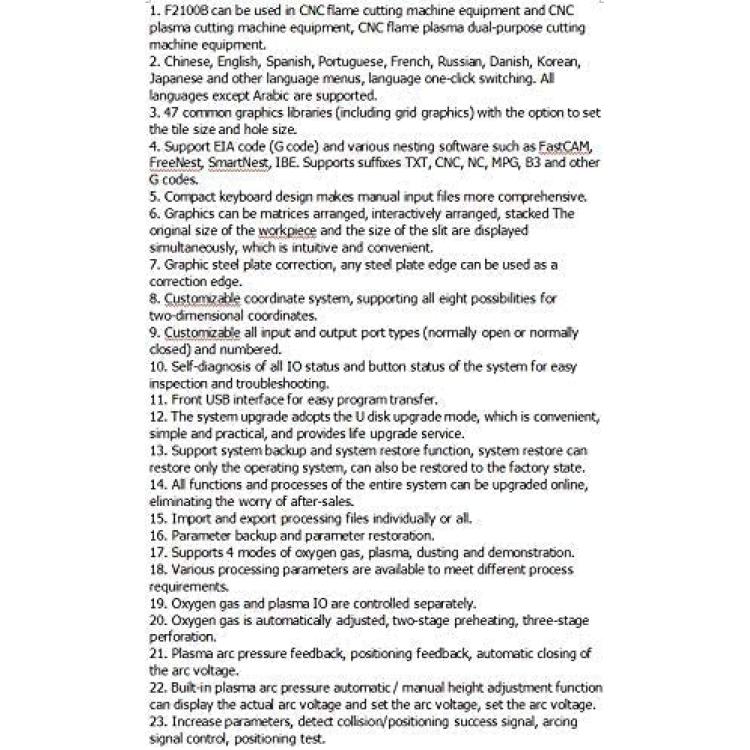

*【OPERATIONAL SUPPORT】 Support EIA code (G code) and FastCAM, FreeNest, SmartNest, IBE, etc. Supports suffixes TXT, CNC, NC, MPG, B3 and other G codes. In addition to Arabic, other languages are supported and can be switched with one click.

*【REMOTE CONTROL】 Offset cutting function avoids sheet waste due to incorrect counting calculations. Remote control that supports P2P mode or BCD (8421) mode.

*【ARBITRARILY SET THE SPEED】 Accelerate and decelerate in real time during exercise. Arbitrarily set the starting speed, lifting speed time. According to the thickness of the steel plate, the speed limit can be automatically set at the corner to effectively prevent overburning.

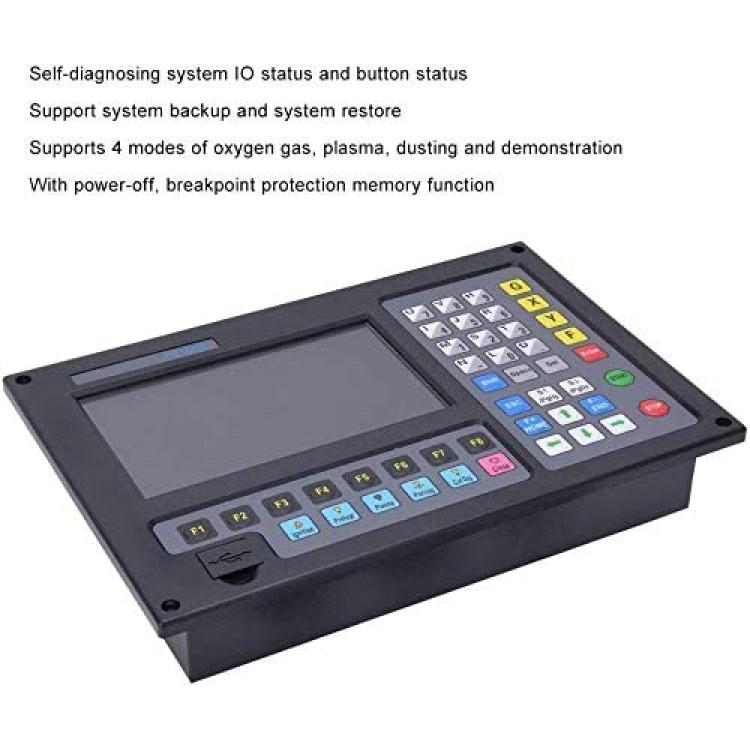

*【STABLE OPERATION】 DSP high-speed, high-precision interpolation control, stable operation, low noise. With power-off, breakpoint protection memory function. If you encounter any problems, please email us and we will respond immediately after receiving the email.

Description

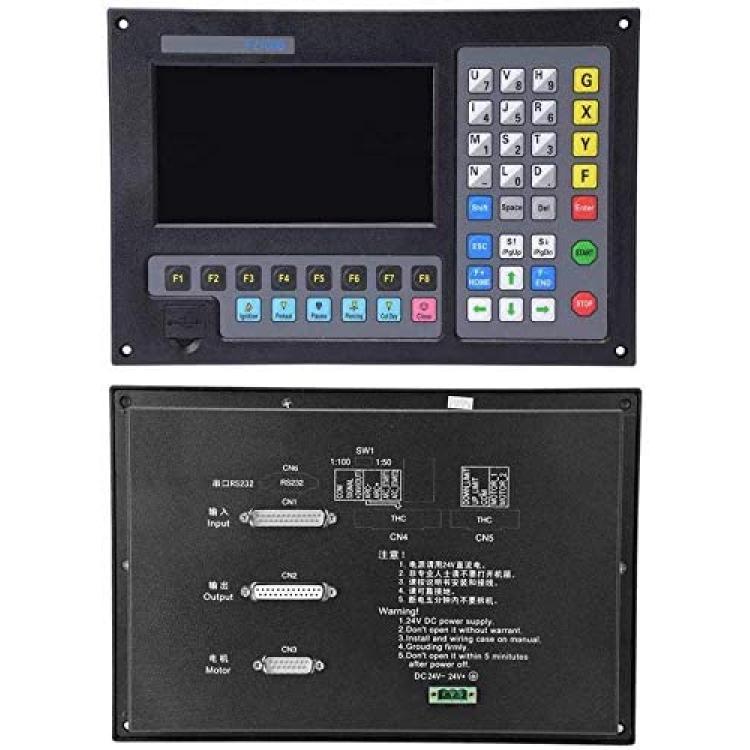

The supply voltage can reach 48VDC ;The peak output current can reach 5.6A ;Optical isolation, the input can be common cathode, common anode, differential signal, impulse response frequency 200KHz ;Low speed, zero vibration, and low noise ;Strong anti-interference ability, can achieve high-precision positioning in the harsh environment of the power grid.15-core male two-axis motor drive interface16-core female 16-channel opto-isolated output, maximum sink current 300mA25-core male 16-channel opto-isolated input, maximum input current 300mAThe front panel has a built-in USB interface for the user to transfer the cutting codeExtended IO input and output port; PWM input port; analog input portThe following interfaces, the F2000 series CNC system with "T" are available:f) Arc voltage input divider ratio selection can be selected 1:50 or 1:1005-core arc voltage boost motor output and limit input7-core arc voltage and positioning input, arcing signal output port
