4 Axis 500KHz Offline Stand Alone CNC Controller Motion Controller System PLC Control G Code for CNC Router Engraving Milling Machine/Stepper/Servo Motor RMHV3.1

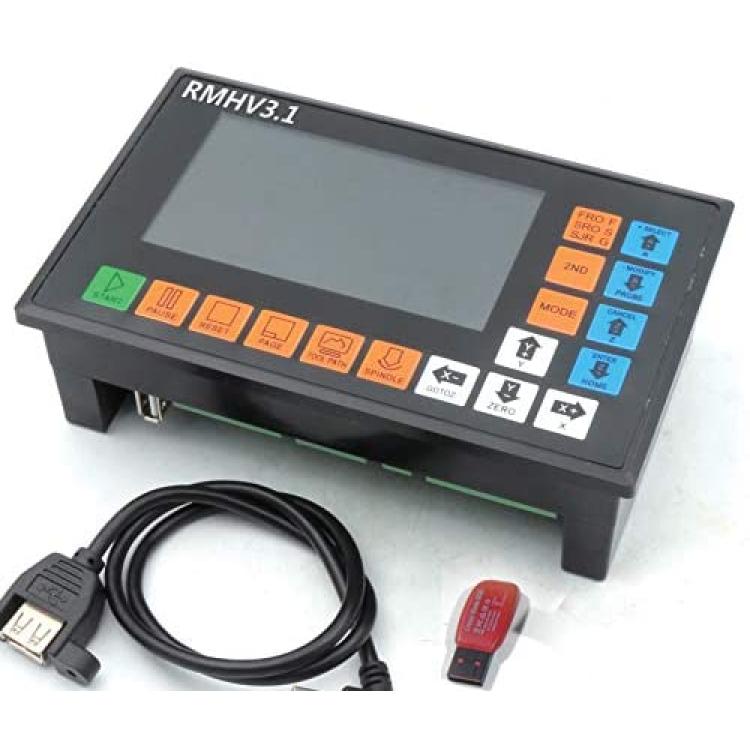

Package include:

1 x 4 Axis CNC Motion controller RMHV3.1 Version

1 x 8GB USB Flash drive

1 x USB Extension Cable

1.1 Introduction

        RMHV3.1 is the 4 axis and 4 axes motion controller which has been researched and developed by Faster CNC for four years. The control period of each position is only 4 milliseconds, with a high control precision. The highest uniaxial output pulse is 500KHz and the pulse width can be adjusted. It supports the common stepper motor and servo motor

1.2  Performance parameter of Product

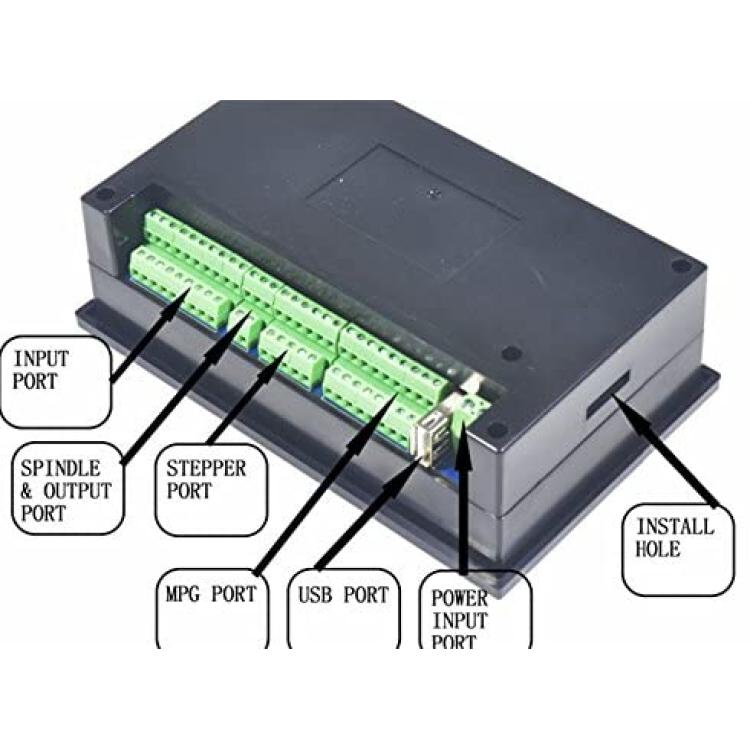

1) Ordinary digital input interface of 16-circuitoptocoupler coupling isolation

2) Ordinary digital input interface of 3-circuit optocoupler coupling isolation

3) Output interface of 0-10V spindle control port with analog quantity(can be modified as PWM output);

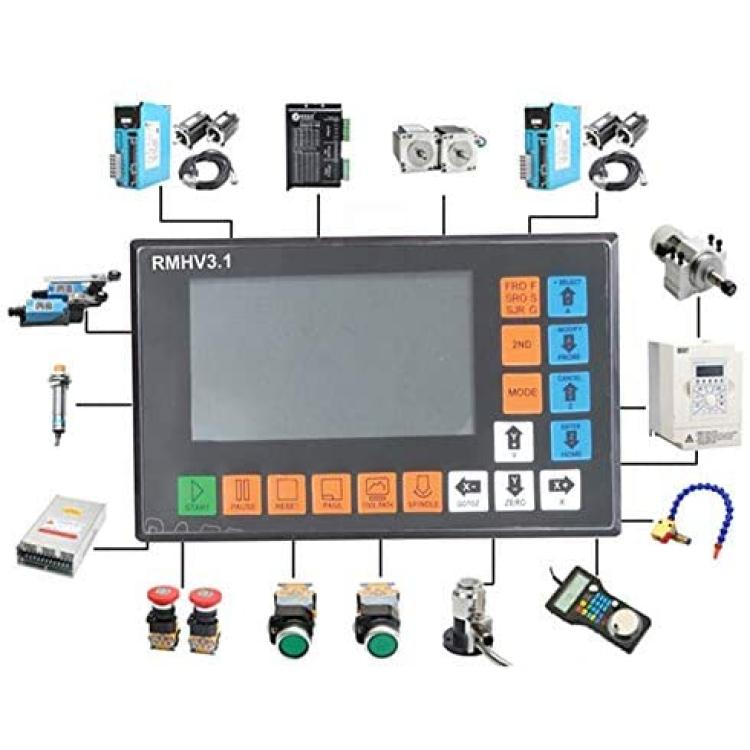

4) Support the 4 axis stepper motor control, the highest control pulse output of single axis is 500KHz;

5)  ARM9 main control chip;

6)  FPGA core algorithm chip;

7) 4.3 inches TFT screen, resolution ratio: 480*272;

8) 17 operational keys;

9) The main control equipment is 24V-32V power input, the current capacity is required not to be lower than 0.5A;

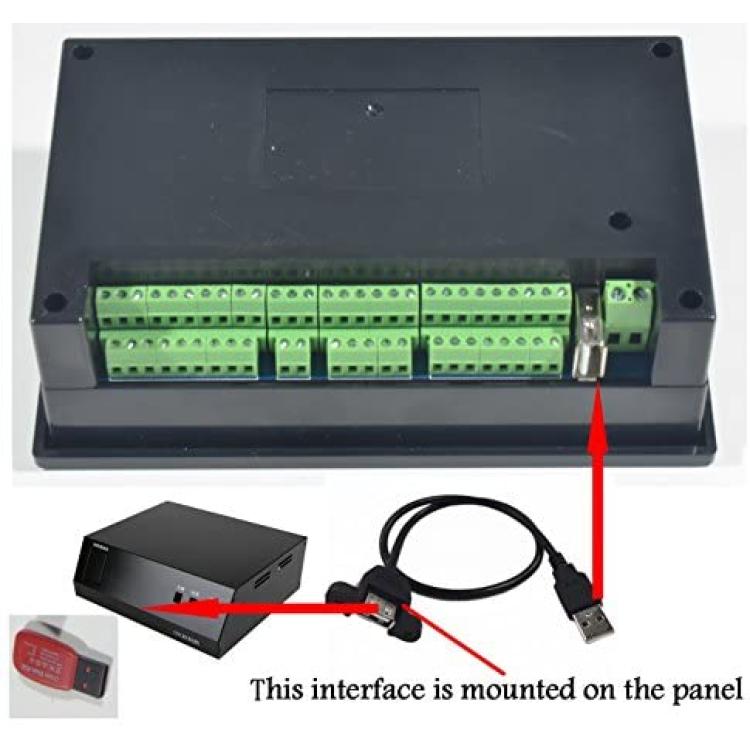

10)  Support the USB flash disk to read the G code,and the size of G codefile has no requirement;
