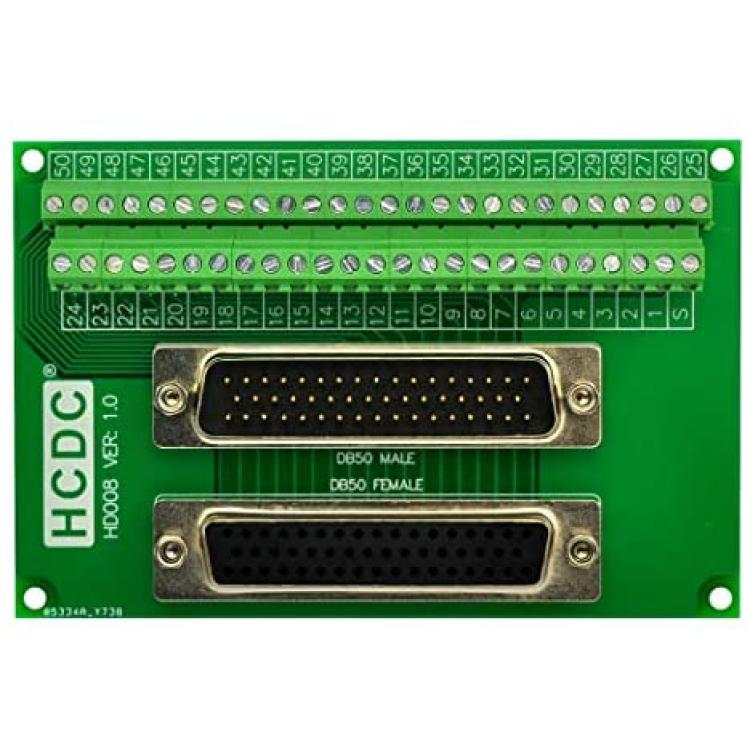

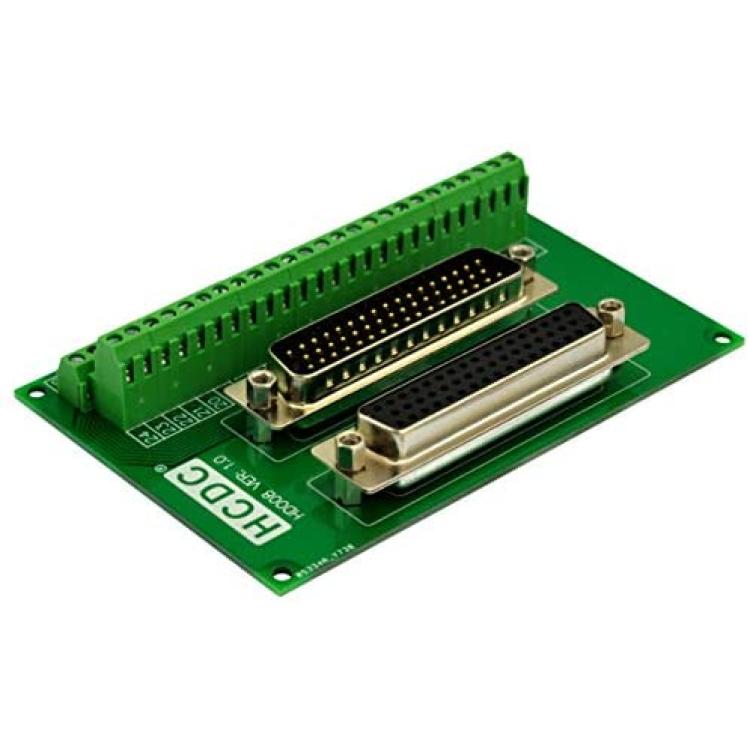

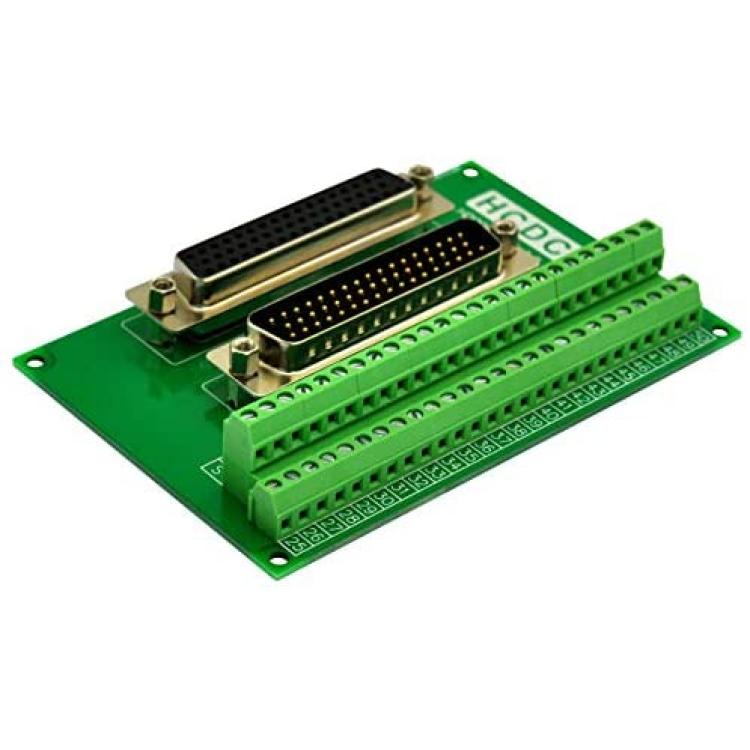

D-SUB Male-Female Breakout Board Terminal Block Interface Module (DB50)
Availability: In Stock
About this product
*Standard D-SUB Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
*Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C
*Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
*FR-4 fiber glass PCB, dual copper layers.
Description
1, Standard D-SUB Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
2, Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C
3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2, steel, Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
4, FR-4 fiber glass PCB, dual copper layers.
