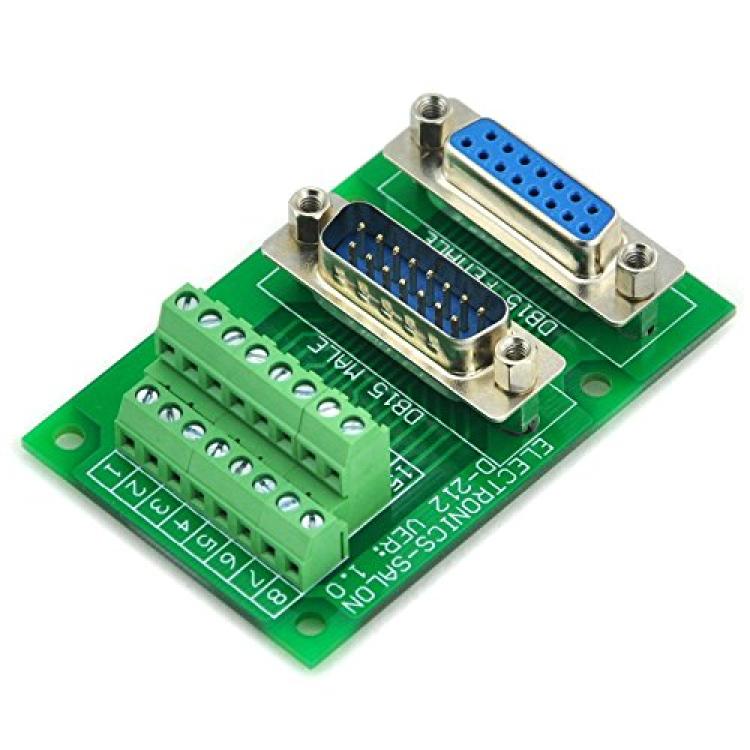

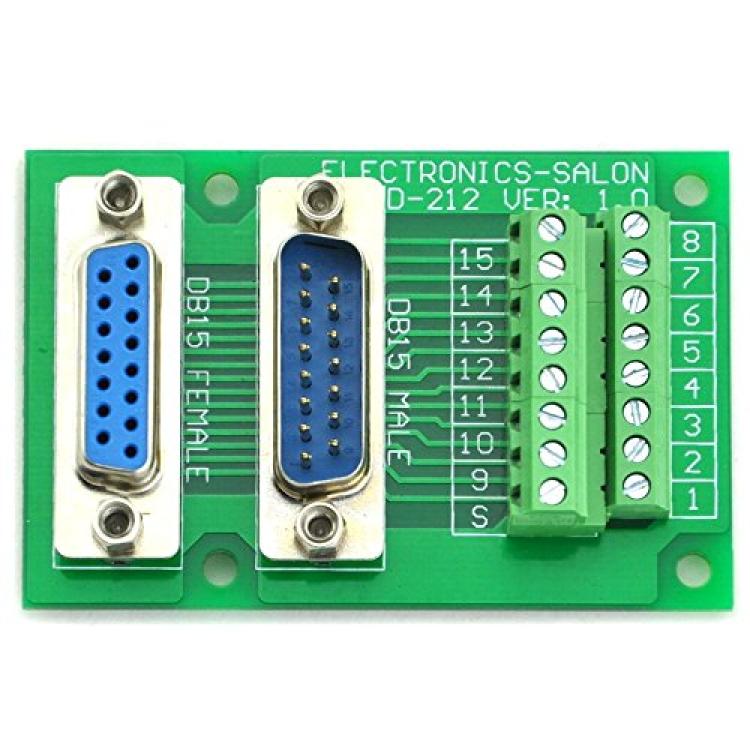

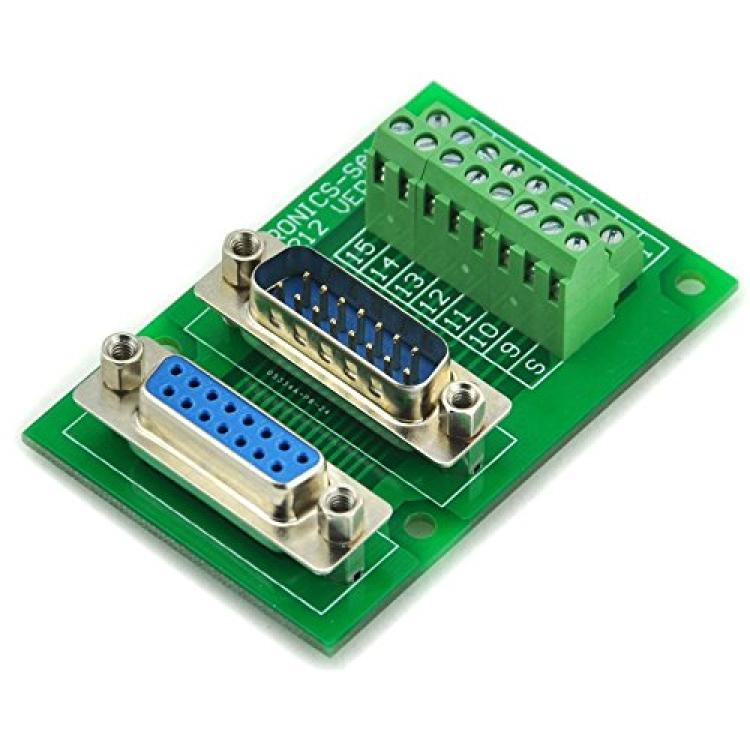

Electronics-Salon D-SUB DB15 Male/Female Header Breakout Board, DSUB Terminal Block, Connector.
Product Code: HSM25449
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
About this product
*D-SUB DB15 Male / Female Header Breakout Board.
*DB15 male and female header connectors.
*Pitch 3.81mm/0.15" screw terminal block.
*FR-4 fiber glass PCB, dual copper layers.
*Dimensions: 72 x 47.35 x 20mm(W x L x H).
Description
D-SUB DB15 Male / Female Header Breakout Board.
DB15 male and female header connectors.
Pitch 3.81mm/0.15" screw terminal block.
FR-4 fiber glass PCB, dual copper layers.
Dimensions: 72 x 47.35 x 20mm(W x L x H).
100% new, never used.
Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
?
