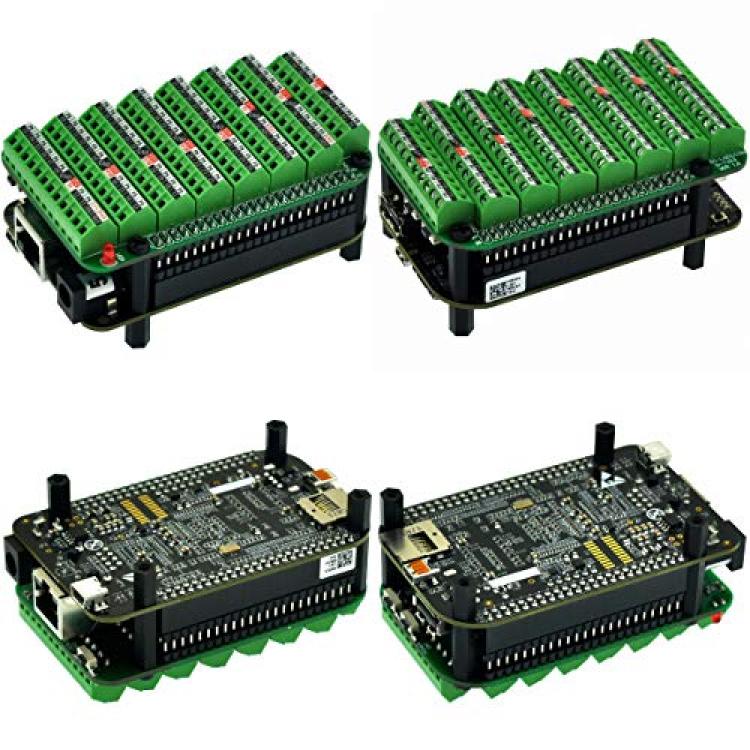

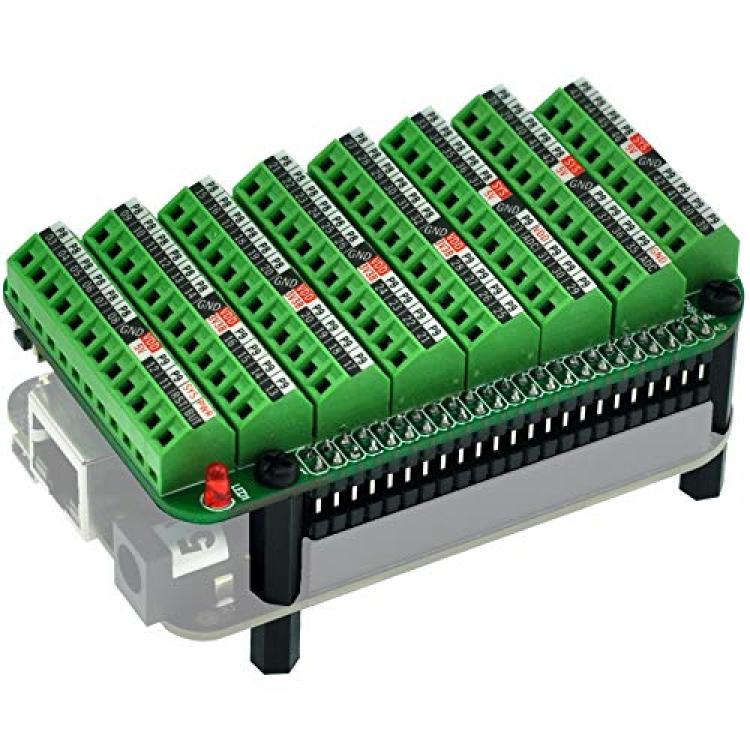

CZH-LABS Screw Terminal Block Breakout Board Module for BeagleBone Black.
Product Code: HSM26401
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
Description
Terminal Block Breakout Module - for BeagleBone, BeagleBone Black, BeagleBone AI, BeagleBone Black Wireless, BeagleBone Green, BeagleBone Green Wireless or SanCloud BeagleBone Enhanced.

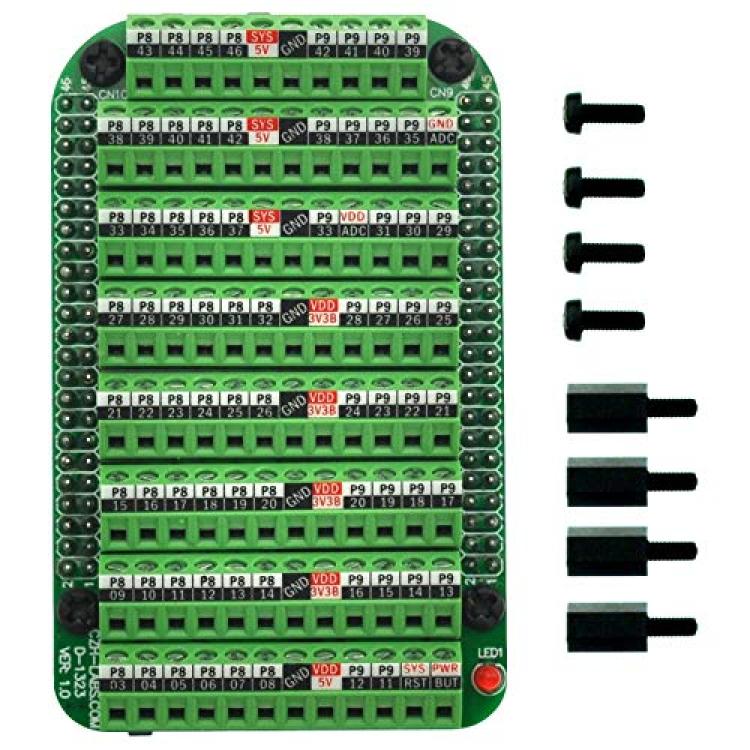

Terminal block pitch 3.5mm/0.138", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper.

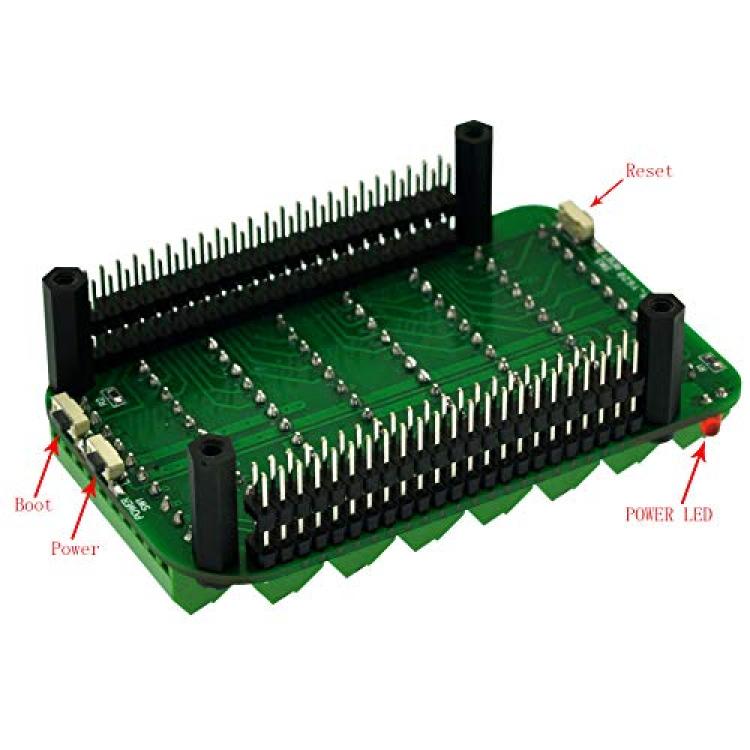

With power on LED indicating, with Power, Reset and Boot buttons on the side.

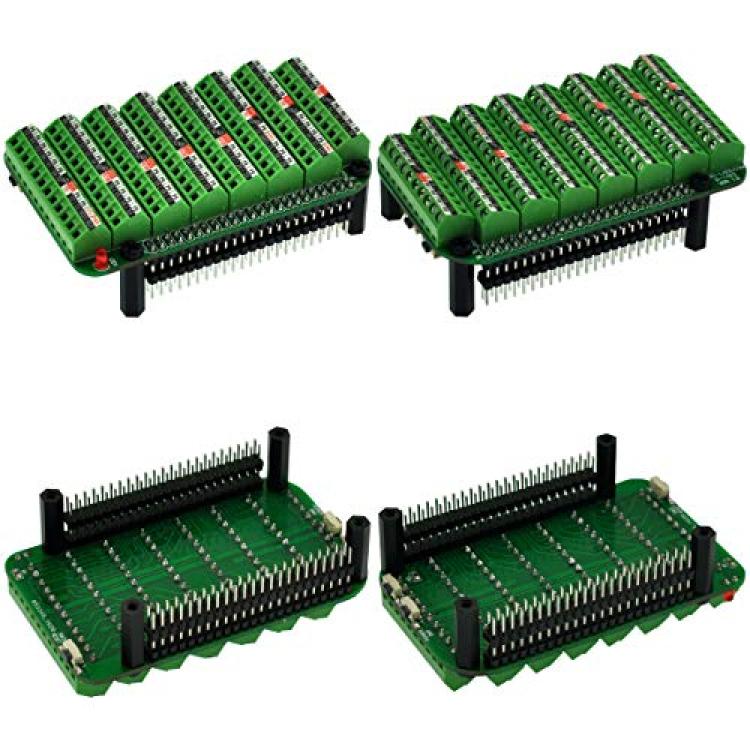

The item has been soldered and assembled.
NOTE: the item not include BeagleBone Black moudle.
