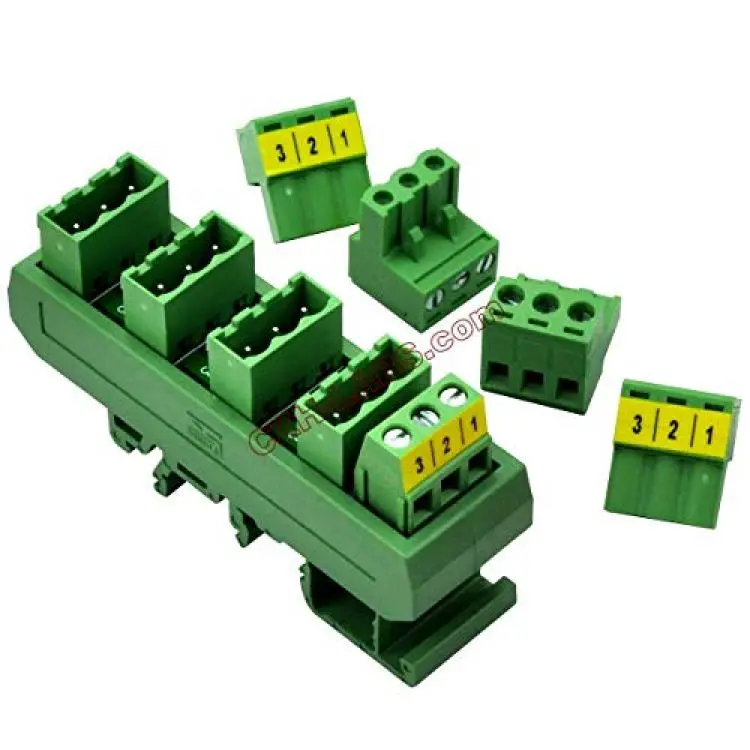

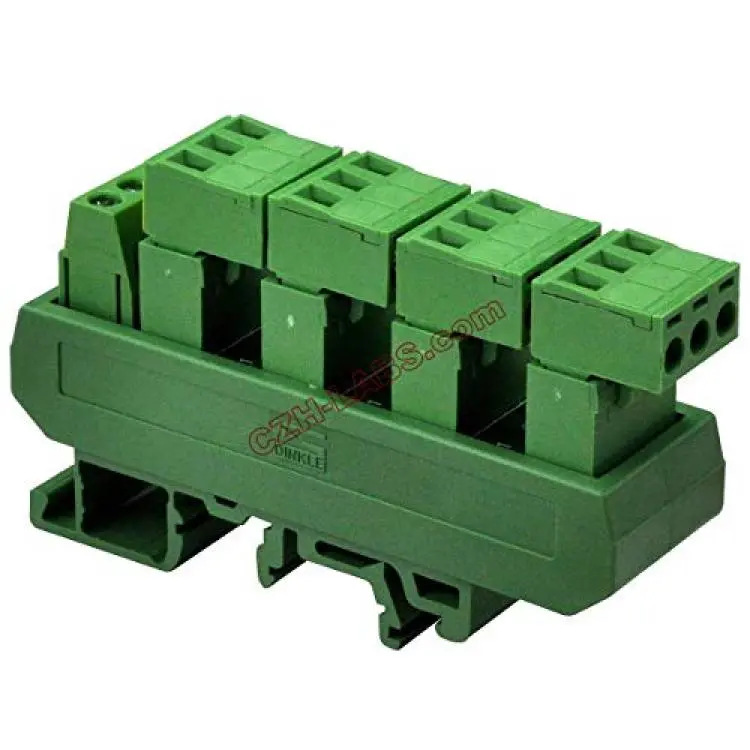

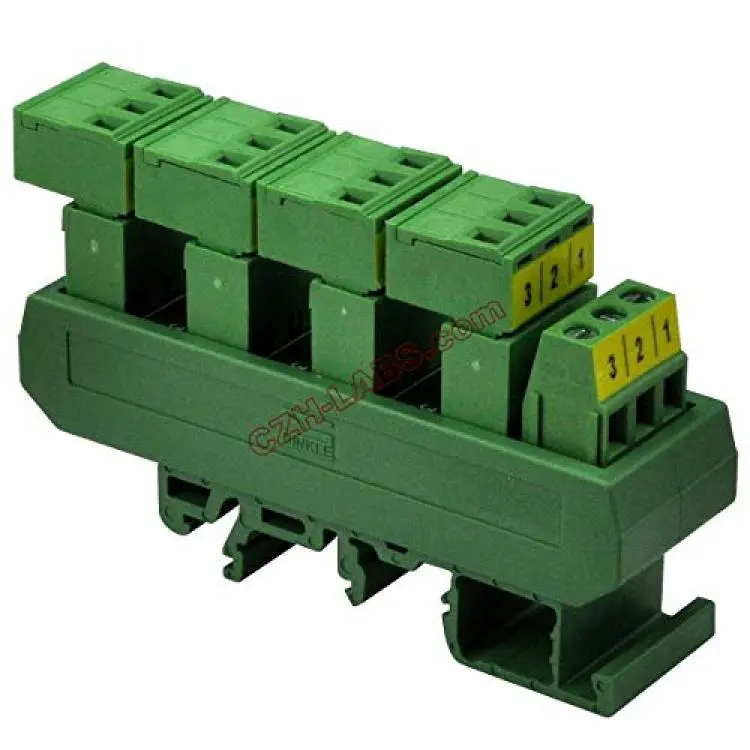

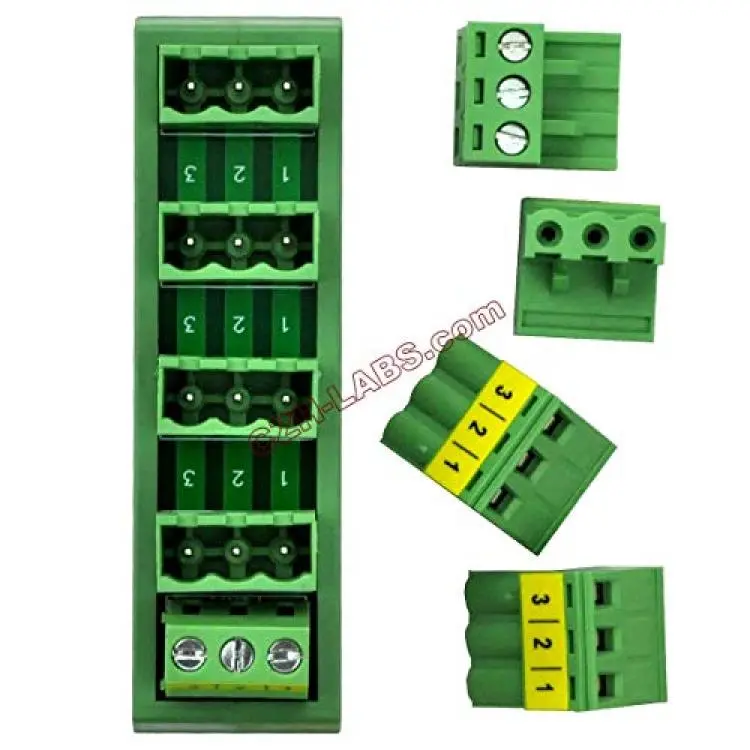

Electronics-Salon Slim DIN Rail Mount 10A/300V 5x3 Position Pluggable Screw Terminal Block Distribution Module.

Electronics-Salon Slim DIN Rail Mount 10A/300V 5x3 Position Pluggable Screw Terminal Block Distribution Module.

Product Code: HSM23054
Availability: Pre-Order, Inquiry Price

US$9.49

- +

For Bulk Order, Get Better Price.

About this product

*Slim DIN Rail Mount 10A/300V 5x3 Position Pluggable Screw Terminal Block Distribution Module.

*Pluggable Terminal Block: 4x 3 Position pluggable screw terminal block, top wire connects, pitch 5.08mm/0.2", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass.

*Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 10Amp(per position).

*PCB mount Terminal Block: 1x 3 Position PCB mount screw terminal block, pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 16Amp(per position).

*High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm, 25mm or 15mm rail.

Description

Slim DIN Rail Mount 10A/300V 5x3 Position Pluggable Screw Terminal Block Distribution Module.
Pluggable Terminal Block: 4x 3 Position pluggable screw terminal block, top wire connects, pitch 5.08mm/0.2", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 10Amp(per position).
PCB mount Terminal Block: 1x 3 Position PCB mount screw terminal block, pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 16Amp(per position).
High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm, 25mm or 15mm rail.
