Electronics-Salon DIN Rail Mount 24/20-pins ATX DC Power Supply Breakout Board Module.
Product Code: HSM26604
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
Description

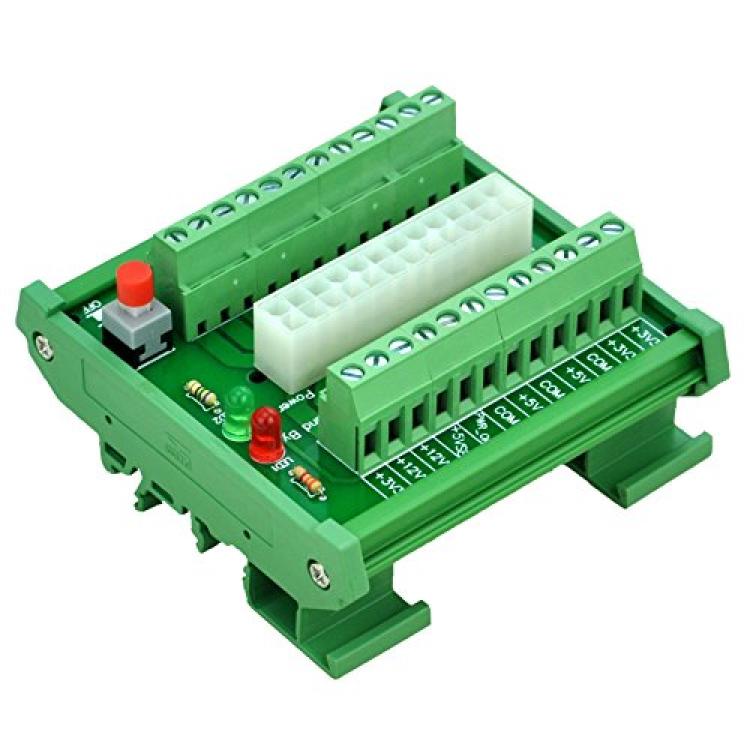

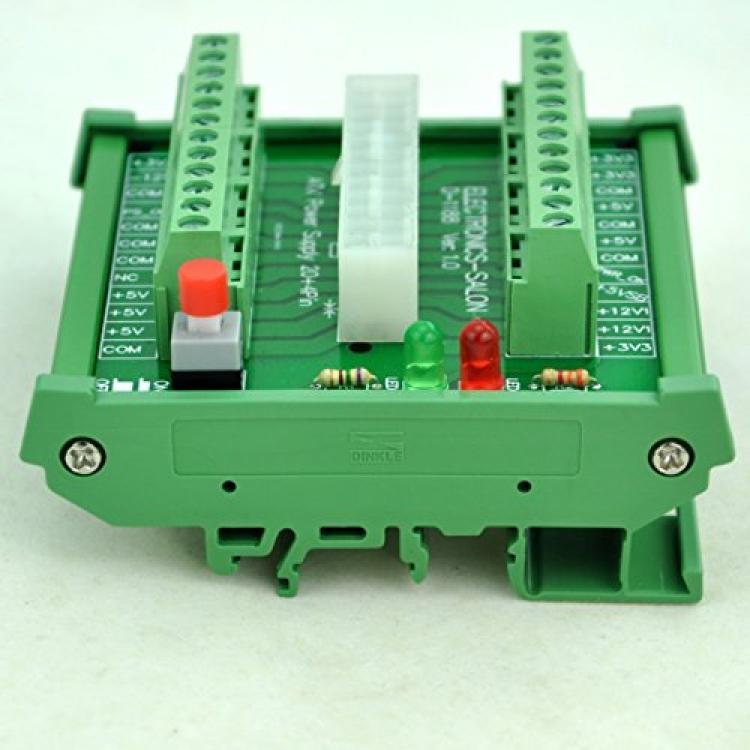

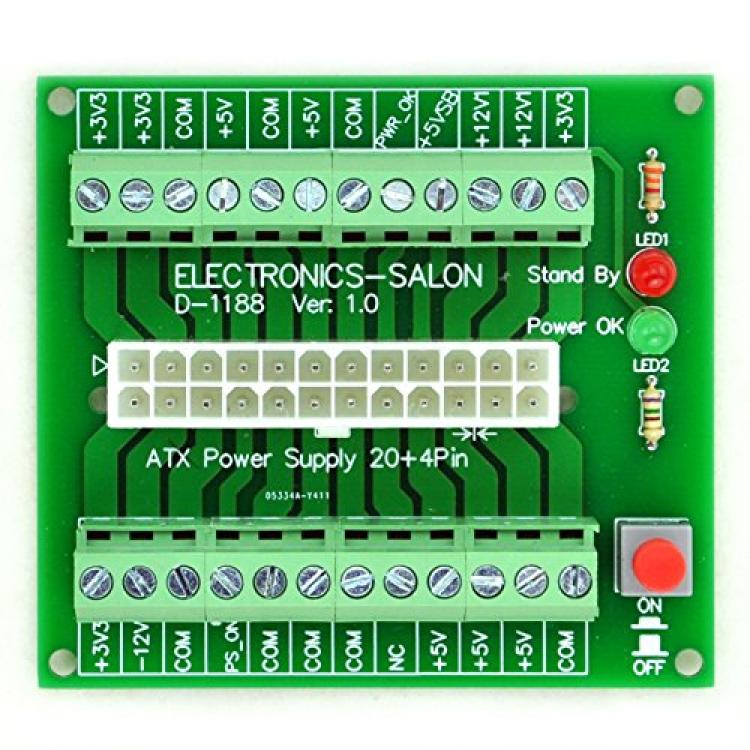

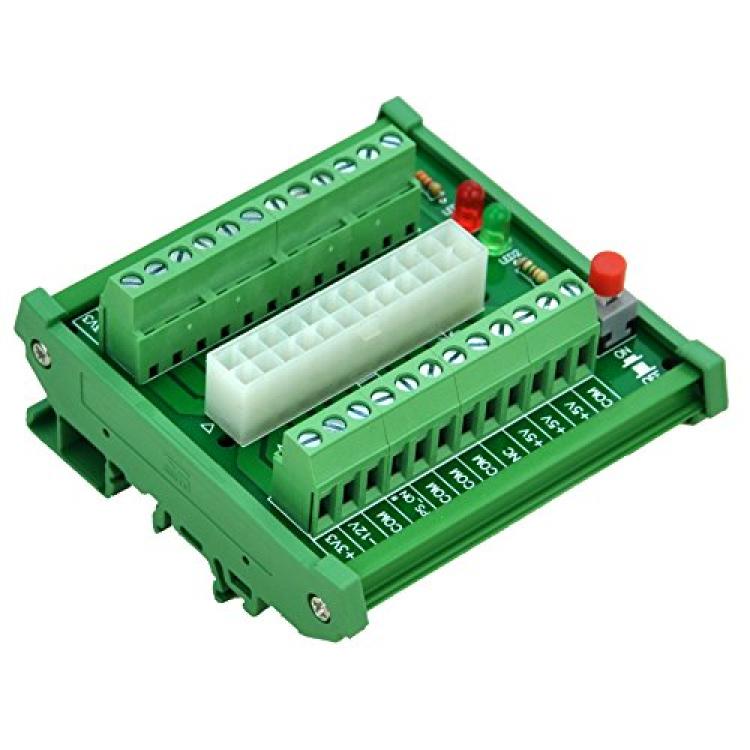

DIN Rail Mount 24/20-pins ATX DC Power Supply Breakout Board.
24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header.
Stand-By and Power-ON indicator LEDs.
With latching button switch to control power ON/OFF.
High quality 24Amp(per position) screw terminal blocks.

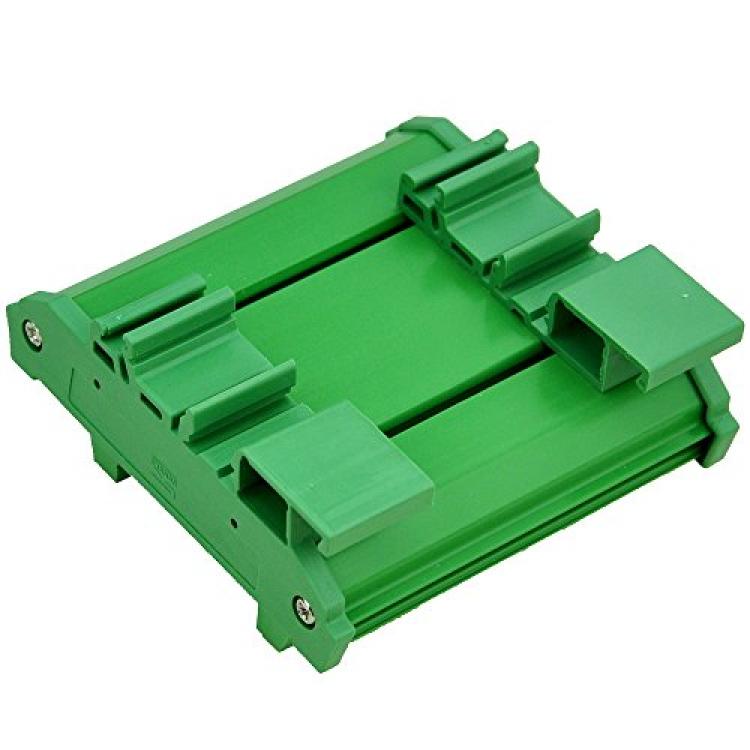

Fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
Terminal Block:
Pitch 5.0mm/0.197"
Wire range 26AWG ~ 12AWG / 2.5mm2
Rated voltage 400V, rated current 24Amp.
Strip length 7mm.
Screws - M3,steel,Cr3+ Zn plated.
Pin header and Cage - Brass.
?
