Electronics-Salon DB9 D-SUB DIN Rail Mount Interface Module, DSUB Male/Female Breakout Board.
Share Facebook Twitter Pinterest Email

Electronics-Salon DB9 D-SUB DIN Rail Mount Interface Module, DSUB Male/Female Breakout Board.

Product Code: HSM22928
Availability: Pre-Order, Inquiry Price
US$10.99
- +

Description

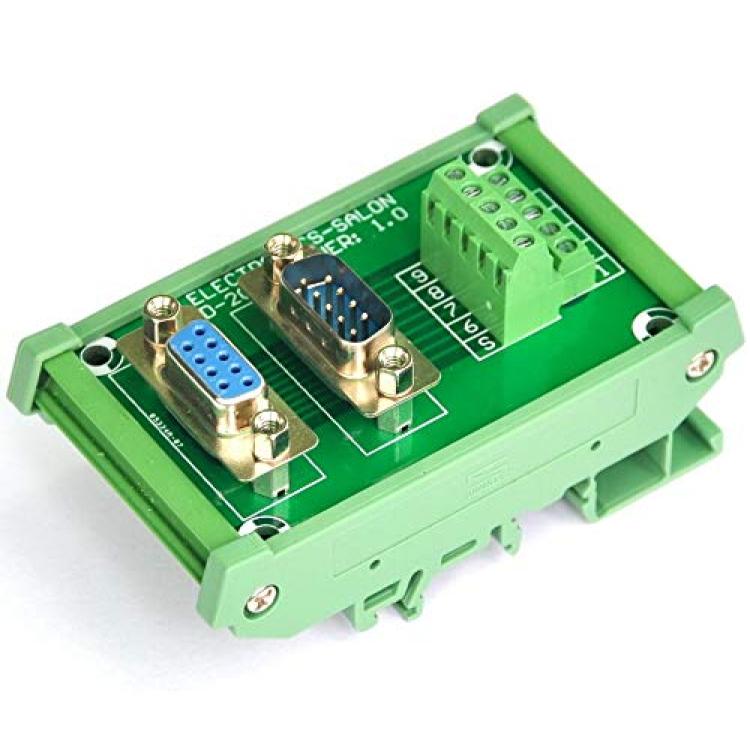

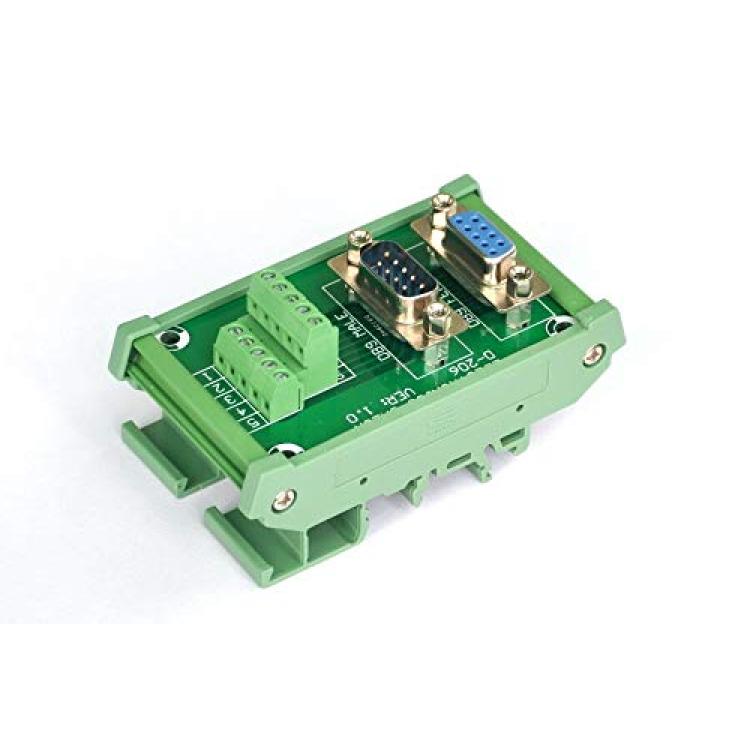

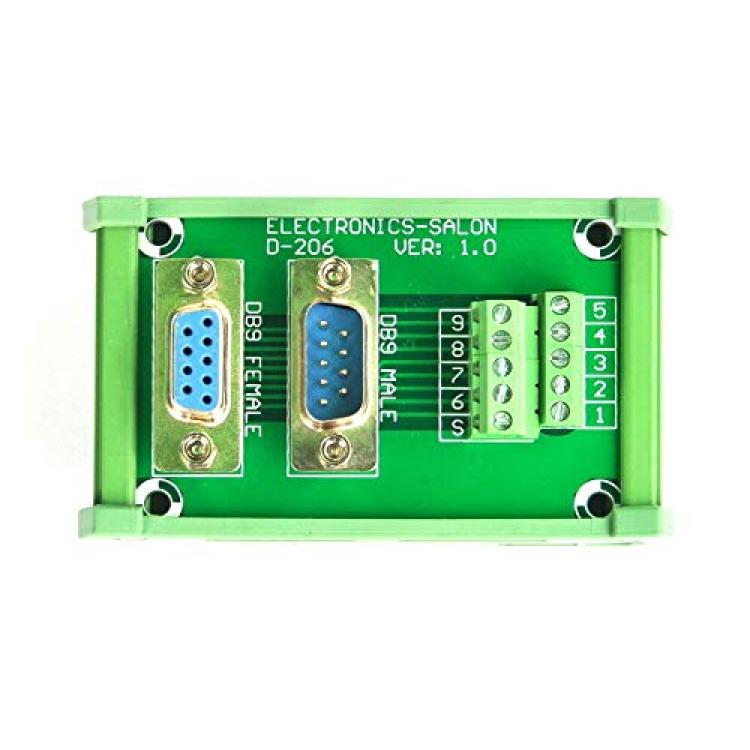

Din Rail Mount DB9 Interface Module.

Male and Female DB9 connectors.
Screw terminal block.
Din rail mountable - for width 35 / 32 / 15mm rails.

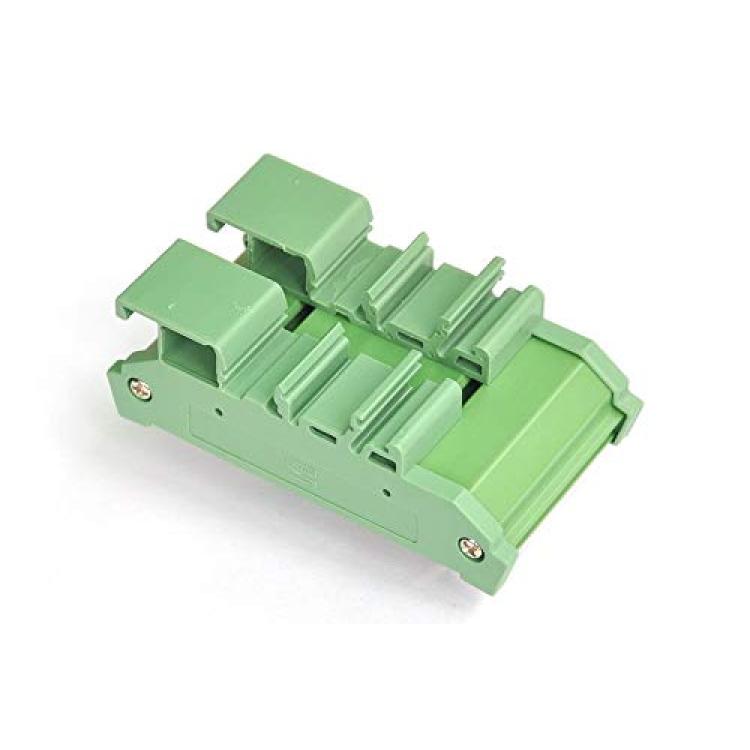

Din mount case can be taken apart for panel mount use.

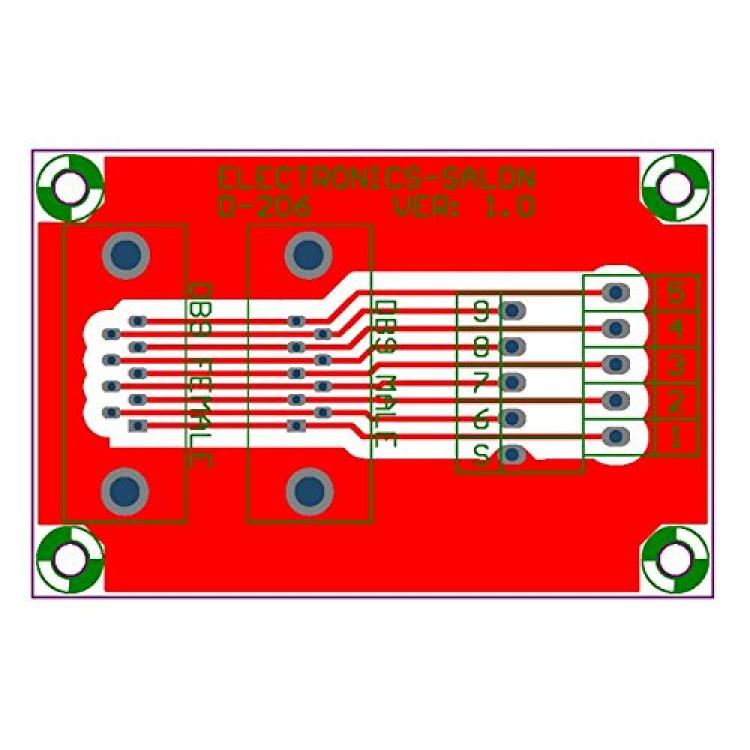

High quality PCB carrier.
FR-4 fiber glass PCB.
External dimensions: 87 x 49.5 x 43mm(W x L x H).
PCB dimensions: 72 x 47.35mm(W x L).
100% new, never used.

Terminal block specifications:
Pitch - 3.81mm.
Rated voltage - 150V.
Rated current - 10A.
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
?
