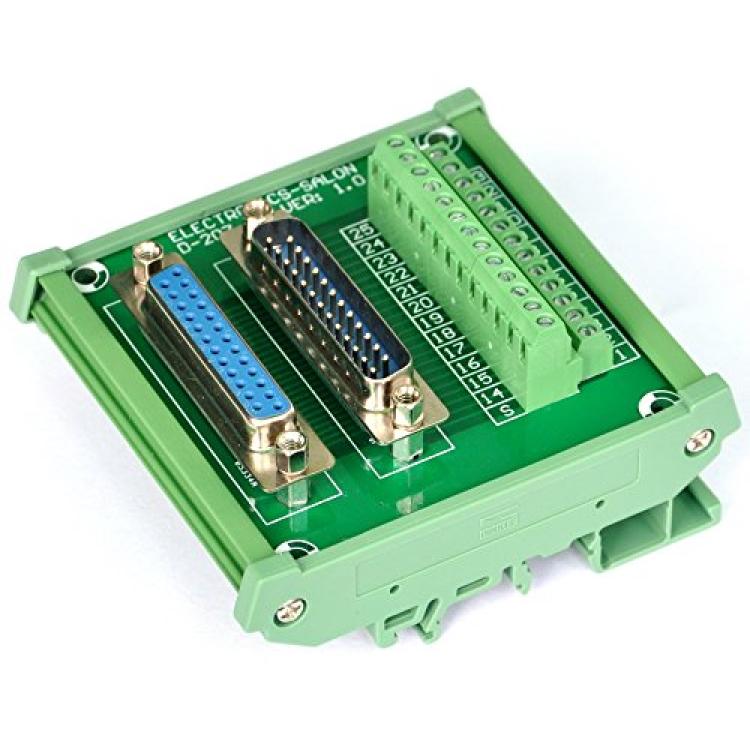

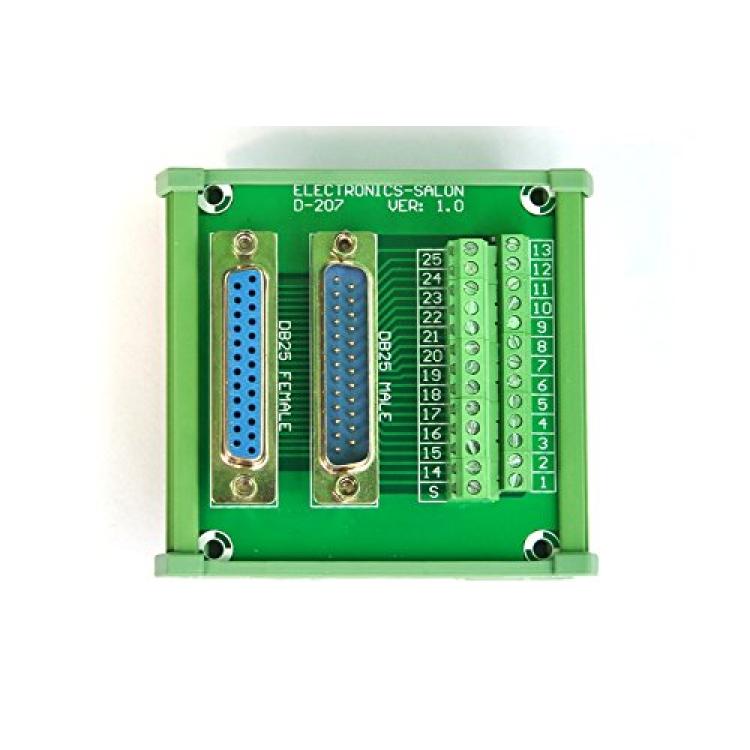

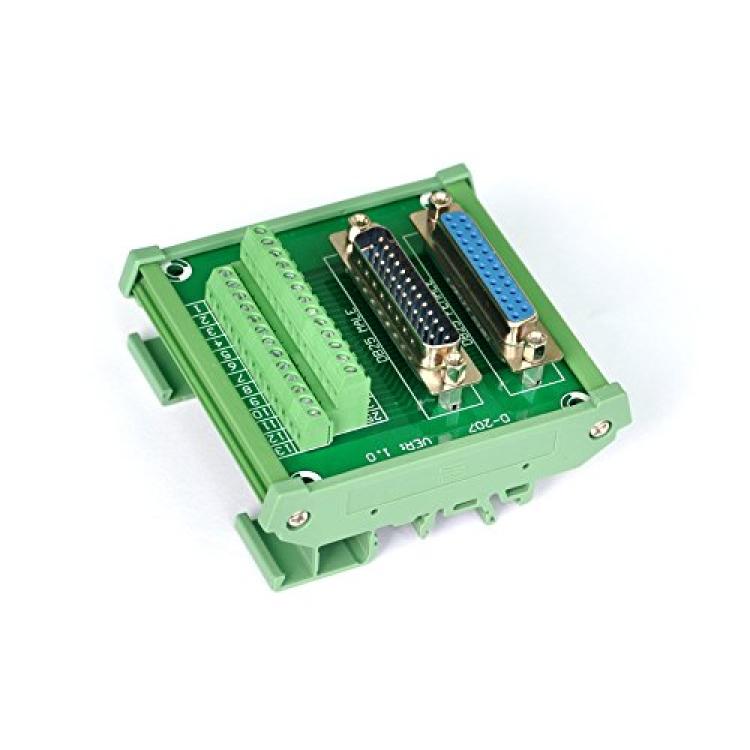

Electronics-Salon DB25 D-SUB DIN Rail Mount Interface Module, Male/Female, DSUB Breakout Board.
Availability: Pre-Order, Inquiry Price
About this product
*Male and Female DB25 connectors, Screw terminal block.

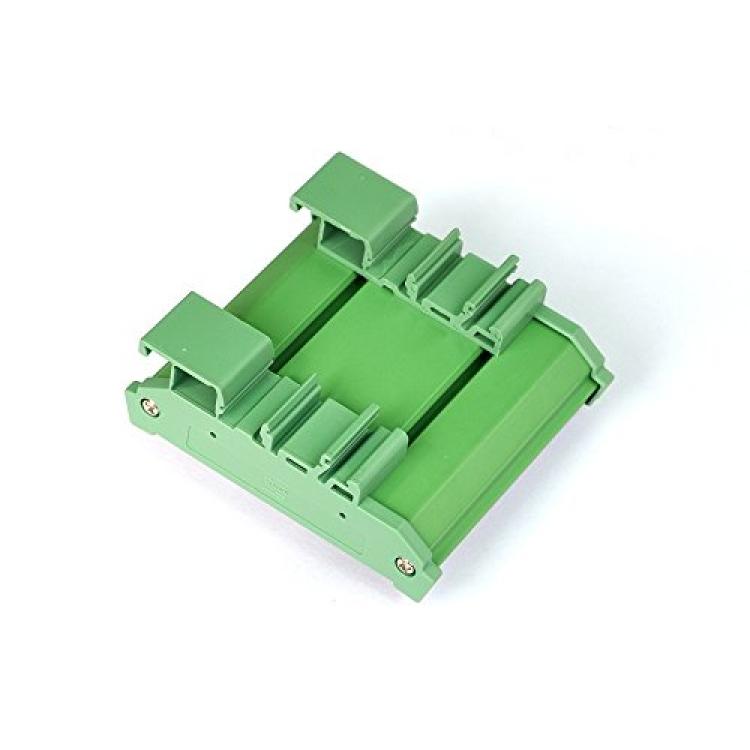

*Din rail mountable - for width 35 / 32 / 15mm rails, Din mount case can be taken apart for panel mount use.
*FR-4 fiber glass PCB.
*External dimensions: 87 x 80 x 43mm(W x L x H).

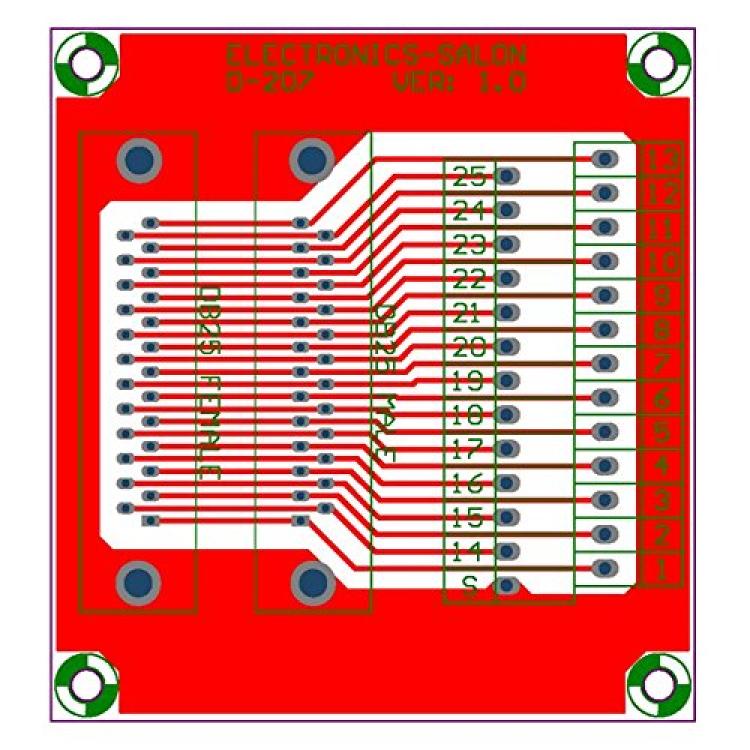

*PCB dimensions: 72 x 77.35mm(W x L).
Description
DIN Rail Mount DB25 Interface Module.
Male and Female DB25 connectors.
Screw terminal block.
Din rail mountable - for width 35 / 32 / 15mm rails.
Din mount case can be taken apart for panel mount use.
High quality PCB carrier.
FR-4 fiber glass PCB.
External dimensions: 87 x 80 x 43mm(W x L x H).
PCB dimensions: 72 x 77.35mm(W x L).
100% new, never used.
Terminal block specifications:
Pitch - 3.81mm.
Rated voltage - 150V.
Rated current - 10A.
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
