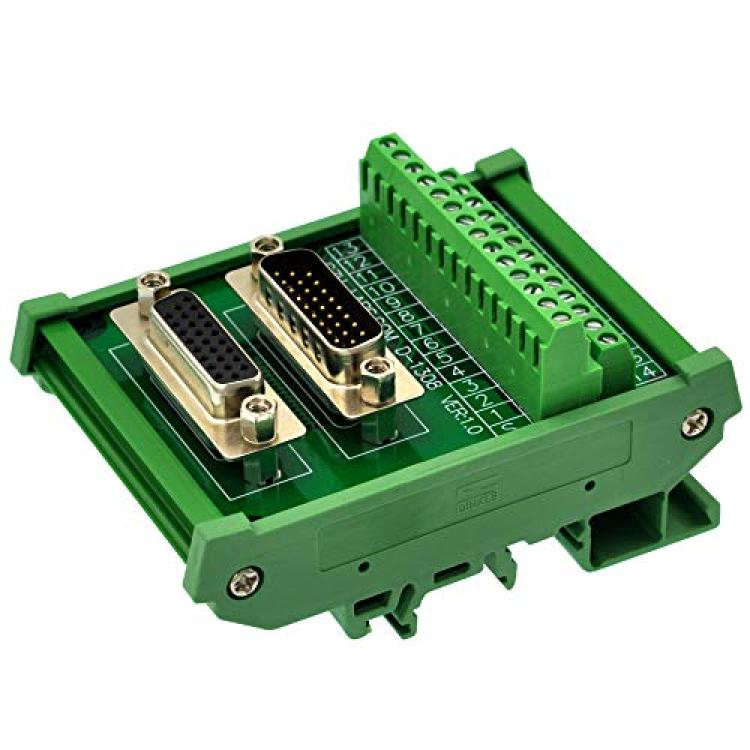

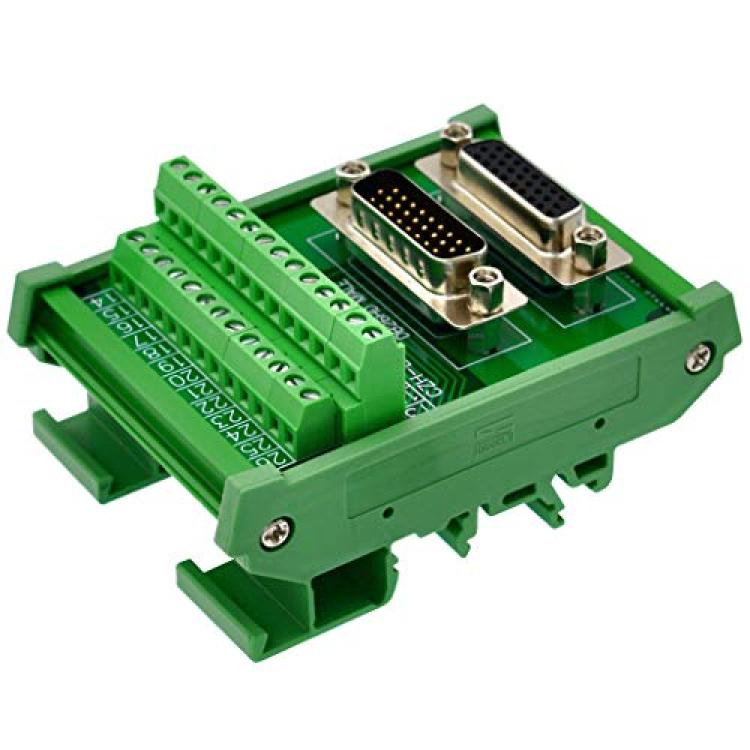

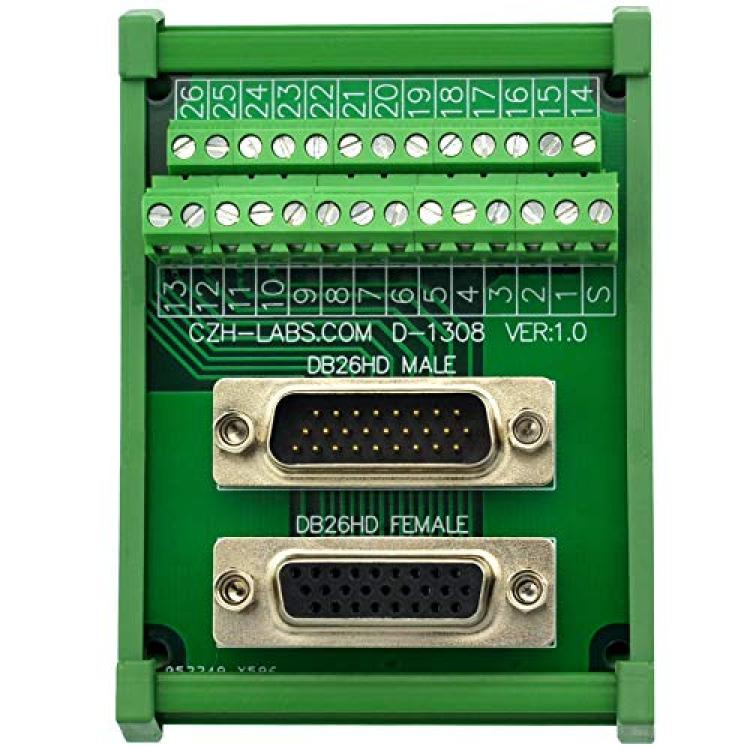

CZH-LABS DIN Rail Mount DSUB DB26HD Male/Female Header Interface Module, D-SUB Breakout Board.

CZH-LABS DIN Rail Mount DSUB DB26HD Male/Female Header Interface Module, D-SUB Breakout Board.

Product Code: HSM25440
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Standard DB26HD Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.

*Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC

*Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.

*FR-4 fiber glass PCB, dual copper layers.

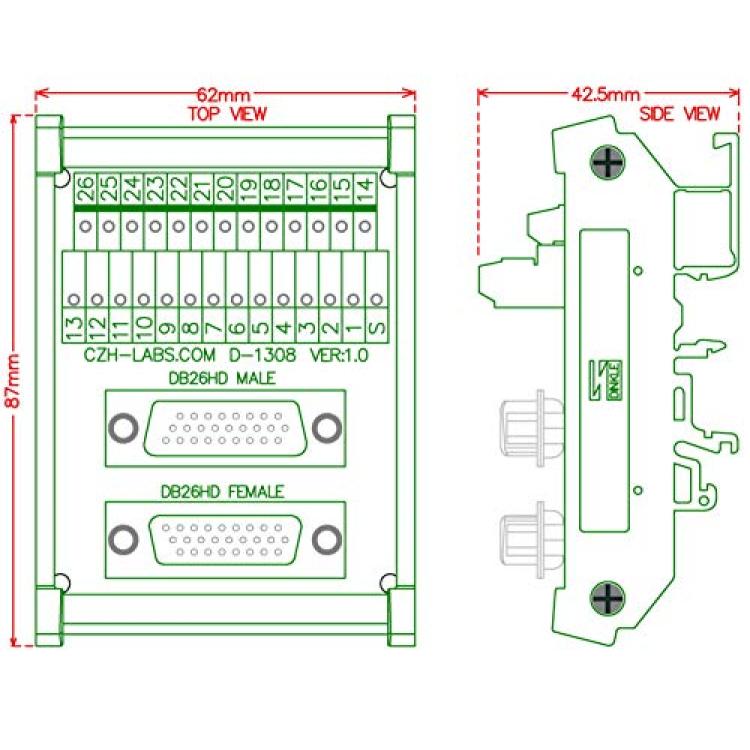

*High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.

Description

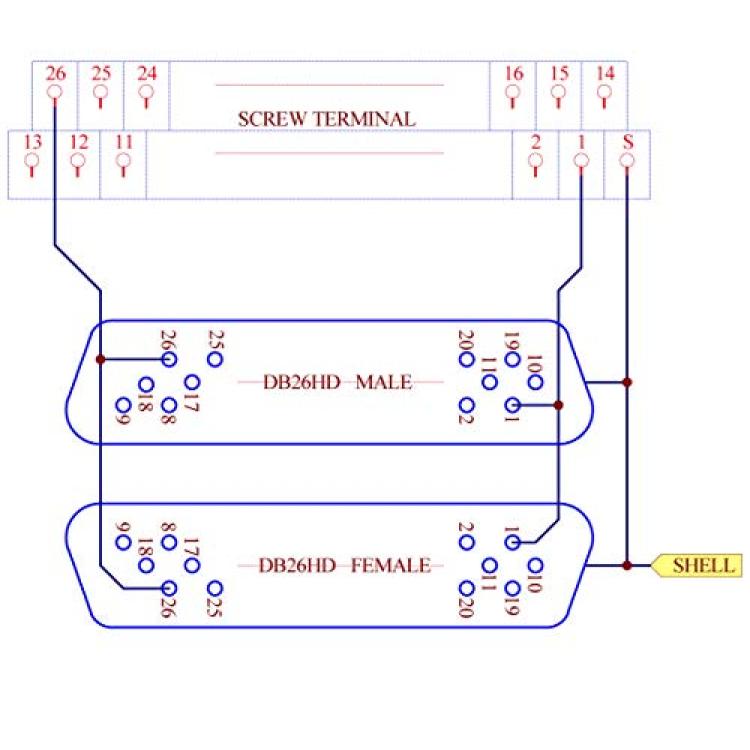

1, Standard DB26HD Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
2, Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC
3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
4, FR-4 fiber glass PCB, dual copper layers.
5, High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.
