Electronics-Salon DIN Rail Mount Screw Terminal Block Adapter Module, for Arduino UNO R3.
Availability: Pre-Order, Inquiry Price
About this product
*Pitch 3.81mm/0.15" screw terminal block.
*Terminal block: wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.
*FR-4 fiber glass PCB, dual copper layers.
*PCB Dimensions: 80mm x 72.5mm(W x L).

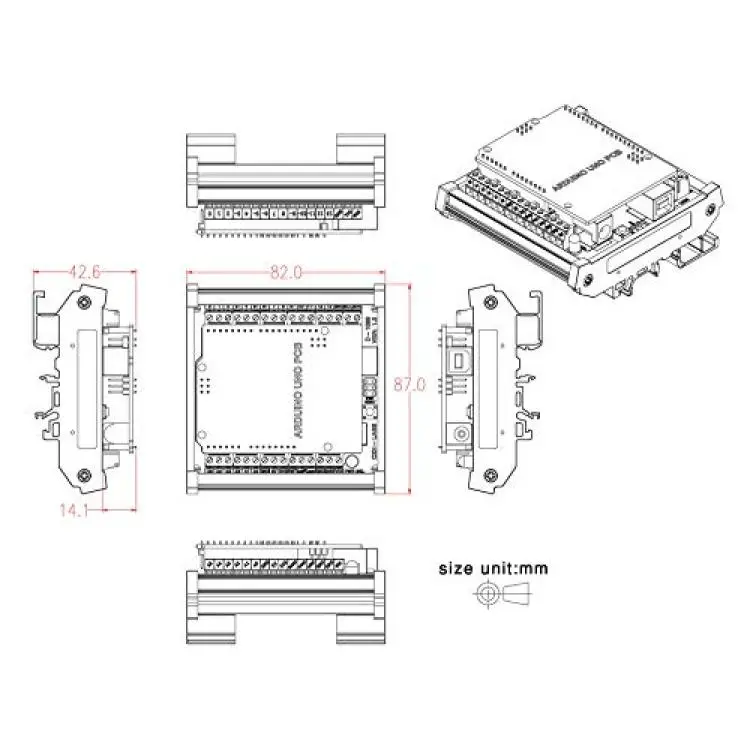

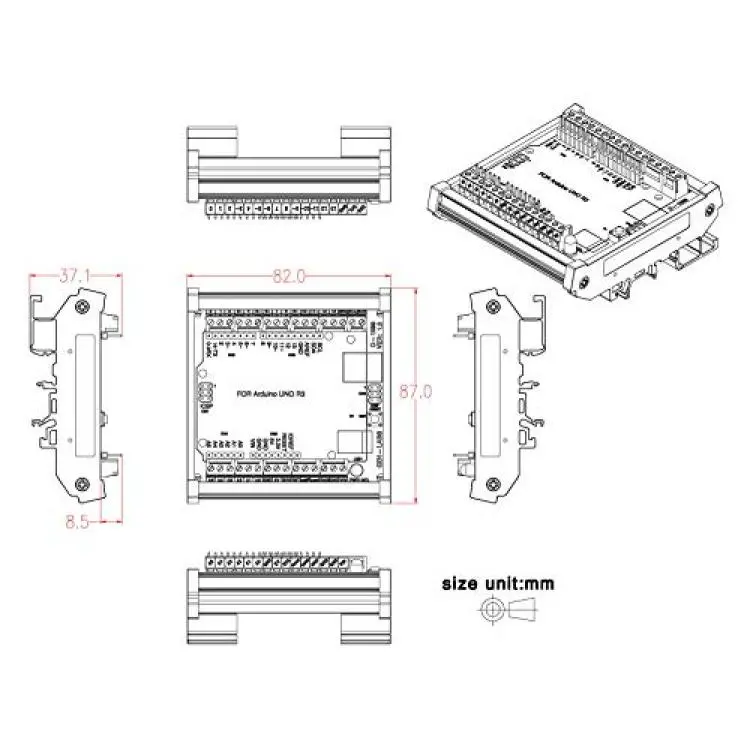

*Module Dimensions: 83mm x 87mm x 45mm (W x L x H).
Description

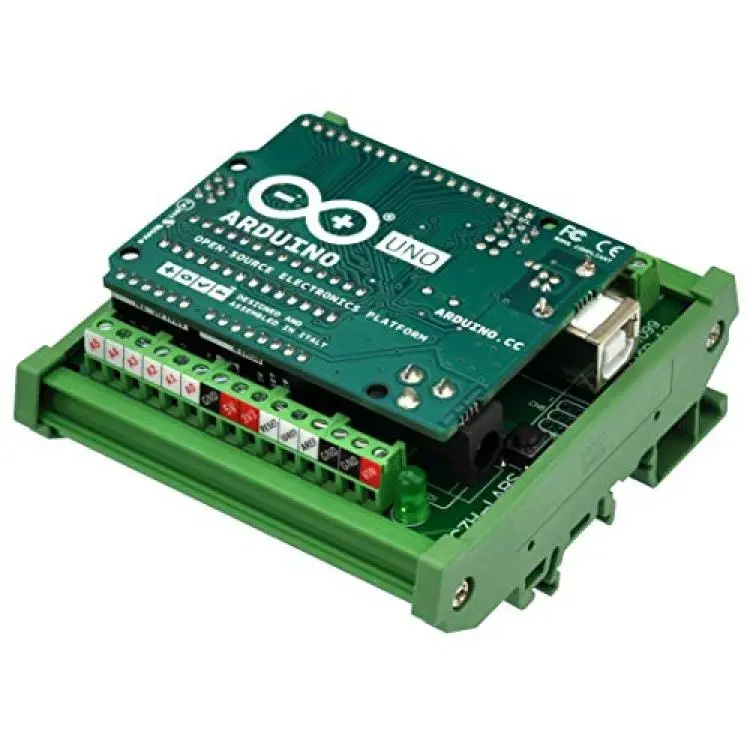

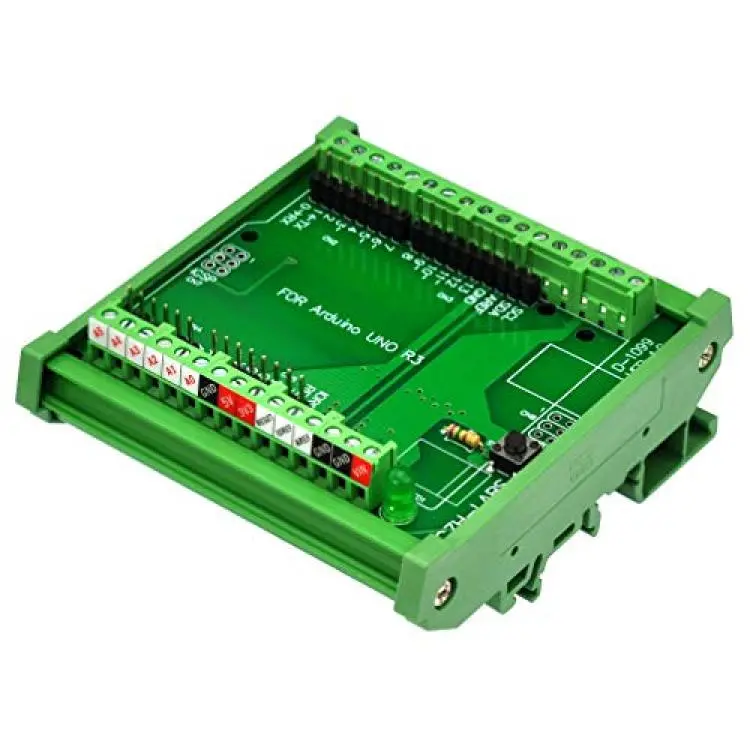

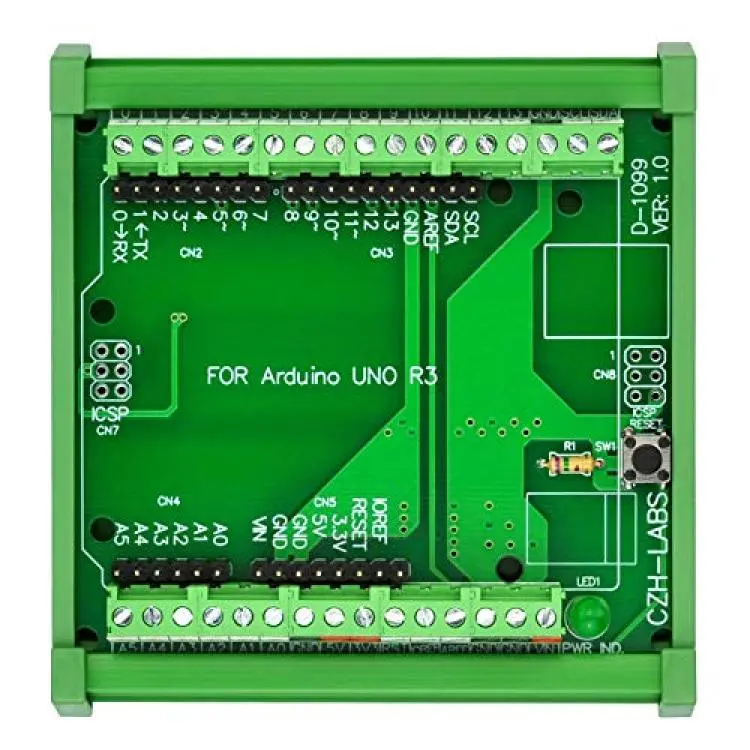

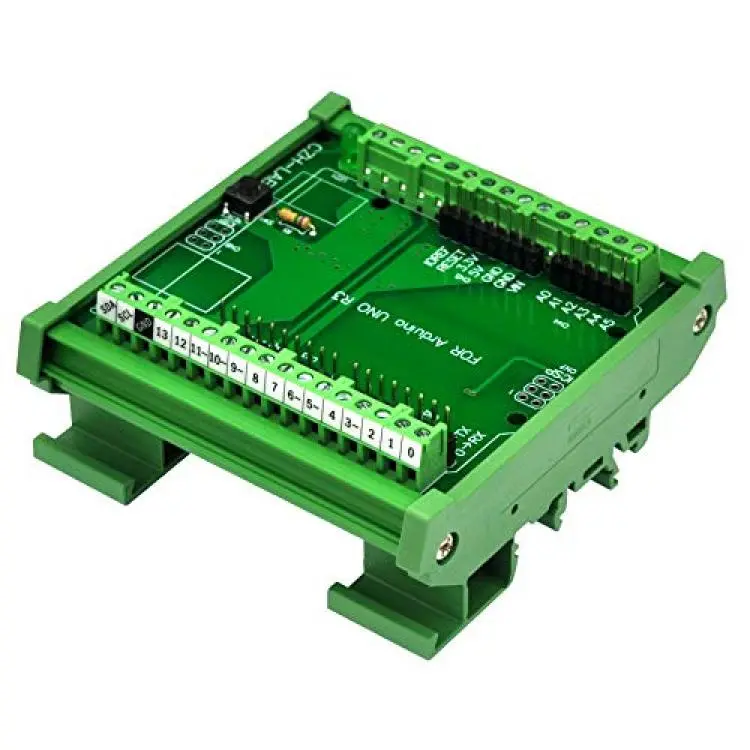

DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino UNO R3.
With the adapter module, you can easily extend Arduino projects to industrial control applications.
Pitch 3.81mm/0.15" screw terminal block.
Terminal block: wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.
FR-4 fiber glass PCB, dual copper layers.
PCB Dimensions: 80mm x 72.5mm(W x L).
Module Dimensions: 83mm x 87mm x 45mm (W x L x H).

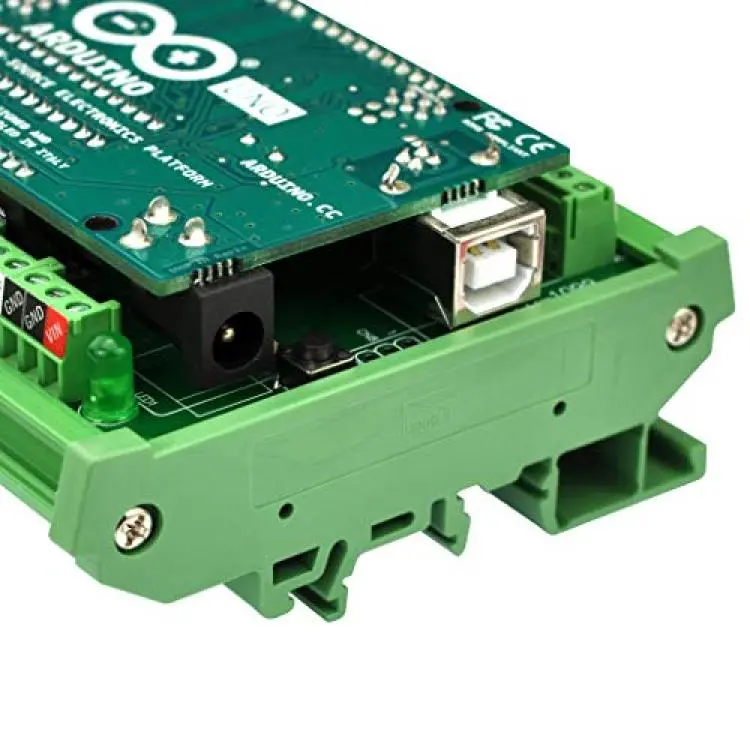

Fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
Note: the item not include Arduino-UNO module and iron rail.
?
