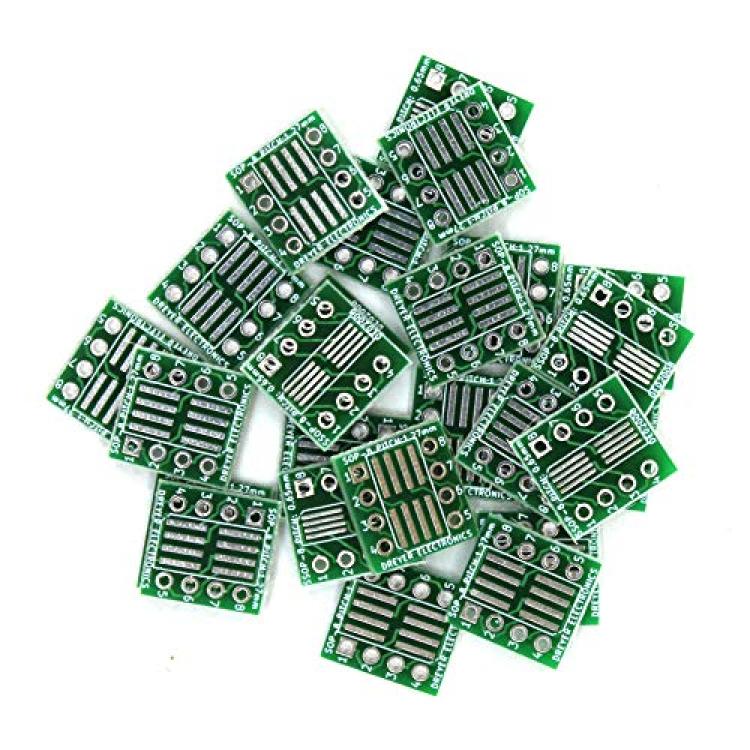

25pcs 8-Pin SOIC/SOP/SSOP to DIP Breakout Board
Product Code: HSM23207
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
About this product
*Double Sided Breakout Board Fits 8-pin SOIC/SOP and SSOP ICs.
*SOIC Pitch: 1.27mm, SSOP Pitch 0.65mm
*Compatible With Standard 2.54mm (0.1") Breadboards
*Max SOIC Body Width: 5.3mm, Max SSOP Body Width: 5.3mm
*Board Dimensions: 11 x 12 x 1.6mm
Description

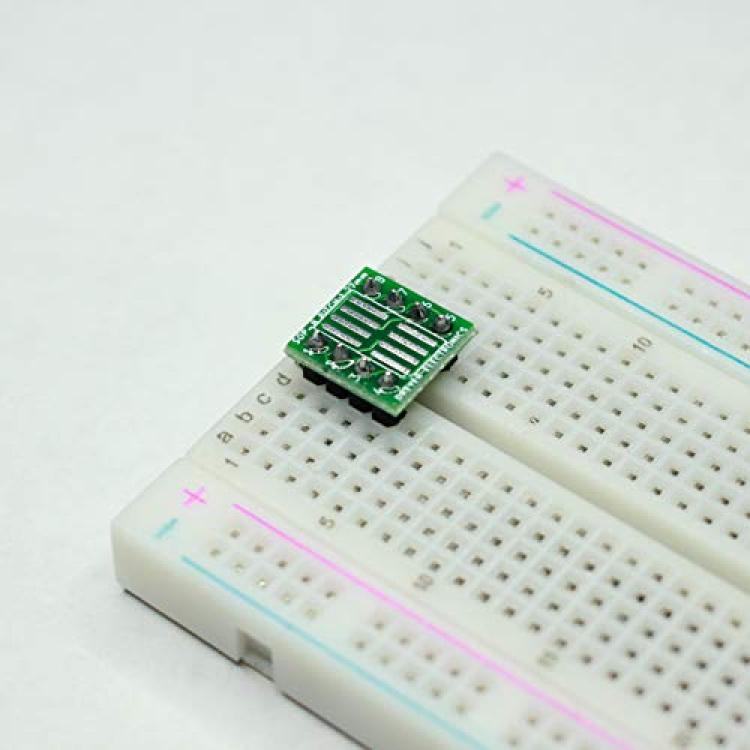

Double-sided breakout board for 8-pin SOIC/SOP and SSOP ICs. Fits on standard 2.54mm/0.1" bread boards for prototyping.

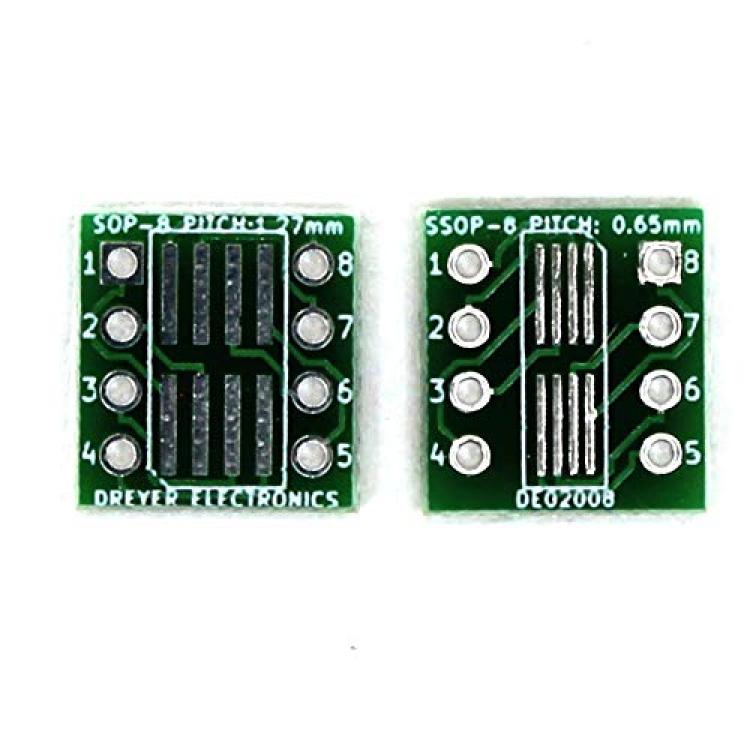

Front: SOIC
Back: SSOP
Board Dimensions: 11 x 12 x 1.6mm
SOIC/SOP Pitch: 1.27mm
SOIC/SOP Max Body Width: 5.3mm
SSOP Pitch: 0.65mm
SSOP Max Body Width: 5.3mm
Through Hole Pin Spacing: 2.54mm
Through Hole Pin Diameter: 1mm
Headers NOT Included
Check footprint dimensions to ensure compatibility with desired chip
