Rotational 4th Axis A axis Rotary table Fourth axis 3 Jaw Chuck Gapless harmonic reducer gearbox stepper motor K11-100mm dividing head with 65mm Tailstock for CNC Router Engraving Milling Machine

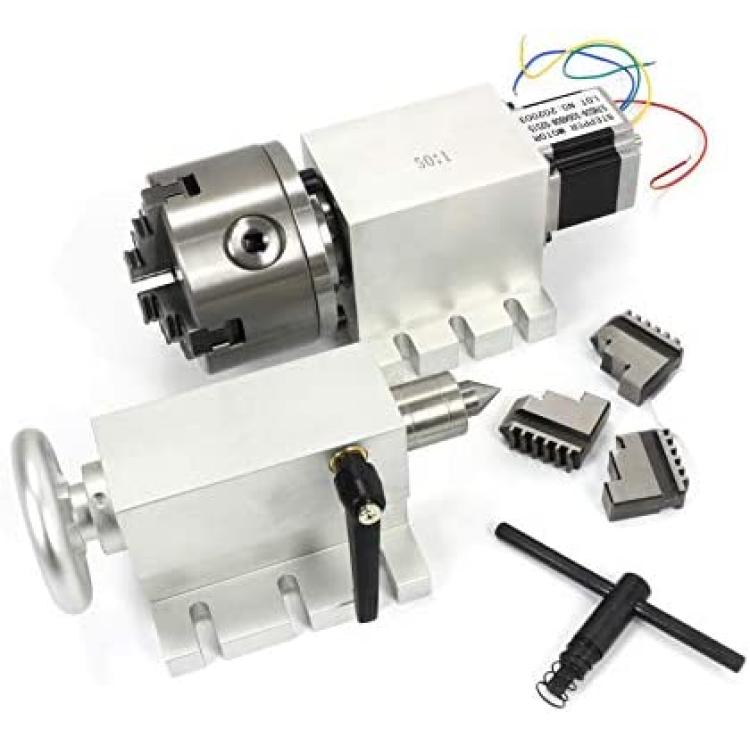

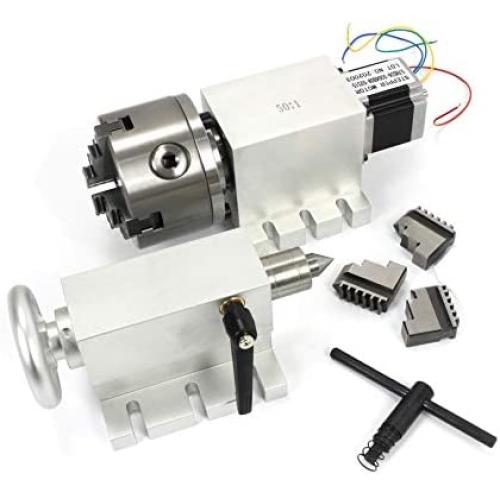

Package include:

1Set 4th axis Gapless harmonic K11-100mm  Ratio 50:1  (Includes stepper motor and 3 jaw chuck)

1Pcs 65mm Tailstock

Descriptions:

Engraving machine fourth axis (A axis, Rotational Axis, CNC dividing head) gapless harmonic reducer gearbox

Chuck type: K11 100mm three jaw centering chuck

Center height: 65mm

Total height: 115mm

Angle: 0.018°/ step

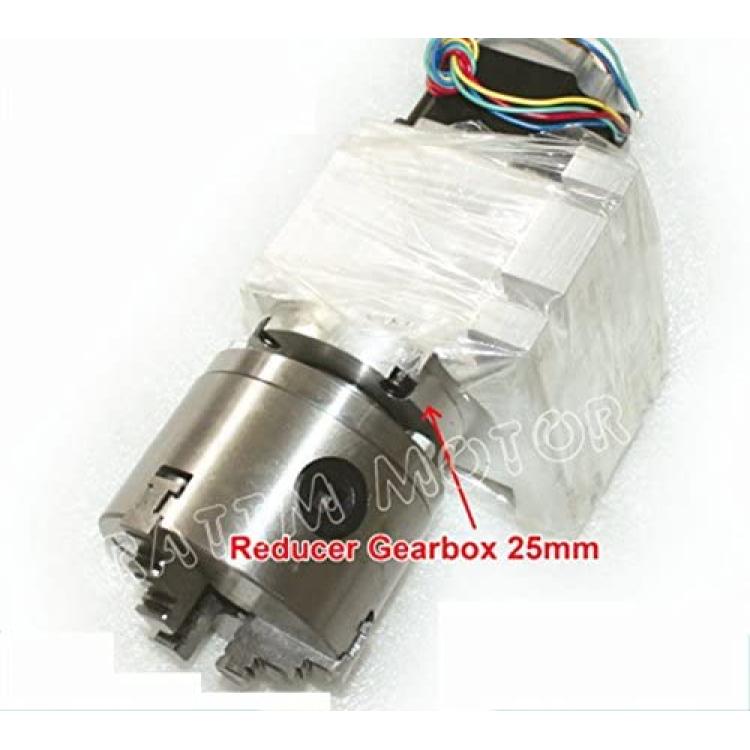

Gear box output shaft diameter: 25mm

Reducing ratio: 50:1

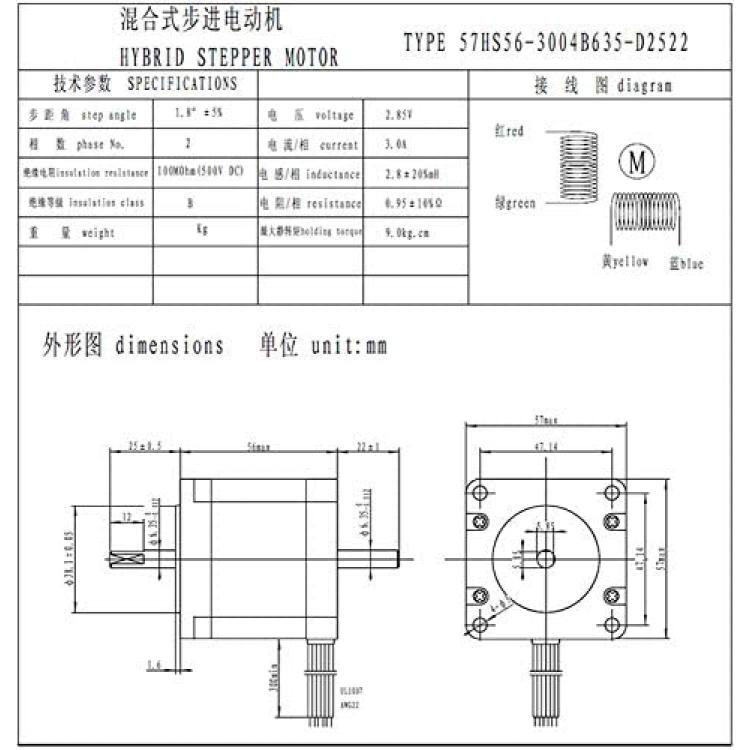

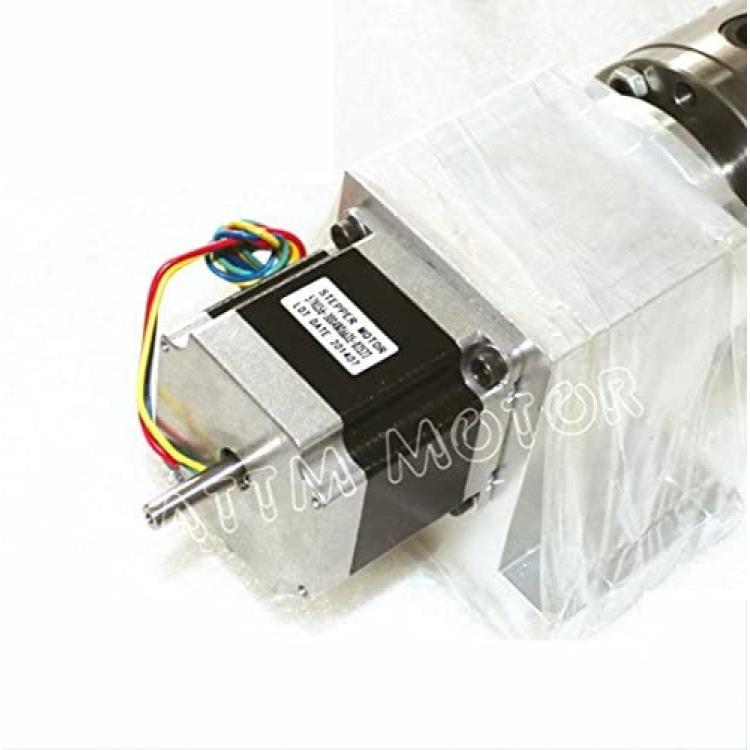

Stepper motor: Nema23 57mm 3A 2-phase 4 wire

Accessories: Set of Anti-claw and wrenches

Weight: 6.5KG

The fourth axis parameter settings:

Mach3 system settings: the pulses required for 1°

(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°

For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

(200 x 16 x 100) / 360=888.88888888)

Weihong system settings: 1 pulse along the angle

360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

360 / (200 x 16 x 100) =0.001125

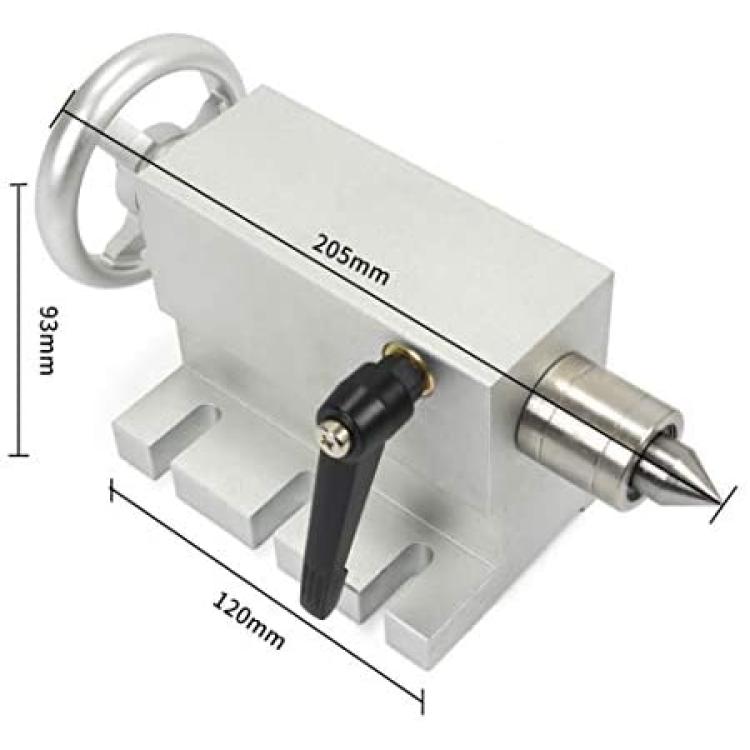

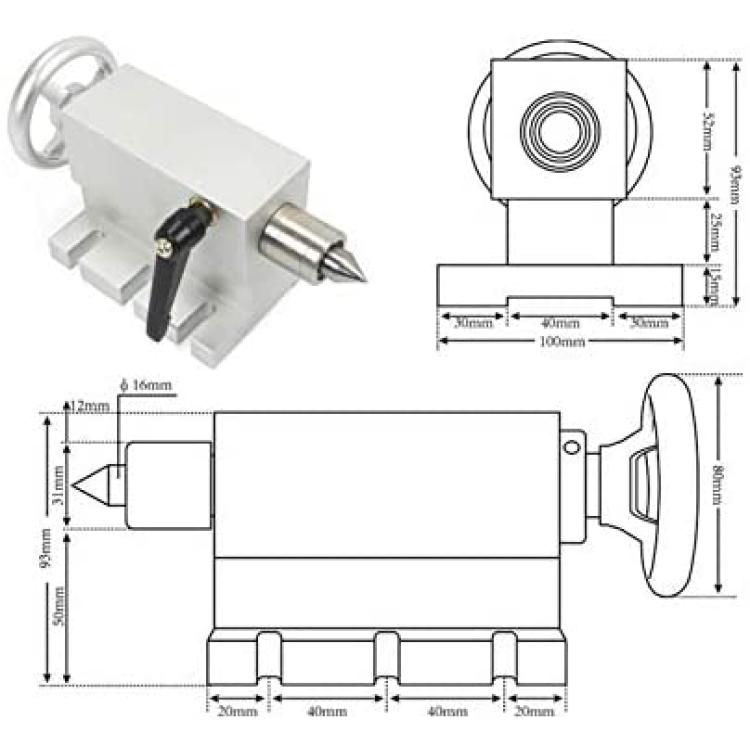

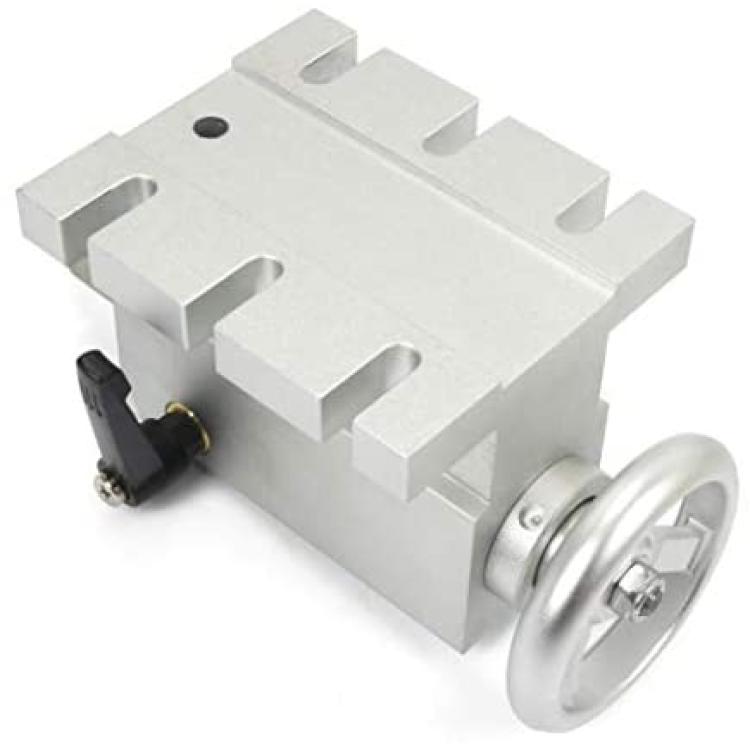

Tailstock type:

Center Height: 65mm

Stretch distance: 50mm

Top tip: Activity type

Axial locking wrench for tailstock
