K11-100mm CNC Router 4th-axis Engraving Machine Rotational Axis A-Axis 4th Axis Rotary Table 100mm 3 Jaw Chuck Dividing Head with 65mm Tailstock (Reducing ratio 6:1)

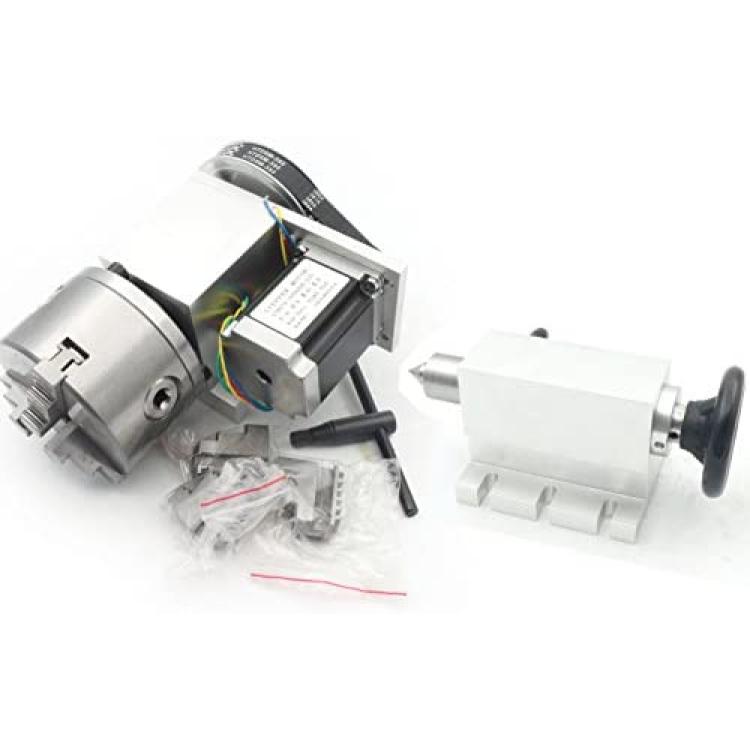

Package include:

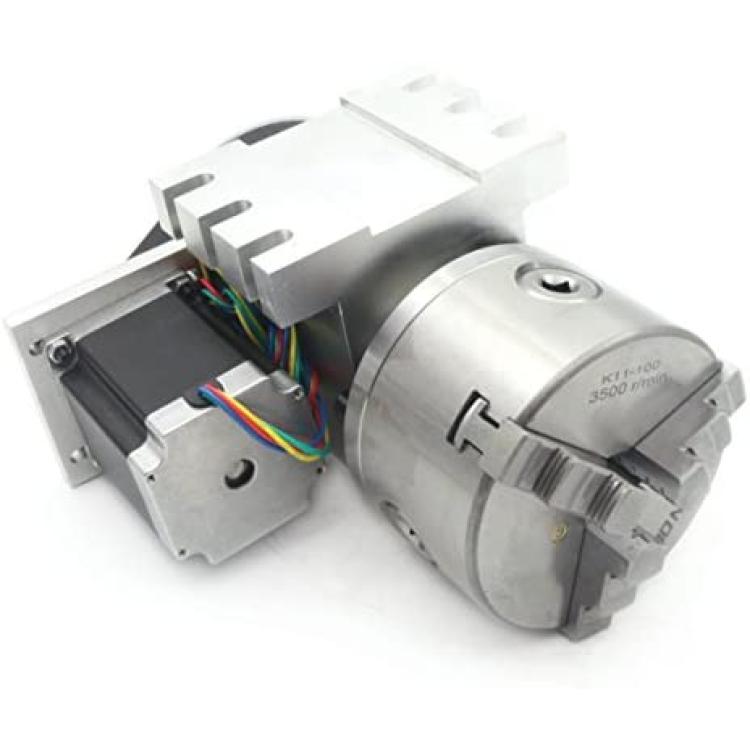

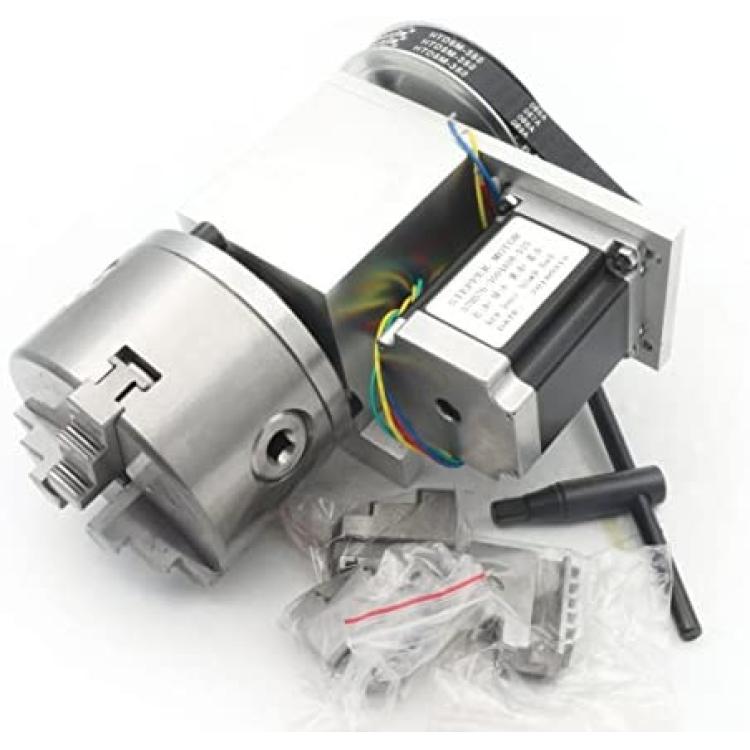

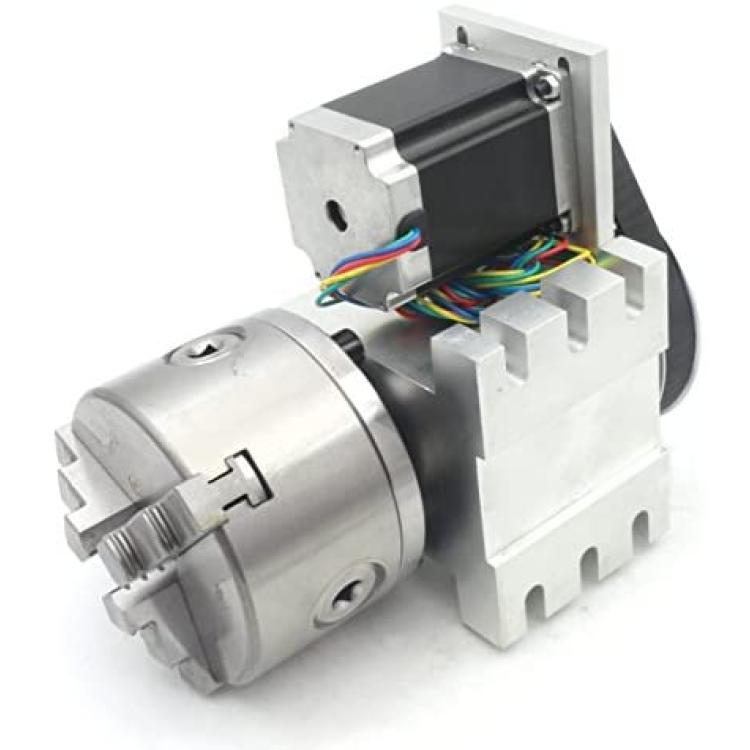

1set  4th axis  K11 100mm ( Includes stepper motor and 3 jaw chuck)

1 x 65mm Tailstock

Descriptions:

Chuck type: K11 100mm three jaw centering chuck

Center height: 65mm

Total height: 115mm

Angle: 0.3°/ step

Gear box output shaft diameter: 25mm

Reducing ratio: 6:1(belt deceleration mode)

Stepper motor: Nema23 57mm 3A 2-phase 4 wire

Accessories: Set of Anti-claw and wrenches

The fourth axis parameter settings:

Mach3 system settings: the pulses required for 1°

(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°

For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

(200 x 16 x 100) / 360=888.88888888)

Weihong system settings: 1 pulse along the angle

360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

360 / (200 x 16 x 100) =0.001125

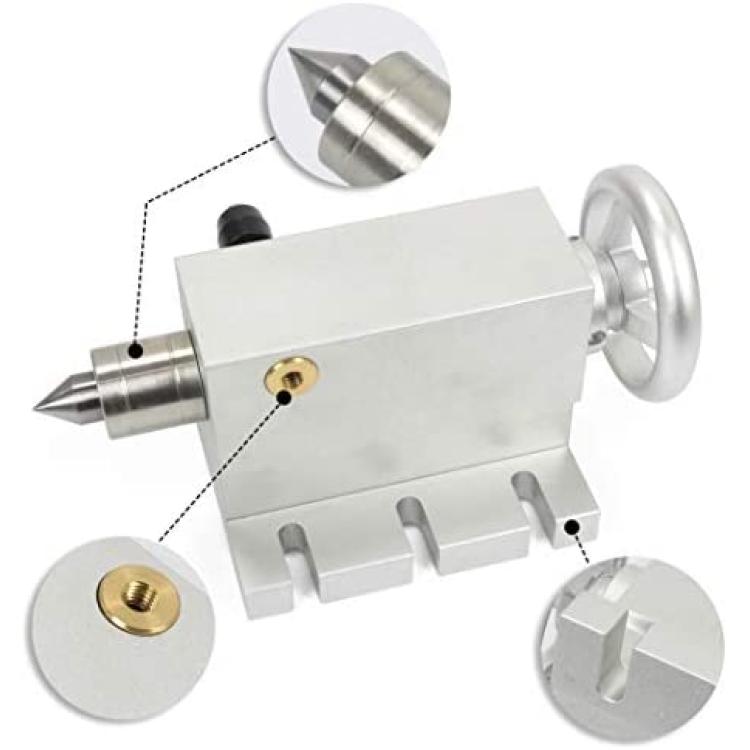

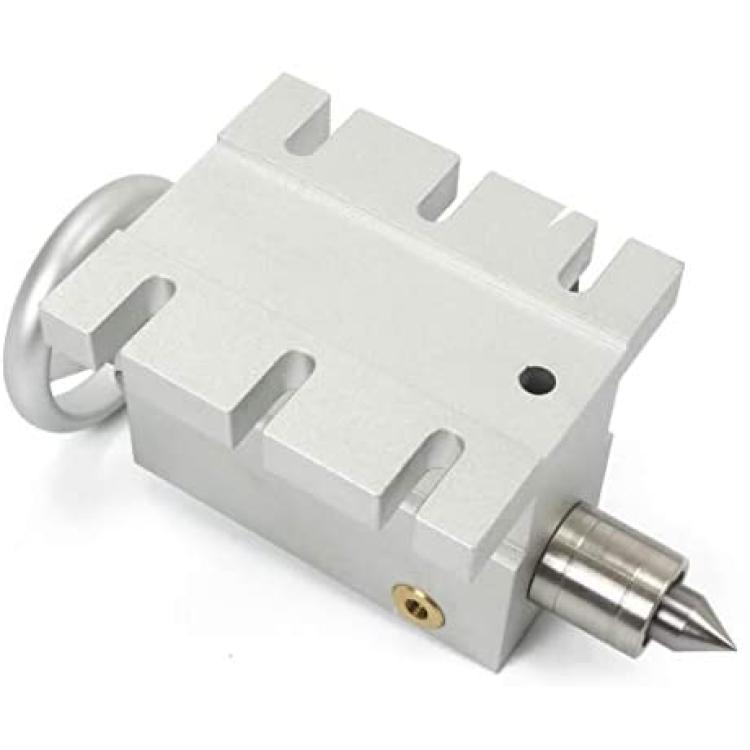

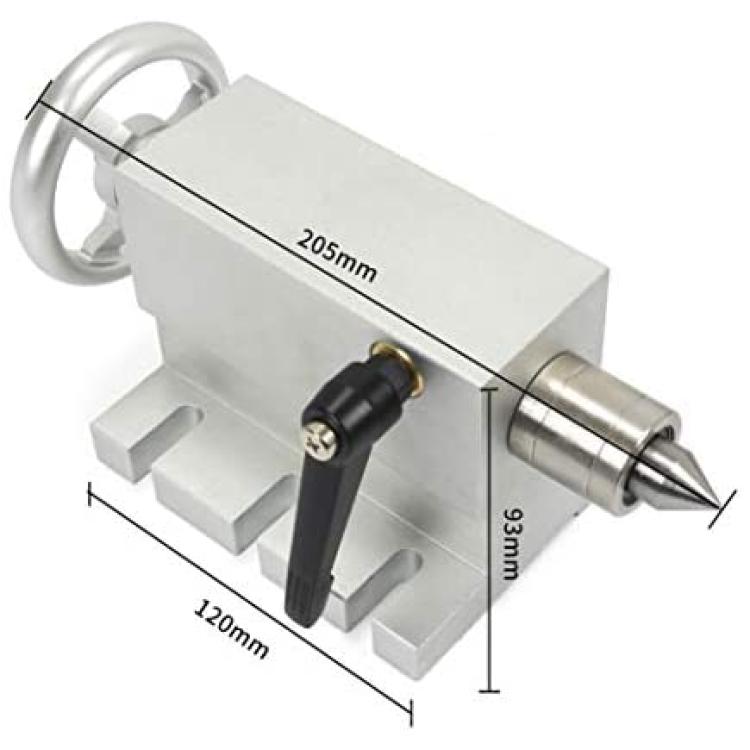

Tailstock type:

Center Height: 65mm

Stretch distance: 50mm

Top tip: Activity type

Axial locking wrench for tailstock

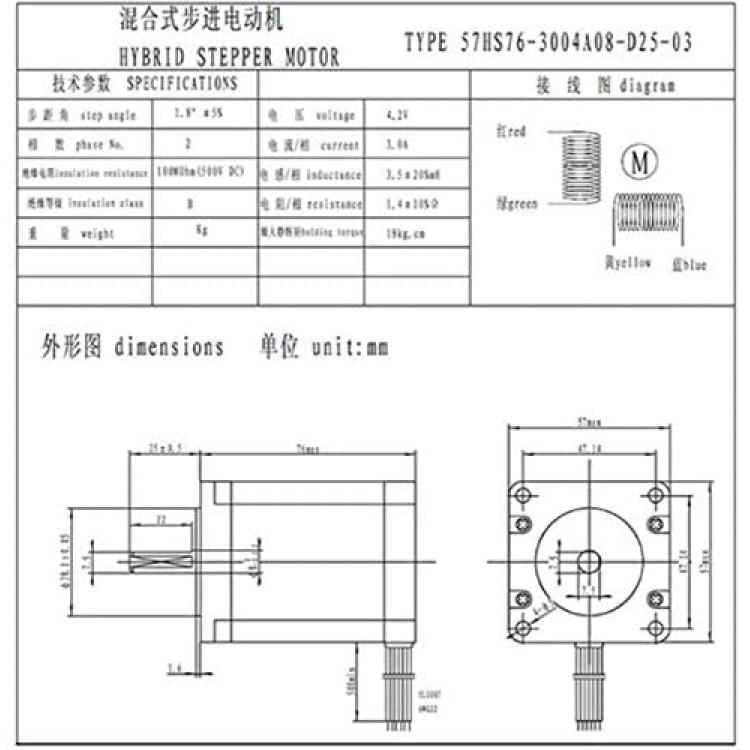

Stepper  Motor:

Nema23  stepper motor 76mm

Shaft Diameter: 8 mm

Shaft length: 25.5mm

Step Angle:1.8

Current: 3A

Voltage: 4.2V

Temperature Rise: 80 c max

Insulation Resistance: 100MOhm(500V DC)

Holding Torque: 18kg.cm
