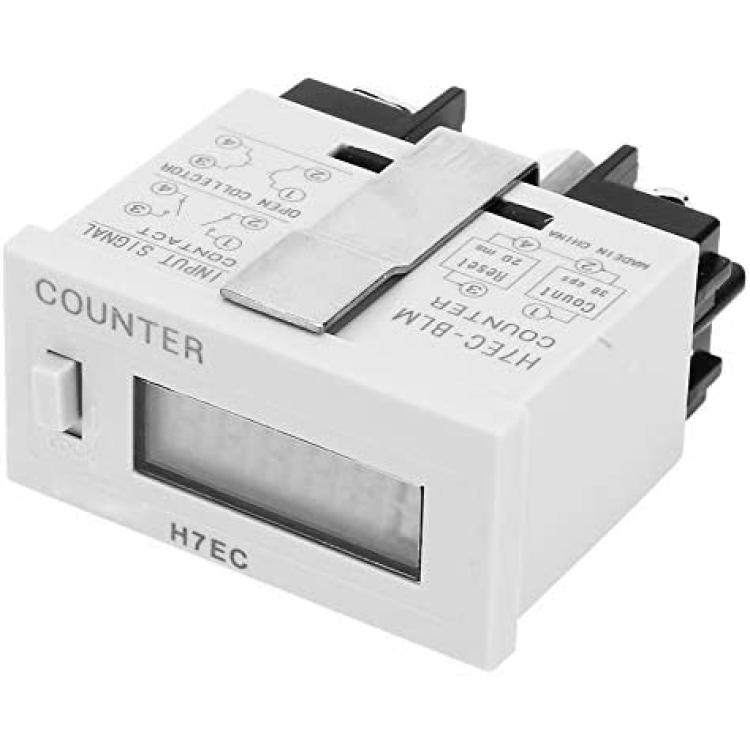

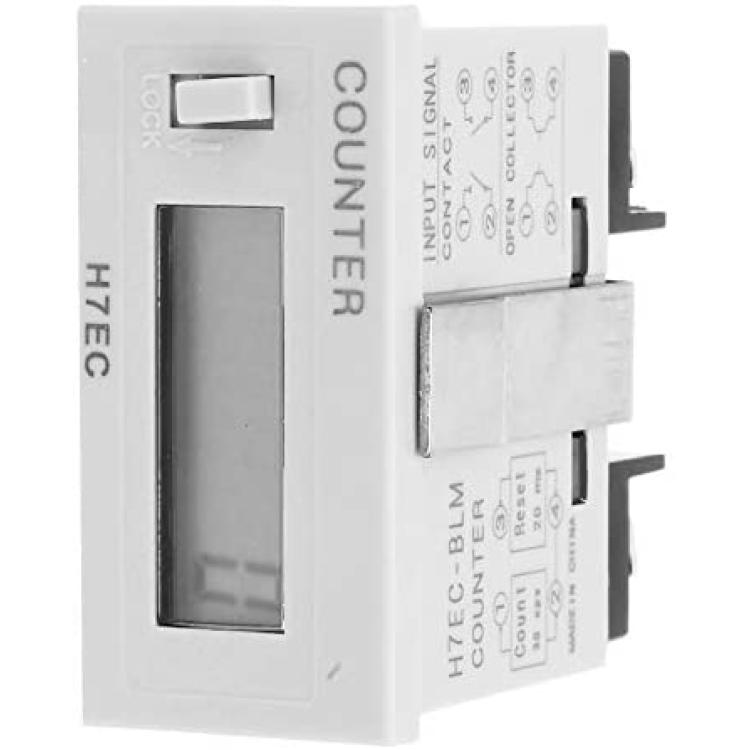

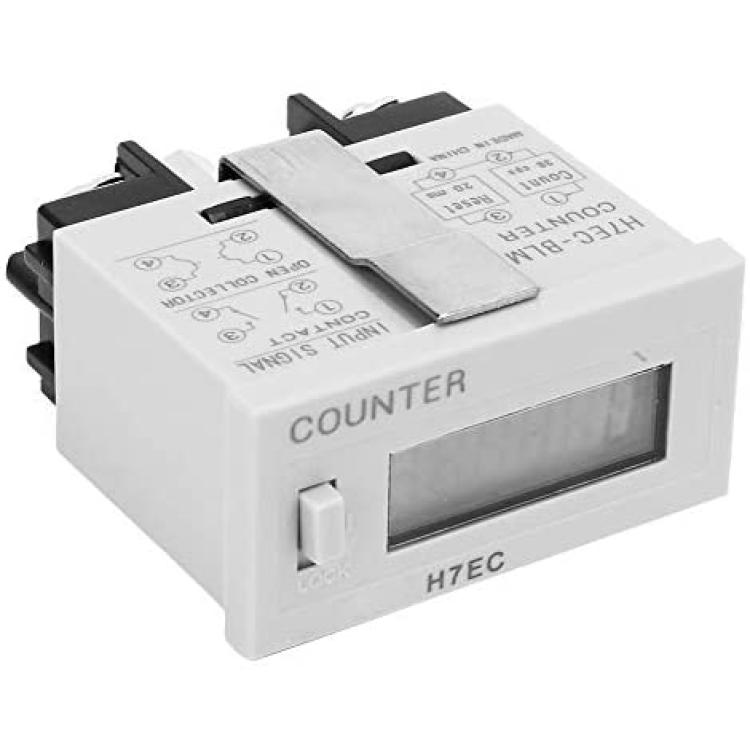

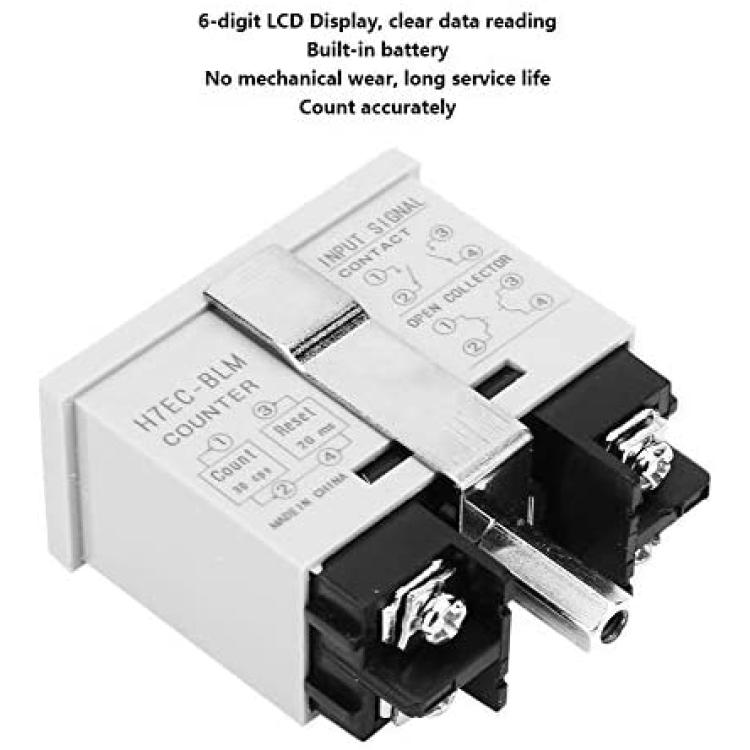

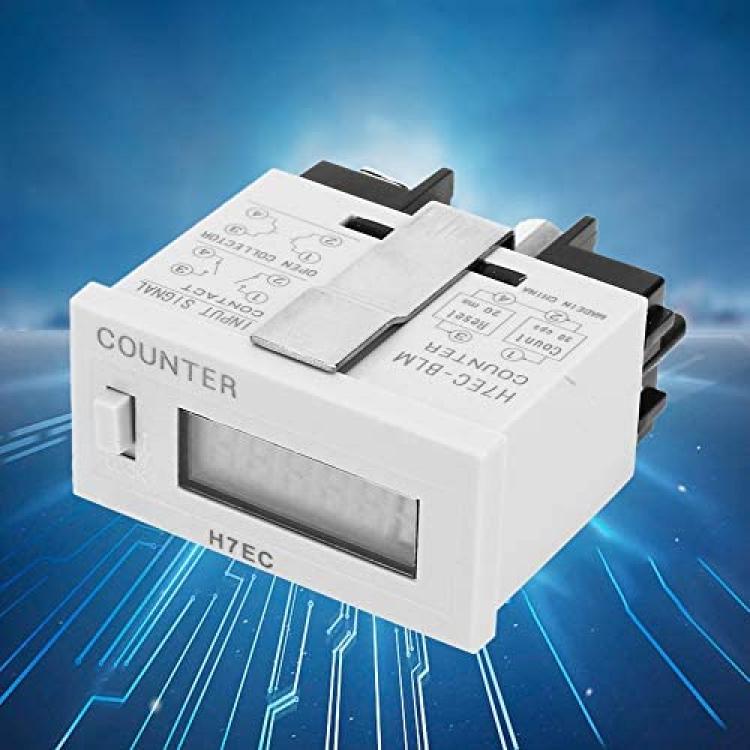

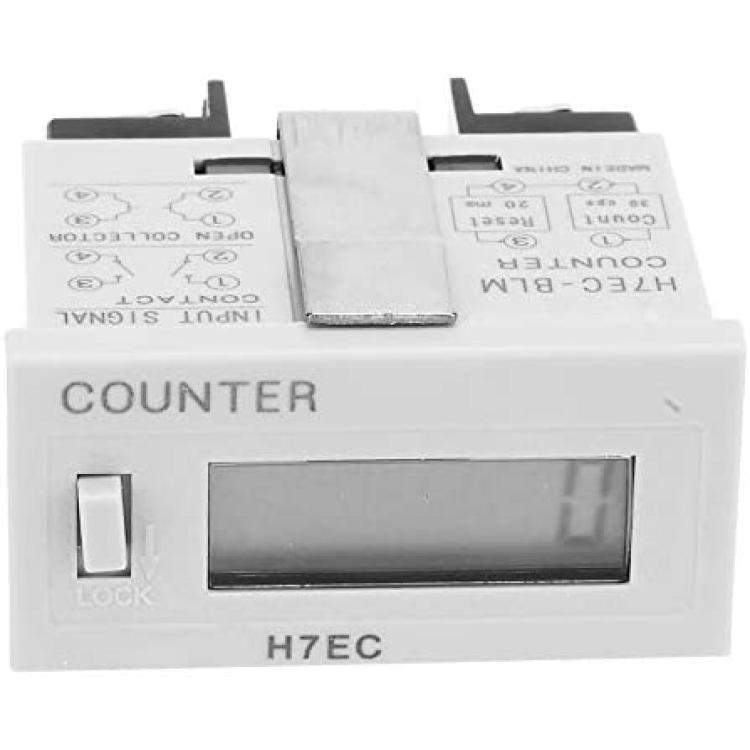

H7EC-BLM Electronic Counter Digital Electrical Counter Totalizer without Voltage Input with 6-Digit LCD Display

H7EC-BLM Electronic Counter Digital Electrical Counter Totalizer without Voltage Input with 6-Digit LCD Display

Product Code: HSM14587
Availability: In Stock

US$7.04

- +

For Bulk Order, Get Better Price.

About this product

*READING IS CLEARER : The product is displayed by 6-bit LCD, and the reading is clearer.count accurately and reliably.

*LONG LIFE : The maximum counting speed can reach 200 times per second, no mechanical wear, long life, instead of electromagnetic counter.

*EASY TO INSTALL: 48*24 standard panel size, easy to install.The panel can set count locking to prevent misoperation.

*ADVANTAGE : It can input good contact signal and count accurately and reliably.

Description

Specification:
Model: H7EC-BLM
Power supply: Internal power supply
Type: Lithium-ion battery
Model: CR2
Voltage: 3.0V
Capacity: 800mA
Battery life: about 3 years
Counting range: 0-999999
Minimum count signal: 3J-5OMS (10 seconds); 3J-2.5MS (200 times / sec)
Reset method: Panel button reset, (6 digits)
Operating ambient temperature: -10~40°C
Ambient humidity: 35~85% RH
Opening size: 22.5*45MM
Contact maximum resistance: ?10K? (count ON)
Contact disconnection minimum resistance: ?500K? (count OFF)

Package list:
1 * Counter

Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
