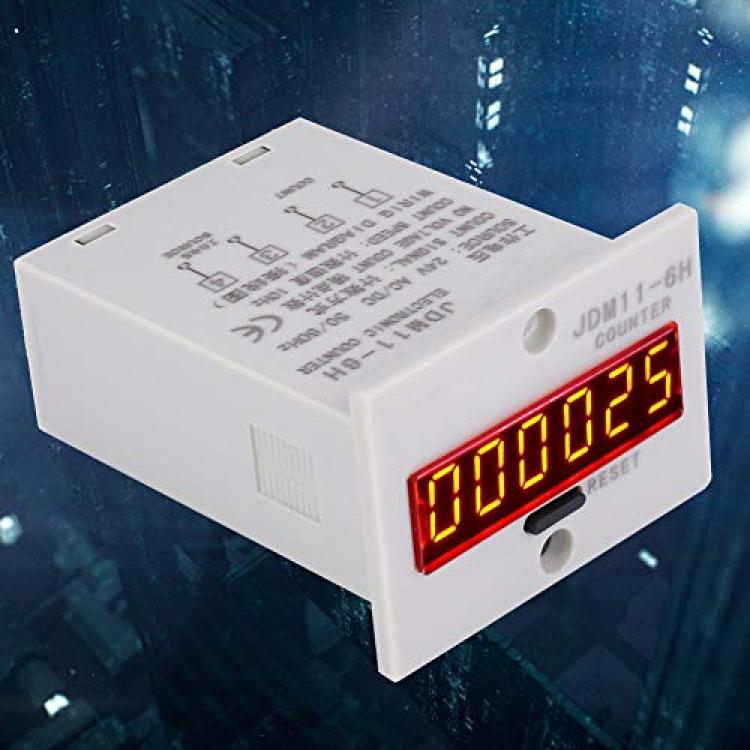

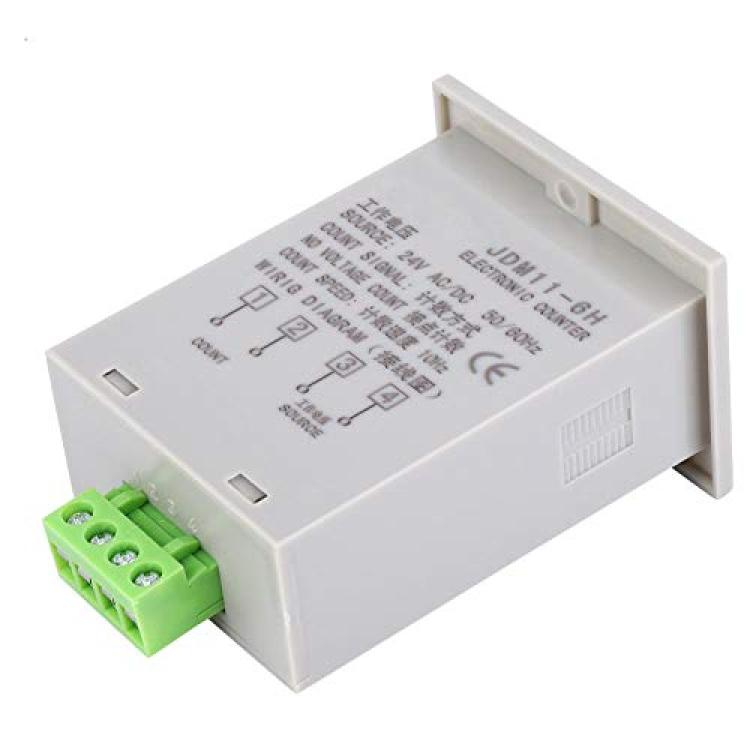

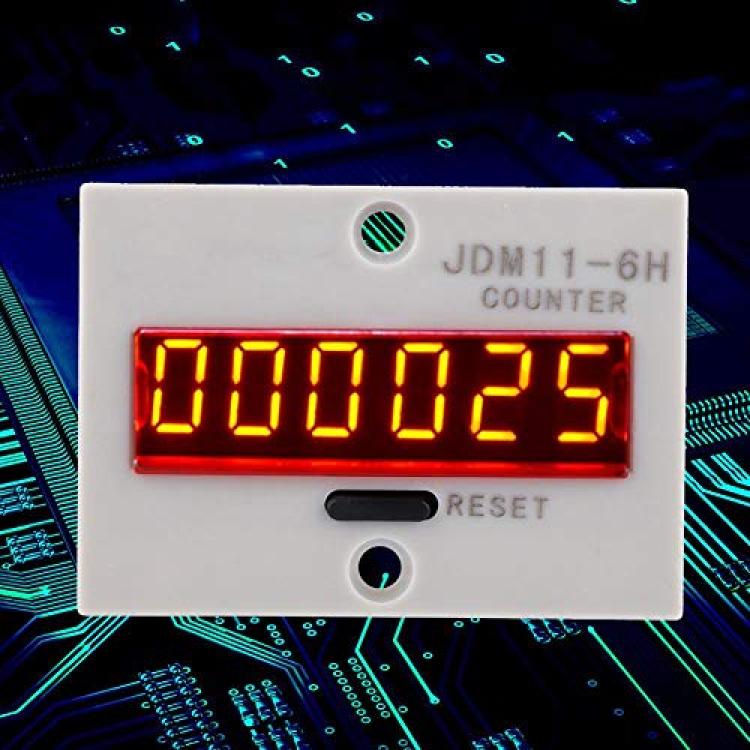

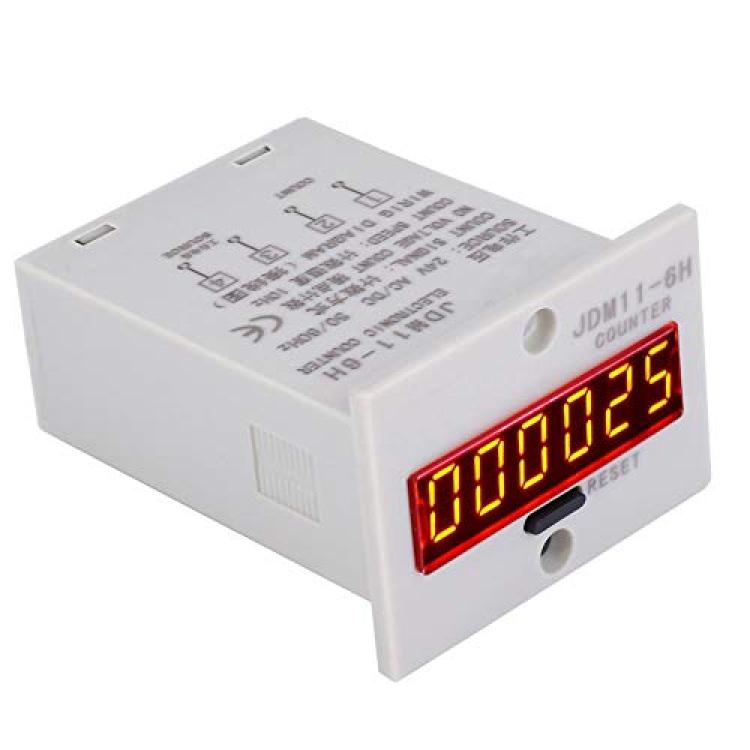

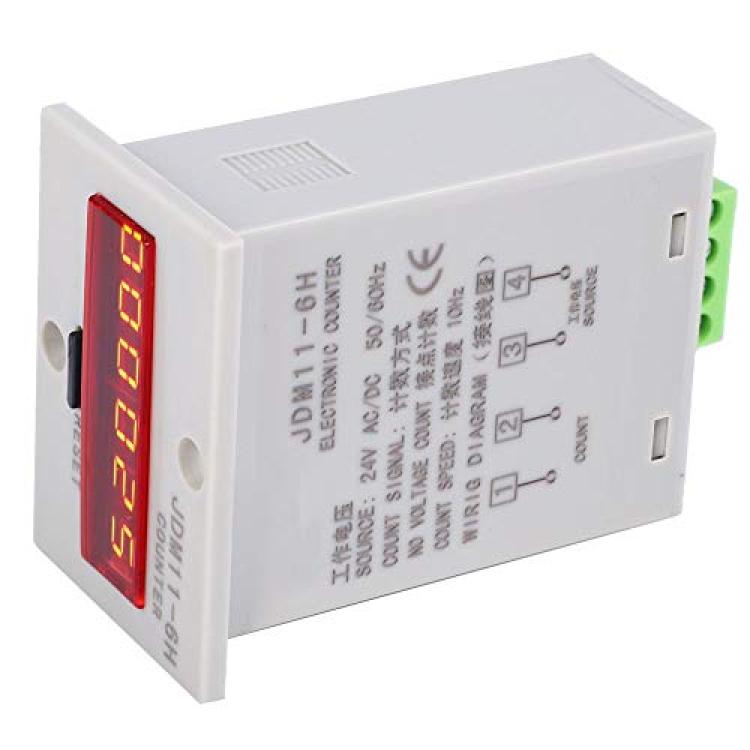

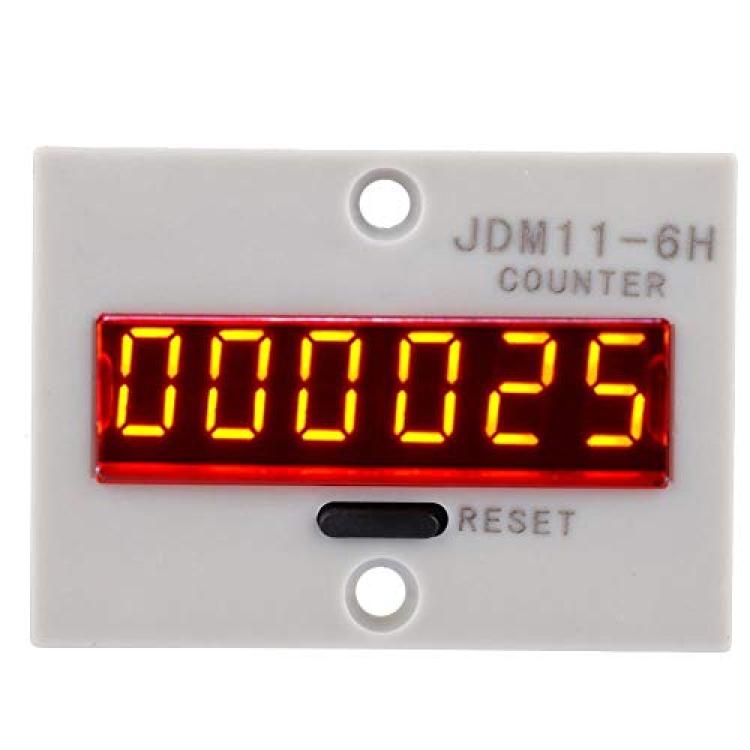

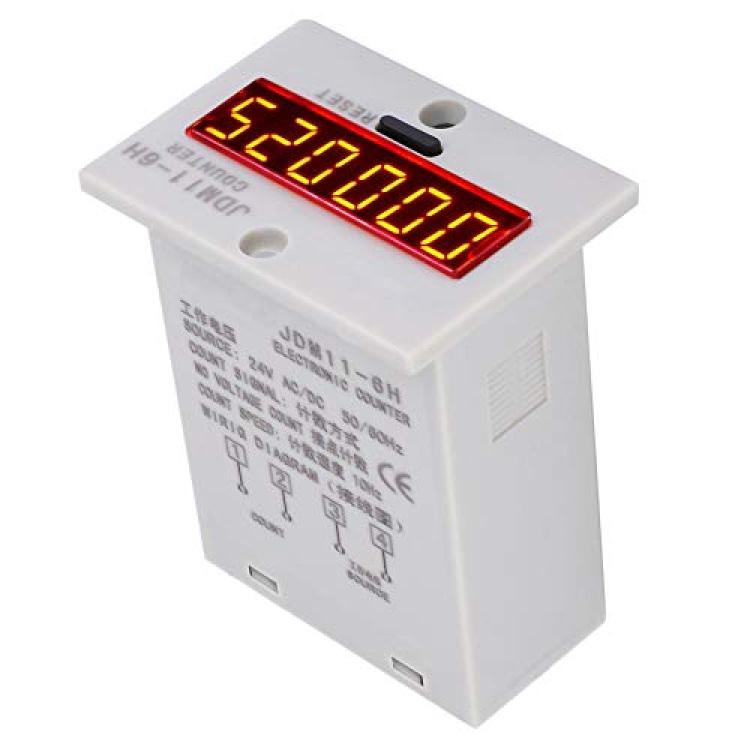

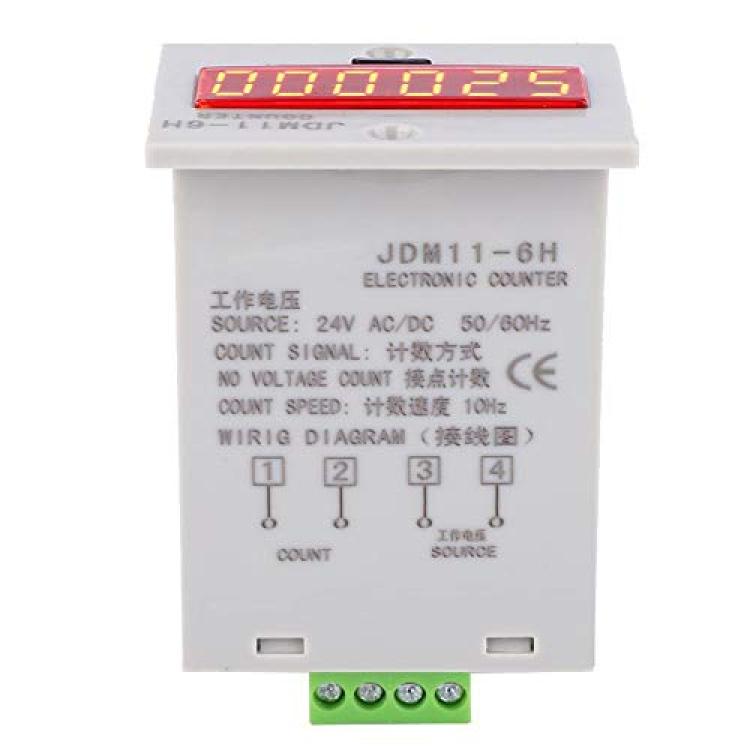

6 Digits Electronic Counter, Counting Range LED Digital Display Counter Relay Non Voltage Counter for Various Signal Input Counts Magnetic Switch (AC/DC24V)
Availability: Pre-Order, Inquiry Price
About this product
*【6 Digits】- The counter uses a dedicated chip, 6-digit 0.38-inch LED digital display.
*【LCD Display】- Clear LCD display for accurate counting readings.
*【Easy to Install】- Strong anti-interference performance and easy installation.
*【Suitable For】-Suitable for various signal input counts and can be matched with photoelectric switch, proximity switch, reed switch, micro switch, magnetic switch, solid state component and various relays and switch contacts.
*【Quality Service】-We strive to provide you with high quality and convenient service. You are welcome to contact us if you have any problem about our product, we will give you a satisfactory reply.
Description
Specification:
Item Type: No Voltage Counter
Model: JDM11-6H
Operating Voltage Range: Rated voltage 85-110%
Power Consumption: ?1W
Working Environment Temperature: -10 ~ +40 ° C (no condensation)
Count Input Mode: No Voltage Count
Voltage Input Type: The voltage passes through the contact signal or the non-contact signal (electric signal, sensor signal such as: photoelectric switch, proximity switch, etc.).
No-Voltage Input Type: Contact input and no-voltage solid-state input, open-collector NPN transistor.
Reset Mode: The panel button switch is manually cleared.
Counting Speed: 10 times/sec (50mS).
Power Failure Data Maintained: Data can be continuously maintained for more than ten years.
Technical Range: 0-999999
Product Size: Approx. 82 x 56 x 40mm / 3.2 x 2.2 x 1.6in
Package List:
1 x No Voltage Counter
