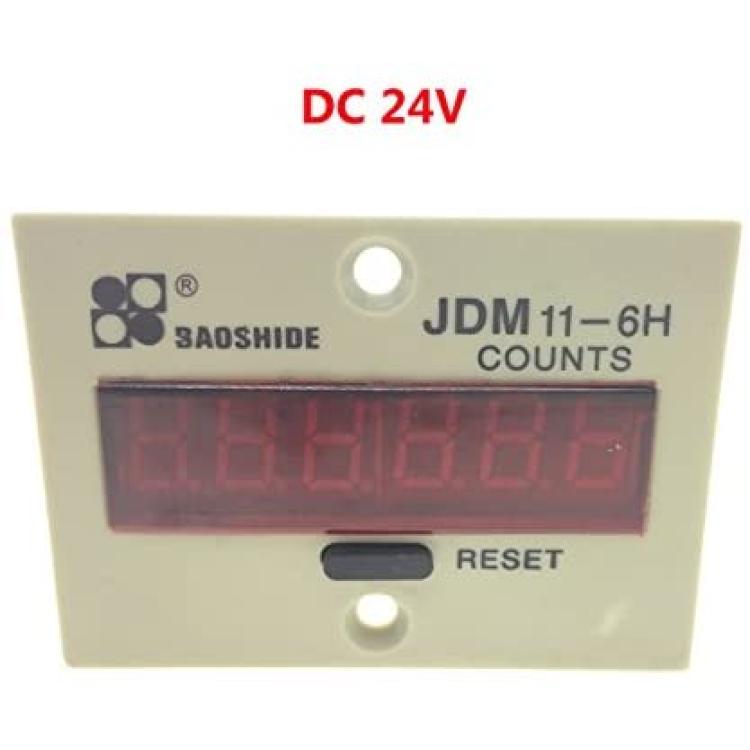

YXQ DC 24V 6 Digits 0-999999 Accumulator Digital Counter LED Display Resettable Electronic JDM11-6H

JDM series electronic counter is widely used in the production line equipment production count, flow counting, automatic packaging machinery speed, length, punch count and all count the need to count the occasion, and can be used for secondary instrument composition display equipment.

Counting digits: 6 digits
Counting mode: adding the cumulative number.
Counting range: 0-99999
Rated operating voltage: AC 220V

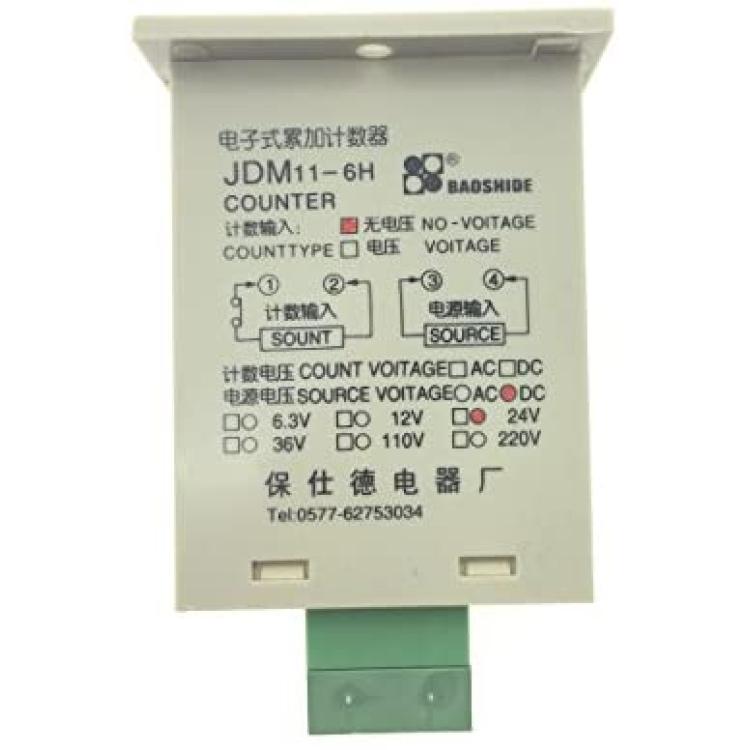

Count input mode: no voltage input type.
Reset mode: panel button switch is cleared manually.
Use ambient temperature: -10 ? ~ +40 ?

Working principle and use:

JDM11 series of products using low-power integrated circuits and highlight LED display, no mechanical hemp, long life, clear and beautiful display, there is power to save data function, when the power supply is interrupted, the data included in a persistent memory ( E2PROM), the included data can be saved for at least ten years, and when the power is restored, the count can be continued without loss.
