Digit Counter, DC 8-24V 4 Digit LED Digital Display 0-9999 Up/Down Plus/Minus Panel Counter Meter with Cable (Blue)

Digit Counter, DC 8-24V 4 Digit LED Digital Display 0-9999 Up/Down Plus/Minus Panel Counter Meter with Cable (Blue)

Product Code: HSM26682
Availability: In Stock

US$9.04

- +

For Bulk Order, Get Better Price.

About this product

*❤High speed counter, low Power consumption, accurate count, small indication error.

*❤Strong anti-jamming performance, stable and reliable counting performance.easy to install【Note】the 5-Pin cable is used to connect with the counter.

*❤Even if the power failure electronic counter can still maintain data for more than 10 years.

*❤4 Digit Counting range: 0-9999,Color(Optional): Blue, Green, Red

*❤ LED counter suitable for signal input count, can match with proximity switch, micro switch, magnetic switch, solid state components and all kinds of relays, switch contacts.

Description

Description:
This digital display counter has bright LED light, high accuracy, good stability, and easy installation. The meter retains the number automatically when power off.

Specifications:
Working voltage: DC 8-24V
DC current: 30mA
Counting: Plus or minus
Counting range: 0-9999
Digit number: 4 digit
Color(Optional): Blue, Green, Red

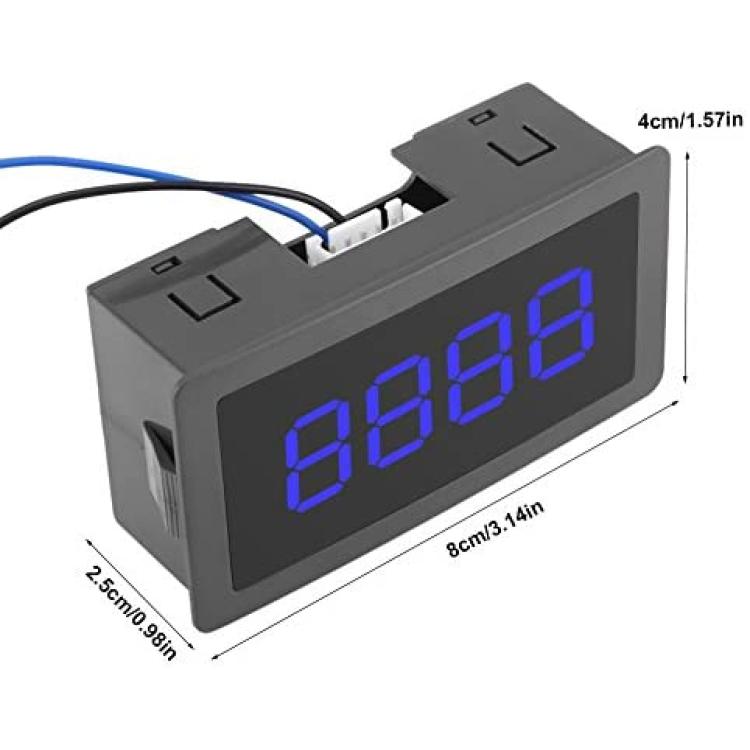

Size: Approx. 8 x 4 x 2.5cm / 3.1 x 1.5 x 0.9inch
Weight: 48g

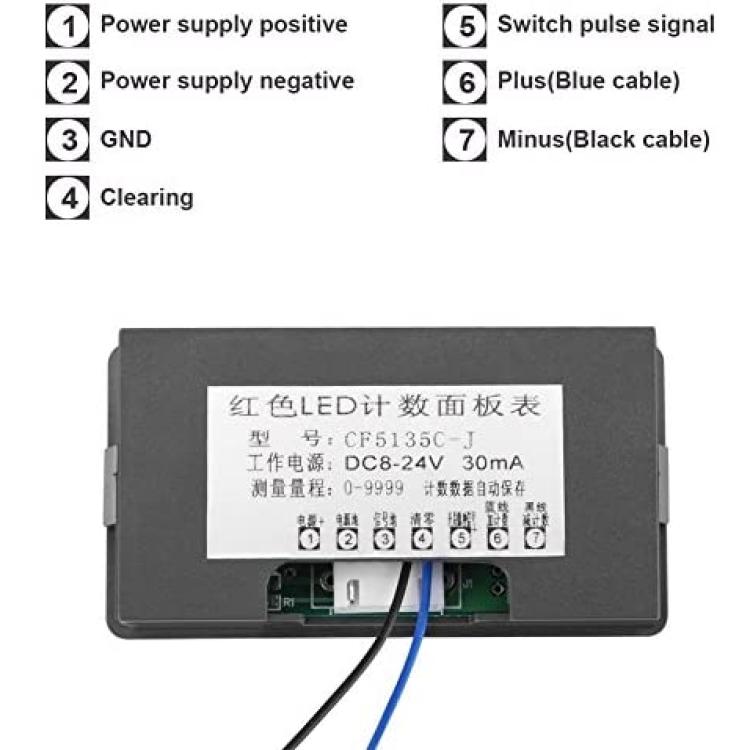

Wire diagram:
Terminal 1: Positive
Terminal 2: Ground
Terminal 3: Signal Ground
Terminal 4: Clear
Terminal 5: Switch Pulse Signal
Terminal 6: Blue wire for increasing
Terminal 7: Black wire for decreasing
Note: The 5-Pin cable is used to connect with the counter.

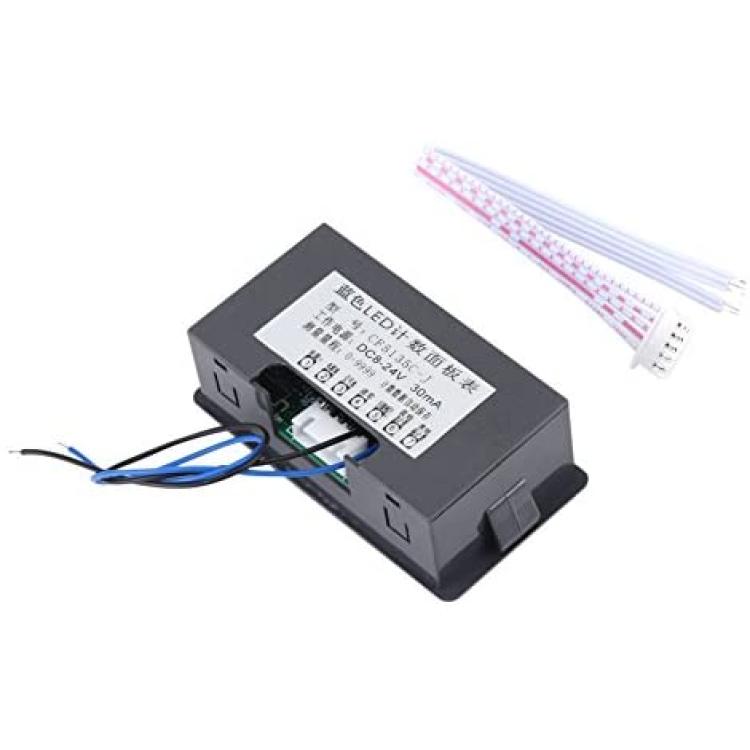

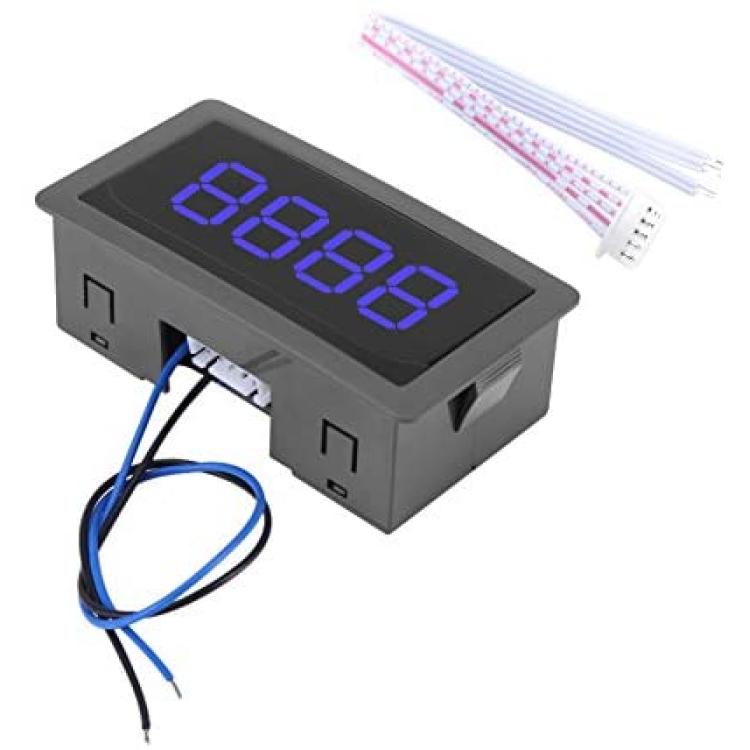

Packaging Include:
1 x Digital Display Counter
1 x 5-pin Cable
