Digital Multimeter, ACEGMET TRMS Auto/Manual Ranging Multimeter Tester AC/DC Current, Voltage Meter Measures Resistance, Frequency, Temperature, 10000 Counts Volt Meter NCV with LCD Backlit Display
Availability: In Stock
About this product

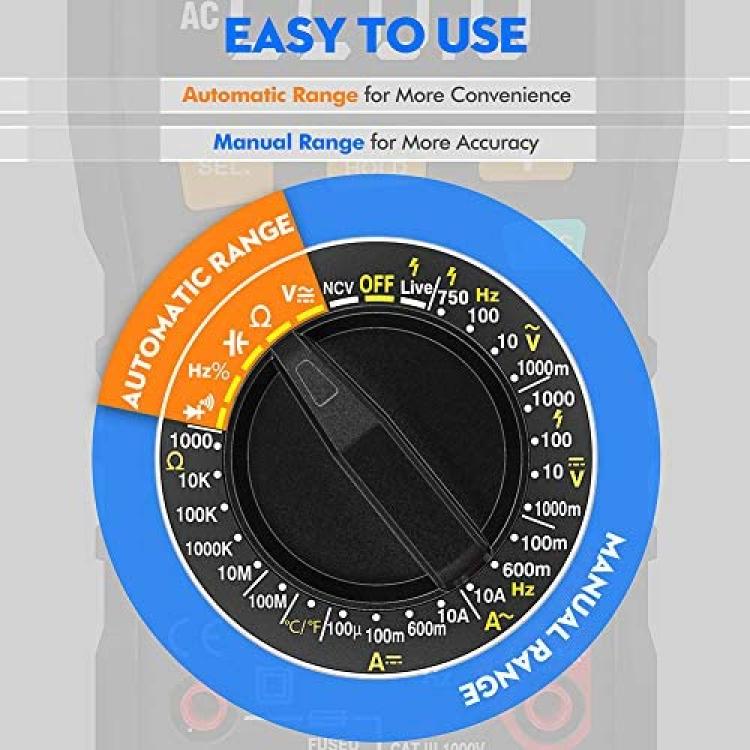

*[ENJOY THE FUN OF MEASUREMENT] Our voltage testers provides two measurement modes, automatic and manual. If you have higher requirements for handling, you can choose manual mode. If you want to easily obtain measurement results with the digital multimeters, you can choose automatic mode. No matter which mode you choose, it will not affect your rapid measurement results. Ten times / second measurement speed allows you to get measurement results in almost real time.

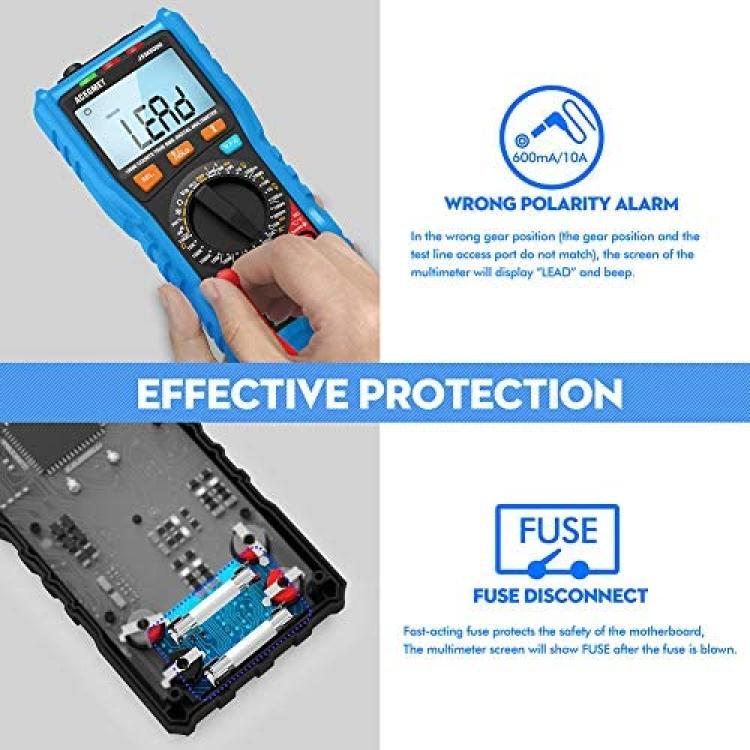

*[TRIPLE SECURITY PROTECTION] Overload protection function: when the access voltage is lower than 250V, the digital voltage meter will automatically prevent burnout during the entire process. Fuse Disconnect function: when the current is too large, the two fuses will immediately blow to protect the motherboard of the digital voltage tester. Wrong Polarity Alarm function: when the gear position and the test leads access port do not match, the volt meters screen will display "LEAD" and beep.

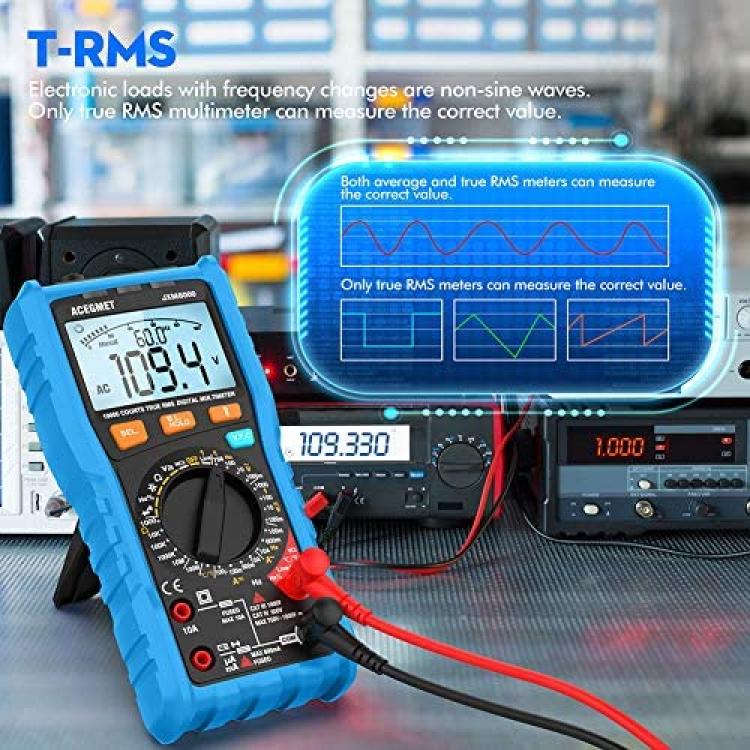

*[EXTREMELY PRECISE] Electronic loads with frequency changes are non-sine waves. Only true RMS volt meters can measure the correct value. Within 1KHz AC voltage, this non-contact voltage meter tester can accurately measure. Up to 9999 counts provide more accurate readings.

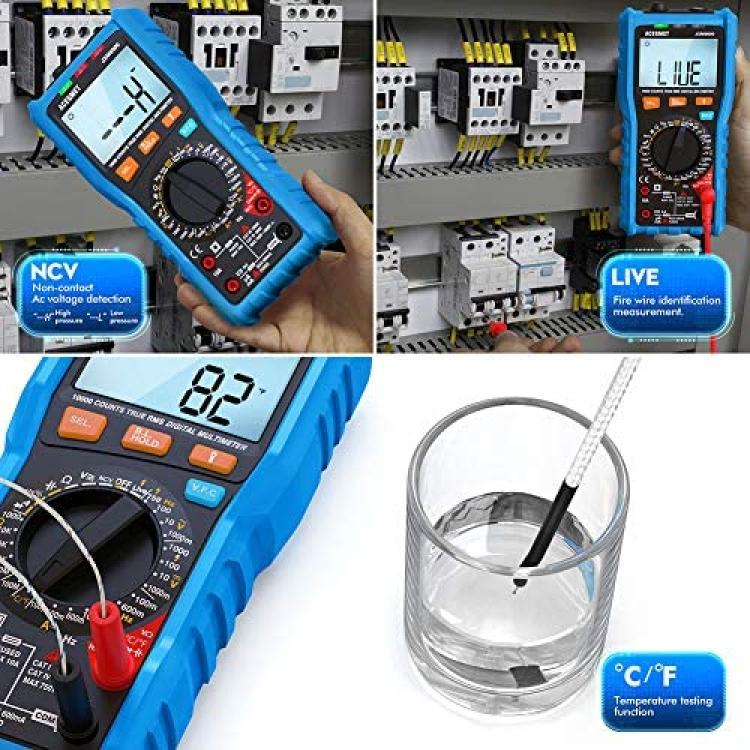

*[TRUE MULTIMETER] This digital multimeter tester covers multiple functions and measurements. Measure the AC / DC voltage, AC / DC current, Ohm, Hz, nF, duty cycle, humidity, diodes, live wire test, circuit continuity, NCV & VFC function, etc. We also have functions that other digital multimeters do not have including temperature, data hold, auto-off.
*[CUSTOMER CARE] We have put a lot of effort into improving your experience. The surface of the digital multimeter is covered with a thick soft rubber protective case to prevent accidental electric shock. The light and stand functions can also help you when you use it. At the same time, we have extended our after-sales service to 18 months.
Description
Fast response, multiple protection, accurate and easy to use.
Acegmet Digital Multimeter is easy and safe to operate and features many different functions for measuring current, voltage, resistance and continuity, transistor, and diode testing.
Wrong Polarity Alarm:Â
1. When the port of the test leads you connected does not match the gear, the screen of the multimeter will display "LEAD" and beep.
2. When the fuse is burned out, adjust the gear to the current level. After connecting to the test leads, the screen of the multimeter will display "LEAD" and beep.
Technical Specifications:
Max display: 9999 counts
Range selection: Automatic & Manual Range
Measurement Speed: 10 times/second(Instant readings)
Overload display: Display OL
Wrong Insert Alarm: Display LEAD
On-off Test: Buzzer
NCV/VFC Function(Inverter Measurement):Yes
Live Line Test :Yes
Data Hold Function:Yes
Low Battery Indication :Yes
Auto Shut-down: 15 minutes
Power Supply: 2 x AA 1.5V Batteries
Safety Class: IEC61010 CAT.600V CAT IV,1000V CAT.III
Range and Accuracy?
AC Current: 99.99mA/600mA±(1.0% + 3);10A (1.5% + 3)
AC Voltage: 999.9mV/9.999V/99.99V± (0.8%+3);750V ± (1.0%+5)
DC Voltage: 999.9mV/9.999V/99.99V/999.9V ± (0.5%+3)
DC Current: 99.99?A/999.9mA/600mA ±(0.8% + 3);10A (1.2% + 3)
Resistance: 999.9?/9.999K?/99.99K?/999.9K?/9.999M? ± (0.8%+32);99.99M? ± (1.2%+5)
Capacitance: 9.999nF±(4.0% + 30); 99.99nF/999.9nF/9.999?F/99.99?F/999.9?F/9.999mF /99.99mF±(4.0% + 3)
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(1.0%+3)
Temperature: -4?-1832? / -20?-1000?±(1.0%+3)
