Intelligent Automatic Scanning Digital Multimeter, Pocket 3 5/6-digit DC/AC Voltage Current Capacitance Resistance NCV True RMS Diode Tester,Electronic Maintenance instrument Tools, KM-DM01D
Availability: In Stock
About this product

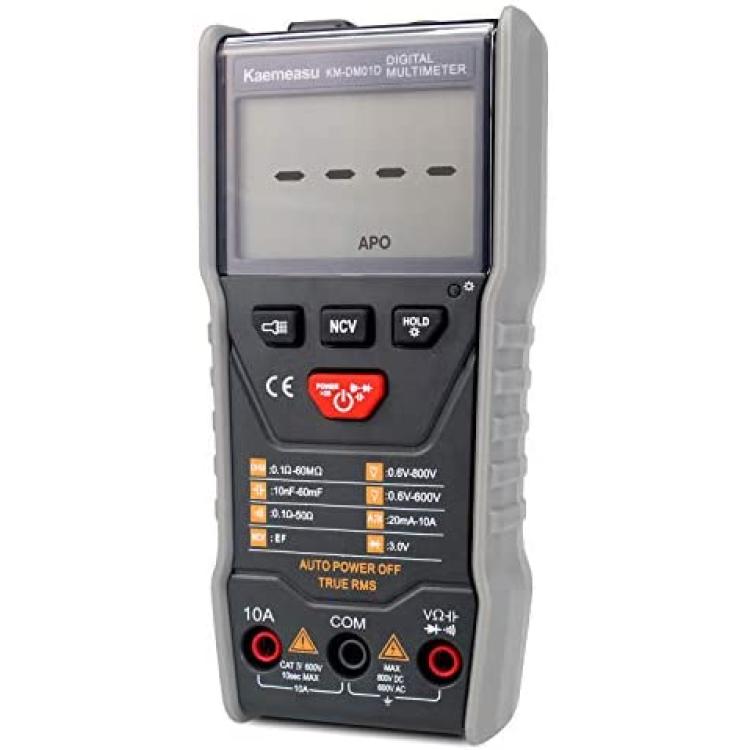

*kaemeasu◎ Digital Multimeter is a pocket-sized 3 5/6-digit RMS auto-scanning digital meter that does not require a dial to select a function. The meter will automatically recognize and measure based on the input voltage/current/resistance/current.
*It has stable performance, high precision, high reliability, clear reading and overload protection.
*Special Screen dust cover design, practical and beautiful. It also has flashlight function.
*With AAA 1.5Vbattery-driven, the instrument uses a large-screen LCD display, boost power supply, even in the 2.3V low battery edge, it can guarantee the backlight high brightness.
*It’s portable and handheld, measuring just 142 x 70 x 30 mm, instruments available for automatic identification of DC voltage and AC voltage, DC current 1OA, resistance, does not require any switching, can manually switch to measure capacitors, diodes, continuity testing, and other parameters, is a superior performance tools and instruments, It is an ideal tool for laboratories, factories, radio enthusiasts and families.
Description
kaemeasu? Digital Multimeter is a pocket-sized 3 5/6-digit RMS auto-scanning digital meter that does not require a dial to select a function.
The meter will automatically recognize and measure based on the input voltage/current/resistance/current.
It has stable performance, high precision, high reliability, clear reading and overload protection.

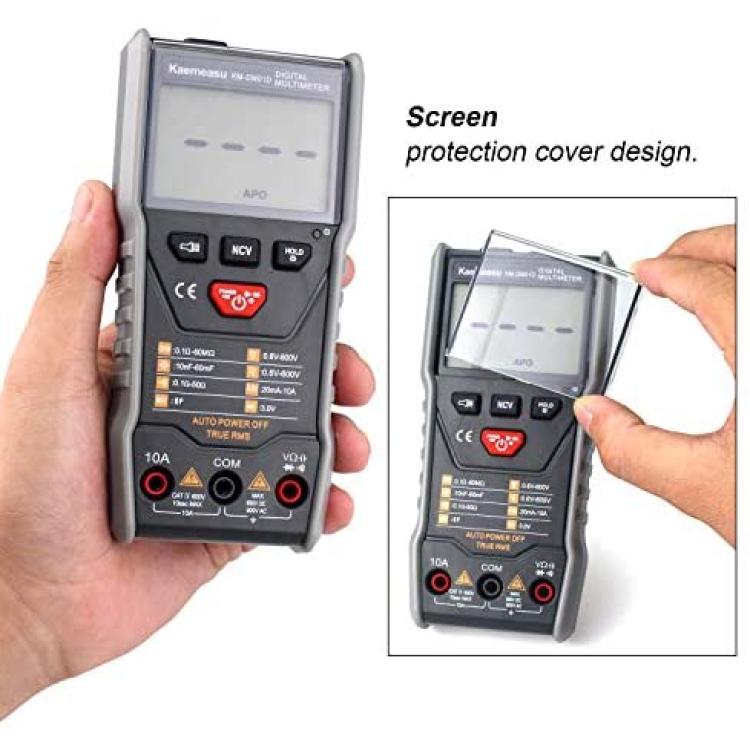

Special Screen dust cover design, practical and beautiful. It also has flashlight function.
With AAA 1.5Vbattery-driven, the instrument uses a large-screen LCD display, boost power supply, even in the 2.3V low battery edge, it can guarantee the backlight high brightness.

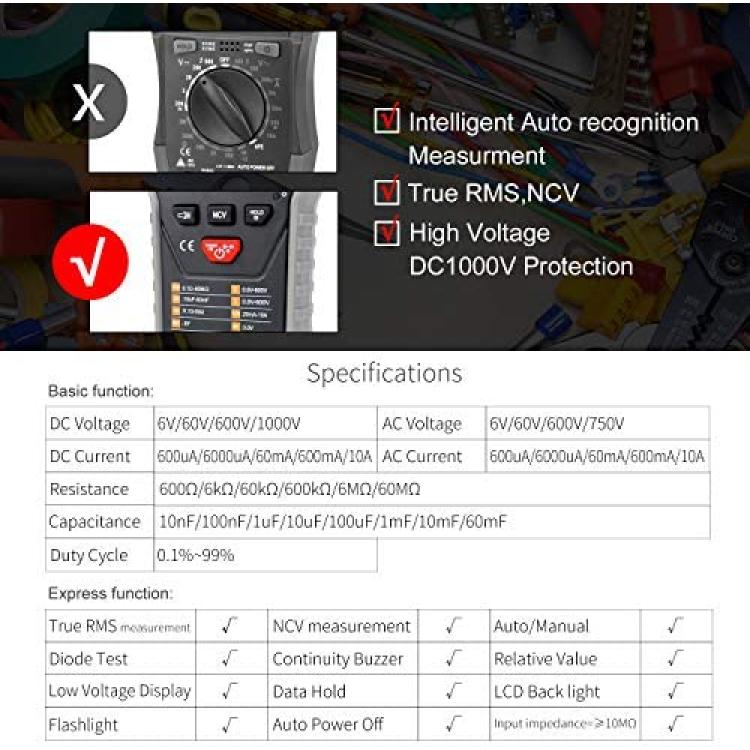

DC Voltage: 6V/60V/600V/1000V
AC Voltage: 6V/60V/600V/750V
DC Current: 600uA/6000uA/60mA/600mA/10A
AC Current: 600uA/6000uA/60mA/600mA/10A
Resistance: 600?/6k?/60k?/600k?/6M?/60M?
Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF/60mF
Duty Cycle: 0.1%-99%
Special function:

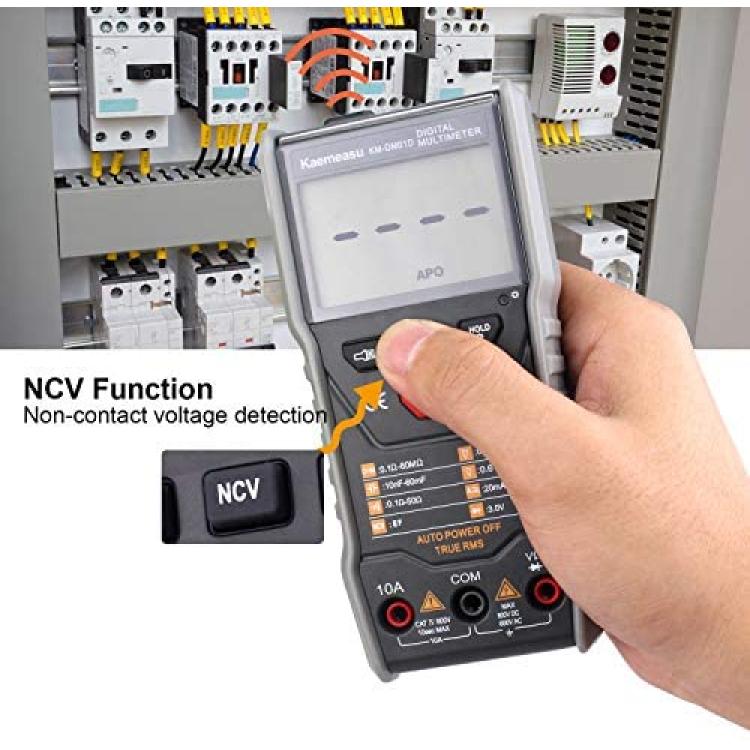

Diode Test, Continuity Test, Automatic shutdown, Input impedance, Continuity Buzzer, NCV, True RMS Measurement, Average Measurement, Date Hold, LCD Backlight, Low battery tips...
General Characteristics:
Display: liquid crystal display (LCD)
Maximum display: 5999 (3 5/6) bits Automatic polarity display
Working environment: (0?40)??relative humidity?80%
Power supply: 2 * 1.5V AAA battery (included)

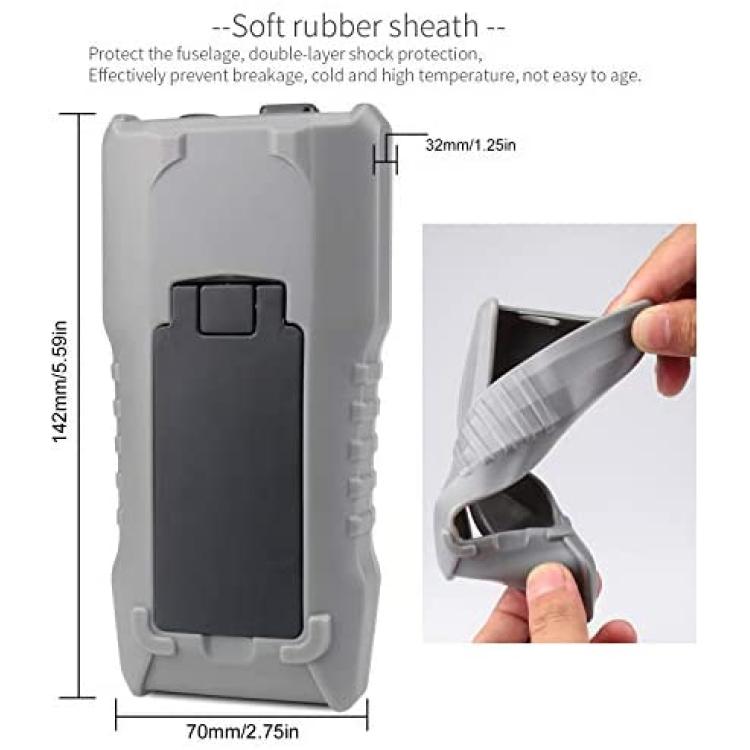

Volume (size): 142×70×32mm
Weight: 300g(with battery)
Packing included:
1 * English User Manual
2 * 1.5V AAA battery
1 * box
1 * A pair of pen
