Yosoo Health Gear 10-50V 100A 3000W DC Motor Engine Speed Controller PWM Control Switch Governor
Availability: In Stock
About this product
*[Well Performance]: This simple and easy-to-use DC motor speed controller has an elegant appearance and stable performance
*[Working Temperature]: Operating temperature:-20 to 40℃; This motor speed controller is of high quantity for industrial use that can work normally when operation temperature is below 0℃

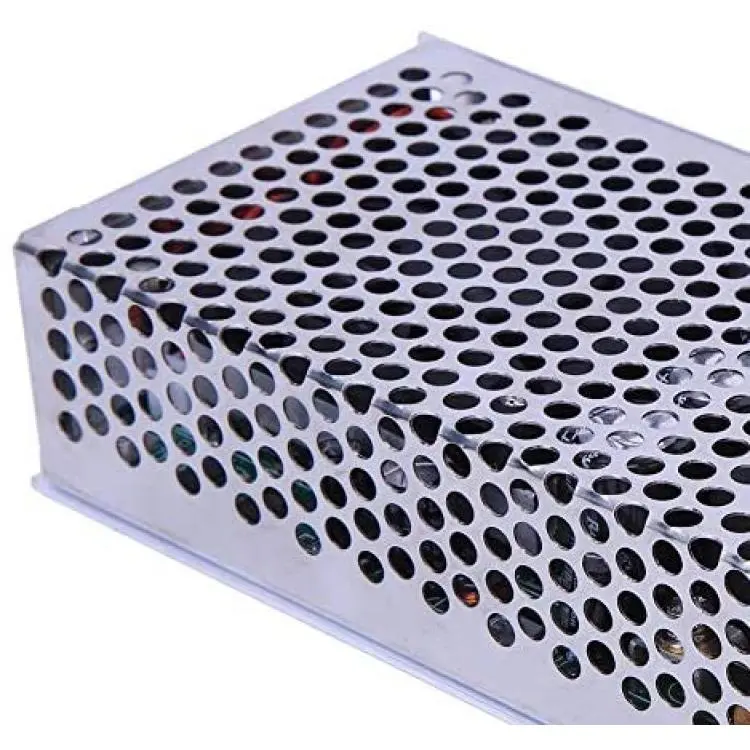

*[Excellent Heat Dissipation]: Well design metal case can protect the controller board from damage as well as dissipate heat
*[Application]: Universal speed controller can be used for DC brush motor, suitable for car cooling fan motor, car air conditioning motor, exhaust blower, treadmill motor, etc
*[More Usage]: This motor speed controller can also be used for dimming DC lamps or controlling DC heater
Description

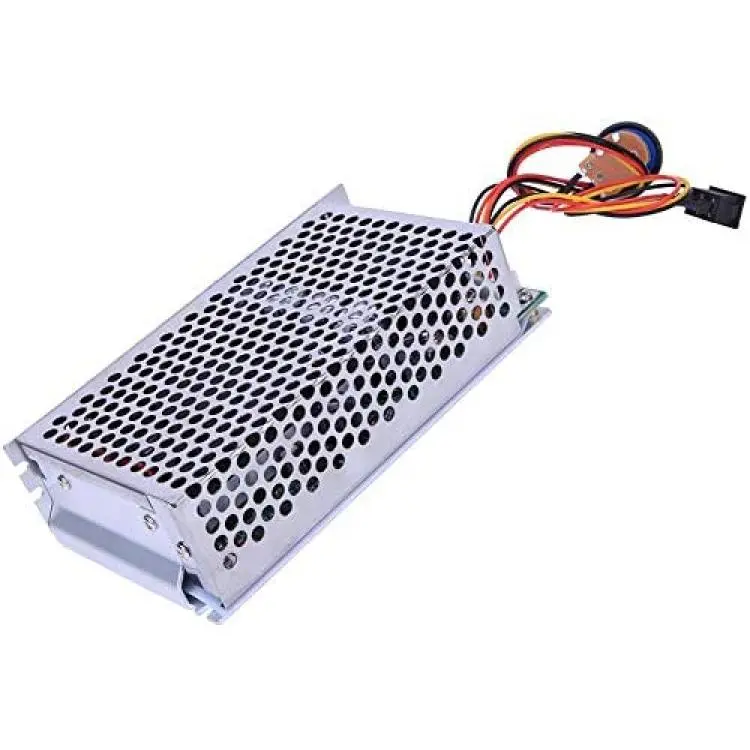

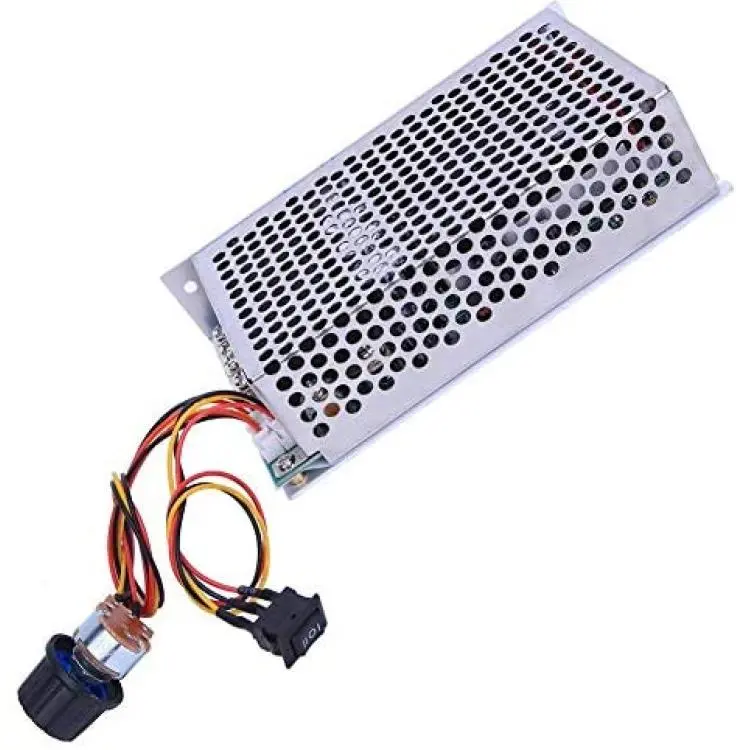

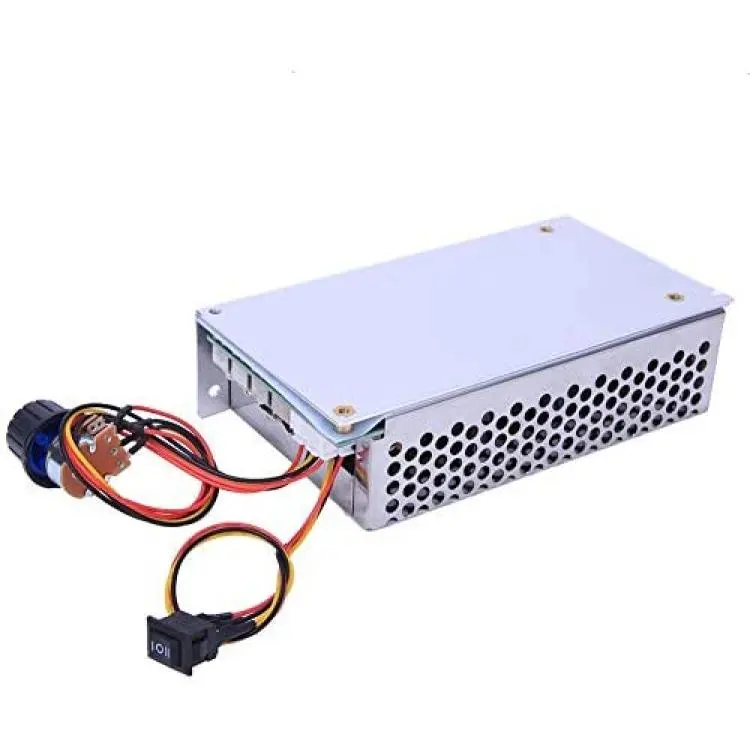

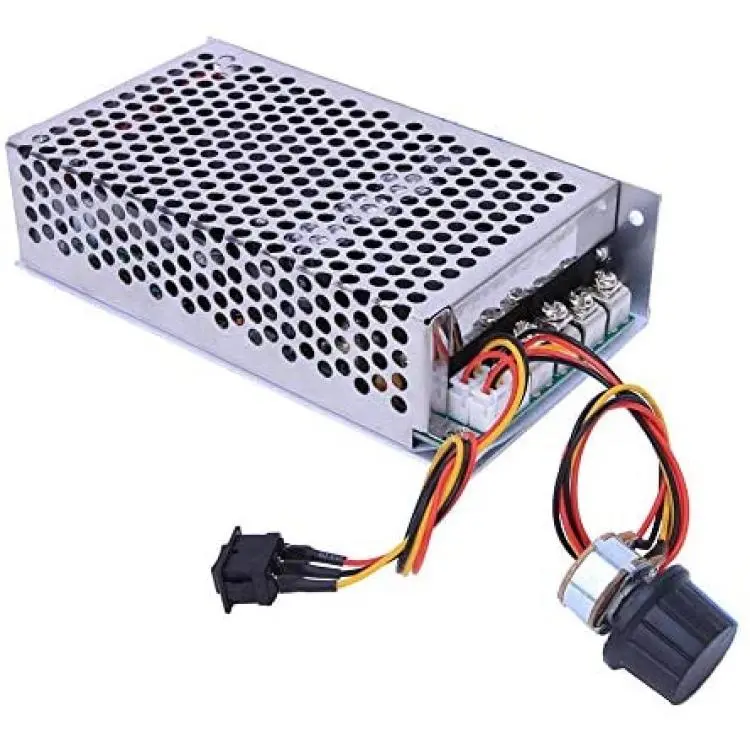

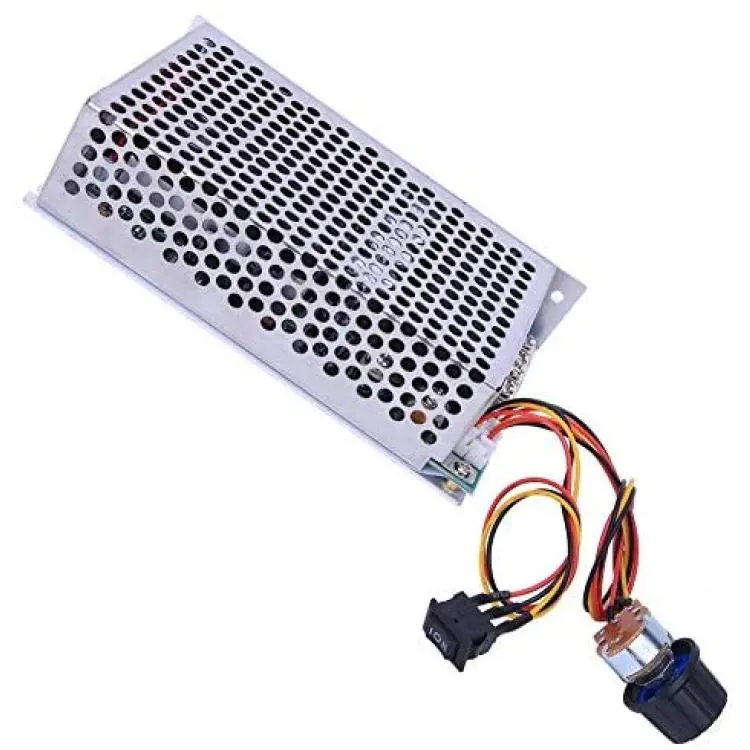

This is a simple and easy-to-use DC motor speed controller of elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 10V to 50V and control power from 1200W to 3000W(peak). This speed controller is a universal one which can be used on many DC brush motors in car cooling fan motor, car air conditioning motor, exhaust blower, etc.
Â
Specifications:
Working Voltage: DC10V to DC50V
Max. Rated Current: 60A
Peak Current: 100A
Control Power: 0.01W to 3000W
Power Alters According to Voltage:
12V*100A =1200W
24V*100A =2400W
30V*100A =3000W
50V*100A =5000W(peak)
Quiescent Current: 0.04A( not over 40mA when voltage is DC10V to DC50V)
PWM Duty Cycle: 0%-100%
PWM Frequency: 15khz
Operation Temperature: -20 to 40?
Size: 14.6 x 8 x 3.8cm / 5.74 x 3.15 x 1.49"
Â
Package Includes:
1 x Speed Controller
