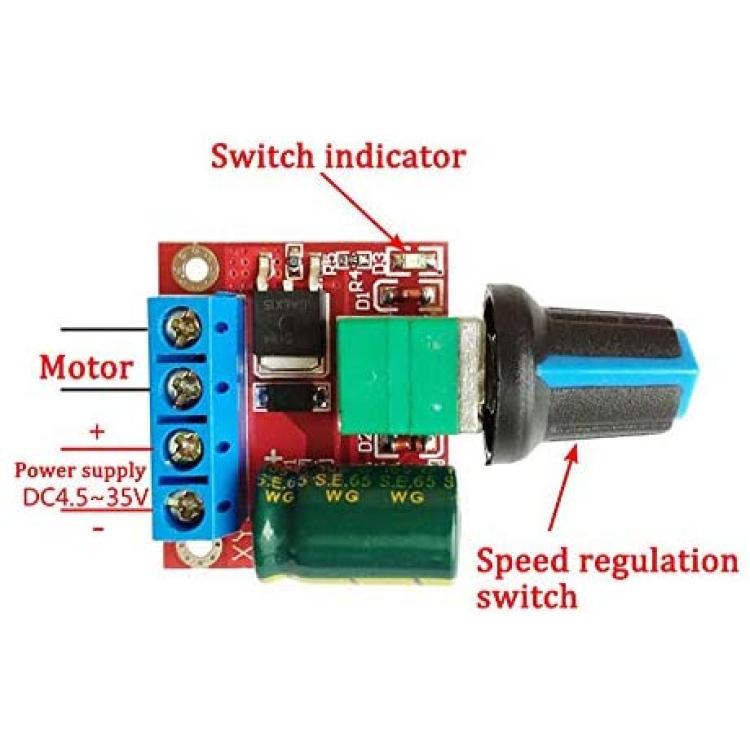

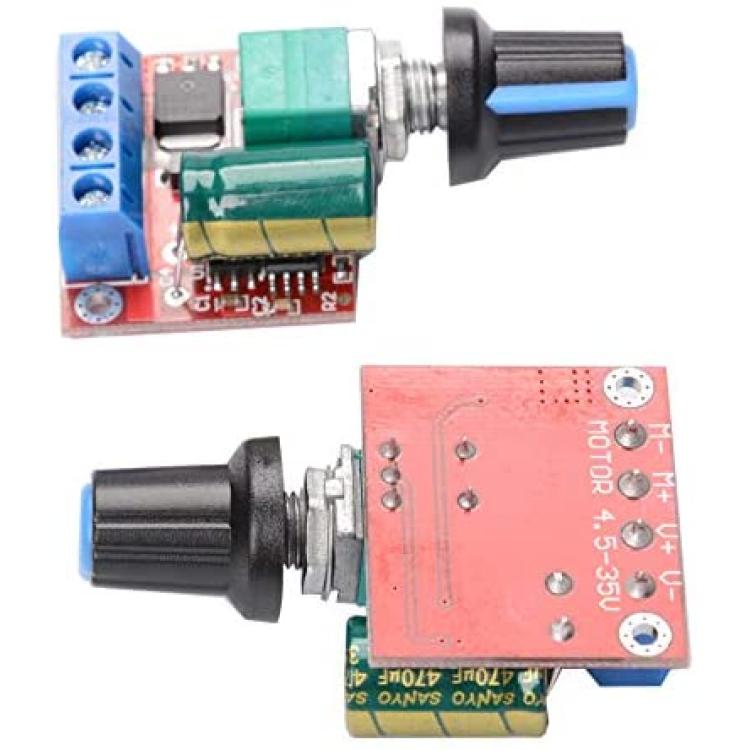

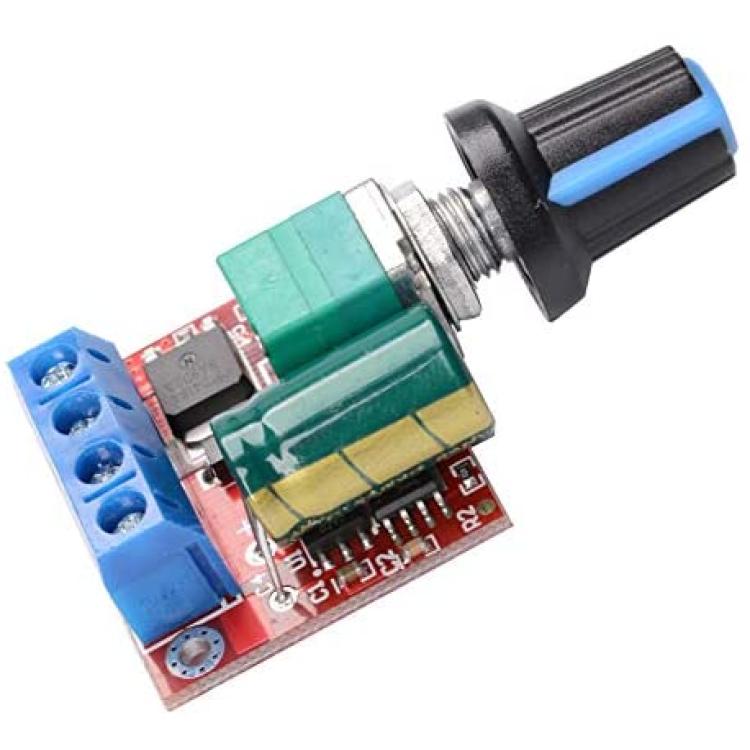

CHENBO 3pcs 5A DC Motor Speed Controller Module Adjustable Speed Regulator Control Governor Switch with LED Dimmer,90W
About this product
*Operating voltage: DC 4.5V-35V
*DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!
*DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
*The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
*Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
Description
Working voltage: DC4.5V-35V
Output current: 0-5A
Output power: 90W (MAX?
Quiescent current: 7u A?standby mode?
PWM duty ratio: 1%-100%
PWM frequency: 20khz
Size: 30*26mm
Material: electric components
Great performance: High efficiency, low heat generating and high torque.
Package list:

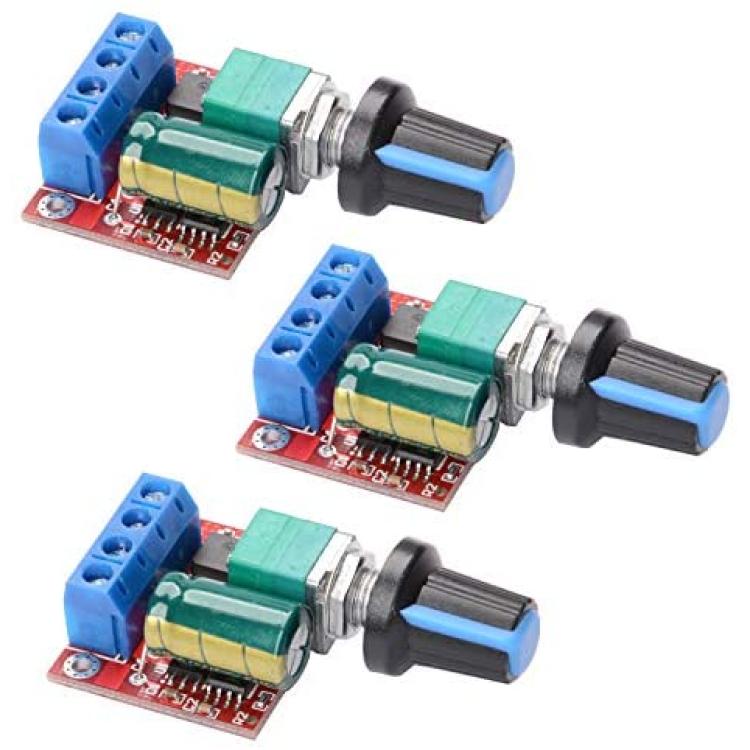

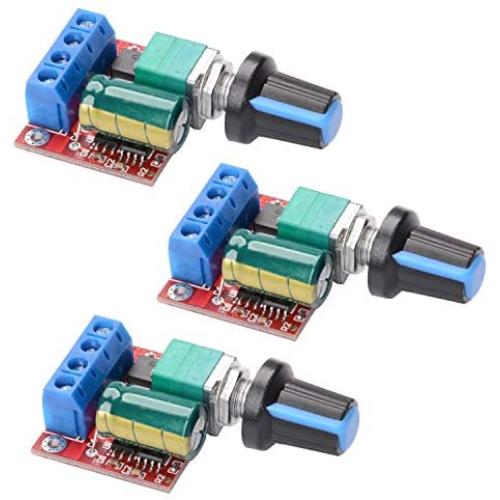

3 x motor PWM speed controller
