Yosooo DC 6-60V 12V 24V 36V 48V 30A Adjustable PWM Motor Speed Controller Digtal Display DC Motor Control Governor Start Stop Switch
About this product
*♥ Speed controller is made with high quality circuit board which ensures a longer service life.
*♥ This simple and easy-to-use DC motor speed controller has an stable performance.

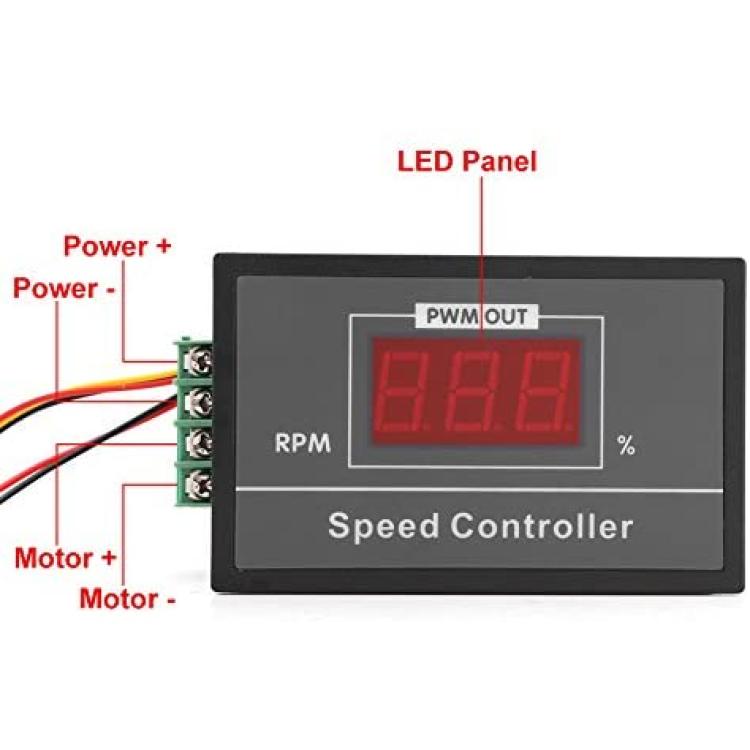

*♥ Designed with a digital display that shows the rate in percentage of actual speed to maximum speed.
*♥ This motor speed controller uses screw terminals for convenient and quick wiring.

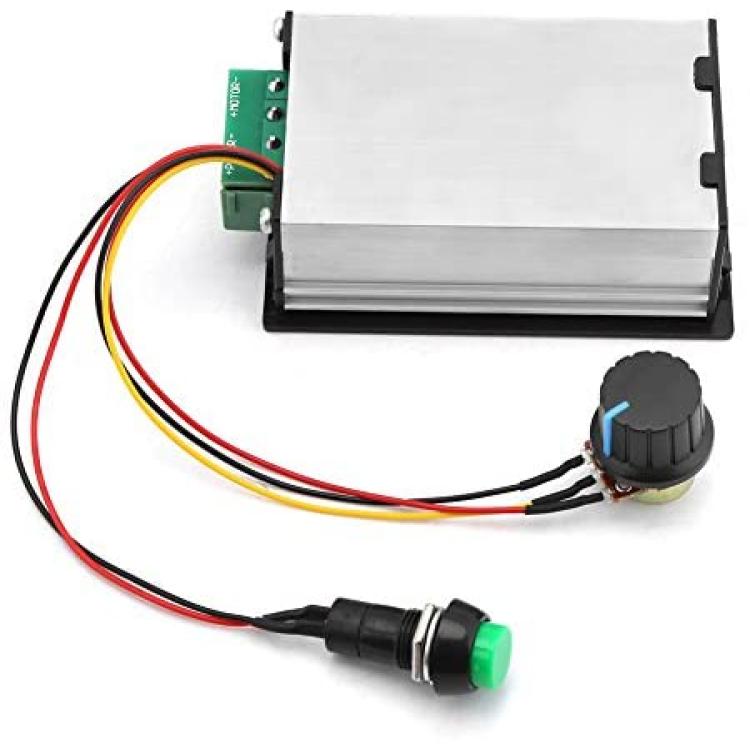

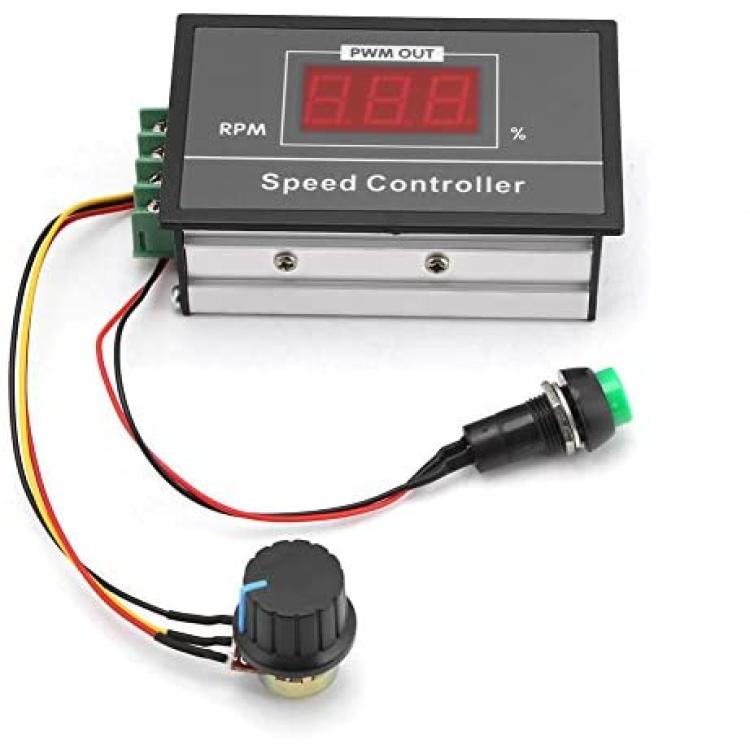

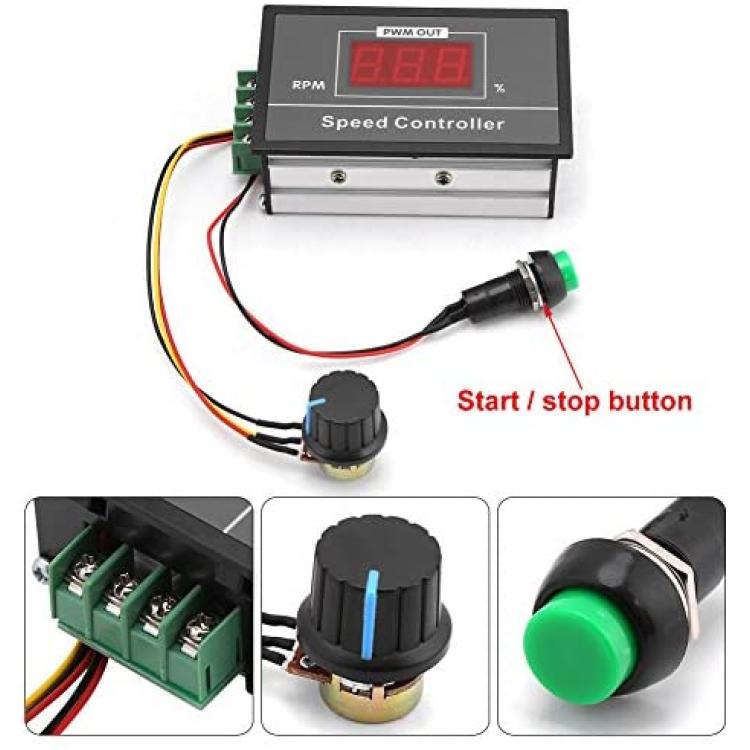

*♥ Comes with a momentary start/stop switch and a speed control potentiometer.
Description
Specifications:

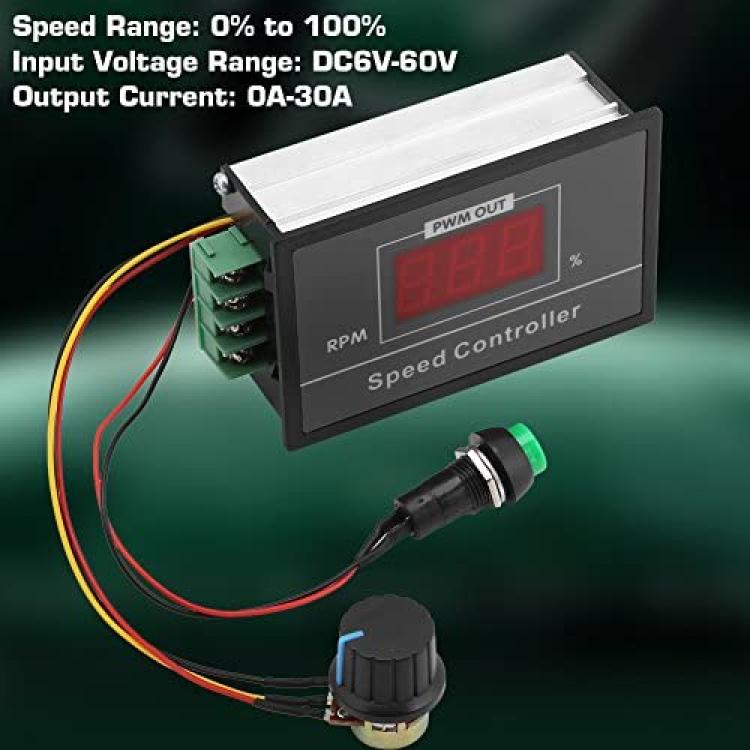

Input Voltage Range:Â DC6V-60V (input voltage should be same as motor rated voltage)
Output Voltage: Linear with load
Output Current: 0A-30A
Continuous Current: 20A
Speed Range: 0% to 100%
Regulation Method: Potentiometer
Regulation Type: Regulating Current
Control Frequency: 15KHz
Wiring Type: Screw terminal
Package Includes:
1 x Speed Controller
Note:
Please allow small size error due to manual measurement. Thanks for your understanding.
