ASHATA DC PWM Motor Speed Regulator Power Controller with LED Digital Display,DC 6-60V 12V 24V 36V 48V 30A PWM DC Motor Speed Controller Start Stop Switch Easy to Use
About this product
*❤【Speed Controller】This simple and easy-to-use DC motor speed controller has an stable performance.Designed with a digital display that shows the rate in percentage of actual speed to maximum speed.

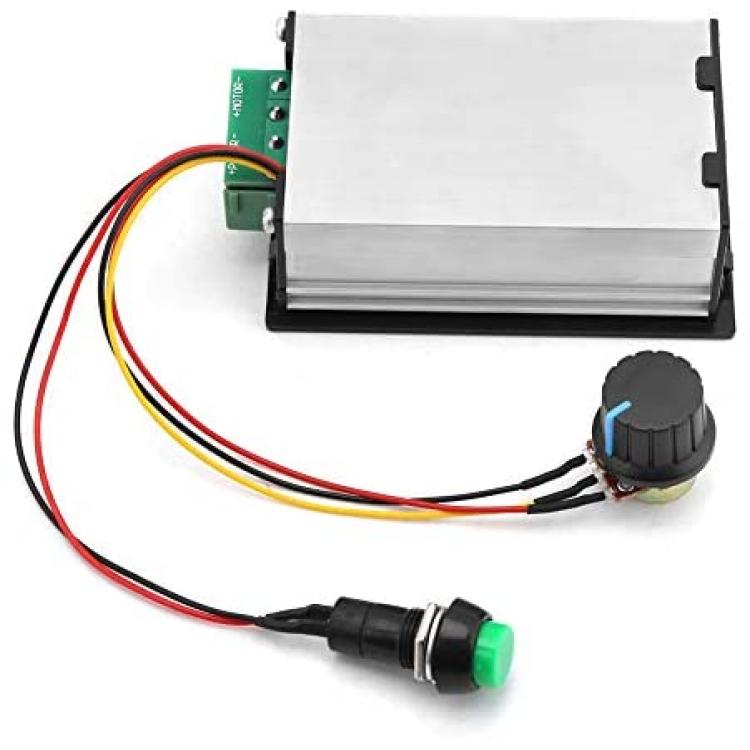

*❤【Convenient to Use】 This motor speed controller uses screw terminals for convenient and quick wiring.Comes with a momentary start/stop switch and a speed control potentiometer.
*❤【Input Voltage Range】DC6V-60V (input voltage should be same as motor rated voltage)
*❤【Durable Materials】Speed controller is made with high quality circuit board which ensures a longer service life.
*❤【Tip】Any questions,Please feel free contact us,we will provide you with high quality after-sales service.
Description
Features:
Speed controller is made with high quality circuit board which ensures a longer service life.

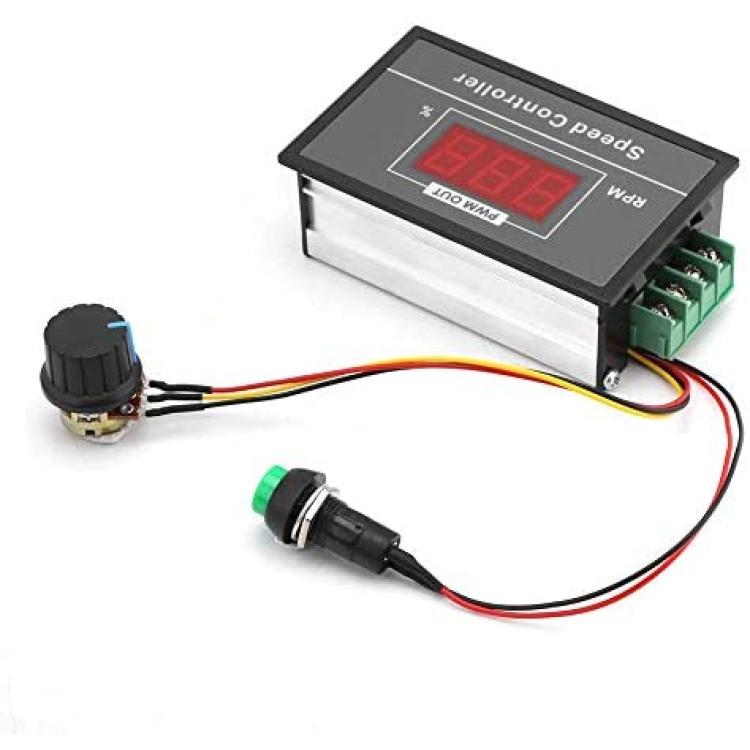

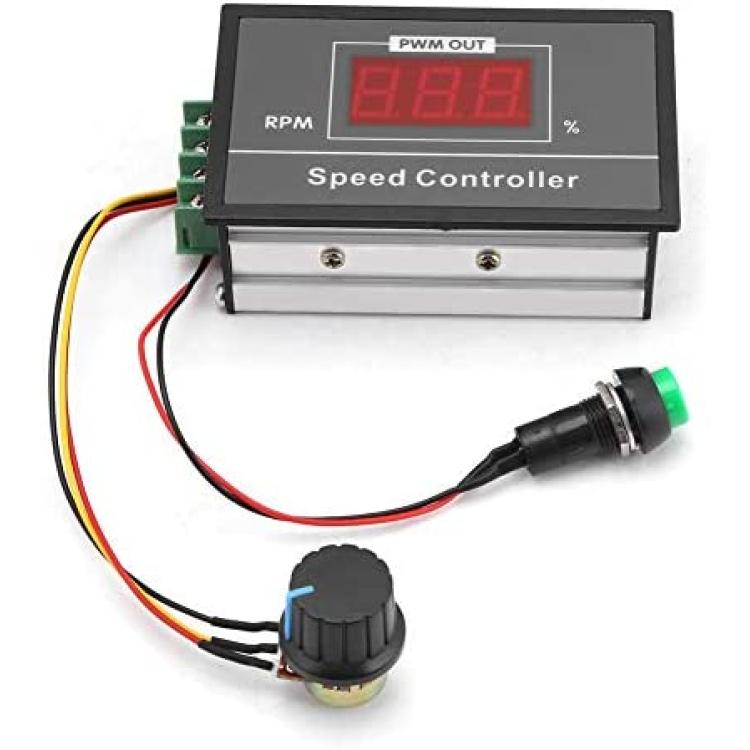

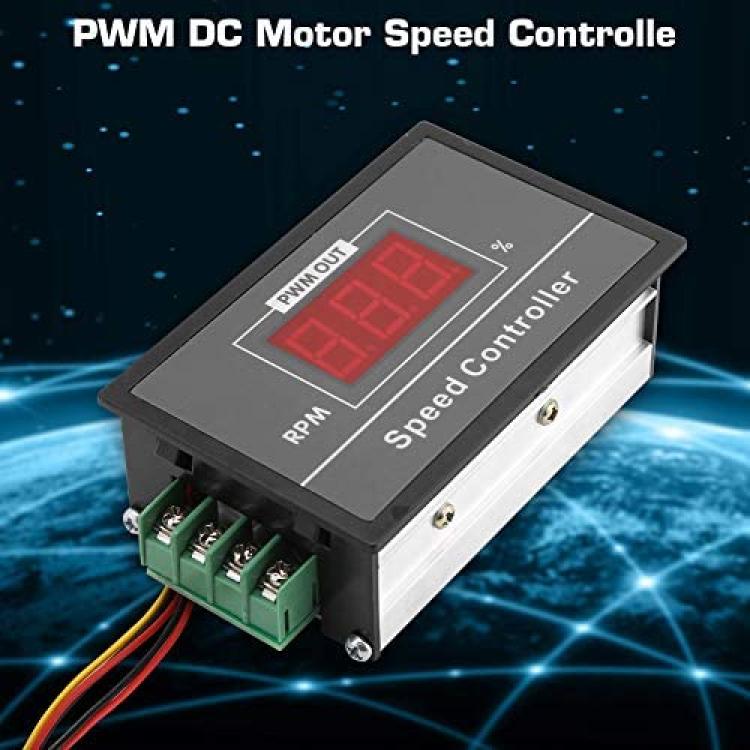

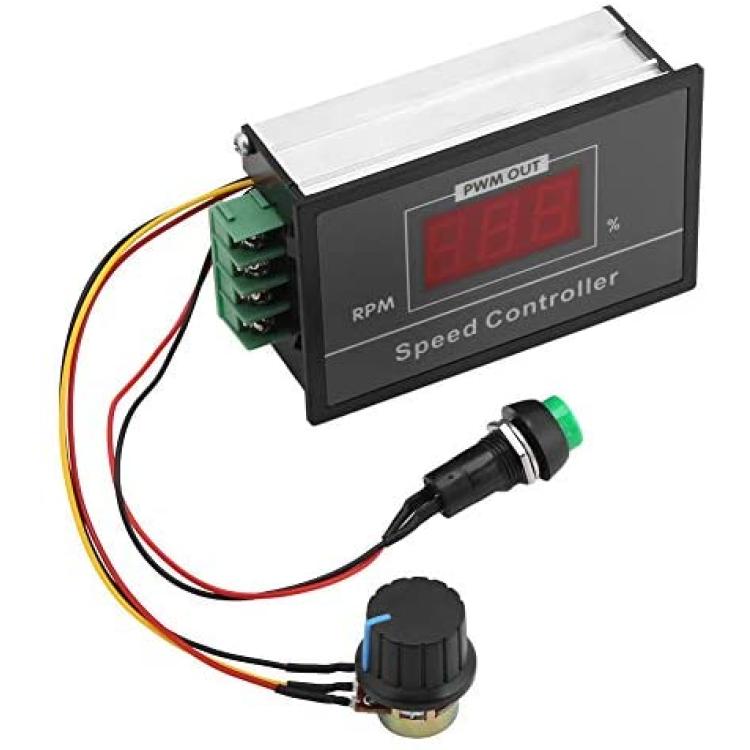

This simple and easy-to-use DC motor speed controller has an stable performance. Designed with a digital display that shows the rate in percentage of actual speed to maximum speed.
This motor speed controller uses screw terminals for convenient and quick wiring.

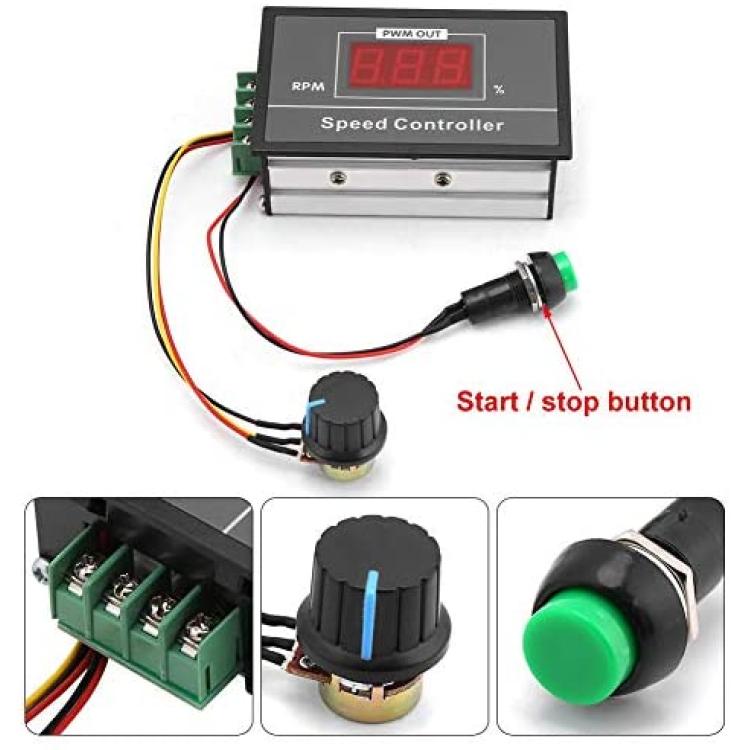

Comes with a momentary start/stop switch and a speed control potentiometer.
Specifications:
Input Voltage Range:Â DC6V-60V (input voltage should be same as motor rated voltage)
Output Voltage: Linear with load
Output Current: 0A-30A
Continuous Current: 20A

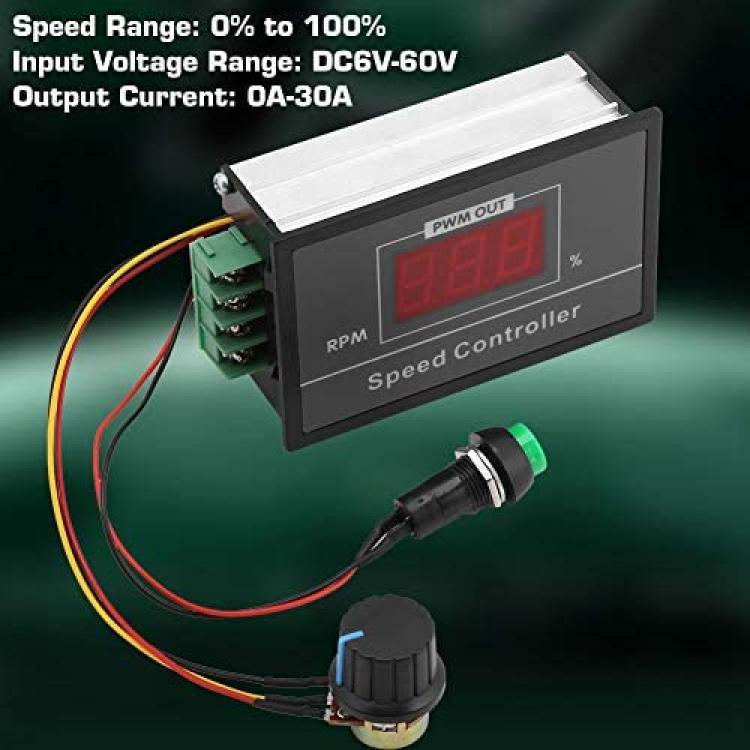

Speed Range: 0% to 100%
Regulation Method: Potentiometer
Regulation Type: Regulating Current
Control Frequency: 15KHz
Wiring Type: Screw terminal
Package Includes:
1 x Speed Controller
Note: Please allow small size error due to manual measurement. Thanks for your understanding.
