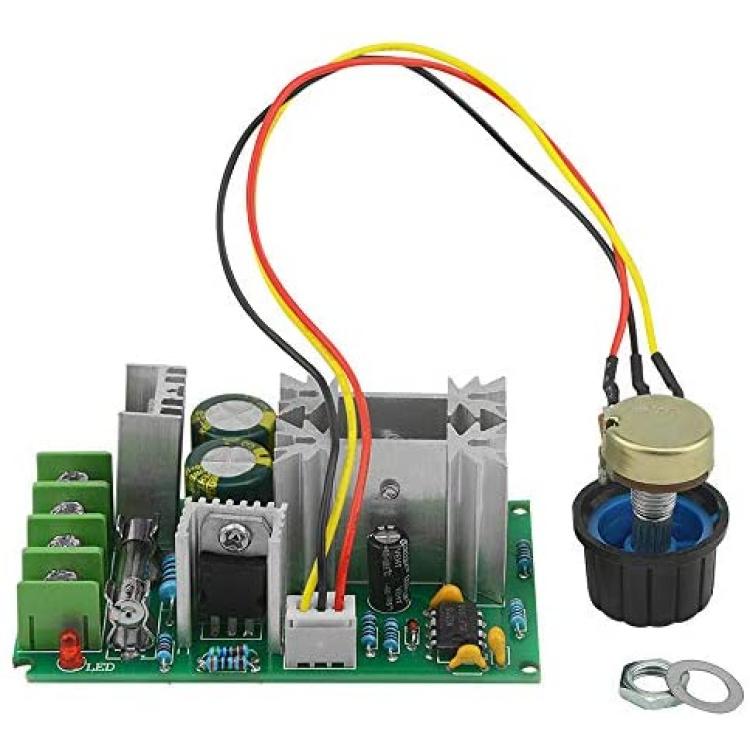

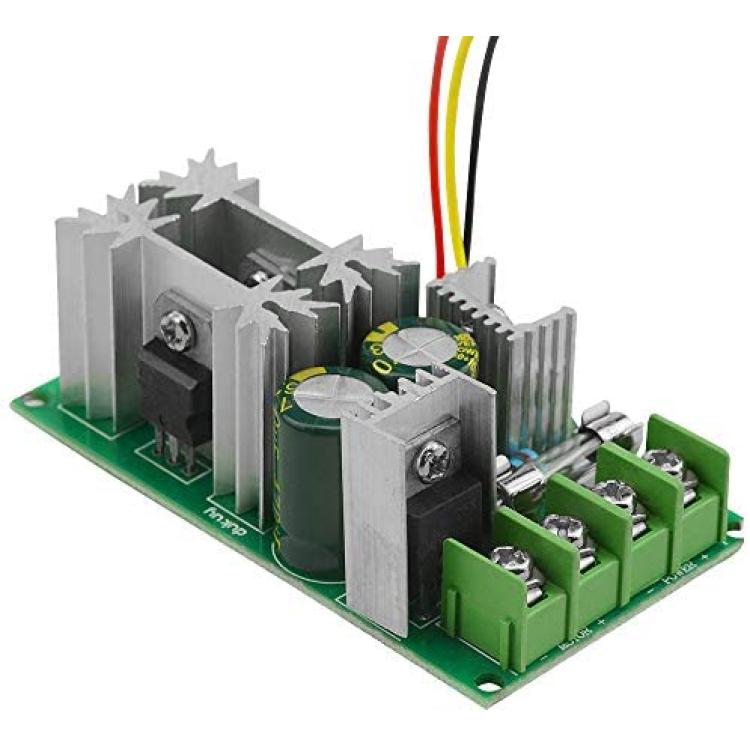

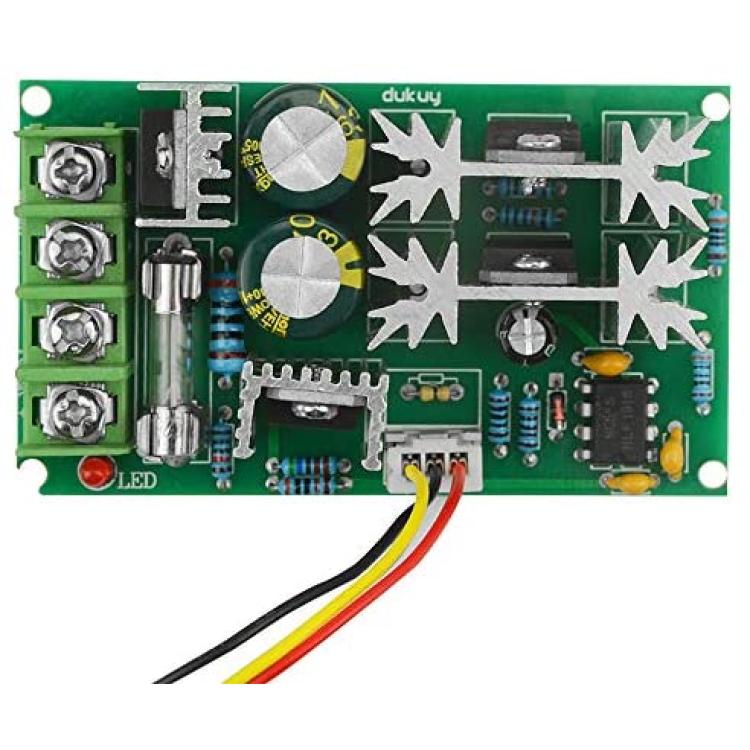

XLX PWM DC Motor Governor 12V 24V 36V 48V High Power Drive Module Adjustable Speed PWM Controller Regulation Switch 20A Ultra small LED dimmer with Speed Control Knob
About this product
*Super material: It is made of electronic accessories element, inner conductor is pure copper. it is long lasting and durable for you to use.
*Package including: 1 Pack of PWM DC Motor Governor module. Ultra low voltage dc motor governor, with switch function. The product is suitable for self-recovery fuse, the current is too large and automatically disconnects, and the fuse is automatically restored after cooling.
*PWM DC Motor Governor specification: The working voltage is DC10-60V Maximum output power: 1200W. The current is up to 20A. Potentiometer with switch function.
*High Power High Efficiency: It is precise and reliable with good long-term stability. With fixing screw hole, convenient for install and fixed. Small size, low power consumption, fast response.
*A wide range of applications: It is suitable for the speed regulation of DC motor, fan, fish tank oxygen pump and other products.
Description
Features:Â
Mini PWM DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).Â
The product is suitable for self-recovery fuse, the current is too large and automatically disconnects,
and the fuse is automatically restored after cooling.Potentiometer with switch function. Â
Package Including:Â
2 x DC Motor Speed Controller
Specification:
Input voltage: DC10-60V
Output voltage: linear under load
Output limit current: 20A (10A, 450W for long time use, pay attention to keep the module cool and cool)
Ultimate power: 1200W
Speed control type: flow adjustment
Speed control mode: potentiometer (linear)
Speed regulation duty range: 0 - 100%
Control frequency: 25KHZ
 Wiring type: fence terminal block
 Knob line length: 20CM
 Module size: Length * width * height 77MM * 45MM * 28MM
 Product net: 73 grams
 Motherboard mounting size: Length * width 73MM * 40MM
 Potentiometer according to the opening: 7MM
 Wiring diagram
Make sure that the positive and negative connections are correct before powering on. Do not touch the heat sink with the wiring.
If it touches, it may burn the circuit board. Note that this is not a power module. It must be connected to the motor to speed it up.
There is no change in the output of the multimeter without the motor.
 Input is 9-60V DC

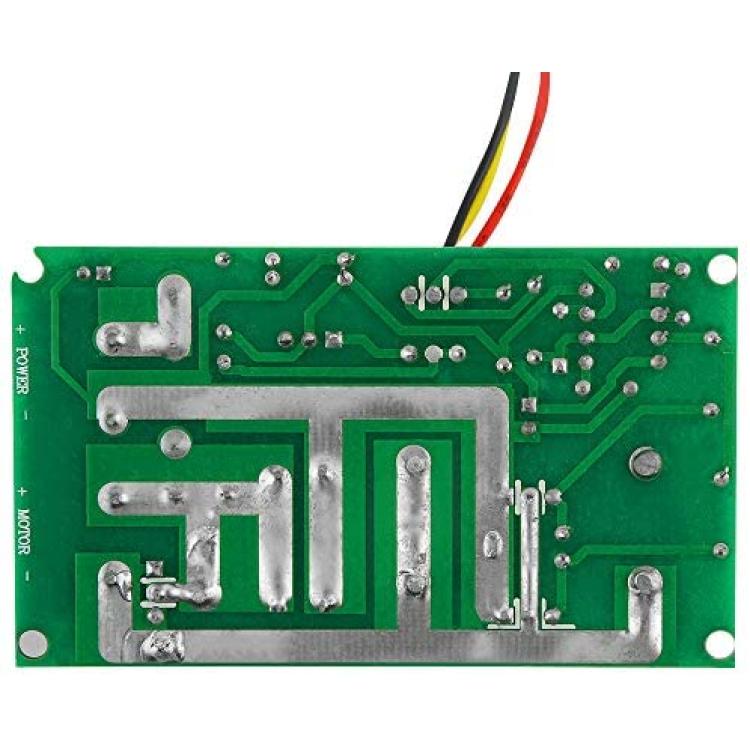

Power: POWER+ POWRE-
Motor: MOTOR+ MOTOR-
Please note:
1. This governor is used for DC brushed motors.
2, not suitable for DC brushless motor speed; can not be used as a regulator or regulator!
