uniquegoods PWM DC Motor Speed Controller 6V 12V 24V 28V 3A Variable Speed Control Switch Electronic Speed Controller Dimmer 1206B with Shell

Parameters:
? Product model: 1206B.
? Power mode: DC Power.
? Input supply voltage: DC 6-28V.
? Rate current: 3A.
? PWM frequency: 21 kHz.
? Duty Cycle adjustable: 0%-100%.
? Adjust method: Potentiometer adjustment.
? Potentiometer with switch function, with power indicator, with white casing.

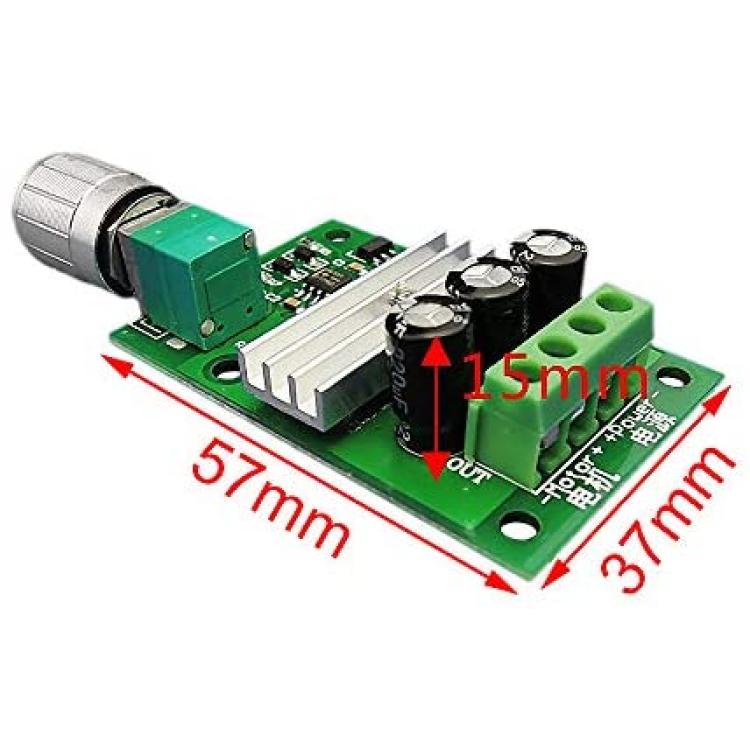

? PCB Size: 2.24×1.46×0.59in.

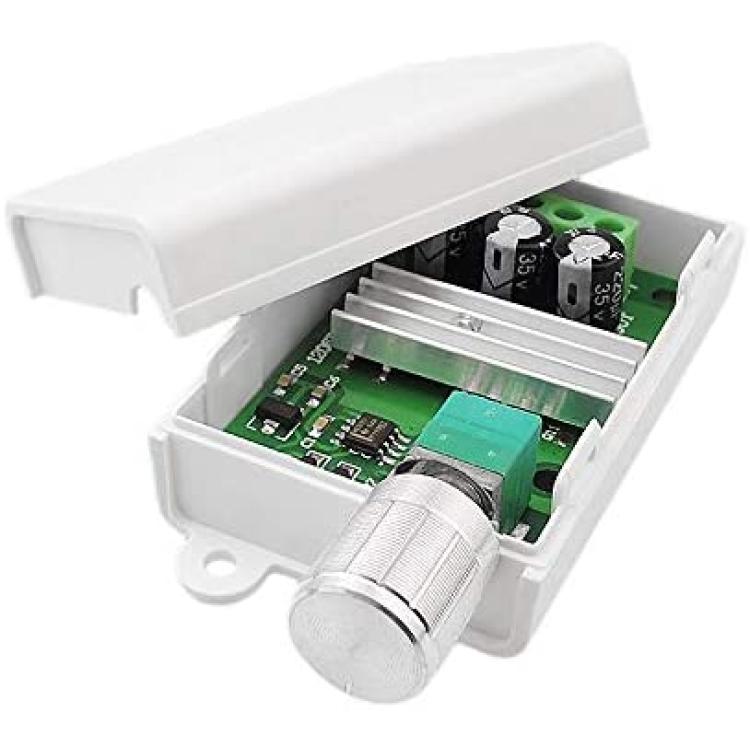

? Shell size: 2.56×1.65×1.02in.
? Weight: 1.48oz(Including shell weight).

Operating instruction:

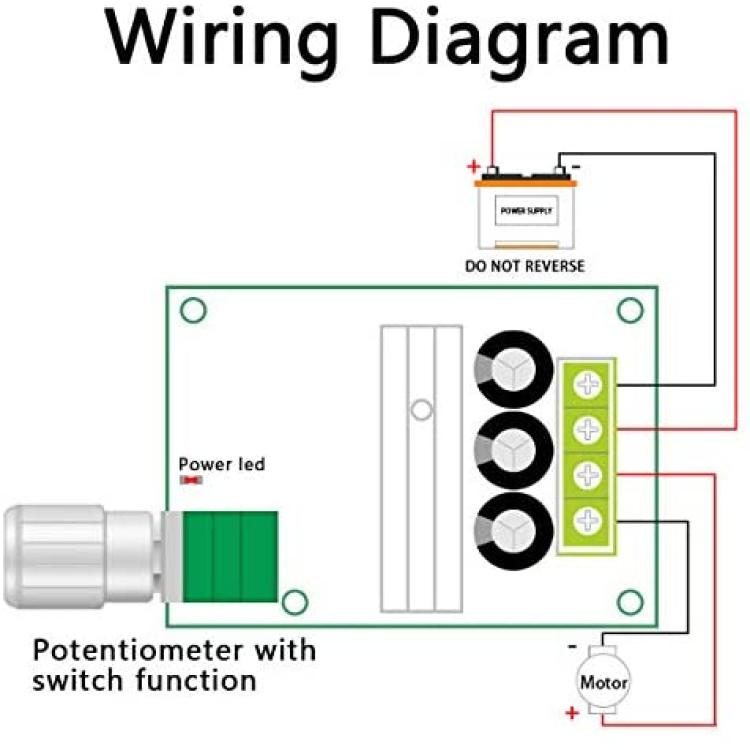

? Connect DC motor (or DC load) to the motor terminals as indicated on the wiring diagram;
? Connect a voltage of 6V-28V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit;
? Turn on the power, the power LED lights, the power is OK;
? Adjust the potentiometer, motor speed can be controlled.

Important notes:
? An appropriately rated fuse (rated a little higher than the maximum current you expect to draw) is recommended to ensure safe operation.
? The controller is NOT reverse-polarity protected and it will be damaged if connect the supply voltage with wrong polarity. Double check all connections before applying power and always turn off the power supply before making any wiring changes.

Package included:
1 × PWM DC Motor Speed Controller 1206B
