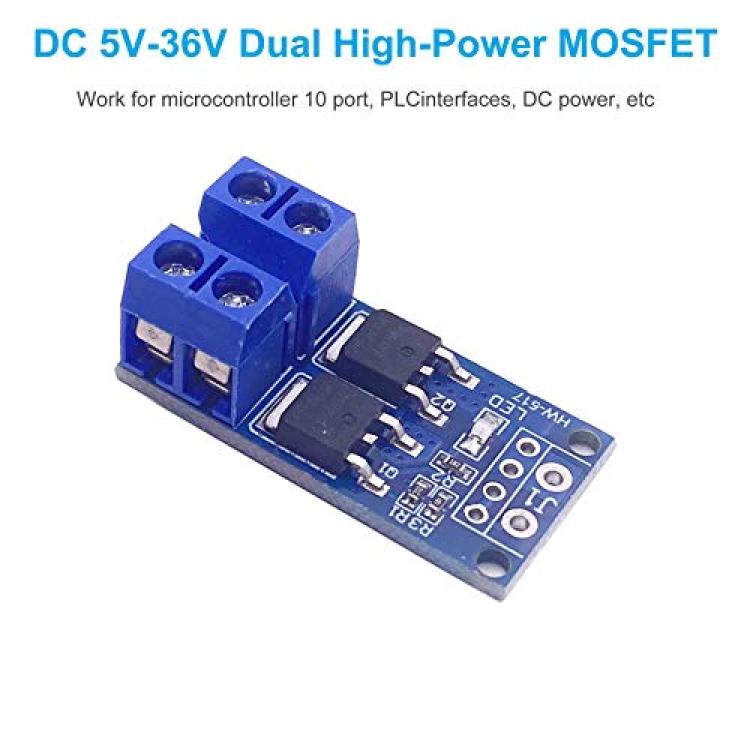

Huayao10PCS DC 5V-36V 15A(Max 30A) 400W Dual High-Power MOSFET Trigger Switch Drive Module 0-20KHz PWM Adjustment Electronic Switch Control Board Motor Speed Control Lamp Brightness Control
Availability: Pre-Order, Inquiry Price
About this product
*Operating Voltage: DC 5V - 36V continuous current: 15A, enhance cooling conditions, the maximum current up to 30A; power: 400W.
*The trigger source: digital high-low (DC3.3V - 20V); can be connected to single-chip IO port, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0--20KHZ support
*It adopts double MOS parallel active output to show lower internal resistance,greater electric current and power. Besides it works at 15A,400W under common temperature which satisfies most devices usage and realizes the control of great power devices in a relaxed way.
*PERFECT SUPPORT PWM: You can access the PWM signal, the signal frequency 0--20KHZ perfect support.
*WIDELY APPLICATIONS:You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., can input PWM, control motor speed, lamp brightness and so on.
Description

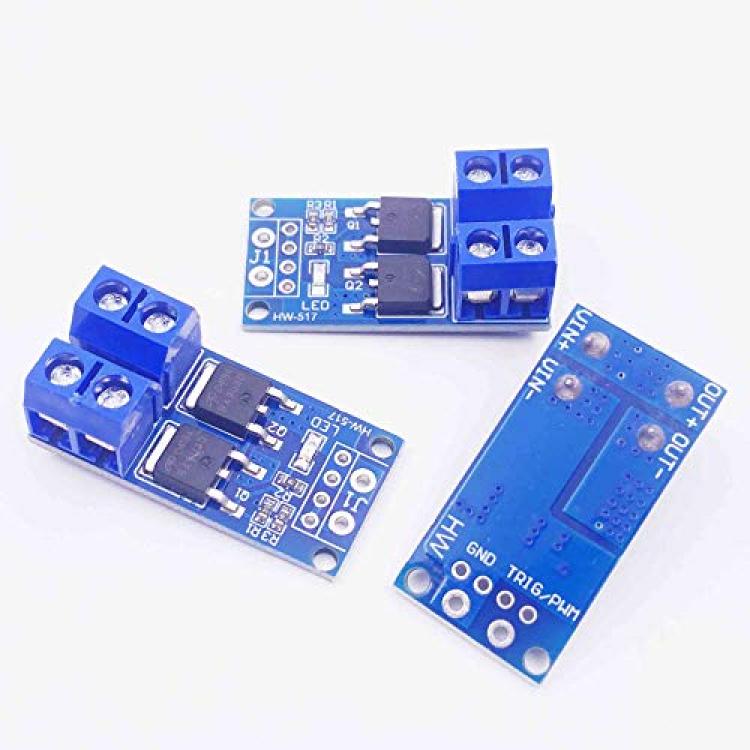

High power MOS tube FET Trigger switch drive module PWM regulation electronic switch control board Module highlights:
1.The use of imported dual-MOS parallel active output, lower resistance, more current, strong power. At room temperature to provide current of 15A, 400W power;
2.Wide voltage input, support PWM;
3. Easy to control high power devices.
Technical Specifications:
Operating voltage: DC 5V - 36V;

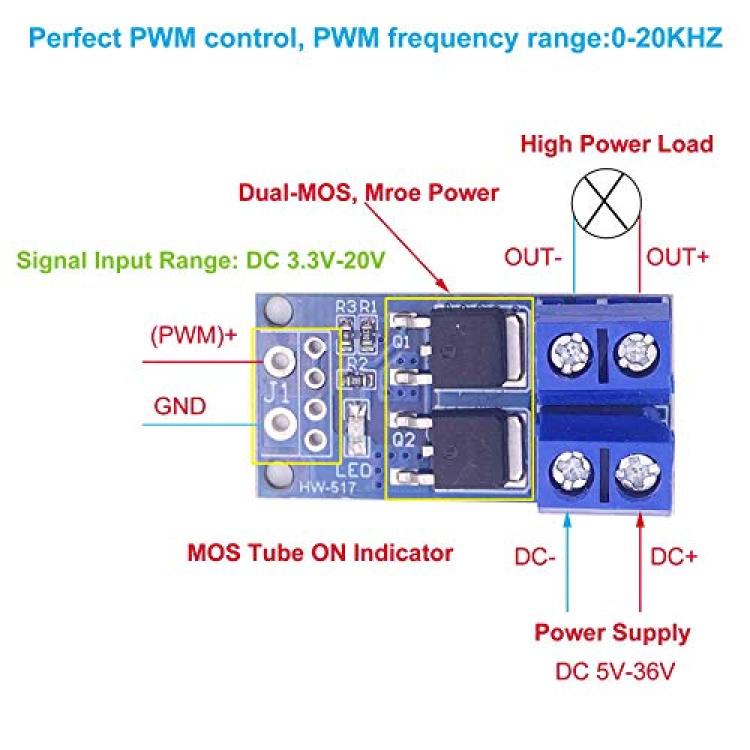

Trigger source: digital high-low (DC3.3V-20V) (can be connected IO port of microcontroller,PLC interfaces, DC power, etc.. The module can access PWM signal, which can perfectly supported the frequency of 0-20KHZ.)
Output voltage: DC 5V - 36V
Output current: 15A
Output power: 400W
Operating temperature: -40-85 ?
Dimension: 34mm x 17mm x 12mm/ 1.34×0.67×0.47 inch(L × W × H)
Package includes:

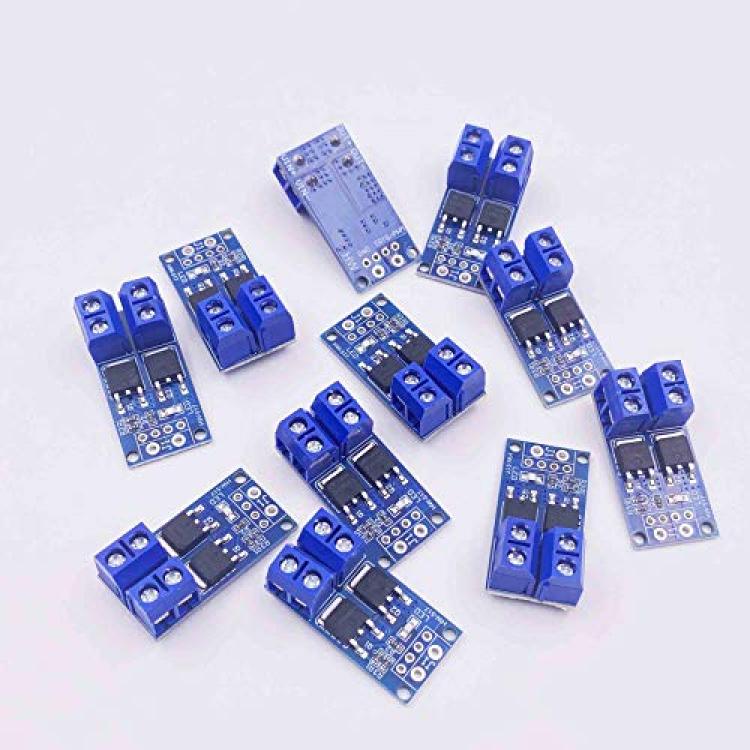

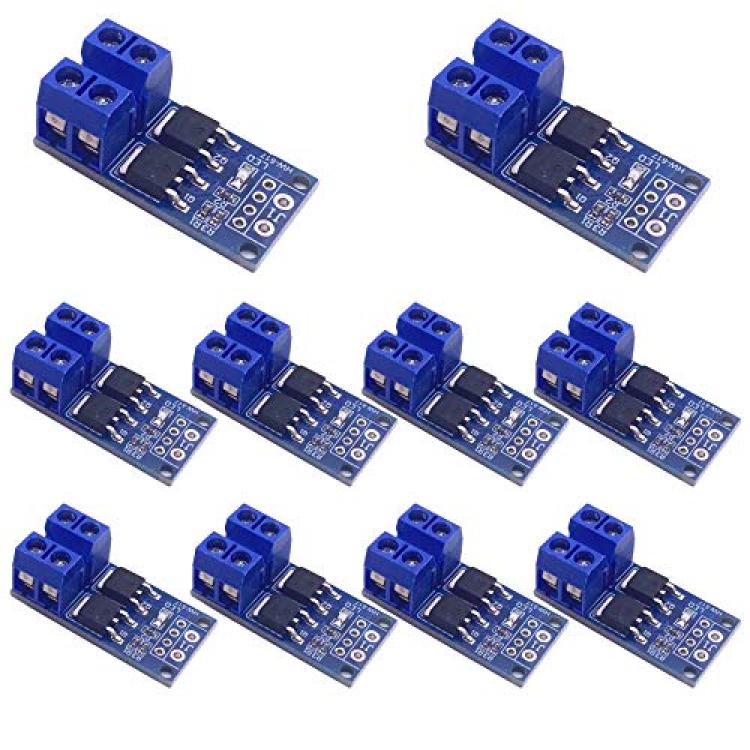

10 X MOS FET Trigger Switch Drive Module
