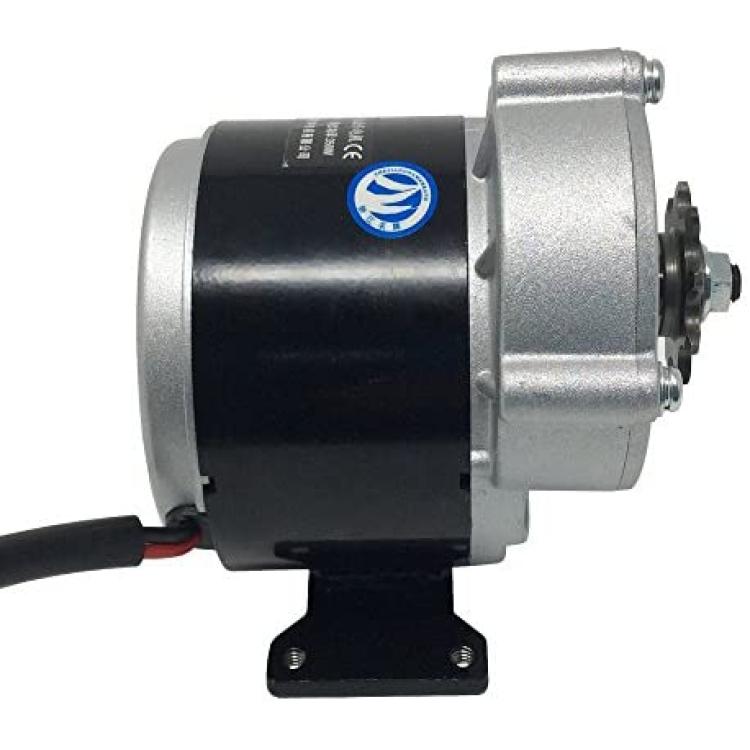

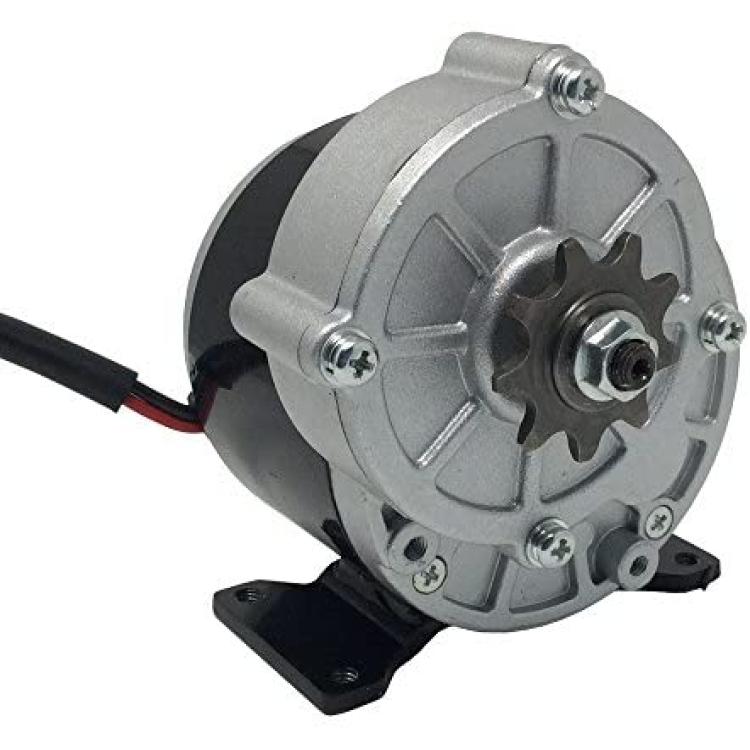

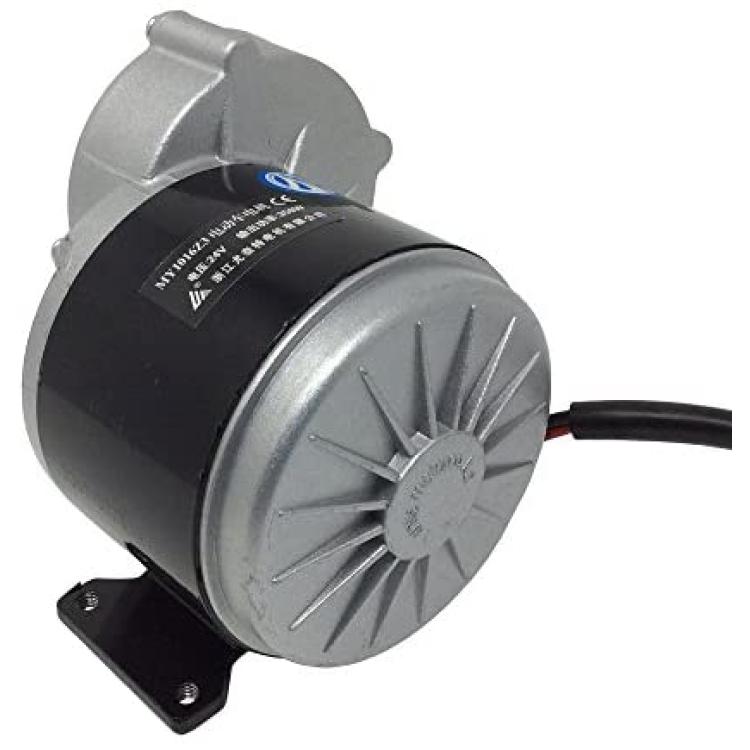

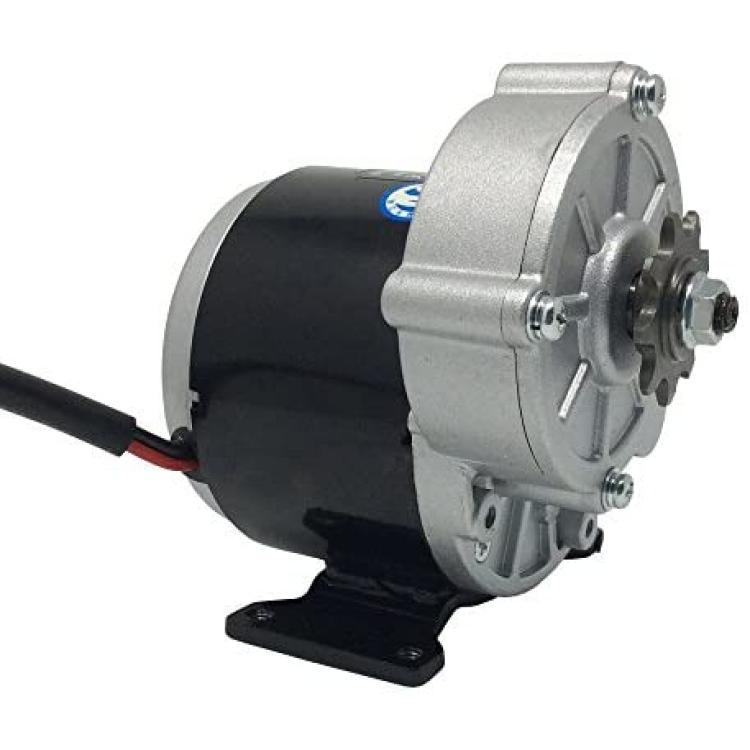

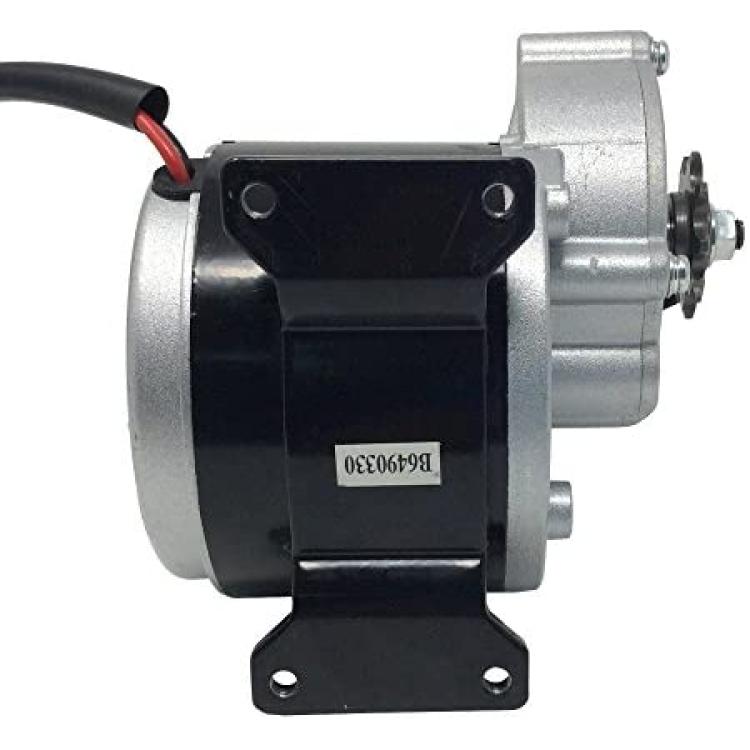

BEMONOC 24 Volt 350 Watt MY1016Z3 Gear Reduction Electric Motor with 9 Tooth Sprocket
Availability: In Stock
About this product
*Rated voltage: DC24V; DC Motor No-Load Speed: 3850rpm; DC Motor Rated speed: 3000rpm; Gear Ratio: 9.78:1;
*DC Gear Motor Actual speed: 300 rpm; Sprocket: 9 teeth; sprocket 410 (use for ordinary bicycle chain);
*Sprocket size: Teeth: 9; Pitch: 12.7mm (1/2"); Tooth thickness: 3mm; Inside diameter: 11mm; Outside diameter: 41mm;
*Rated Current: 18.7A; No-Load Current: 2.5A; Package: 1PCS x DC Geared Motor;
*Usage: Motorized bicycle, moped, mini bikes, pocket bikes and electric dirt bikes,scooters, e-bike, atv and so on.
Description
This motor is great for those wanting to make their own custom electric vehicle, whether it's a scooter, electric bicycle or something else.
This electric motor with gear reduction produces more low-end torque than your standard motor.
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Note on Compatibility: This motor is NOT compatible with the Razor Dirt Quad.
Specifications:
MY106Z3 350W 24V Brush Motor
No-Load Speed : 3850rpm
Rated speed: 3000rpm
Gear Ratio: 9.78:1
Actual speed: 300 rpm
Sprocket: 9 teeth sprocket 410 (use for ordinary bicycle chain)

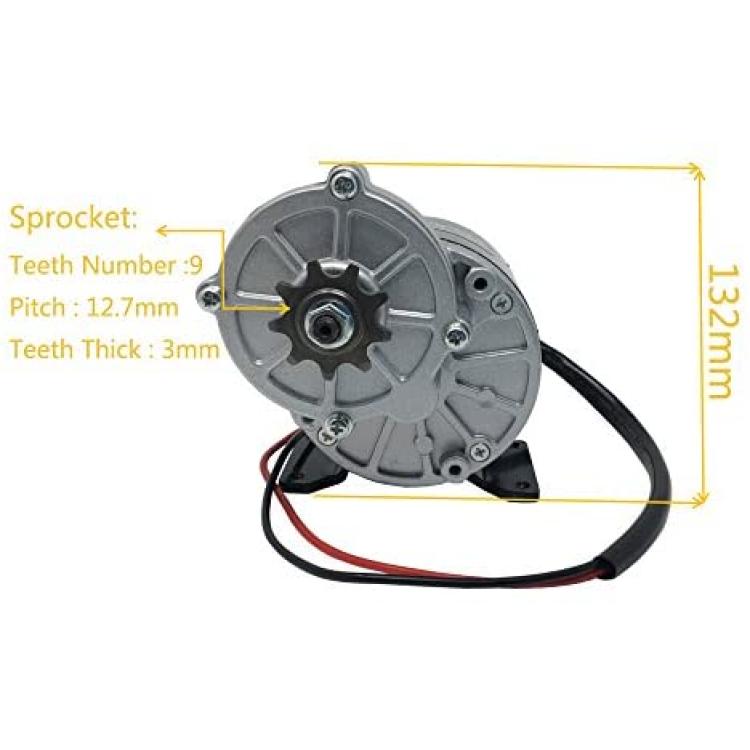

Sprocket size
Teeth: 9
Pitch: 12.7mm (1/2")
Tooth thickness: 3mm
Inside diameter: 11mm
Outside diameter: 41mm
Rated Current: 12.5 A
No-Load Current: 2A.
