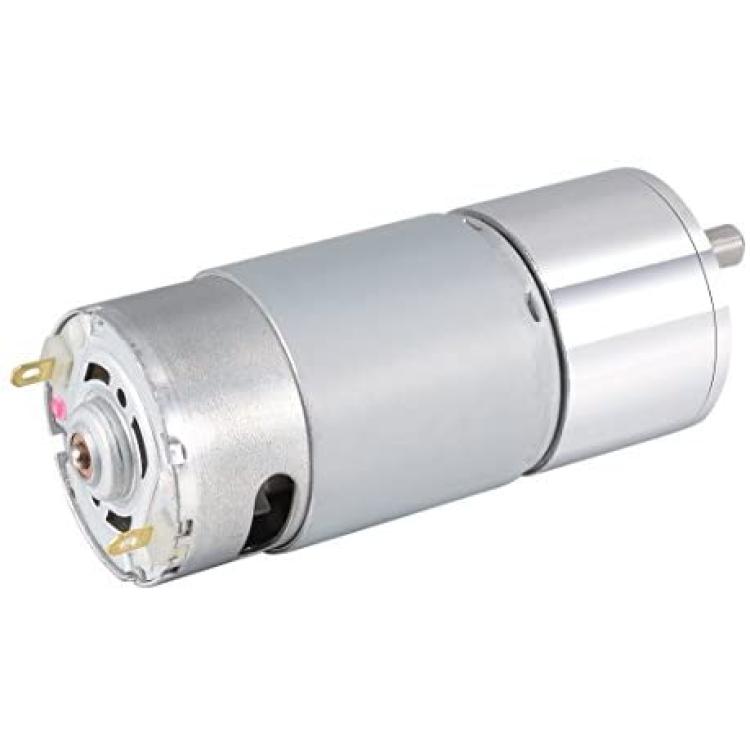

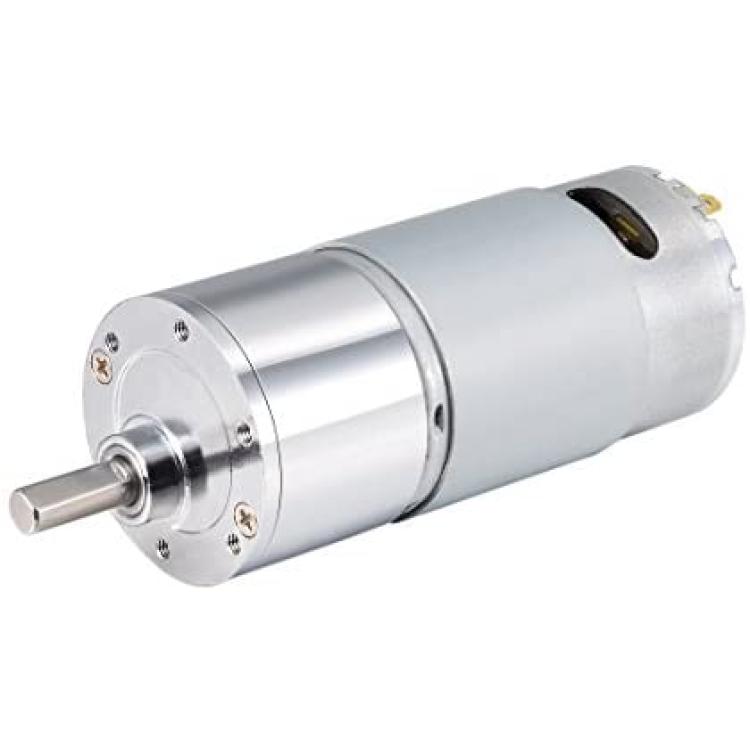

uxcell 24V DC 320 RPM Gear Motor High Torque Electric Reduction Gearbox Eccentric Output D Shaft
About this product
*No-load Speed: 300RPM at 24 Volts
*Torque: 0.7 kg.cm
*Power: 7.2W
*Reduction Ratio: 1: 17.4
*Body Size: 84mm x 37mm/3.3 x 1.46 inches (L*D)
Description
This is our new low cost, but extremely high quality DC Gear Motor.
Specification:
No-load Speed: 320RPM at 24 Volts;
kg.cm: 0.7
Power: 7.2W;
No-load Current: 0.1A;
Load Current: 0.3A;
Reduction Ratio: 1: 17.4

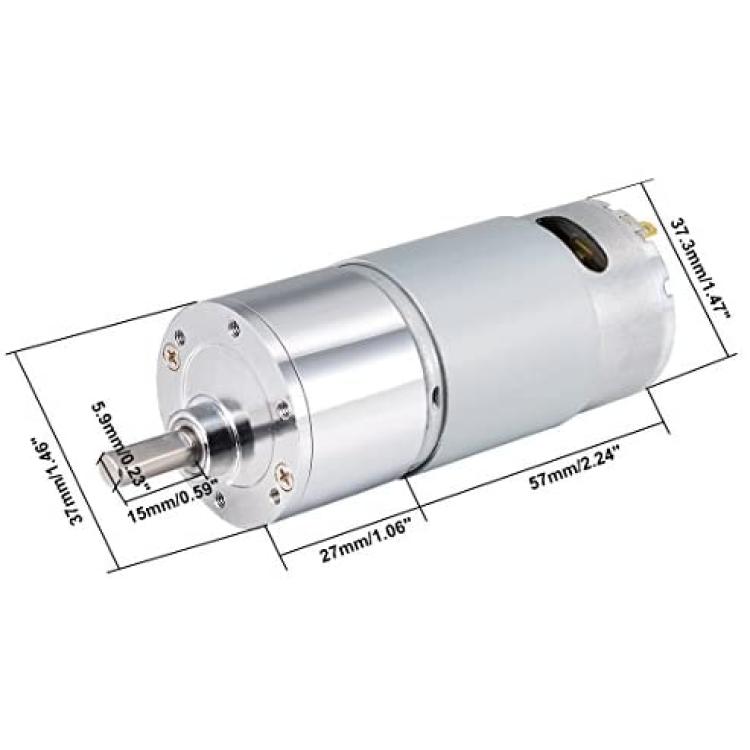

D Shaft Size: 15mm x 5.9mm/0.59 x 0.23 inches (L*D);
Gearbox Size: 27mm x 37mm/ 1.06 x 1.46 inches (L*D);
Motor Size: 57mm x 37.3mm/2.24 x 1.47 inches (L*D);
Mounting Hole Size: M3 (not included).
