BNYZWOT DC 12V 130RPM Turbo Worm Geared Motor High Torque Turbine Worm Gear Box Reduction Motor 6mm Shaft
Availability: In Stock
About this product
*Quality Guarantee - Authentic BNYZWOT brand, we are the ORIGINAL, now copied by many, but they cannot match our constant improvement of quality and personal customer care. Choose a brand you can trust, by people who use their own products. BNYZWOT you can believe in.
*The Data You Should Notice Before Buy - Rated Voltage: DC 12V; Gear Box No-load Speed: 130RPM; Rated Torque: 2.6kg-cm; Net Weight: 157g; Shaft Size: 6 x 14mm / 0.24inch x 0.31inch (D*L); Main Body Size: 78 x 31 x 25mm (L*W*H); Shaft Shape: D shaped shaft.
*Feature - The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation. -Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixedand self-locking. -The output shaft of the whole motor body is relatively short in the direction of normal speed reducer, and it is widely used in some situations where the installation dimension is required.
*Application - Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines and Stage lighting. This section is suitable for small motor configuration high speed ratio, the installation space is limited occasions, large torque output.
*What You Get - 1PCS x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.
Description
You can change the motor wiring positive and negative, and change the direction of rotation of the motor, so they have 2 characteristics:
-- Turbine worm gear motor with self-locking, that is, in the absence of electricity in the case of the motor, the output shaft is fixed;
-- The direction of the output shaft of the gearbox is perpendicular to the motor shaft, and the direction of the output shaft of the whole motor body is relatively short to the ordinary deceleration motor, and the utility model is widely adapted to occasions where the installation dimension is required.
Specifications:
Material: Metal
Rated Voltage: 12V
Speed: 130RPM

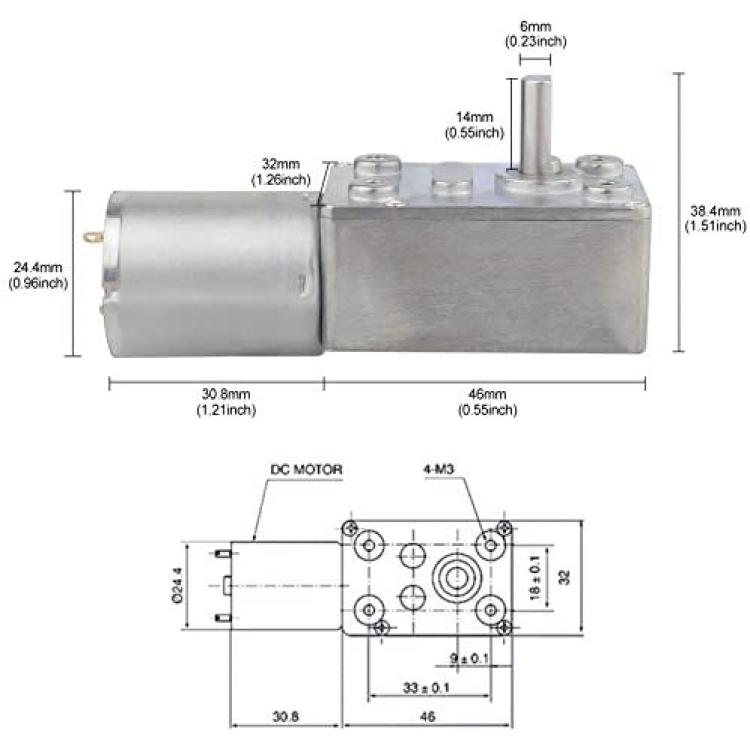

D Shaped Box Shaft Size: 6 x 14mm( 0.24" x 0.55")(D*L)
Female Thread Diameter: 2.5mm(0.1")
Motor Body Size: 30.8 x 24.4mm(1.21" x 0.96")(L*Max.D)
Gear Box Size: 46 x 32 x 25mm(1.81" x 1.26" x 0.98")(L*W*T)
Main Body Size: 76.8 x 32 x 25mm(3.02" x 1.26" x 0.98") (L*W*H)
Motor Pins Numbe: 2
Net Weight: 142g
Application:
Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines and Stage lighting. This section is suitable for small motor configuration high speed ratio, the installation space is limited occasions, large torque output.
Packages:
- 1 x DC Geared Motor
