uxcell DC 24V 30RPM Worm Gear Motor 6mm Shaft High Torque Turbine Reducer

uxcell DC 24V 30RPM Worm Gear Motor 6mm Shaft High Torque Turbine Reducer

Brand: uxcell
Product Code: HSM16776
Availability: In Stock

US$8.24

- +

For Bulk Order, Get Better Price.

About this product

*Technical Specification: Rated Voltage: DC 24V Output Speed: 30RPM; Rated Torque: 3kg-cm(2.6lb-in).

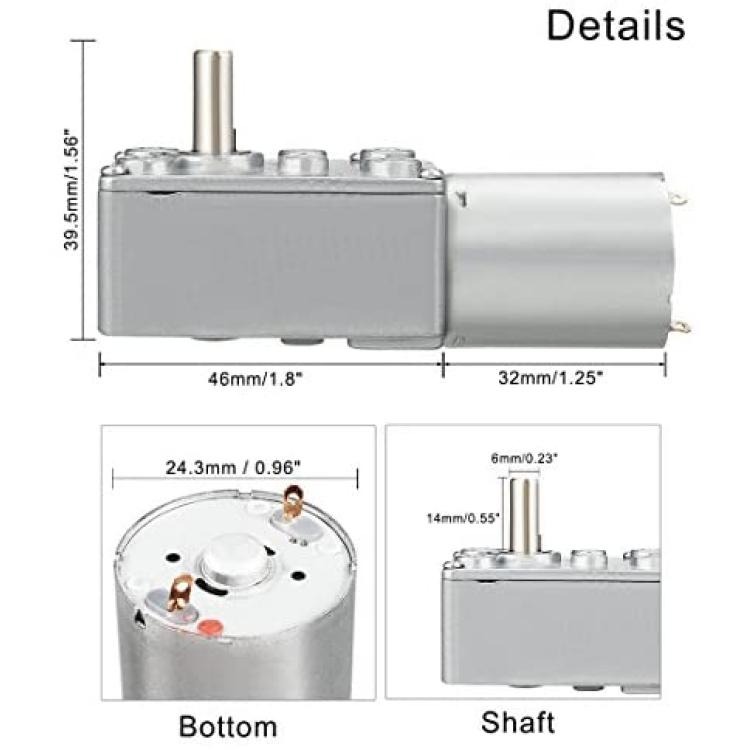

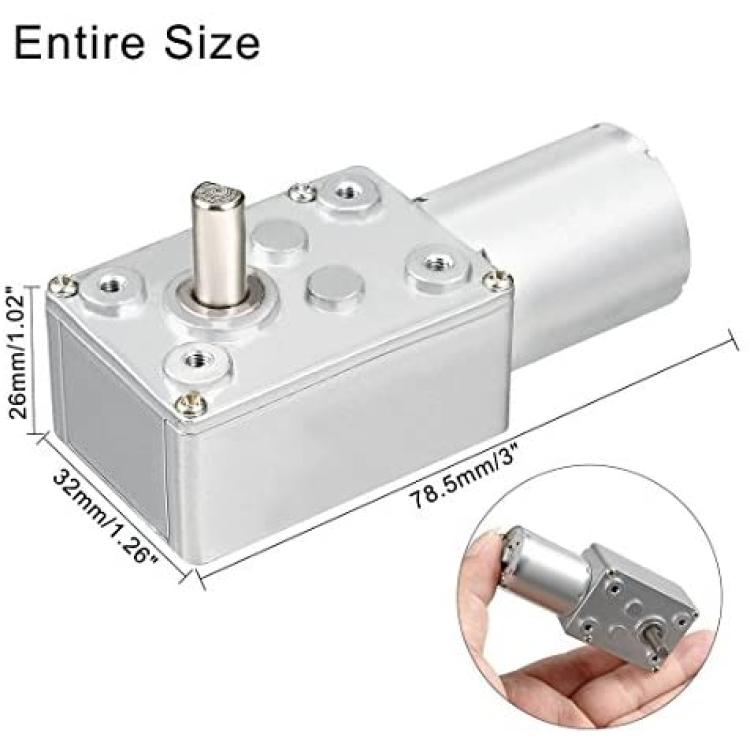

*Size: Box Shaft: 6 x 14mm/ 0.24inch x 0.55inch(D*L); Female Thread Diameter: 2.5mm/ 0.1inch; Motor Body: 30 x 25mm/ 1.2inch x 1inch(L*Max.D); Gear Box: 45 x 30 x 25mm/ 1.8inch x 1.2inch x 1inch(L*W*T).

*Feature - Gear DC Motor with Micro-Turbine Worm, change the motor rotation by changing the wiring-connection . With self-lock function, the output axis will be fixed when the motor is without electricity.

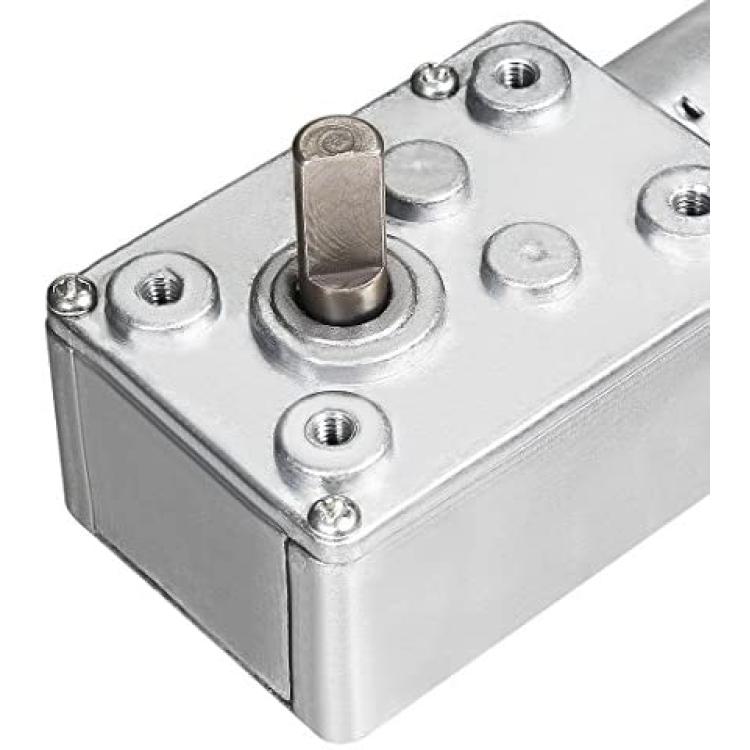

*Output Shaft arranged vertically with the motor shaft and is relatively short, fit for different occasions that require special installation size.

*Application: Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines and Stage lighting.

Description

It is widely used in various of occasions that require special install size.

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.

It is also have addition two characteristics: first, With self-locking, the output shaft can not rotation when switch off, that is self-locking. Second, Gearbox output shaft and motor shaft are come to be a rectangle.
