AZSSMUK DC 12 Volt Low 36 Rpm Turbo Worm Gearbox Motor High Torque Turbine Reducer with 6mm Shaft
About this product
*Super high torque, The Specs You Should Get Before Order - Rated Voltage: DC 12V; No-load Speed: 36RPM; Rated Torque: 3kg-cm; Reduction ratio: 1/180.

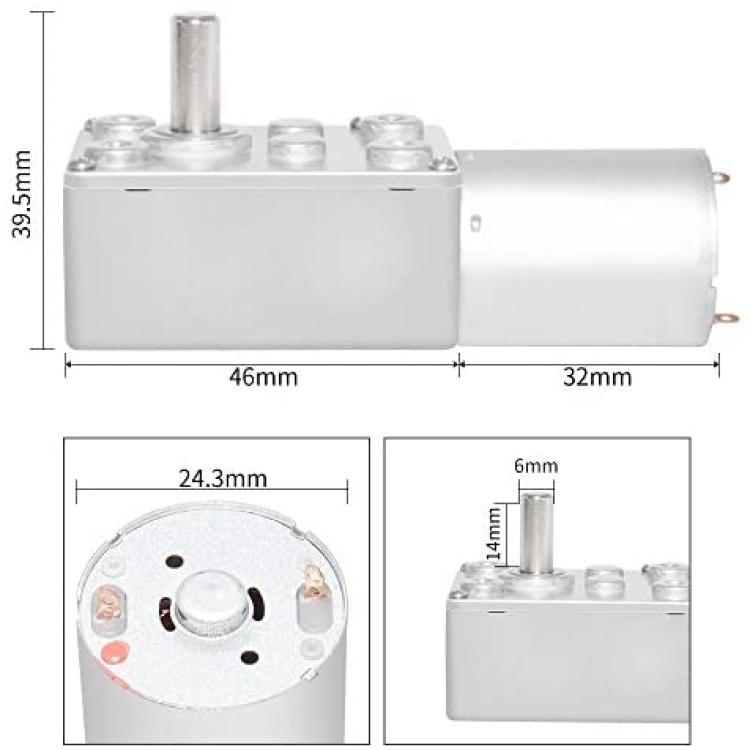

*Main Body Dimensions: 3 x 1.25 x 1.06inches(L*W*H); Out Shaft Dimensions: 0.53 * 0.23inches(L*D) with 0.047 * 0.43inches flat cut off. Smaller than you expected. They are about twice the volume of a standard hobby servo and twice the weight, which is stilpretty small and light for a wide range of applications.
*Very sturdy construction inside and outside. The outside shell is well build and has excellent access to mounting screws. The gears inside are all metal except the worm gears connection gear which is nylon to reduce friction---Super quiet and smooth operation, even under max load, Its almost inaudible; The brushes have carbon pads that last much longer life.
*Feature:The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation; Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock; The reducer output shaft arranged vertically with the motor shaft, whole motor output.
*Package Listing: 1PCS x DC Geared Motor+4pcs mounting screws; if you need other motors, pls contact us, there are many other models in our store.
Description
Feature:
- The motor is a reversible Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation.
-Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixedand self-locking.
-The output shaft of the whole motor body is relatively short in the direction of normal speed reducer, and it is widely used in some situations where the installation dimension is required.
- Application - Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines and Stage lighting. This section is suitable for small motor configuration high speed ratio, the installation space is limited occasions, large torque output.
Package Includes:

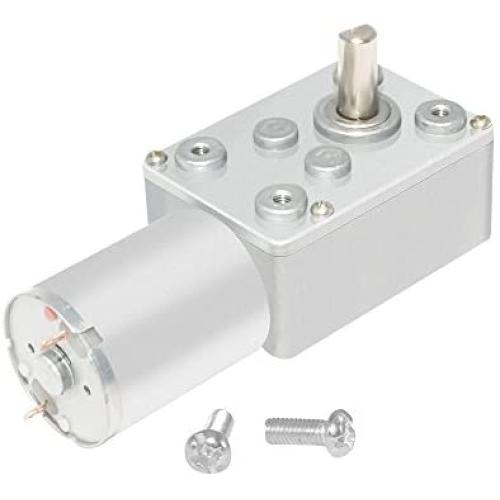

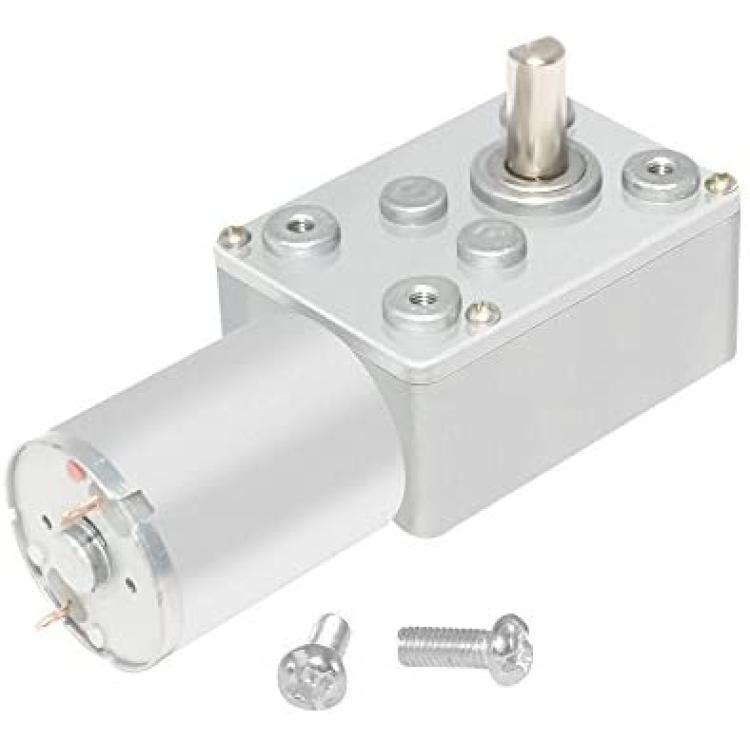

1Piece Turbo Worm Geared Motor+4Piece mounting screws.
